Retaining Rings - External - Circlips - Inverted

Retaining Rings -> External -> Circlips -> Inverted

There are 5 products in the sub-categories of Retaining Rings - External - Circlips - Inverted. Browse the Retaining Rings - External - Circlips - Inverted products table.

Category Details

A selection of Inverted Circlips External Retaining Rings. N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.

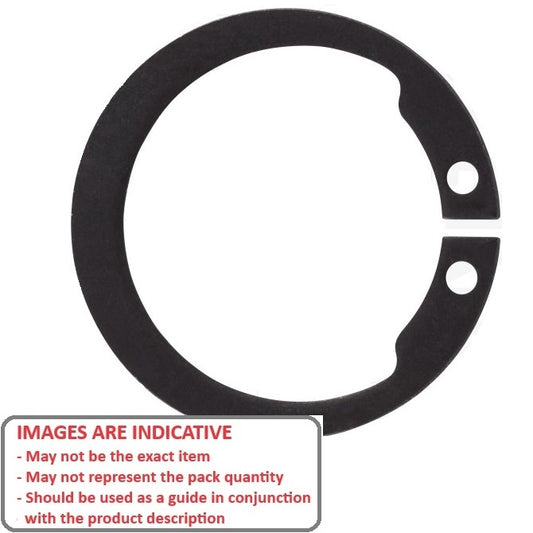

  • Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
  • Less thrust load than standard circlips.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Retaining Rings - External - Circlips - Inverted category on the MBA Minibearings main store.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative

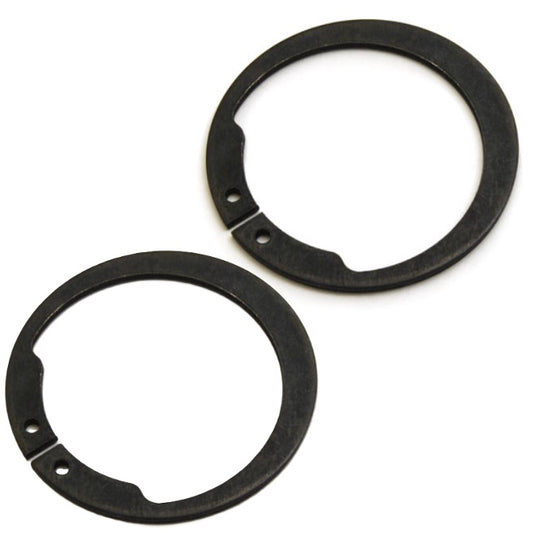

External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.051
(Equiv. 0.035 in.)
Groove Dia. (Dg)
11.89
mm
+/- 0.051
(Equiv. 0.468 in.)
Approx. Loose Circlip ID (A)
11.71
mm
Radial Wall (S) Approx.
1.04
mm
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
External Retaining Rings - 12.7x0.89x11.89 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-E038
Additional stock available from USA subject to Prior Sale = 4055
Part Number: CCE-01270-C-V (PK-10)
97 units (970 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$6.68 AUD
$6.68 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 97 available can be backordered.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.051
(Equiv. 0.035 in.)
Groove Dia. (Dg)
11.89
mm
+/- 0.051
(Equiv. 0.468 in.)
Approx. Loose Circlip ID (A)
11.71
mm
External Retaining Rings - 12.7x0.89x11.89 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 1.04 mm    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Tool: PRS-E038
Additional stock available from USA subject to Prior Sale = 4055
Part Number: CCE-01270-C-V (PK-10)
97 units (970 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$6.68 AUD
$6.68 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

97 units (970 pcs) Available Now. Backorder if more than 97.
External Retaining Rings - 16x1x15.2 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
16.00
mm

(Equiv. 0.63 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.11
(Equiv. 0.039 in.)
Groove Dia. (Dg)
15.20
mm
+ 0.00 / - 0.06
(Equiv. 0.598 in.)
Approx. Loose Circlip ID (A)
14.70
mm
Radial Wall (S) Approx.
2.30
mm
Groove Width (W)
1.10
mm
External Retaining Rings - 16x1x15.2 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-E009
Additional stock available from USA subject to Prior Sale = 3582
Part Number: CCE-01600-C-V (PK-10)
40 units (400 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$8.68 AUD
$8.68 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 40 available can be backordered.
External Retaining Rings - 16x1x15.2 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
16.00
mm

(Equiv. 0.63 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.11
(Equiv. 0.039 in.)
Groove Dia. (Dg)
15.20
mm
+ 0.00 / - 0.06
(Equiv. 0.598 in.)
Approx. Loose Circlip ID (A)
14.70
mm
External Retaining Rings - 16x1x15.2 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 2.30 mm    Groove Width (W): 1.10 mm    Tool: PRS-E009
Additional stock available from USA subject to Prior Sale = 3582
Part Number: CCE-01600-C-V (PK-10)
40 units (400 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$8.68 AUD
$8.68 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

40 units (400 pcs) Available Now. Backorder if more than 40.
External Retaining Rings - 17x1x16.2 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
17.00
mm

(Equiv. 0.669 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.11
(Equiv. 0.039 in.)
Groove Dia. (Dg)
16.20
mm
+ 0.00 / - 0.06
(Equiv. 0.638 in.)
Approx. Loose Circlip ID (A)
15.70
mm
Radial Wall (S) Approx.
2.40
mm
Groove Width (W)
1.10
mm
External Retaining Rings - 17x1x16.2 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-E009
Part Number: CCE-01700-C-V (PK-5)
61 units (305 pcs) Available Now | Further orders can be expected around Thu, Mar 19, 2026
$1.41 AUD
$3.82 AUD $1.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 61 available can be backordered.
External Retaining Rings - 17x1x16.2 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
17.00
mm

(Equiv. 0.669 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.11
(Equiv. 0.039 in.)
Groove Dia. (Dg)
16.20
mm
+ 0.00 / - 0.06
(Equiv. 0.638 in.)
Approx. Loose Circlip ID (A)
15.70
mm
External Retaining Rings - 17x1x16.2 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 2.40 mm    Groove Width (W): 1.10 mm    Tool: PRS-E009
Part Number: CCE-01700-C-V (PK-5)
61 units (305 pcs) Available Now | Further orders can be expected around Thu, Mar 19, 2026
$1.41 AUD
$3.82 AUD $1.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

61 units (305 pcs) Available Now. Backorder if more than 61.
External Retaining Rings - 19.84x1.07x18.62 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
19.84
mm

(Equiv. 0.781 in.)
Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.)
Groove Dia. (Dg)
18.62
mm
+/- 0.051
(Equiv. 0.733 in.)
Approx. Loose Circlip ID (A)
18.34
mm
Radial Wall (S) Approx.
1.45
mm
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
External Retaining Rings - 19.84x1.07x18.62 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-E038
Additional stock available from USA subject to Prior Sale = 1402
Part Number: CCE-01984-C-V (PK-2)
671 units (1342 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$4.14 AUD
$4.14 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 671 available can be backordered.
External Retaining Rings - 19.84x1.07x18.62 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
19.84
mm

(Equiv. 0.781 in.)
Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.)
Groove Dia. (Dg)
18.62
mm
+/- 0.051
(Equiv. 0.733 in.)
Approx. Loose Circlip ID (A)
18.34
mm
External Retaining Rings - 19.84x1.07x18.62 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 1.45 mm    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Tool: PRS-E038
Additional stock available from USA subject to Prior Sale = 1402
Part Number: CCE-01984-C-V (PK-2)
671 units (1342 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$4.14 AUD
$4.14 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

671 units (1342 pcs) Available Now. Backorder if more than 671.
External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
23.90
mm
+ 0.00 / - 0.06
(Equiv. 0.941 in.)
Approx. Loose Circlip ID (A)
23.20
mm
Radial Wall (S) Approx.
3.40
mm
Groove Width (W)
1.30
mm
External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-E013
Part Number: CCE-02500-C-V (PK-5)
25 units (125 pcs) Available Now | Further orders can be expected around Thu, Mar 19, 2026
$8.95 AUD
$8.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 25 available can be backordered.
External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
23.90
mm
+ 0.00 / - 0.06
(Equiv. 0.941 in.)
Approx. Loose Circlip ID (A)
23.20
mm
External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 3.40 mm    Groove Width (W): 1.30 mm    Tool: PRS-E013
Part Number: CCE-02500-C-V (PK-5)
25 units (125 pcs) Available Now | Further orders can be expected around Thu, Mar 19, 2026
$8.95 AUD
$8.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

25 units (125 pcs) Available Now. Backorder if more than 25.
