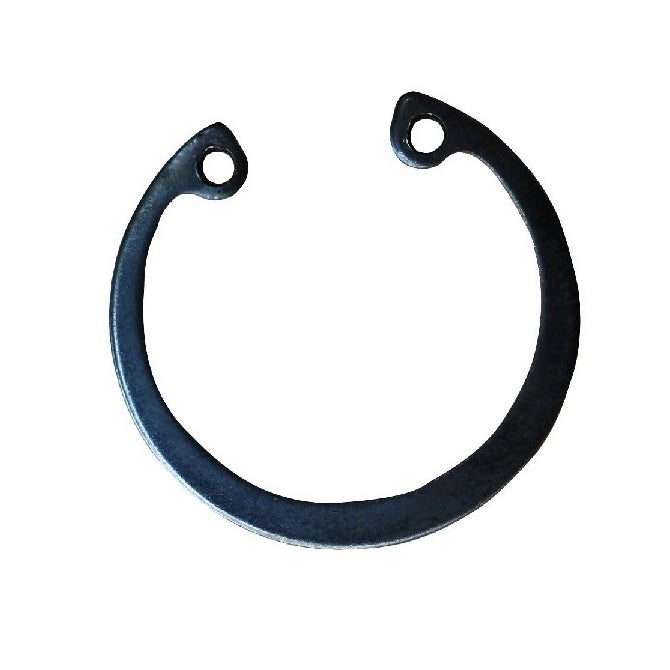

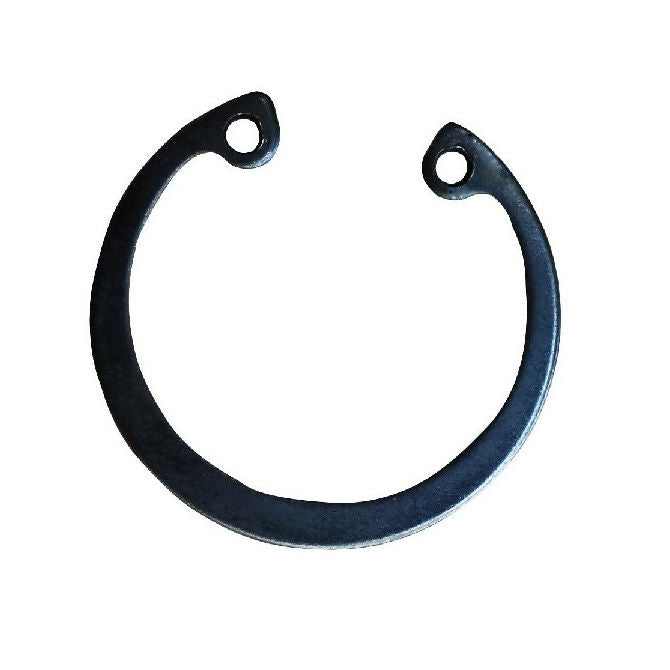

Internal Retaining Rings - 175x4x180 mm Circlips - Carbon Steel Circlip

CCI-17500-C (PK-5)

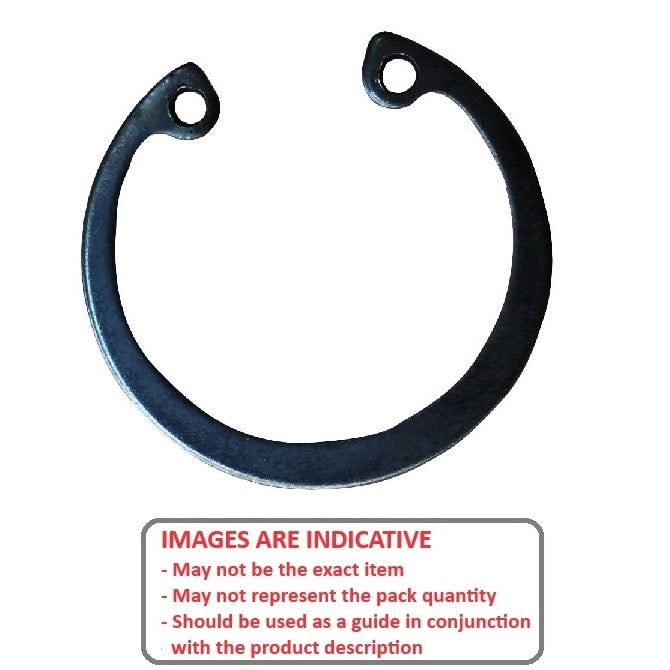

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Internal Retaining Rings - 175x4x180 mm - Carbon Steel
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$30.00 AUD
$57.00 AUD $30.00 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
 Qty: 1 pack (5 pcs) available now
Only 1 pack may be ordered online. If you need a large quantity, please contact us.

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Product Details


Deleted Item. Available while stocks last.

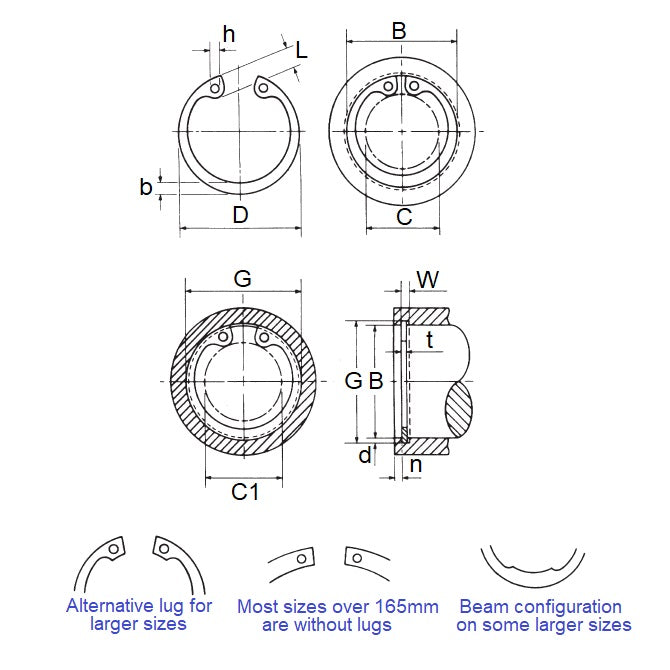

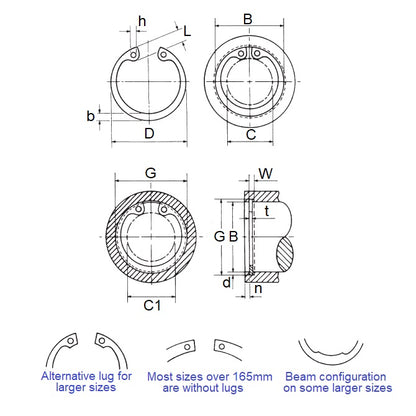

Housing Bore (B): 175.00mm
(175.00mm is 6.89 in.)

Carbon Steel
  • Housing Bore (B): 175.00mm
    (175.00mm is 6.89 in.)
  • Clip Thickness (T): 4.00mm
    + 0.00 / - 0.10
    (4.00mm is 0.157 in.)
  • Groove Dia. (Dg): 180.00mm
    + 0.63 / - 0.00
    (180.00mm is 7.087 in.)
  • Approx. Loose Circlip OD (Dr): 184.50mm
    + 1.70 / - 0.72
  • Groove Width (W): 4.15mm
    + 0.20 / - 0.00
  • Clearance in Bore (C): 146.60mm
  • Clearance in Groove (C1): 153.00mm
  • Min. Lug Diameter (h): 4.00mm
  • Min. Extension (n): 7.50
  • Standard: DIN472

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Ellison® 472-175
  • Bossard® BN-822-175
  • Waldes® D1300-175
  • NoCor® DHO-175
  • Rotor Clip® DHO-175
  • Seeger® J175
  • Seeger® J-175
  • Seeger® J175-WAS
  • Seeger® J175X4
  • Seeger® NZT.J175
  • BN822175
  • J175WAS
  • D1300175
  • DHO175
  • 472175

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
