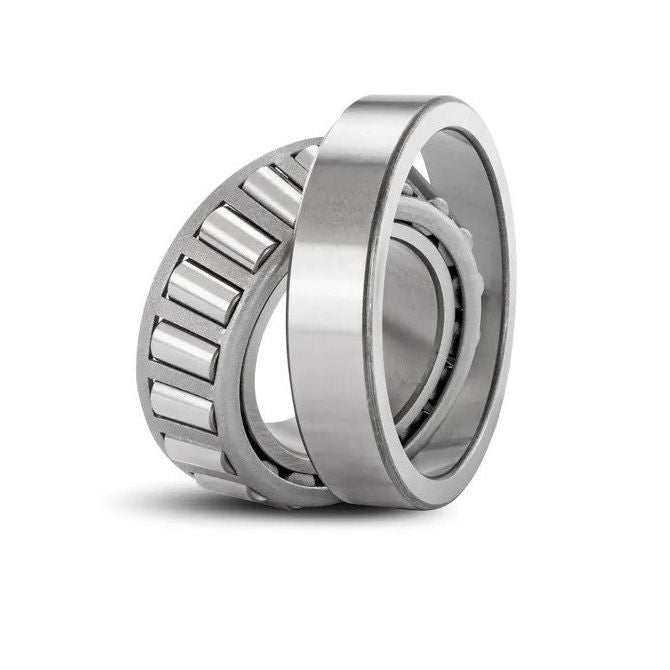

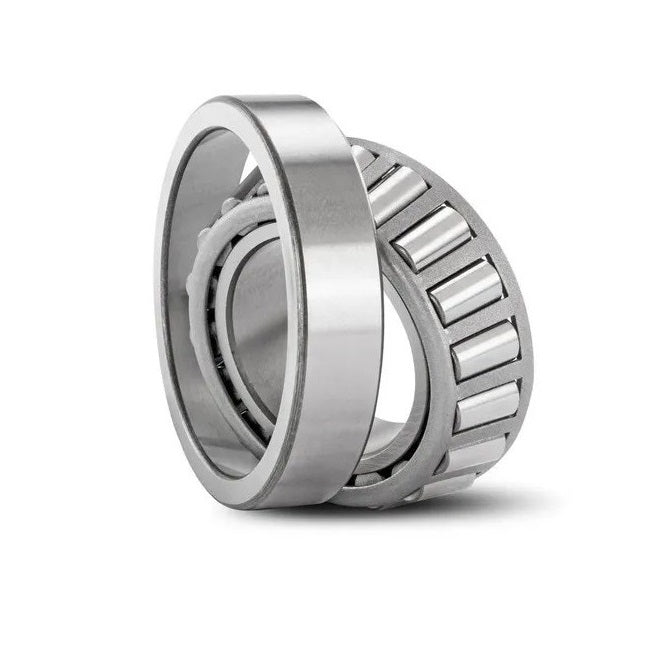

Tapered Roller Set Bearings - 15x35x11.75 mm / 11 mm - Chrome Steel

E30202J

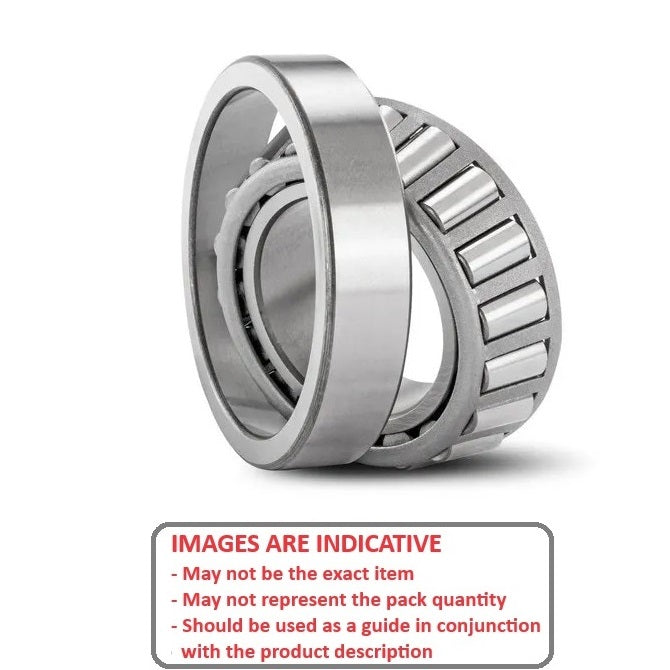

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Tapered Roller Set Bearings - 15x35x11.75 mm / 11 mm - Chrome Steel
1 4

MBA

Price:
$21.68 AUD
$21.68 AUD
Each
Qty: 2 available now
Order 50 or more for $19.51 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before May 31, 2025

Base Category: Bearings - Tapered Roller Set

Top Level Category: Bearings - Tapered Roller Set - Single Row - Metric

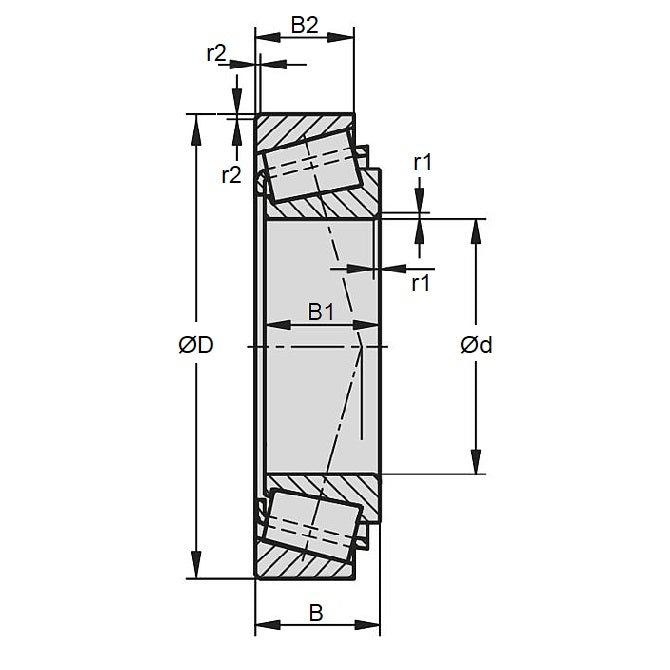

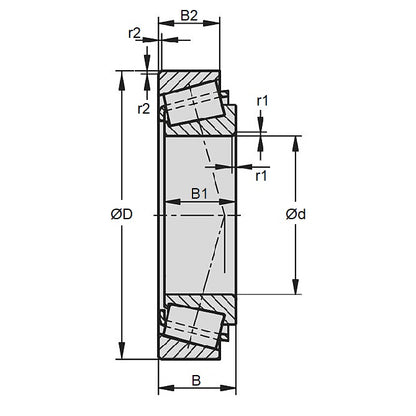

Product Details:

Inside Diameter: 15mm
(15mm is 0.591 in.)

Chrome Steel
  • Outside Diameter: 35mm
    (35mm is 1.378 in.)
  • Assembled Width: 11.750mm
    (11.750mm is 0.463 in.)
  • Cone Width: 11mm
  • Cup Width: 10mm
  • Radius Cone (min): 0.600mm
  • Radius Cup (min): 0.600mm
  • Basic Dynamic Load: 14800N
  • Basic Static Load: 14100N
  • Limiting Speed for Grease: 11000
  • Limiting Speed for Oil: 15000

Brand: MBA
Country of Origin: JP

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
