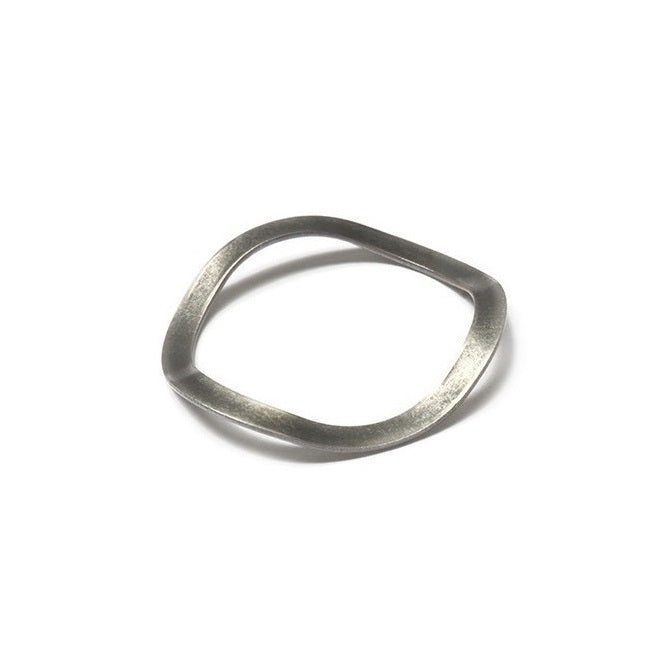

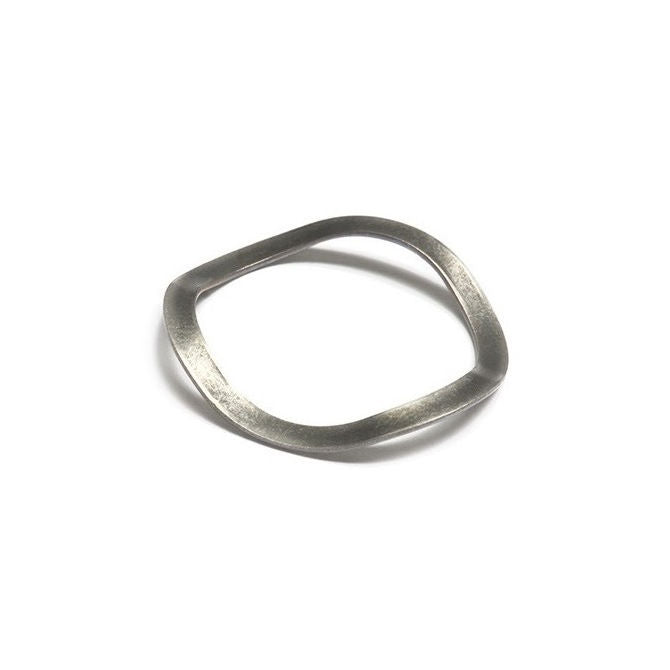

Spring Washers - 15x22x2.1 mm Wave - Carbon Spring Steel Self Finish Washer

Name: 1108464 | W0150-T-022-021-W3-C (Each) --- Spring Washers - 15x22x2.1 mm Wave - Carbon Spring Steel Self Finish Washer
Rating: 5.0 (1 reviews)

W0150-T-022-021-W3-C (Each)

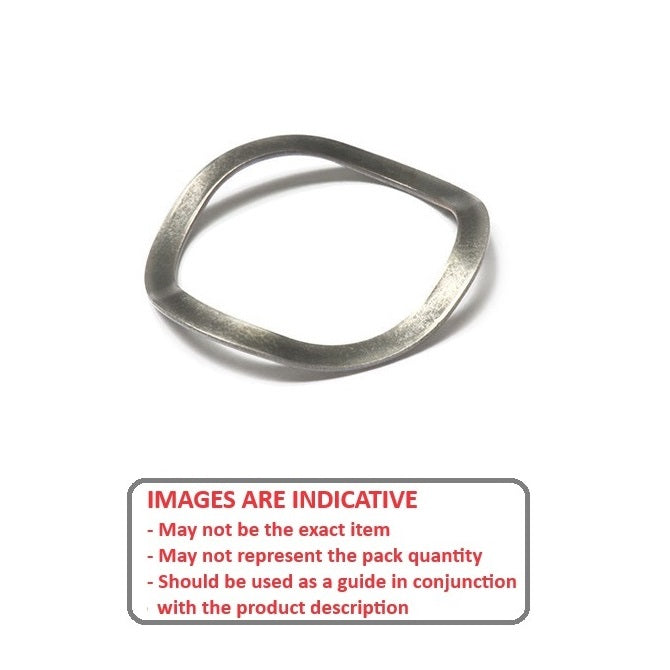

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Washers - Spring - Wave - Carbon Steel

Additional resources:
Assortment Kits
Screws

Price:

$1.41 AUD

~~$1.69 AUD~~ $1.41 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 254 available now
Order 50 or more for $1.27 AUD

Product Details

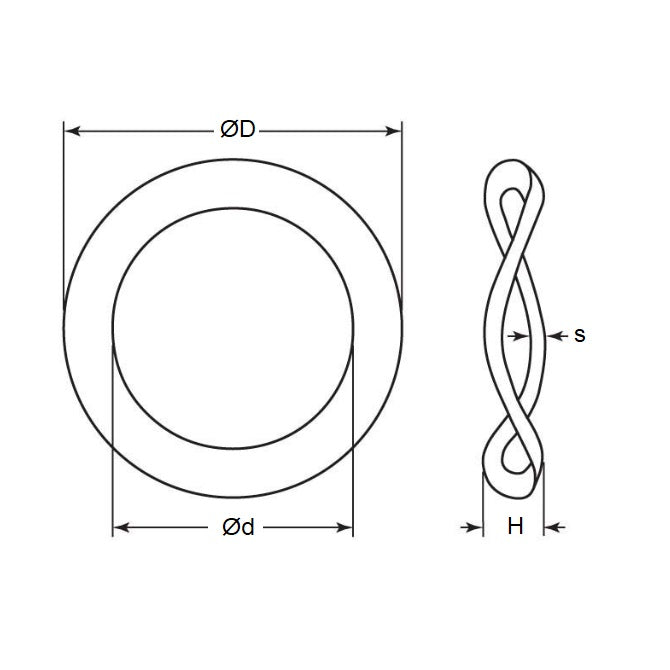

Nominal Inside Diameter (d): 15.00mm
_{+ 0.7 / + 1.0}
_{(15.00mm is 0.591 in.)}

Carbon Spring Steel Self Finish

Nominal Inside Diameter (d): 15.00mm
_{+ 0.7 / + 1.0}
_{(15.00mm is 0.591 in.)}
Nominal Outside Diameter (D): 22.00mm
_{- 0.7 / - 1.0}
_{(22.00mm is 0.866 in.)}
Nom. Height (H): 2.10mm
_{(2.10mm is 0.083 in.)}
Thickness (s): 0.20mm
Info: Suits OD of 608, and 627, and E7 Bearings (Equiv EPL012)
Type: 3 Wave
Nominal Screw Size: M15
Spring Rate: 34N/mm
Load at Height: 3.1 N at 1 mmRef.

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Similar to

ExaktKey EPL012
NoCor EPL012
Springmaster EPL012
XOSpring EPL012
EPL12
W0150T022020W3C

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
