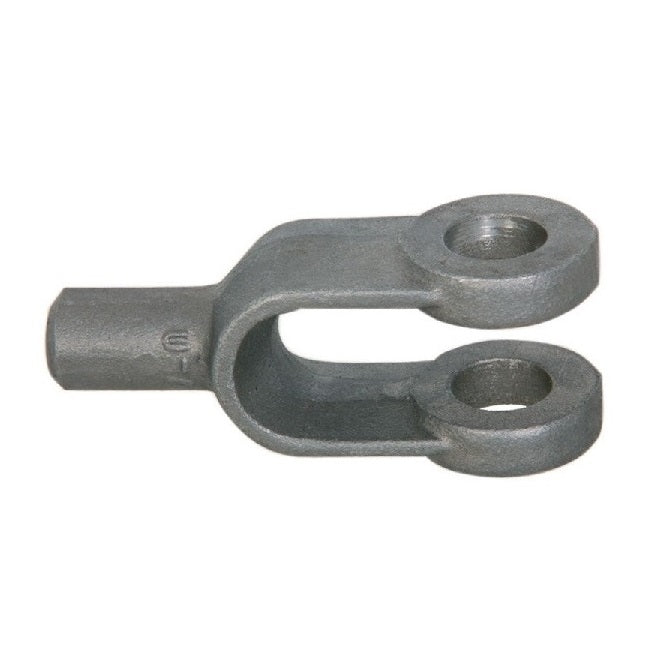

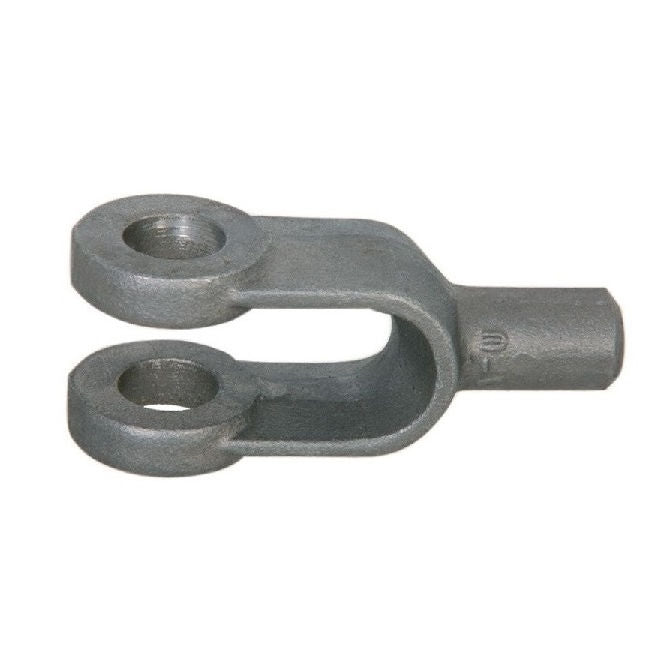

Blank Yoke Ends - 152.4x25.4x26.99 mm - Carbon Steel

Y2540-SLD-C (Each)

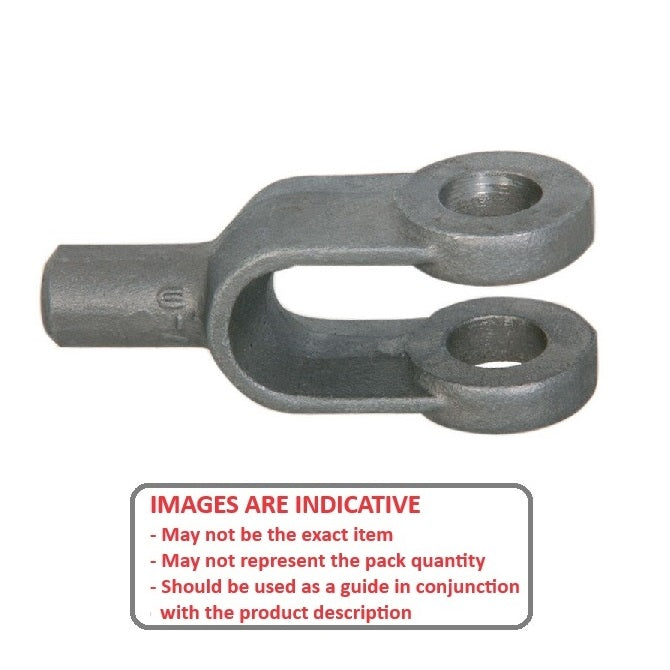

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Blank Yoke Ends - 152.4x25.4x26.99 mm
1 4

MBA

Store Name: Small Parts & Bearings

Category: Yoke Ends - Blank
Price:
$58.24 AUD
$183.66 AUD $58.24 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

6x1x1-1/16 inch Yoke - 152.4x25.4x26.99 mm Blank Yoke Ends - Carbon Steel - Sold Per Each:

Base Category: Yoke Ends - Blank

Top Level Category: Yoke Ends - Blank

Product Details


Deleted Item. Available while stocks last.

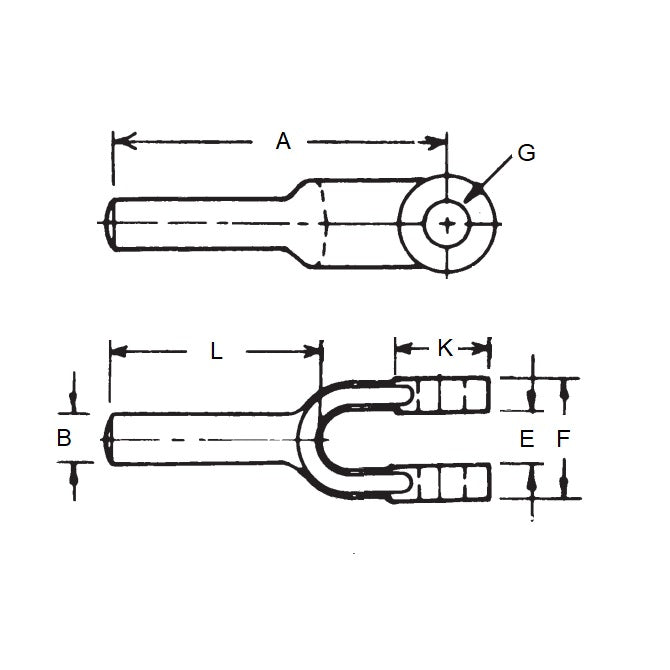

Effective Length (A): 152.400mm
(152.400mm is 6 in.)

Carbon Steel
  • Effective Length (A): 152.400mm
    (152.400mm is 6 in.)
  • Body Diameter (B): 25.400mm
    (25.400mm is 1 in.)
  • Gap (E) +/- 0.38: 26.990mm
    (26.990mm is 1.063 in.)
  • Width (F) +/- 0.38: 53.98mm
  • Hole Size (G) +0.25: 25.40mm
  • Stud Height (L): 76mm
  • Housing Diameter (K): 49mm

Brand: MBA
Country of Origin: US

Product Compliance and Data


We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
