RR-062 (2 Pcs)
Spiral - 15.88 mm x 0.64 mm x 14.3 mm
MBA
Additional resources:Snap Rings
Spiral Rings and Snap Rings PDF
Qty: 141 available now (282 pcs)
Order 50 or more (100 pcs) for $7.49 AUD per 2
Couldn't load pickup availability
Base Category: Spiral Rings - Internal
Top Level Category: Spiral Rings - Internal - Medium Duty - Carbon Steel
Product Details:Additional stock available from USA subject to Prior Sale = 19441

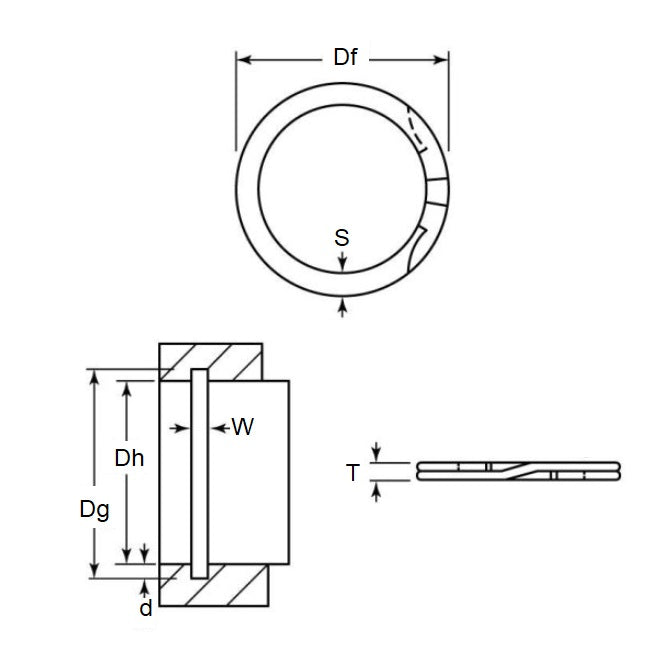

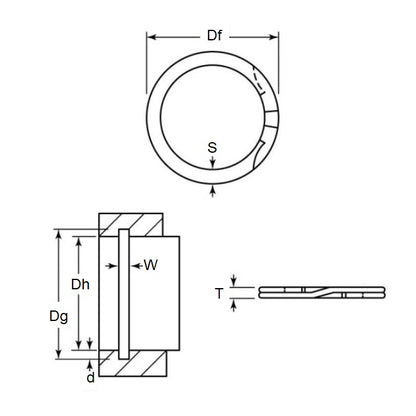

Bore (Db): 15.88mm
Spring Steel
- Thickness (T): 0.64mm
+/-0.06
- Approx. Free ID: 14.3mm
- Free OD Max. (Dr): 16.58mm
+0.33/-0.00
- Radial Wall (S): 1.14mm
+/-0.10
- Groove Dia. (Dg): 16.53mm
+/-0.05
- Groove Width (W): 0.80mm
-
+/-0.04
- Groove Depth (d): 0.33
Brand: MBA
Country of Origin: US
Alternatives: 92602A120, AI-062, RR-062, WH-062
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
