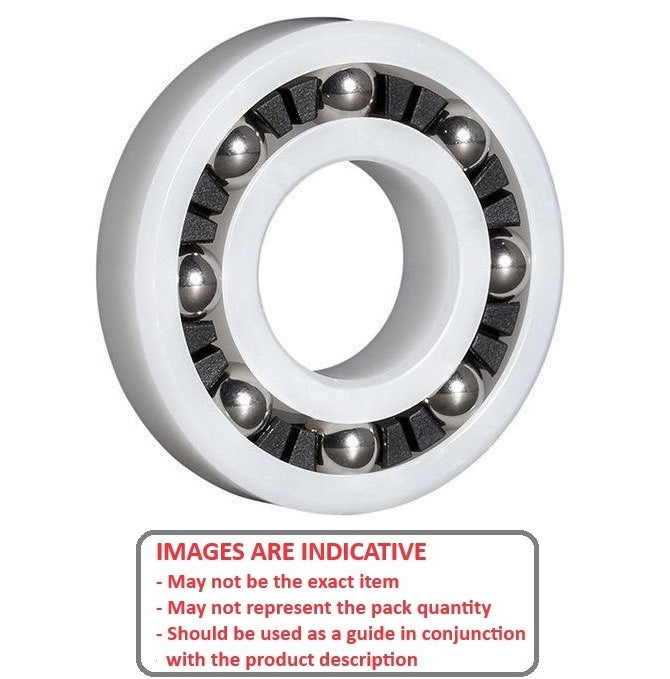

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

P-R11820B-AS6

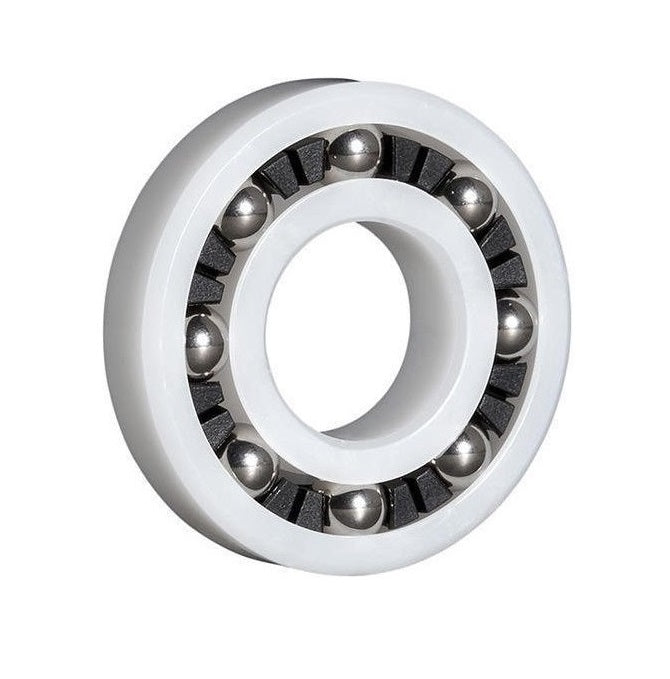

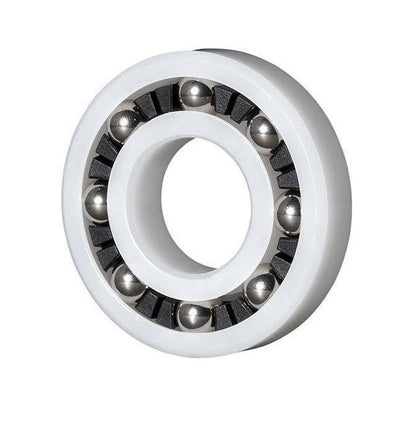

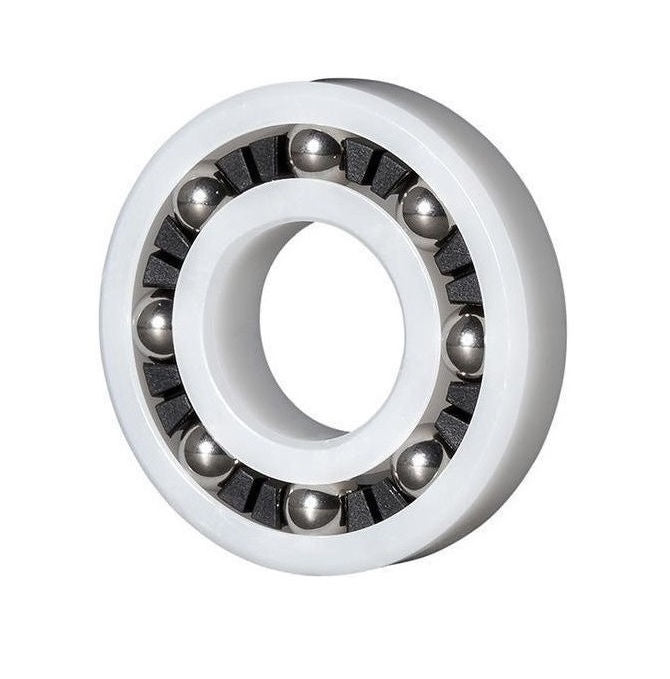

Plastic Bearings - 15.875 mm x 28.575 mm x 7.938 mm

Name: 1112198 | P-R11820B-AS6 --- Plastic Bearings - 15.875 mm x 28.575 mm x 7.938 mm
Brand: KMS
SKU: PR11820BAS6
Price: 23.68 AUD
Availability: InStock

KMS

Category: Bearings - Plastic - Acetal - 316 Stainless Balls

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

Price:

$23.68 AUD

Each
Qty: 19 available now
Order 50 or more for $21.31 AUD Each

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Mar 02, 2025

Quantity

Base Category: Bearings - Plastic

Top Level Category: Bearings - Plastic - Acetal - 316 Stainless Balls

Product Details:

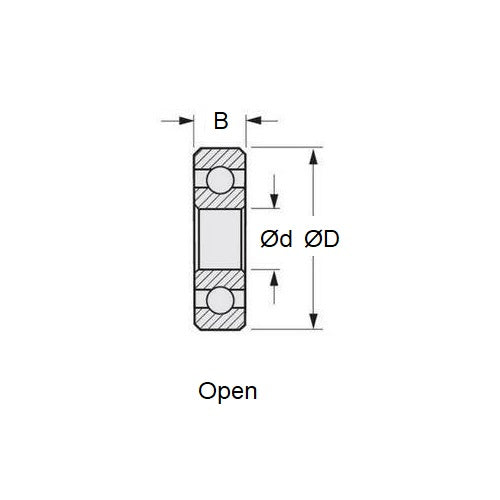

ID (d): 15.875mm
_{+ 0.076 / - 0.000}

Acetal with 316 Stainless Balls

OD (D): 28.575mm
_{+ 0.000 / - 0.102}
Width (B): 7.938mm
_{+ 0.127 / - 0.000}
Max RPM in Air: 1142
Type: Radial
Dynamic Load Rating: 24.6Kg
Static Load Rating: 19.2Kg

Brand: KMS
Country of Origin: US

Alternatives: 6455K35, AR8-5/8-5/16W-6, AR8-5-8-5-16W-6, AS6R11820B, R1182

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
