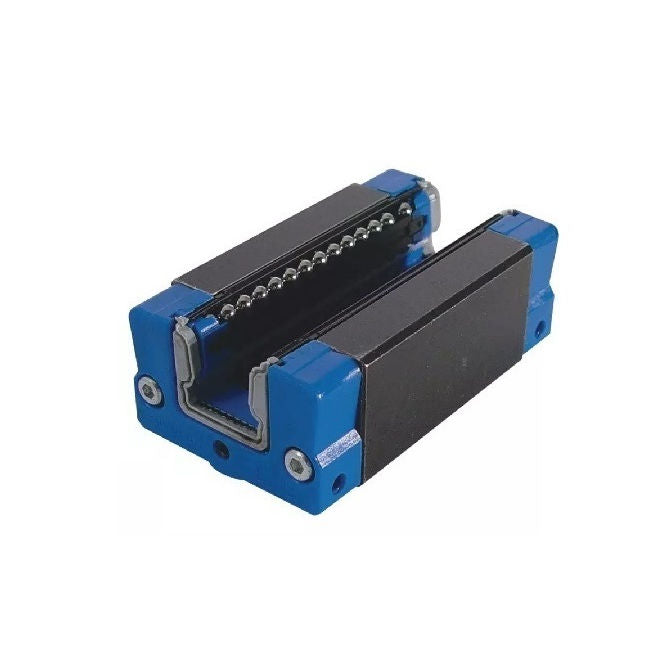

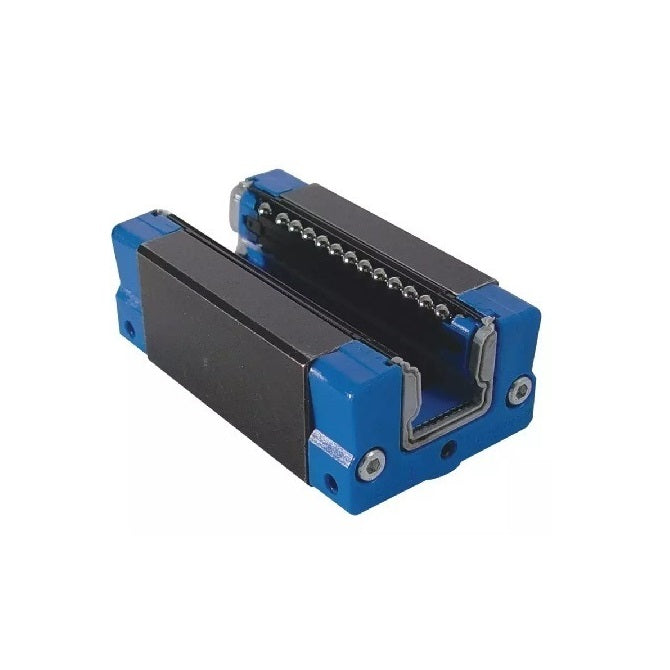

Rail Systems Type 3 Carriage Linear - Size Reference 15 - 24x34 mm Narrow

TLM-3091RS (Each)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Rail Systems Type 3 Carriage Linear - Size 15 - 24x34 mm
1 4

MBA

Store Name: Small Parts & Bearings

Price:
$552.23 AUD
$552.23 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $497.01 AUD Each
Backorder now! Backorders are expected before Sep 16, 2026

Size Reference 15 - 24x34 mm Rail Systems Type 3 Carriage Linear - - Sold Per Each:

Base Category: Linear - Rail Systems Type 3 Carriage

Top Level Category: Linear - Rail Systems Type 3 Carriage - Narrow

Product Details

Size Reference: 15
  • Size Reference: 15

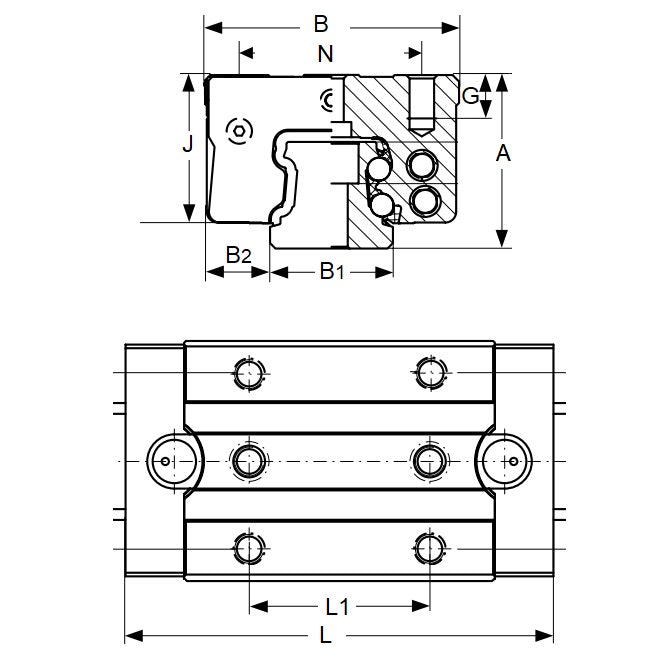

  • Height (A): 24.000mm
    (24.000mm is 0.945 in.)
  • Width (B): 34.000mm
    (34.000mm is 1.339 in.)
  • Rail Width (B1): 15.000mm
  • B8: 9.500mm
  • Bolt Centres Width (N): 26.000mm
  • Carriage Height (J): 20.200mm
  • Bolt Depth (G): 5.000mm
  • Length (L): 59.800mm
  • Bolt Centres Length (L1): 26.000mm
  • Bolt Size (S2): M4 (4x0.7mm)
  • Dynamic Load Rating: 917.745N

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Thompson® 511H15C0

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
