Linear - Rail Systems Type 3 Carriage

2 Products in this selection
This category includes various types of rail systems type 3 carriage linear.
  • High load linear guides. Crowned rollers prevent roller edge loading when misalignment is present.
  • High rigidity from back to back four roller track arrangement. Smooth, quiet movement through patented insert molded recirculation paths and optimized geometries.
  • Applications include industrial automation, material handling, machine & tool equipment and more.
Linear - Rail Systems Type 3 Carriage
Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Linear - Rail Systems Type 3 Carriage.
Size Reference Height (A) Width (B) Rail Width (B1) B8 Bolt Centres Width (N) Indicative
Size Reference
15
Height (A)
24.000
mm
Width (B)
34.000
mm
Rail Width (B1)
15.000
mm
B8
9.500
mm
Bolt Centres Width (N)
26.000
mm

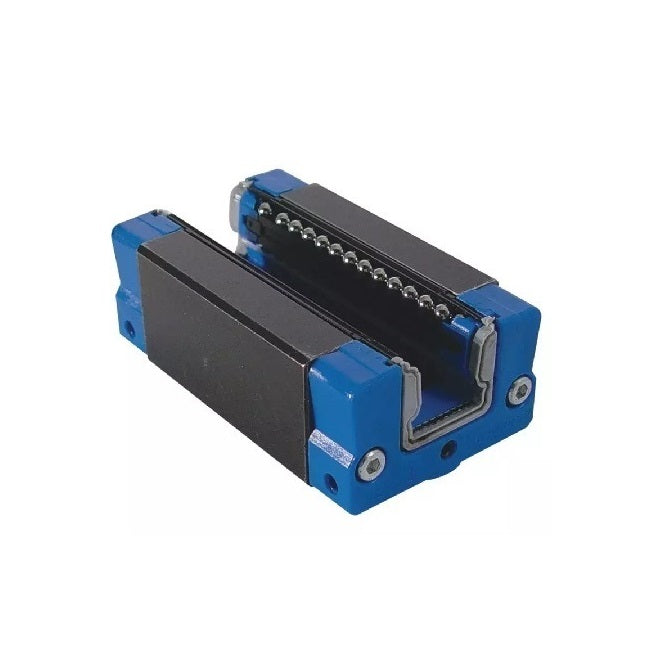

Rail Systems Type 3 Carriage Linear - Size 15 - 24x34 mm
Carriage Height (J): 20.200 mm    Bolt Depth (G): 5.000 mm
Category: Linear - Rail Systems Type 3 Carriage - Narrow
Part Number: TLM-3091RS (Each) Rail Systems Type 3 Carriage Linear - Size Reference 15 - 24x34 mm Narrow
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 22, 2026
$552.23 AUD
$552.23 AUD
Each
Size Reference Height (A) Width (B) Rail Width (B1) Indicative
Size Reference
15
Height (A)
24.000
mm
Width (B)
34.000
mm
Rail Width (B1)
15.000
mm
Rail Systems Type 3 Carriage Linear - Size 15 - 24x34 mm
B8: 9.500 mm    Bolt Centres Width (N): 26.000 mm    Carriage Height (J): 20.200 mm    Bolt Depth (G): 5.000 mm
Category: Linear - Rail Systems Type 3 Carriage - Narrow
Part Number: TLM-3091RS (Each) Rail Systems Type 3 Carriage Linear - Size Reference 15 - 24x34 mm Narrow
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 22, 2026
$552.23 AUD
$552.23 AUD
Each
View the product page first if you are unsure.
Size Reference
15
Height (A)
24.000
mm
Width (B)
47.000
mm
Rail Width (B1)
15.000
mm
B8
16.000
mm
Bolt Centres Width (N)
38.000
mm

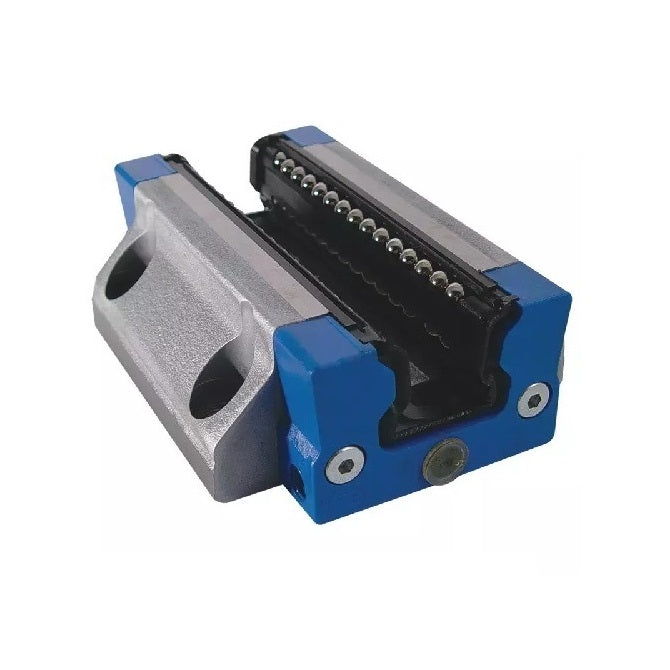

Rail Systems Type 3 Carriage Linear - Size 15 - 24x47 mm
Carriage Height (J): 20.200 mm    Bolt Depth (G): 7.000 mm
Category: Linear - Rail Systems Type 3 Carriage - Standard
Part Number: TLM-3085RS (Each) Rail Systems Type 3 Carriage Linear - Size Reference 15 - 24x47 mm Standard
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 22, 2026
$552.50 AUD
$552.50 AUD
Each
Size Reference
15
Height (A)
24.000
mm
Width (B)
47.000
mm
Rail Width (B1)
15.000
mm
Rail Systems Type 3 Carriage Linear - Size 15 - 24x47 mm
B8: 16.000 mm    Bolt Centres Width (N): 38.000 mm    Carriage Height (J): 20.200 mm    Bolt Depth (G): 7.000 mm
Category: Linear - Rail Systems Type 3 Carriage - Standard
Part Number: TLM-3085RS (Each) Rail Systems Type 3 Carriage Linear - Size Reference 15 - 24x47 mm Standard
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 22, 2026
$552.50 AUD
$552.50 AUD
Each
