A selection of Standard Rail Systems Type 3 Carriage Linear. Match with rail by size column 1. Thomson 500 Series provide long life, exceptional rigidity, high dynamic and static load capabilities in all directions.

  • Accommodates high moment loads and maintains high running accuracy. Improved machine accuracies and rigidity resulting in reduced vibration and extended machine and tool life.
  • Low drag longitudinal seals protect the the balls and ball path from contamination.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Linear - Rail Systems Type 3 Carriage - Standard category on the MBA Minibearings main store.
Size Reference Height (A) Width (B) Rail Width (B1) B8 Bolt Centres Width (N) Indicative

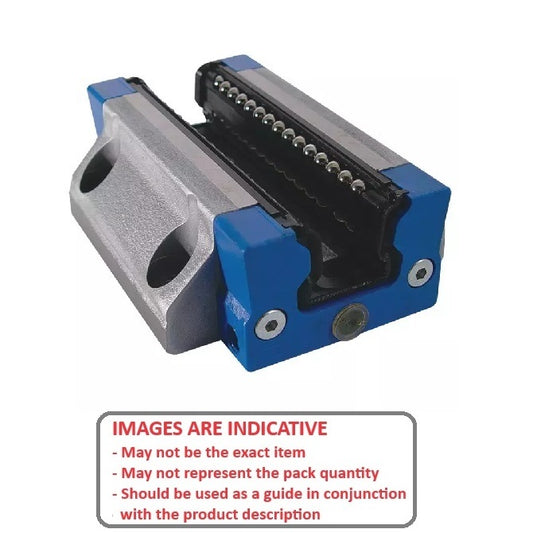

Rail Systems Type 3 Carriage Linear - Size Reference 15 - 24x47 mm Standard
Size Reference
15

Height (A)
24.000
mm

(Equiv. 0.945 in.)
Width (B)
47.000
mm

(Equiv. 1.85 in.)
Rail Width (B1)
15.000
mm
B8
16.000
mm
Bolt Centres Width (N)
38.000
mm
Rail Systems Type 3 Carriage Linear - Size 15 - 24x47 mm
Carriage Height (J): 20.200 mm    Bolt Depth (G): 7.000 mm    Length (L): 59.800 mm    Bolt Centres Length (L1): 30.000 mm    Bolt Size (S2): M5 (5x0.8mm)    Dynamic Load Rating: 917.745 N
Part Number: TLM-3085RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$486.86 AUD
$486.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Size Reference Height (A) Width (B) Rail Width (B1) Indicative
Rail Systems Type 3 Carriage Linear - Size Reference 15 - 24x47 mm Standard
Size Reference
15

Height (A)
24.000
mm

(Equiv. 0.945 in.)
Width (B)
47.000
mm

(Equiv. 1.85 in.)
Rail Width (B1)
15.000
mm
Rail Systems Type 3 Carriage Linear - Size 15 - 24x47 mm
B8: 16.000 mm    Bolt Centres Width (N): 38.000 mm    Carriage Height (J): 20.200 mm    Bolt Depth (G): 7.000 mm    Length (L): 59.800 mm    Bolt Centres Length (L1): 30.000 mm    Bolt Size (S2): M5 (5x0.8mm)    Dynamic Load Rating: 917.745 N
Part Number: TLM-3085RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$486.86 AUD
$486.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
