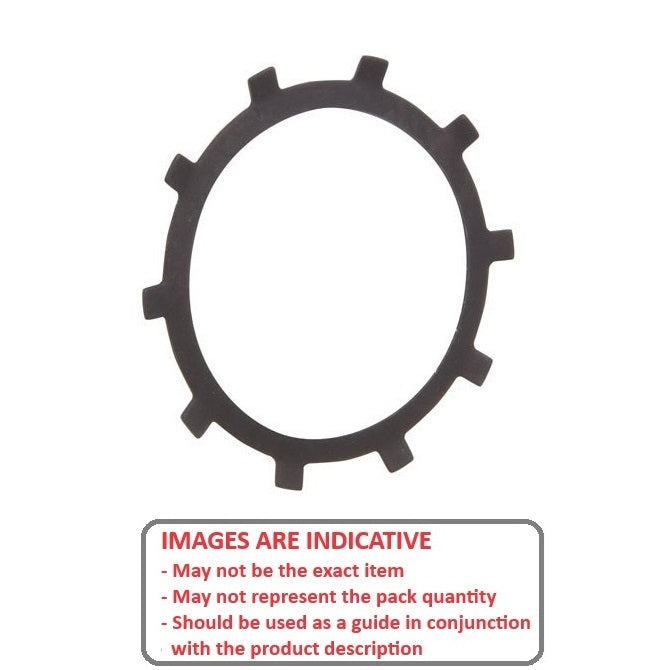

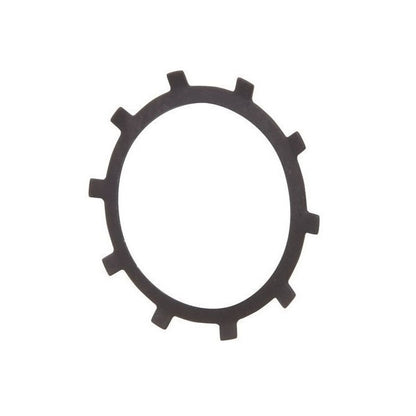

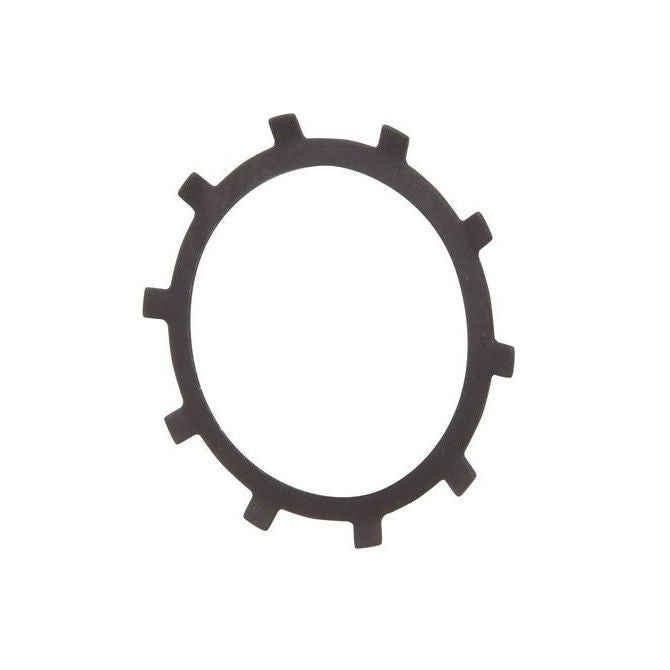

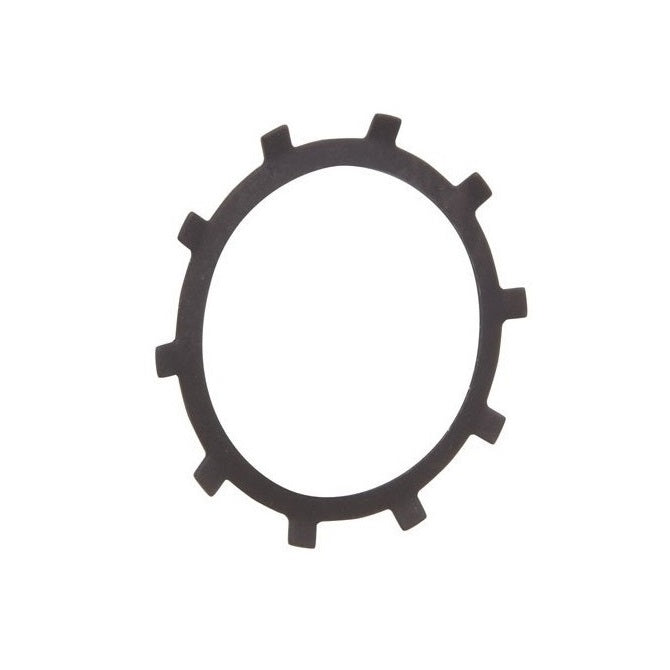

RPI-142-143-C (50 Pcs)
Push - 14.22 mm x 14.33 mm x 7.92 mm
MBA
Qty: 4 available now (200 pcs)
Order 50 or more (2500 pcs) for $7.49 AUD per 50
Couldn't load pickup availability
Base Category: Push In Retaining Rings - Carbon Steel
Top Level Category: Push In Retaining Rings - Carbon Steel

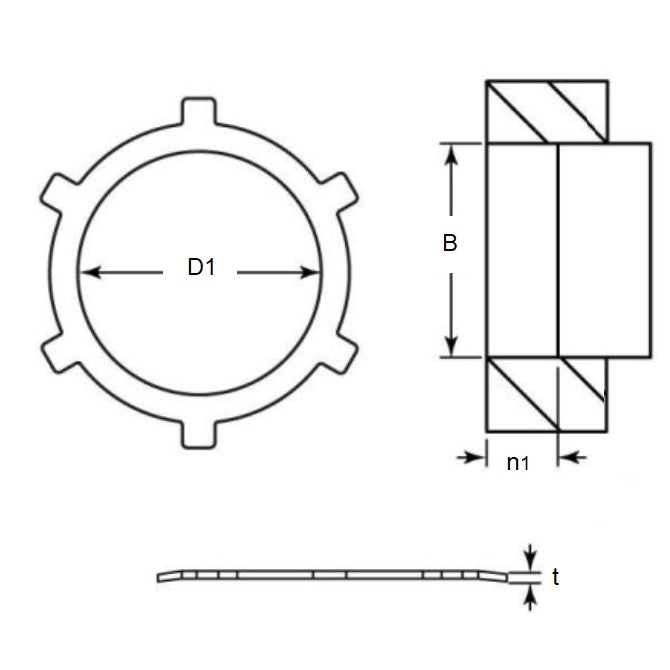

Product Details:Housing Bore (B) Min: 14.22mm
Carbon Spring Steel
- Housing Bore (B) Max: 14.33mm
- Inside Clearance (D1): 7.92mm
+/-0.26
- Thickness (t): 0.25mm
+/-0.03
- Recommended Depth (n1): 1.02mm
- Thrust Load: 691kg.cm
Brand: MBA
Country of Origin: US
Alternatives: 98435A161, C17026, N1305-0056APP, N1305-0056-APP, S73PH1-PIR005056, TI-056
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
