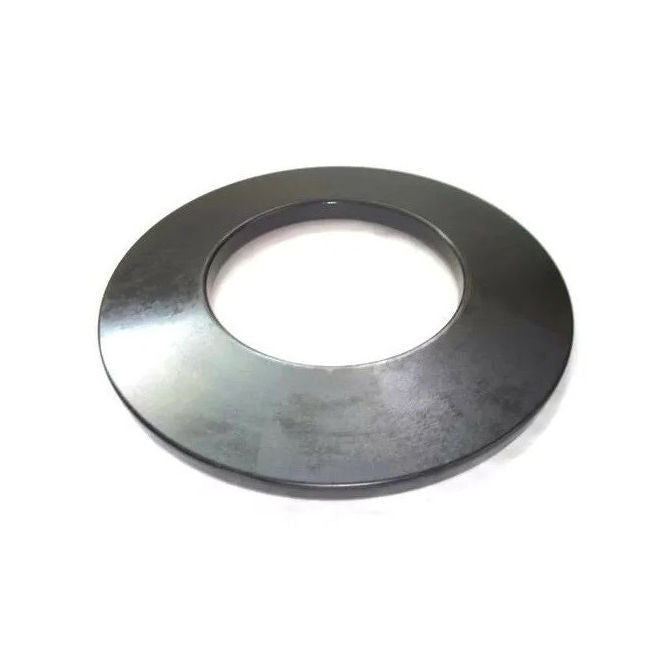

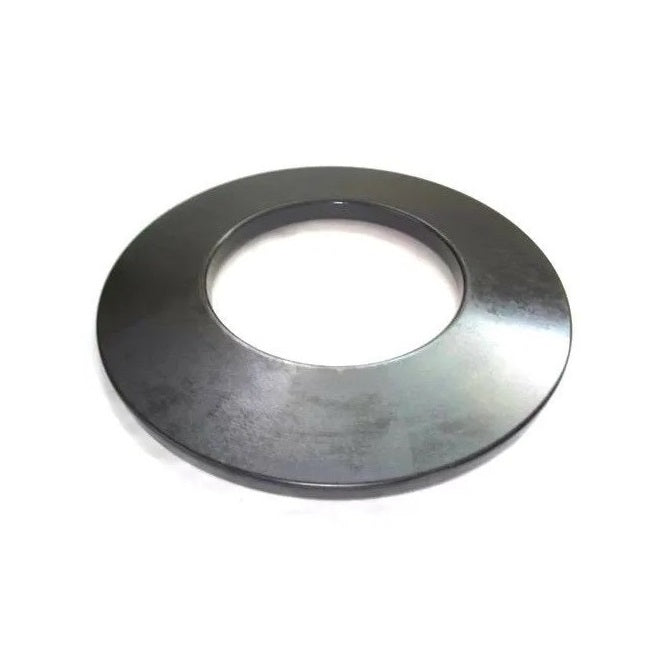

Disc Spring Washers - 12x4x0.6 mm - Carbon Steel

W0040-D-012-006-C (10 Pcs)

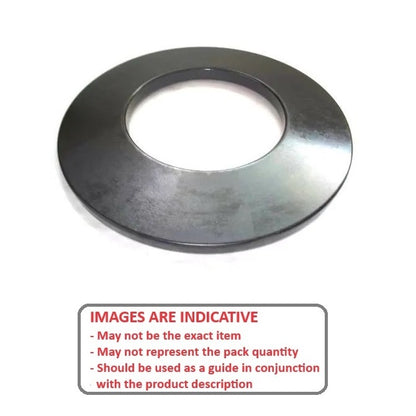

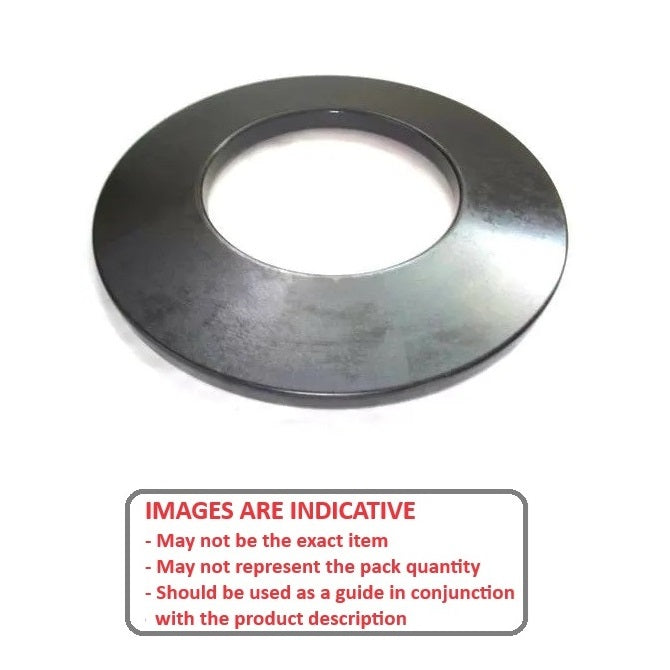

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Disc Spring Washers - 12x4x0.6 mm - Carbon Steel
1 4

MBA

Additional resources:
Disc Spring Washers PDF
Screws
Price:
$3.26 AUD
$7.70 AUD $3.26 AUD
per 10
Qty: 9 available now (90 pcs)
Only 9 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Washers - Disc Spring

Top Level Category: Washers - Disc Spring - Standard - Carbon Steel

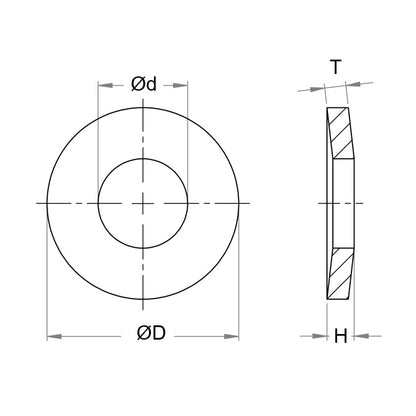

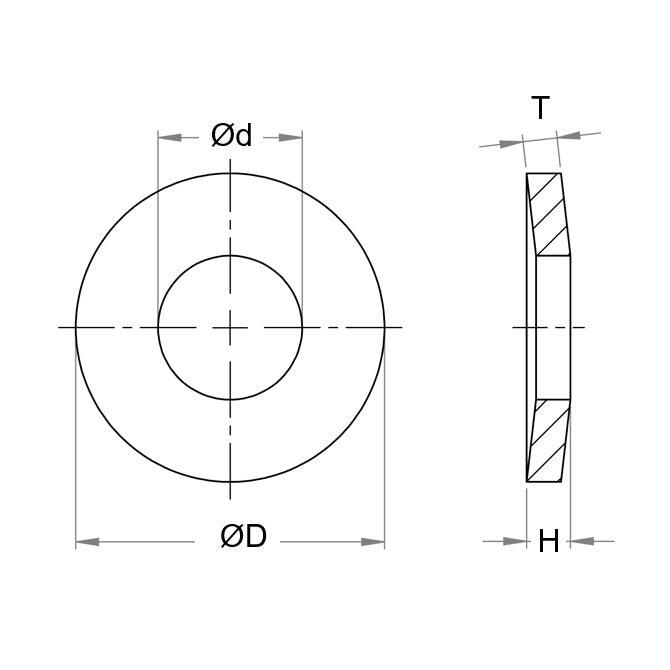

Product Details:

Nominal OD (A): 12.00mm
(12.00mm is 0.472 in.)

Carbon Steel
  • Nominal ID (B): 4.00mm
    + 0.20 / - 0.00
    (4.00mm is 0.157 in.)
  • Stock Thickness (C): 0.60mm
    (0.60mm is 0.024 in.)
  • Loaded Height (L1): 0.70mm
  • Load at L1: 56.0kg
  • Free Height (E): 1.00mm
  • Actual ID (Ref): 4.2mm
  • Inside Height (D): 0.40mm

Brand: MBA
Country of Origin: DE

Alternative Parts Include: S4220, DS120406, WASCA

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
