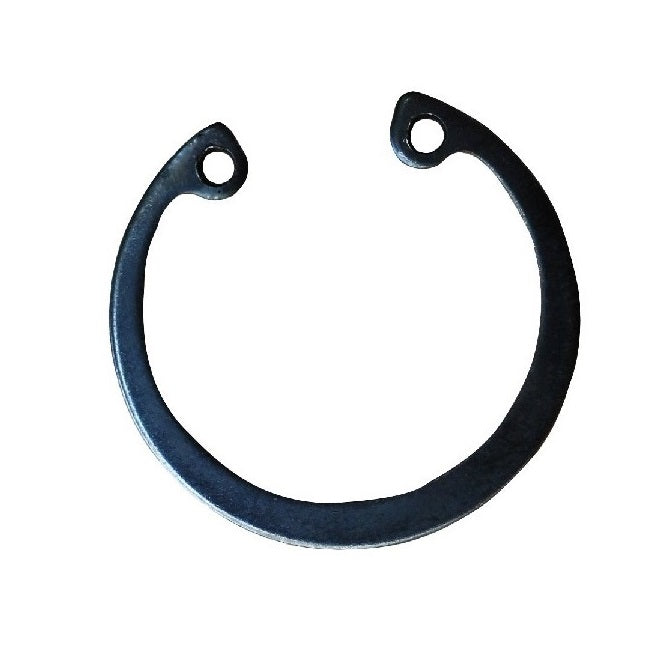

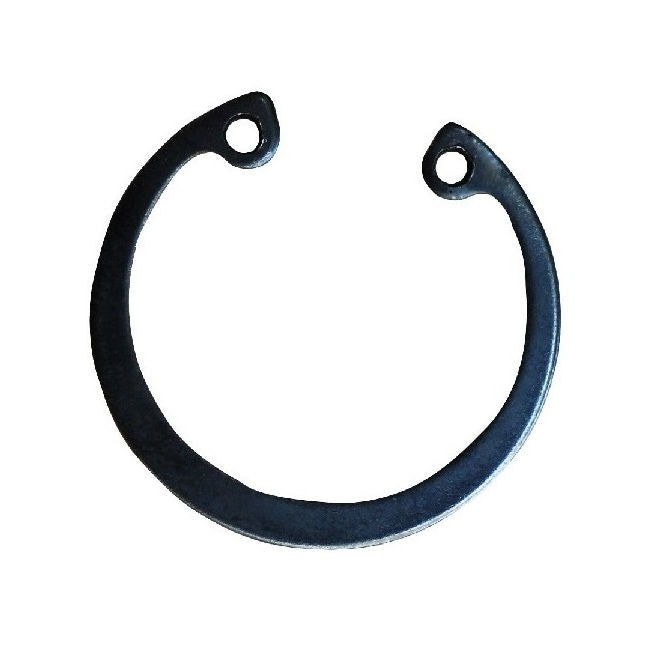

Internal Retaining Rings - 127x4x131 mm - Carbon Steel

CCI-12700-C

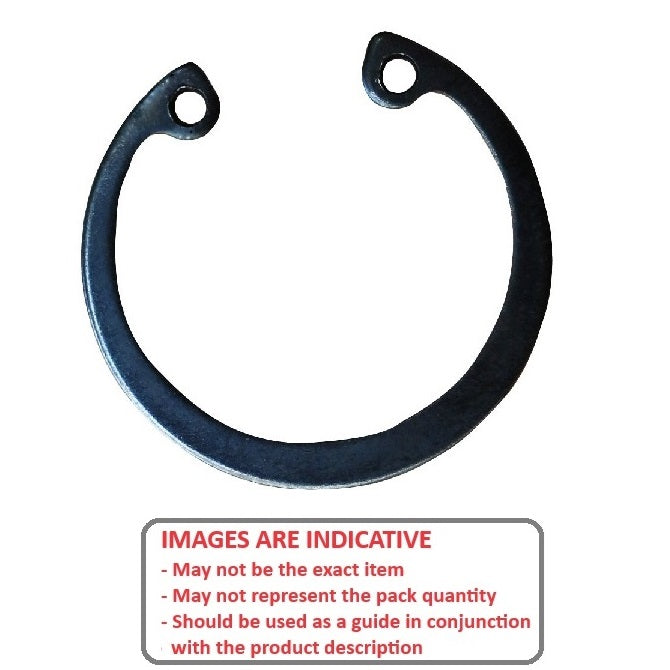

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Internal Retaining Rings - 127x4x131 mm - Carbon Steel
1 4

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$34.41 AUD
$76.49 AUD $34.41 AUD
Each
Qty: 150 available now
Order 50 or more for $30.97 AUD Each
Only 150 may be ordered online. If you need a large quantity, please contact us.

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

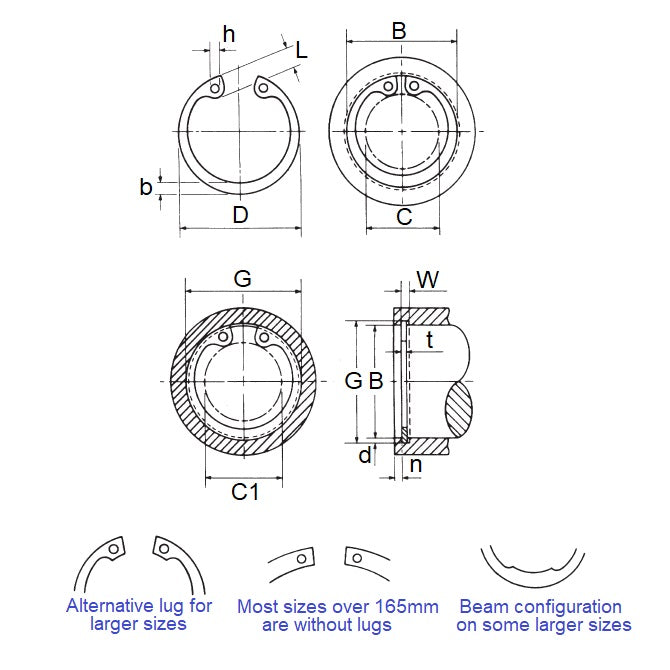

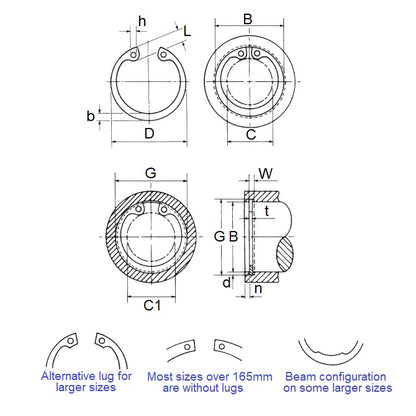

Product Details:

Housing Bore (B): 127.00mm
(127.00mm is 5 in.)

Carbon Steel
  • Clip Thickness (T): 4.00mm
    + 0.63 / - 0.00
    (4.00mm is 0.157 in.)
  • Groove Dia. (Dg): 131.00mm
    + 0.00 / - 0.10
    (131.00mm is 5.157 in.)
  • Approx. Loose Circlip OD (Dr): 135.00mm
    + 1.50 / - 0.63
  • Groove Width (W): 4.15mm
    + 0.13 / - 0.00
  • Clearance in Bore (C): 103.90mm
  • Clearance in Groove (C1): 109.00mm
  • Min. Lug Diameter (h): 4.00mm
  • Min. Extension (n): 6.00

Brand: MBA
Country of Origin: US

Alternative Parts Include: 99142A700, D1300-127, D13001270, D1300-1270, D1300127, BN-822-127, BN822127, DHO127, DHO-127, NZT.J127, 472127, 472-127, J127X4, J-127, J127, 13001270, 1300-1270, Ellison, ALTPART, Bossard, Waldes, NoCor, Rotor Clip, Seeger

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
