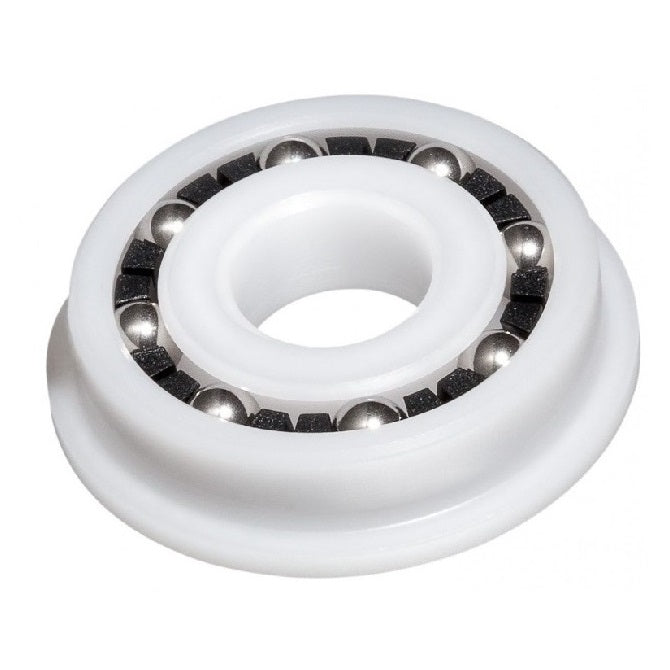

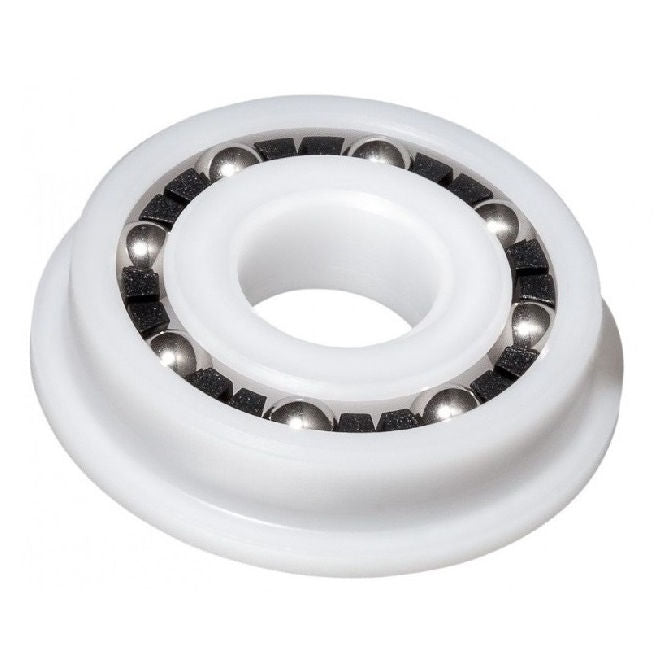

Plastic Bearings - 12.7x34.925x11.113 mm / 38.1 mm - Acetal with Stainless 316 Balls

P-FR12216-AS6

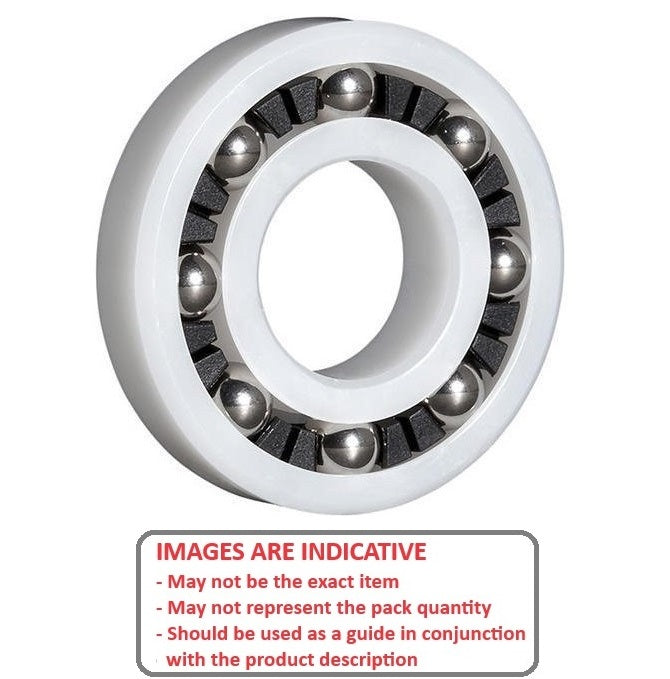

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Plastic Bearings - 12.7x34.925x11.113 mm / 38.1 mm - Acetal with Stainless 316 Balls
1 4

KMS

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting
Price:
$39.59 AUD
$39.59 AUD
Each
Qty: 5 available now
Order 50 or more for $35.63 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 03, 2025

Base Category: Bearings - Plastic

Top Level Category: Bearings - Plastic - Acetal - Single Row - 316 Stainless Balls

Product Details:

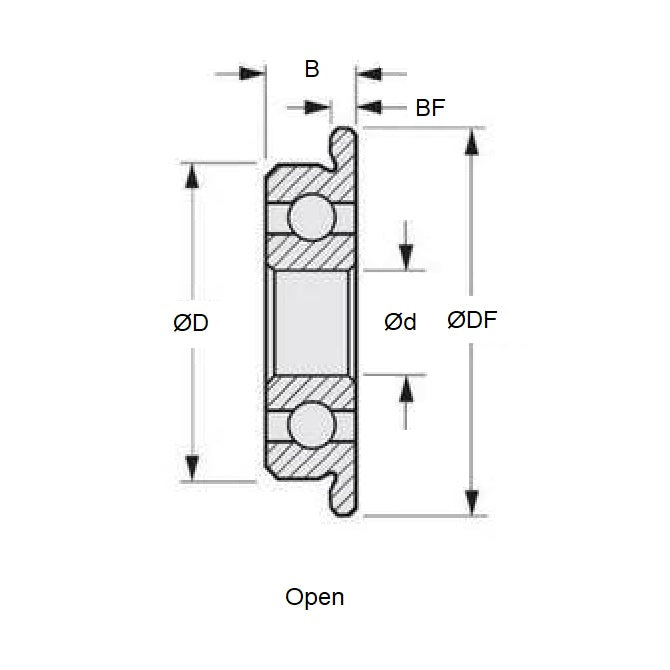

ID (d): 12.700mm
+ 0.076 / - 0.000
(12.700mm is 0.5 in.)

Acetal with Stainless 316 Balls
  • OD (D): 34.925mm
    + 0.000 / - 0.102
    (34.925mm is 1.375 in.)
  • Width (B): 11.113mm
    + 0.127 / - 0.000
    (11.113mm is 0.438 in.)
  • Flange Diameter: 38.100mm
  • Flange Thickness: 1.58mm
  • Max RPM in Air: 1069
  • Notes: Unlubricated
  • Type: Radial Flanged
  • Dynamic Load Rating: 31.3Kg
  • Static Load Rating: 24.5Kg

Brand: KMS
Country of Origin: US

Alternative Parts Include: AR10BF1/2B6, AR10BF-1/2B-6, FR12216, AS6FR12216, KMS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
