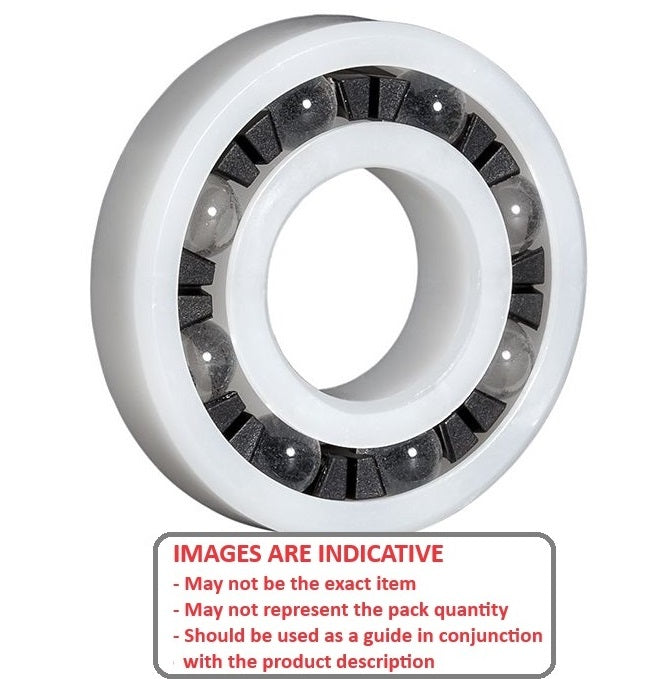

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
Skip to product information
1 of 3

P-R8-AGL

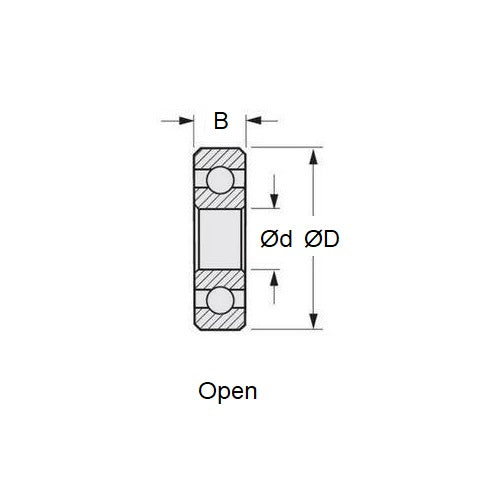

Bearings - 12.7 mm x 28.575 mm x 6.35 mm

MBA

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting
Price:
Regular price $11.21 AUD
Regular price $0.00 AUD Sale price $11.21 AUD
Each
Qty: 26 available now
Only 26 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Plastic

Top Level Category: Bearings - Plastic - Acetal with Glass Balls

Product Details:

ID (d): 12.700mm
+0.076/-0.000

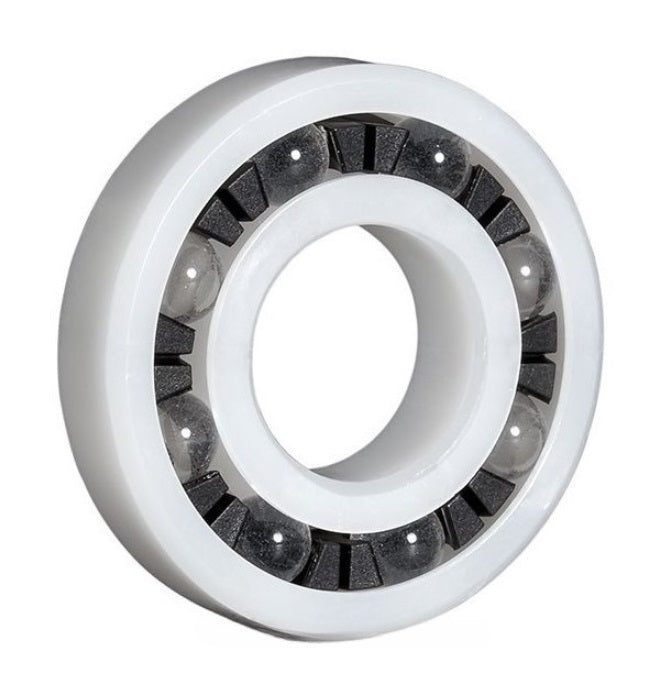

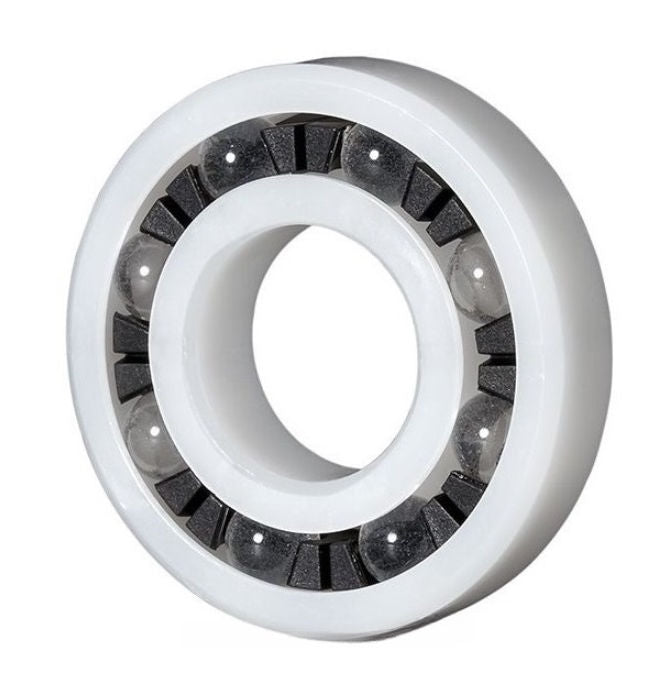

Acetal with Glass Balls
  • OD (D): 28.575mm
    +0.000/-0.102
  • Width (B): 6.350mm
    +0.127/-0.000
  • Max RPM in Air: 1142
  • Type: Radial
  • Dynamic Load Rating: 24.6Kg
  • Static Load Rating: 19.2Kg

Brand: KMS
Country of Origin: US

Alternatives: 6455K64, AGLR8, AR8-1-2B-G, AR8-G, BNM-818, NNB-08

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
