Collection: Bearings - Plastic - Acetal - Single Row - Glass Balls

Bearings (With Images)

Plastic

Acetal

Single Row

36 Products in this selection

Plastic ball bearings do not use the same precision standards as those for precision ball bearings
Bearings for Extreme Corrosion Resistance - Low Speed - Low Load.

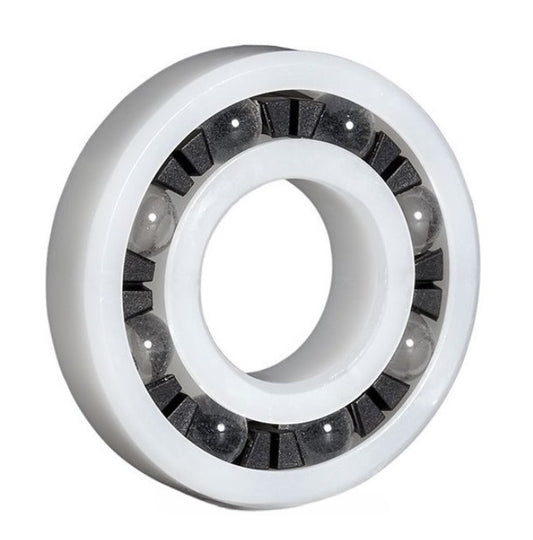

Races made from Acetal - Balls made from Ground Glass - Cages from Acetal or Nylon.
Lubrication - Water Lubrication or can be run dry - Must lubricate over 2500 RPM.
Temperature Range - Minus 30 ^oC to 100 ^oC Continuous.

Small Parts & Bearings

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

A more comprehensive listing may be found on the MBA Minibearings main store at Bearings - Plastic - Acetal - Single Row - Glass Balls.

ID (d)	OD (D)	Width (B)	Flange Diameter	Flange Thickness	Inner Ring Width (Bn)	Indicative Image
ID (d) 4.000 mm + 0.076 / - 0.000 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.076 _{(0.512 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-624-AGL Plastic Bearings - 4x13x5 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Each

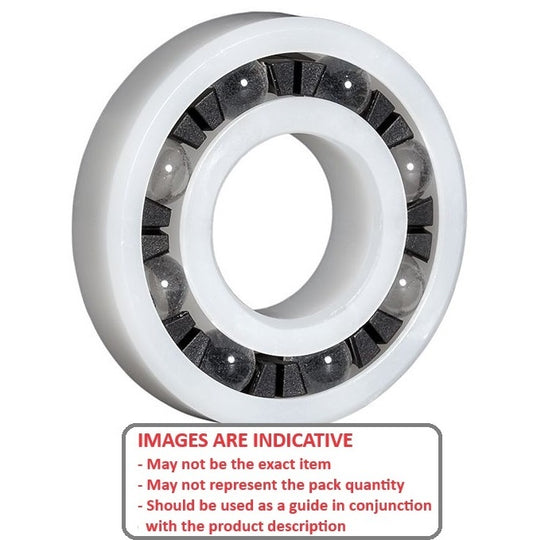

ID (d)	OD (D)	Width (B)	Flange Diameter	Indicative Image
ID (d) 4.000 mm + 0.076 / - 0.000 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.076 _{(0.512 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-624-AGL Plastic Bearings - 4x13x5 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Each View the product page first if you are unsure.
P-624-AGL --- Plastic Bearings - 4x13x5 mm - Acetal with Glass Balls Sale P-624-AGL --- Plastic Bearings - 4x13x5 mm - Acetal with Glass Balls Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R1106-AGL Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Glass Balls 11 Available Now \| Item Discontinued - Up to 11 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $12.86 AUD Regular price ~~$29.79 AUD~~ Sale price $12.86 AUD Unit price per Each
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R1106-AGL Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Glass Balls 11 Available Now \| Item Discontinued - Up to 11 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $12.86 AUD Regular price ~~$29.79 AUD~~ Sale price $12.86 AUD Unit price per Each
P-R1106-AGL --- Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Glass Balls Sale P-R1106-AGL --- Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Glass Balls Regular price $12.86 AUD Regular price ~~$29.79 AUD~~ Sale price $12.86 AUD Unit price per 11 Available Now Sale
ID (d) 5.000 mm + 0.076 / - 0.000 _{(0.197 in.)}	OD (D) 16.000 mm + 0.000 / - 0.076 _{(0.63 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-625-AGL (25 Pcs) Plastic Bearings - 5x16x5 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $494.32 AUD Regular price Sale price $494.32 AUD Unit price per Per 25
ID (d) 5.000 mm + 0.076 / - 0.000 _{(0.197 in.)}	OD (D) 16.000 mm + 0.000 / - 0.076 _{(0.63 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-625-AGL (25 Pcs) Plastic Bearings - 5x16x5 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $494.32 AUD Regular price Sale price $494.32 AUD Unit price per Per 25 View the product page first if you are unsure.
P-625-AGL (25 Pcs) --- Plastic Bearings - 5x16x5 mm - Acetal with Glass Balls P-625-AGL (25 Pcs) --- Plastic Bearings - 5x16x5 mm - Acetal with Glass Balls Regular price $494.32 AUD Regular price Sale price $494.32 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 17.000 mm + 0.000 / - 0.076 _{(0.669 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-606-AGL (25 Pcs) Plastic Bearings - 6x17x6 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $494.32 AUD Regular price Sale price $494.32 AUD Unit price per Per 25
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 17.000 mm + 0.000 / - 0.076 _{(0.669 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-606-AGL (25 Pcs) Plastic Bearings - 6x17x6 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $494.32 AUD Regular price Sale price $494.32 AUD Unit price per Per 25 View the product page first if you are unsure.
P-606-AGL (25 Pcs) --- Plastic Bearings - 6x17x6 mm - Acetal with Glass Balls P-606-AGL (25 Pcs) --- Plastic Bearings - 6x17x6 mm - Acetal with Glass Balls Regular price $494.32 AUD Regular price Sale price $494.32 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-626-AGL Plastic Bearings - 6x19x6 mm - Acetal with Glass Balls 253 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $31.05 AUD Regular price Sale price $31.05 AUD Unit price per Each
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-626-AGL Plastic Bearings - 6x19x6 mm - Acetal with Glass Balls 253 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $31.05 AUD Regular price Sale price $31.05 AUD Unit price per Each View the product page first if you are unsure.
P-626-AGL --- Plastic Bearings - 6x19x6 mm - Acetal with Glass Balls P-626-AGL --- Plastic Bearings - 6x19x6 mm - Acetal with Glass Balls Regular price $31.05 AUD Regular price Sale price $31.05 AUD Unit price per 253 Available Now
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-636-AGL Plastic Bearings - 6x22x7 mm - Acetal with Glass Balls 2 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $31.77 AUD Regular price Sale price $31.77 AUD Unit price per Each
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-636-AGL Plastic Bearings - 6x22x7 mm - Acetal with Glass Balls 2 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $31.77 AUD Regular price Sale price $31.77 AUD Unit price per Each View the product page first if you are unsure.
P-636-AGL --- Plastic Bearings - 6x22x7 mm - Acetal with Glass Balls P-636-AGL --- Plastic Bearings - 6x22x7 mm - Acetal with Glass Balls Regular price $31.77 AUD Regular price Sale price $31.77 AUD Unit price per 2 Available Now
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-AGL Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Glass Balls 21 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Each
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-AGL Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Glass Balls 21 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Each View the product page first if you are unsure.
P-R4-AGL --- Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Glass Balls P-R4-AGL --- Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Glass Balls Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per 21 Available Now
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-607-AGL Plastic Bearings - 7x19x6 mm - Acetal with Glass Balls 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $13.32 AUD Regular price ~~$30.80 AUD~~ Sale price $13.32 AUD Unit price per Each
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-607-AGL Plastic Bearings - 7x19x6 mm - Acetal with Glass Balls 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $13.32 AUD Regular price ~~$30.80 AUD~~ Sale price $13.32 AUD Unit price per Each
P-607-AGL --- Plastic Bearings - 7x19x6 mm - Acetal with Glass Balls Sale P-607-AGL --- Plastic Bearings - 7x19x6 mm - Acetal with Glass Balls Regular price $13.32 AUD Regular price ~~$30.80 AUD~~ Sale price $13.32 AUD Unit price per 1 Available Now Sale
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-627-AGL Plastic Bearings - 7x22x7 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Each
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-627-AGL Plastic Bearings - 7x22x7 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Each View the product page first if you are unsure.
P-627-AGL --- Plastic Bearings - 7x22x7 mm - Acetal with Glass Balls Sale P-627-AGL --- Plastic Bearings - 7x22x7 mm - Acetal with Glass Balls Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 8.000 mm + 0.076 / - 0.000 _{(0.315 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-608-AGL Plastic Bearings - 8x22x7 mm - Acetal with Glass Balls 9 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $25.77 AUD Regular price Sale price $25.77 AUD Unit price per Each
ID (d) 8.000 mm + 0.076 / - 0.000 _{(0.315 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-608-AGL Plastic Bearings - 8x22x7 mm - Acetal with Glass Balls 9 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $25.77 AUD Regular price Sale price $25.77 AUD Unit price per Each View the product page first if you are unsure.
P-608-AGL --- Plastic Bearings - 8x22x7 mm - Acetal with Glass Balls P-608-AGL --- Plastic Bearings - 8x22x7 mm - Acetal with Glass Balls Regular price $25.77 AUD Regular price Sale price $25.77 AUD Unit price per 9 Available Now
ID (d) 9.000 mm + 0.076 / - 0.000 _{(0.354 in.)}	OD (D) 24.000 mm + 0.000 / - 0.076 _{(0.945 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-609-AGL Plastic Bearings - 9x24x7 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $23.05 AUD Regular price ~~$27.65 AUD~~ Sale price $23.05 AUD Unit price per Each
ID (d) 9.000 mm + 0.076 / - 0.000 _{(0.354 in.)}	OD (D) 24.000 mm + 0.000 / - 0.076 _{(0.945 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-609-AGL Plastic Bearings - 9x24x7 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $23.05 AUD Regular price ~~$27.65 AUD~~ Sale price $23.05 AUD Unit price per Each View the product page first if you are unsure.
P-609-AGL --- Plastic Bearings - 9x24x7 mm - Acetal with Glass Balls Sale P-609-AGL --- Plastic Bearings - 9x24x7 mm - Acetal with Glass Balls Regular price $23.05 AUD Regular price ~~$27.65 AUD~~ Sale price $23.05 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 9.000 mm + 0.076 / - 0.000 _{(0.354 in.)}	OD (D) 26.000 mm + 0.000 / - 0.102 _{(1.024 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-629-AGL Plastic Bearings - 9x26x8 mm - Acetal with Glass Balls 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $14.41 AUD Regular price ~~$33.50 AUD~~ Sale price $14.41 AUD Unit price per Each
ID (d) 9.000 mm + 0.076 / - 0.000 _{(0.354 in.)}	OD (D) 26.000 mm + 0.000 / - 0.102 _{(1.024 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-629-AGL Plastic Bearings - 9x26x8 mm - Acetal with Glass Balls 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $14.41 AUD Regular price ~~$33.50 AUD~~ Sale price $14.41 AUD Unit price per Each
P-629-AGL --- Plastic Bearings - 9x26x8 mm - Acetal with Glass Balls Sale P-629-AGL --- Plastic Bearings - 9x26x8 mm - Acetal with Glass Balls Regular price $14.41 AUD Regular price ~~$33.50 AUD~~ Sale price $14.41 AUD Unit price per 1 Available Now Sale
ID (d) 9.525 mm + 0.076 / - 0.000 _{(0.375 in.)}	OD (D) 22.225 mm + 0.000 / - 0.076 _{(0.875 in.)}	Width (B) 5.556 mm + 0.127 / - 0.000 _{(0.219 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-R6-AGL Plastic Bearings - 9.525x22.225x5.556 mm - Acetal with Glass Balls 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $14.05 AUD Regular price ~~$32.54 AUD~~ Sale price $14.05 AUD Unit price per Each
ID (d) 9.525 mm + 0.076 / - 0.000 _{(0.375 in.)}	OD (D) 22.225 mm + 0.000 / - 0.076 _{(0.875 in.)}	Width (B) 5.556 mm + 0.127 / - 0.000 _{(0.219 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-R6-AGL Plastic Bearings - 9.525x22.225x5.556 mm - Acetal with Glass Balls 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $14.05 AUD Regular price ~~$32.54 AUD~~ Sale price $14.05 AUD Unit price per Each
P-R6-AGL --- Plastic Bearings - 9.525x22.225x5.556 mm - Acetal with Glass Balls Sale P-R6-AGL --- Plastic Bearings - 9.525x22.225x5.556 mm - Acetal with Glass Balls Regular price $14.05 AUD Regular price ~~$32.54 AUD~~ Sale price $14.05 AUD Unit price per 5 Available Now Sale
ID (d) 9.525 mm + 0.076 / - 0.000 _{(0.375 in.)}	OD (D) 22.225 mm + 0.000 / - 0.076 _{(0.875 in.)}	Width (B) 7.142 mm + 0.127 / - 0.000 _{(0.281 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-R6A-AGL Plastic Bearings - 9.525x22.225x7.142 mm - Acetal with Glass Balls 13 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Each
ID (d) 9.525 mm + 0.076 / - 0.000 _{(0.375 in.)}	OD (D) 22.225 mm + 0.000 / - 0.076 _{(0.875 in.)}	Width (B) 7.142 mm + 0.127 / - 0.000 _{(0.281 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-R6A-AGL Plastic Bearings - 9.525x22.225x7.142 mm - Acetal with Glass Balls 13 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Each View the product page first if you are unsure.
P-R6A-AGL --- Plastic Bearings - 9.525x22.225x7.142 mm - Acetal with Glass Balls P-R6A-AGL --- Plastic Bearings - 9.525x22.225x7.142 mm - Acetal with Glass Balls Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per 13 Available Now
ID (d) 10.000 mm + 0.076 / - 0.000 _{(0.394 in.)}	OD (D) 19.000 mm + 0.000 / - 0.102 _{(0.748 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1703 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.8 Kg Static Load Rating: 1.4 Kg
Part Number: P-6800-AGL-ECO Plastic Bearings - 10x19x5 mm - Acetal with Glass Balls 290 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each
ID (d) 10.000 mm + 0.076 / - 0.000 _{(0.394 in.)}	OD (D) 19.000 mm + 0.000 / - 0.102 _{(0.748 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1703 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.8 Kg Static Load Rating: 1.4 Kg
Part Number: P-6800-AGL-ECO Plastic Bearings - 10x19x5 mm - Acetal with Glass Balls 290 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each View the product page first if you are unsure.
P-6800-AGL-ECO --- Plastic Bearings - 10x19x5 mm - Acetal with Glass Balls P-6800-AGL-ECO --- Plastic Bearings - 10x19x5 mm - Acetal with Glass Balls Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 290 Available Now
ID (d) 10.000 mm + 0.10 / - 0.00 _{(0.394 in.)}	OD (D) 22.000 mm + 0.00 / - 0.10 _{(0.866 in.)}	Width (B) 6.000 mm + 0.00 / - 0.12 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 920 Notes: Unlubricated Type: Radial Dynamic Load Rating: 3.4 Kg Static Load Rating: 2.0 Kg
Part Number: P-6900-AGL-ECO Plastic Bearings - 10x22x6 mm - Acetal with Glass Balls 300 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Each
ID (d) 10.000 mm + 0.10 / - 0.00 _{(0.394 in.)}	OD (D) 22.000 mm + 0.00 / - 0.10 _{(0.866 in.)}	Width (B) 6.000 mm + 0.00 / - 0.12 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 920 Notes: Unlubricated Type: Radial Dynamic Load Rating: 3.4 Kg Static Load Rating: 2.0 Kg
Part Number: P-6900-AGL-ECO Plastic Bearings - 10x22x6 mm - Acetal with Glass Balls 300 Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Each View the product page first if you are unsure.
P-6900-AGL-ECO --- Plastic Bearings - 10x22x6 mm - Acetal with Glass Balls P-6900-AGL-ECO --- Plastic Bearings - 10x22x6 mm - Acetal with Glass Balls Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per 300 Available Now
ID (d) 10.000 mm + 0.076 / - 0.000 _{(0.394 in.)}	OD (D) 26.000 mm + 0.000 / - 0.102 _{(1.024 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-6000-AGL Plastic Bearings - 10x26x8 mm - Acetal with Glass Balls 175 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Each
ID (d) 10.000 mm + 0.076 / - 0.000 _{(0.394 in.)}	OD (D) 26.000 mm + 0.000 / - 0.102 _{(1.024 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-6000-AGL Plastic Bearings - 10x26x8 mm - Acetal with Glass Balls 175 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Each View the product page first if you are unsure.
P-6000-AGL --- Plastic Bearings - 10x26x8 mm - Acetal with Glass Balls P-6000-AGL --- Plastic Bearings - 10x26x8 mm - Acetal with Glass Balls Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per 175 Available Now
ID (d) 10.000 mm + 0.076 / - 0.000 _{(0.394 in.)}	OD (D) 30.000 mm + 0.000 / - 0.102 _{(1.181 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-6200-AGL Plastic Bearings - 10x30x9 mm - Acetal with Glass Balls 20 Available Now \| Item Discontinued - Up to 20 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $11.96 AUD Regular price ~~$24.87 AUD~~ Sale price $11.96 AUD Unit price per Each
ID (d) 10.000 mm + 0.076 / - 0.000 _{(0.394 in.)}	OD (D) 30.000 mm + 0.000 / - 0.102 _{(1.181 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-6200-AGL Plastic Bearings - 10x30x9 mm - Acetal with Glass Balls 20 Available Now \| Item Discontinued - Up to 20 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $11.96 AUD Regular price ~~$24.87 AUD~~ Sale price $11.96 AUD Unit price per Each
P-6200-AGL --- Plastic Bearings - 10x30x9 mm - Acetal with Glass Balls Sale P-6200-AGL --- Plastic Bearings - 10x30x9 mm - Acetal with Glass Balls Regular price $11.96 AUD Regular price ~~$24.87 AUD~~ Sale price $11.96 AUD Unit price per 20 Available Now Sale
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 28.000 mm + 0.000 / - 0.102 _{(1.102 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.1 Kg
Part Number: P-6001B-AGL Plastic Bearings - 12x28x7 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $23.05 AUD Regular price ~~$27.65 AUD~~ Sale price $23.05 AUD Unit price per Each
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 28.000 mm + 0.000 / - 0.102 _{(1.102 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.1 Kg
Part Number: P-6001B-AGL Plastic Bearings - 12x28x7 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $23.05 AUD Regular price ~~$27.65 AUD~~ Sale price $23.05 AUD Unit price per Each View the product page first if you are unsure.
P-6001B-AGL --- Plastic Bearings - 12x28x7 mm - Acetal with Glass Balls Sale P-6001B-AGL --- Plastic Bearings - 12x28x7 mm - Acetal with Glass Balls Regular price $23.05 AUD Regular price ~~$27.65 AUD~~ Sale price $23.05 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 28.000 mm + 0.000 / - 0.102 _{(1.102 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-6001-AGL Plastic Bearings - 12x28x8 mm - Acetal with Glass Balls 390 Available Now \| Item Discontinued - Up to 390 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $11.29 AUD Regular price ~~$20.04 AUD~~ Sale price $11.29 AUD Unit price per Each
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 28.000 mm + 0.000 / - 0.102 _{(1.102 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-6001-AGL Plastic Bearings - 12x28x8 mm - Acetal with Glass Balls 390 Available Now \| Item Discontinued - Up to 390 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $11.29 AUD Regular price ~~$20.04 AUD~~ Sale price $11.29 AUD Unit price per Each
P-6001-AGL --- Plastic Bearings - 12x28x8 mm - Acetal with Glass Balls Sale P-6001-AGL --- Plastic Bearings - 12x28x8 mm - Acetal with Glass Balls Regular price $11.29 AUD Regular price ~~$20.04 AUD~~ Sale price $11.29 AUD Unit price per 390 Available Now Sale
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 37.000 mm + 0.000 / - 0.102 _{(1.457 in.)}	Width (B) 12.000 mm + 0.127 / - 0.000 _{(0.472 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1069 Notes: Unlubricated Type: Radial Dynamic Load Rating: 31.3 Kg Static Load Rating: 20.9 Kg
Part Number: P-6301-AGL Plastic Bearings - 12x37x12 mm - Acetal with Glass Balls 18 Available Now \| Item Discontinued - Up to 18 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $16.95 AUD Regular price ~~$39.36 AUD~~ Sale price $16.95 AUD Unit price per Each
ID (d) 12.000 mm + 0.076 / - 0.000 _{(0.472 in.)}	OD (D) 37.000 mm + 0.000 / - 0.102 _{(1.457 in.)}	Width (B) 12.000 mm + 0.127 / - 0.000 _{(0.472 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1069 Notes: Unlubricated Type: Radial Dynamic Load Rating: 31.3 Kg Static Load Rating: 20.9 Kg
Part Number: P-6301-AGL Plastic Bearings - 12x37x12 mm - Acetal with Glass Balls 18 Available Now \| Item Discontinued - Up to 18 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $16.95 AUD Regular price ~~$39.36 AUD~~ Sale price $16.95 AUD Unit price per Each
P-6301-AGL --- Plastic Bearings - 12x37x12 mm - Acetal with Glass Balls Sale P-6301-AGL --- Plastic Bearings - 12x37x12 mm - Acetal with Glass Balls Regular price $16.95 AUD Regular price ~~$39.36 AUD~~ Sale price $16.95 AUD Unit price per 18 Available Now Sale
ID (d) 12.700 mm + 0.076 / - 0.000 _{(0.5 in.)}	OD (D) 28.575 mm + 0.000 / - 0.102 _{(1.125 in.)}	Width (B) 6.350 mm + 0.127 / - 0.000 _{(0.25 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.6 Kg Static Load Rating: 19.2 Kg
Part Number: P-R8-AGL Plastic Bearings - 12.7x28.575x6.35 mm - Acetal with Glass Balls 14 Available Now \| Item Discontinued - Up to 14 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $11.21 AUD Regular price ~~$19.85 AUD~~ Sale price $11.21 AUD Unit price per Each
ID (d) 12.700 mm + 0.076 / - 0.000 _{(0.5 in.)}	OD (D) 28.575 mm + 0.000 / - 0.102 _{(1.125 in.)}	Width (B) 6.350 mm + 0.127 / - 0.000 _{(0.25 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.6 Kg Static Load Rating: 19.2 Kg
Part Number: P-R8-AGL Plastic Bearings - 12.7x28.575x6.35 mm - Acetal with Glass Balls 14 Available Now \| Item Discontinued - Up to 14 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $11.21 AUD Regular price ~~$19.85 AUD~~ Sale price $11.21 AUD Unit price per Each
P-R8-AGL --- Plastic Bearings - 12.7x28.575x6.35 mm - Acetal with Glass Balls Sale P-R8-AGL --- Plastic Bearings - 12.7x28.575x6.35 mm - Acetal with Glass Balls Regular price $11.21 AUD Regular price ~~$19.85 AUD~~ Sale price $11.21 AUD Unit price per 14 Available Now Sale
ID (d) 15.000 mm + 0.076 / - 0.000 _{(0.591 in.)}	OD (D) 32.000 mm + 0.000 / - 0.102 _{(1.26 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-6002-AGL Plastic Bearings - 15x32x9 mm - Acetal with Glass Balls 286 Available Now \| Item Discontinued - Up to 286 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.16 AUD Regular price ~~$20.64 AUD~~ Sale price $10.16 AUD Unit price per Each
ID (d) 15.000 mm + 0.076 / - 0.000 _{(0.591 in.)}	OD (D) 32.000 mm + 0.000 / - 0.102 _{(1.26 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-6002-AGL Plastic Bearings - 15x32x9 mm - Acetal with Glass Balls 286 Available Now \| Item Discontinued - Up to 286 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.16 AUD Regular price ~~$20.64 AUD~~ Sale price $10.16 AUD Unit price per Each
P-6002-AGL --- Plastic Bearings - 15x32x9 mm - Acetal with Glass Balls Sale P-6002-AGL --- Plastic Bearings - 15x32x9 mm - Acetal with Glass Balls Regular price $10.16 AUD Regular price ~~$20.64 AUD~~ Sale price $10.16 AUD Unit price per 286 Available Now Sale
ID (d) 15.000 mm + 0.076 / - 0.000 _{(0.591 in.)}	OD (D) 35.000 mm + 0.000 / - 0.102 _{(1.378 in.)}	Width (B) 11.000 mm + 0.127 / - 0.000 _{(0.433 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1064 Notes: Unlubricated Type: Radial Dynamic Load Rating: 31.3 Kg Static Load Rating: 20.9 Kg
Part Number: P-6202-AGL Plastic Bearings - 15x35x11 mm - Acetal with Glass Balls 23 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $32.14 AUD Regular price Sale price $32.14 AUD Unit price per Each
ID (d) 15.000 mm + 0.076 / - 0.000 _{(0.591 in.)}	OD (D) 35.000 mm + 0.000 / - 0.102 _{(1.378 in.)}	Width (B) 11.000 mm + 0.127 / - 0.000 _{(0.433 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1064 Notes: Unlubricated Type: Radial Dynamic Load Rating: 31.3 Kg Static Load Rating: 20.9 Kg
Part Number: P-6202-AGL Plastic Bearings - 15x35x11 mm - Acetal with Glass Balls 23 Available Now \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $32.14 AUD Regular price Sale price $32.14 AUD Unit price per Each View the product page first if you are unsure.
P-6202-AGL --- Plastic Bearings - 15x35x11 mm - Acetal with Glass Balls P-6202-AGL --- Plastic Bearings - 15x35x11 mm - Acetal with Glass Balls Regular price $32.14 AUD Regular price Sale price $32.14 AUD Unit price per 23 Available Now

Small Parts & Bearings Pty Ltd - 3A / 8 Boyland Avenue, Coopers Plains, Queensland, Australia. (abn: 79 121 865 414)
