External Retaining Rings - 12.7x0.89x11.89 mm - Carbon Spring Steel

Name: 2 Pack - External Retaining Rings - 12.7x0.89x11.89 mm - Carbon Spring Steel - RSN-050
Brand: MBA
SKU: RSN050
Price: 7.32 AUD
Availability: InStock

RSN-050 (2 Pcs)

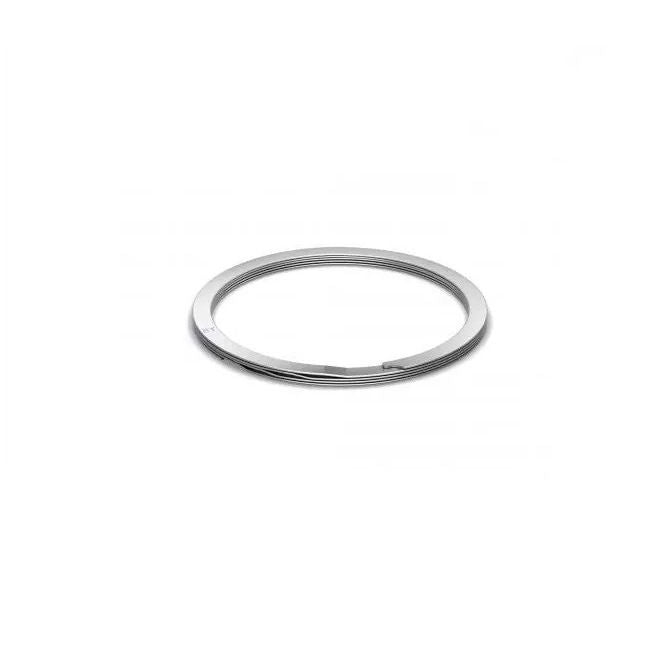

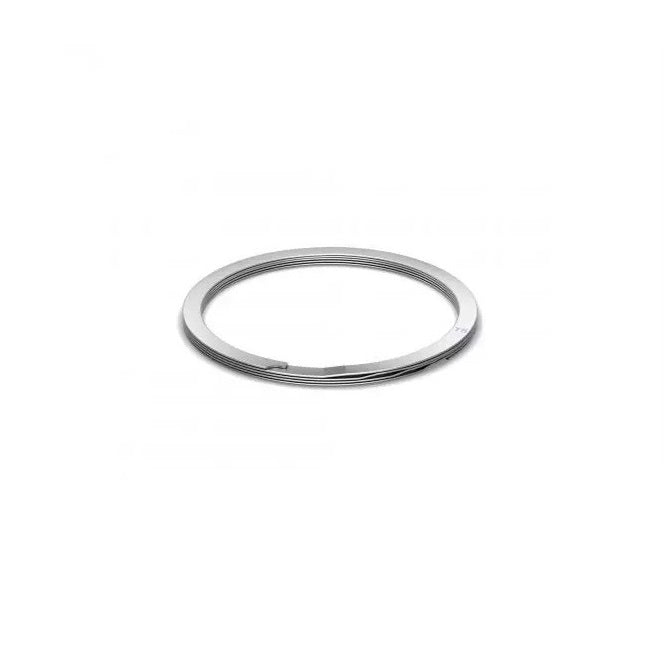

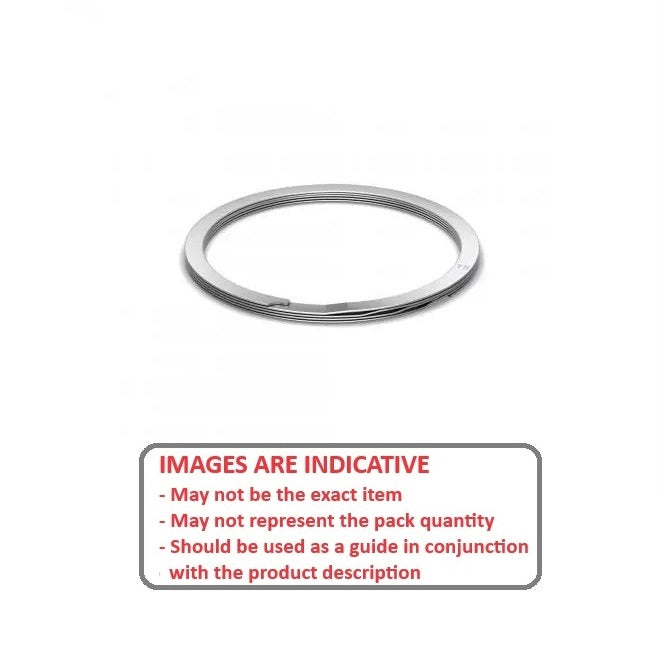

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel

Additional resources:
Spiral Rings and Snap Rings PDF

Price:

$7.32 AUD

per 2
Qty: 25 available now (50 pcs)
Order 50 or more (100 pcs) for $6.59 AUD per 2

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 24, 2025

Quantity

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel

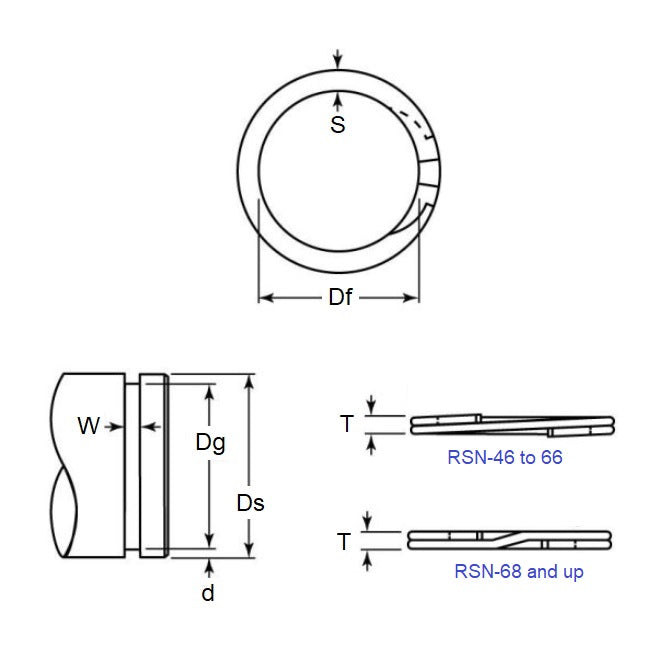

Product Details:

Shaft Diameter (Ds): 12.70mm
_{(12.70mm is 0.5 in.)}

Carbon Spring Steel

Clip Thickness (T): 0.89mm
_{+/- 0.05}
_{(0.89mm is 0.035 in.)}
Groove Dia. (Dg): 11.89mm
_{(11.89mm is 0.468 in.)}
Approx. Loose Circlip ID (A): 11.81mm
_{+ 0.00 / - 0.33}
Radial Wall (S) min/max: 1.27mm
_{+/- 0.10}
Groove Width (W): 1.03mm
_{+/- 0.05}
Approx. Loose Clip OD: 14.35
_{+/- 0.04}
Groove Depth (d): 0.41

Brand: MBA
Country of Origin: US

Alternative Parts Include: 91665A420, WSM050, WSM-050, AHE050, AHE-050, RSN-050, RSN050, ALTPART, Associated Spring, Smalley, Spirolox

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
