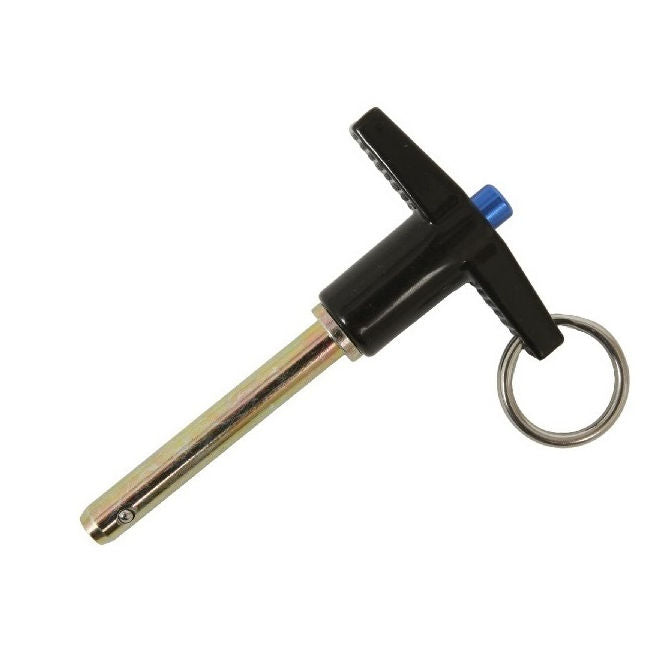

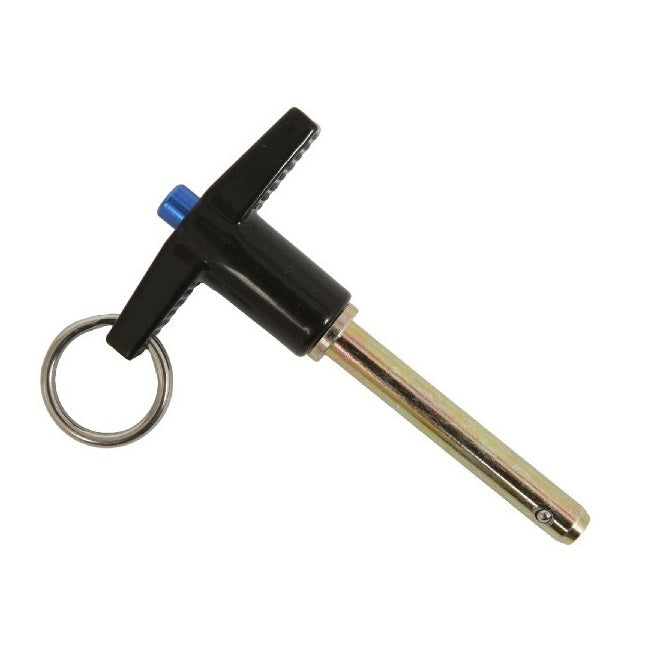

Ball Lock Pins - 12x50 mm - 17-4 PH Stainless / Aluminium Handle

BLP-120-0500-TI-S17

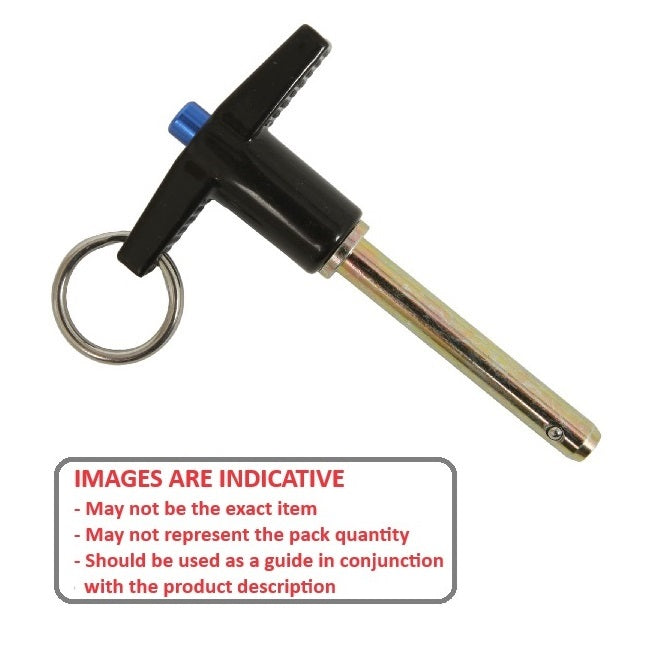

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Ball Lock Pins - 12x50 mm - 17-4 PH Stainless / Aluminium Handle
1 4

MBA

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Price:
$99.50 AUD
$176.12 AUD $99.50 AUD
Each
Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Pins - Ball Lock

Top Level Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu

Product Details:

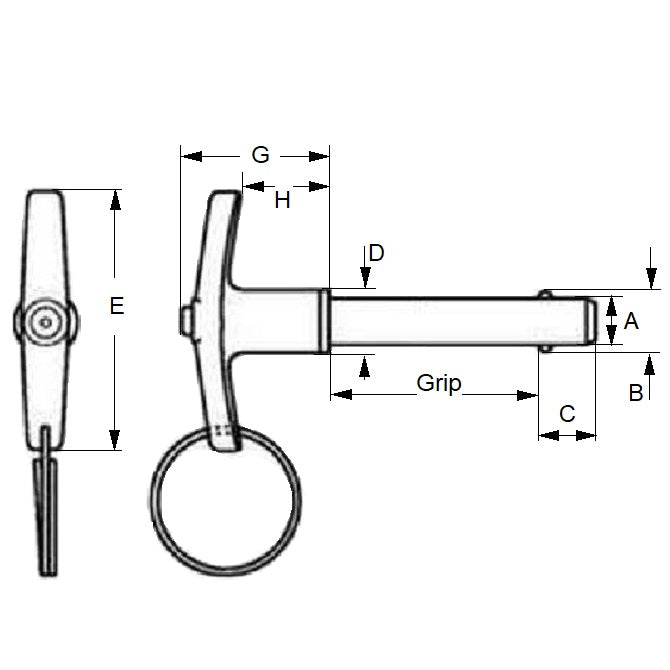

Nominal Diameter: 12.00mm
(12.00mm is 0.472 in.)

Stainless Steel 17-4 PH with Aluminium Handle
  • Grip Length (B): 50.00mm
    (50.00mm is 1.969 in.)
  • Pin Material Grade: 17-4 PH Stainless / Aluminium Handle
  • Locking Ball to End (C): 10.00mm
  • Open Ball Distance (B): 14.45mm
  • Shank Diameter (D): 16.00mm
  • Handle Width (E): 51.00mm
  • Handle Height (G): 37.00mm
  • Handle Shank Length (H): 21mm
  • Max. Diameter: 11.96mm
  • Min. Diameter: 11.92mm

Brand: MBA
Country of Origin: DE

Alternative Parts Include: MBL110A, MBL110, MBL-110, MBL-110A

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
