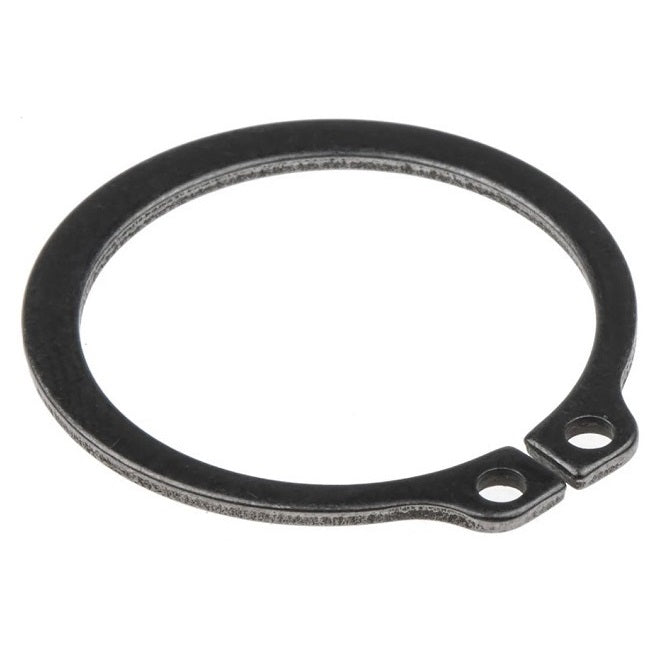

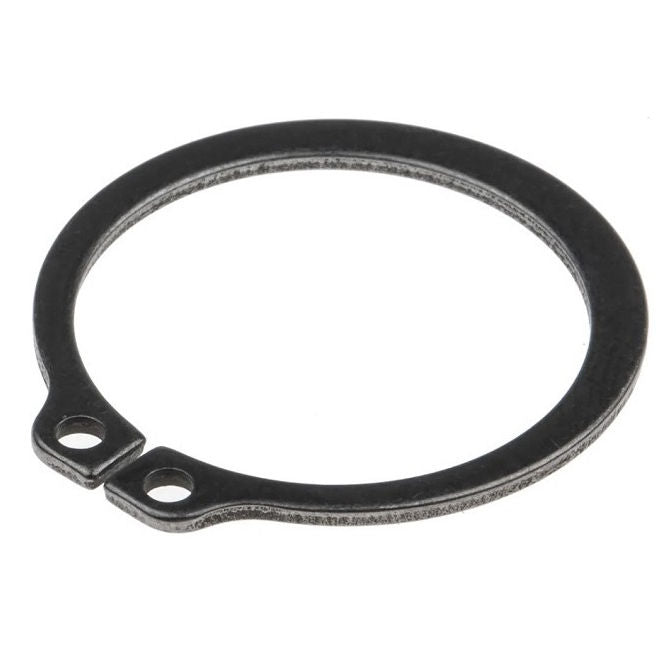

External Retaining Rings - 11x1x10.5 mm - Carbon Steel

CCE-01100-C (50 Pcs)

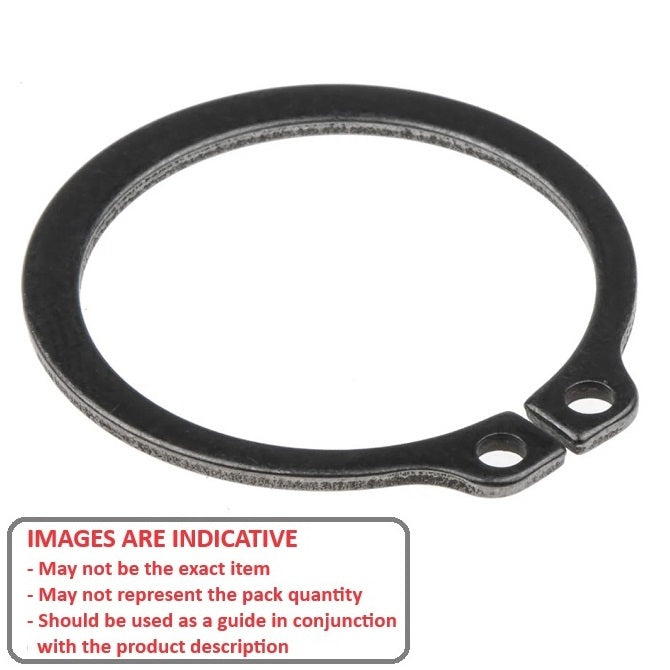

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • External Retaining Rings - 11x1x10.5 mm - Carbon Steel
1 4

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$3.77 AUD
$8.28 AUD $3.77 AUD
per 50
Qty: 5 available now (250 pcs)
Only 5 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 1023

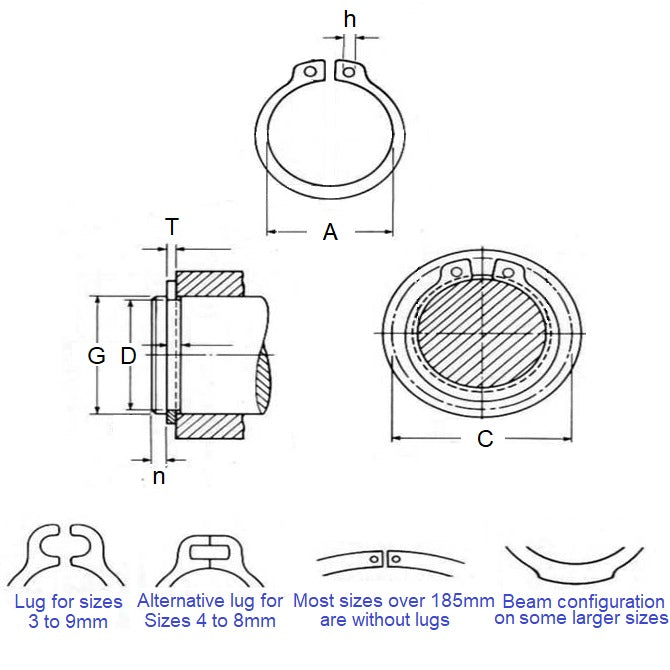

Shaft Diameter (Ds): 11.00mm
(11.00mm is 0.433 in.)

Carbon Steel
  • Clip Thickness (T): 1.00mm
    + 0.00 / - 0.11
    (1.00mm is 0.039 in.)
  • Groove Dia. (Dg): 10.50mm
    + 0.00 / - 0.06
    (10.50mm is 0.413 in.)
  • Approx. Loose Circlip ID (A): 10.20mm
  • Groove Width (W): 1.10mm
  • Clearance on Shaft (C1): 18.00mm
  • Clearance in Groove (C1): 17.10mm
  • Min. Lug Diameter (h): 1.50mm
  • Min. Extension (n): 0.80
  • Standard: DIN471

Brand: MBA
Country of Origin: US

Alternative Parts Include: 98541A445, D1400-0110, D14000110, D1400-011, D1400011, BN818-011, BN818011, MD0471MQB011, A11BLS, A11-BLS, A011, A-011, A11, A11X1, NZT.A11, 471-011, 471011, 14000110, 1400-0110, CCE01100C, DSH-011, DSH011, Ellison, ALTPART, Seeger, Bossard, Waldes, NoCor, Rotor Clip

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
