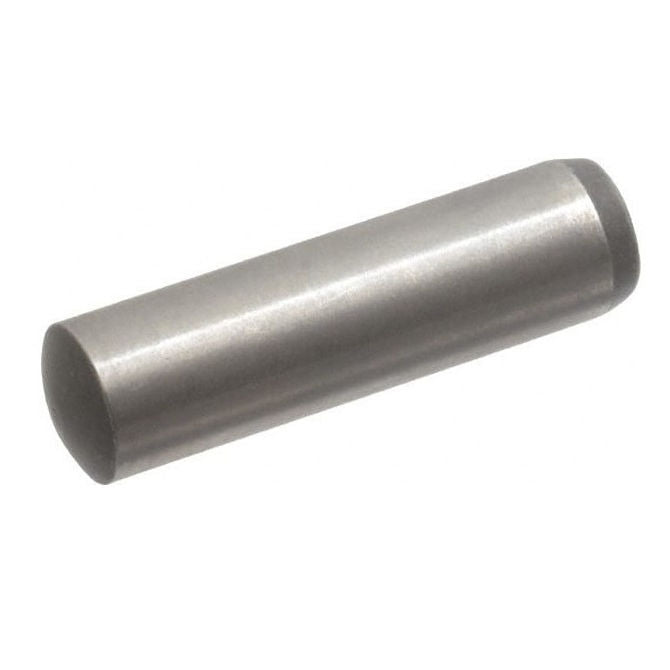

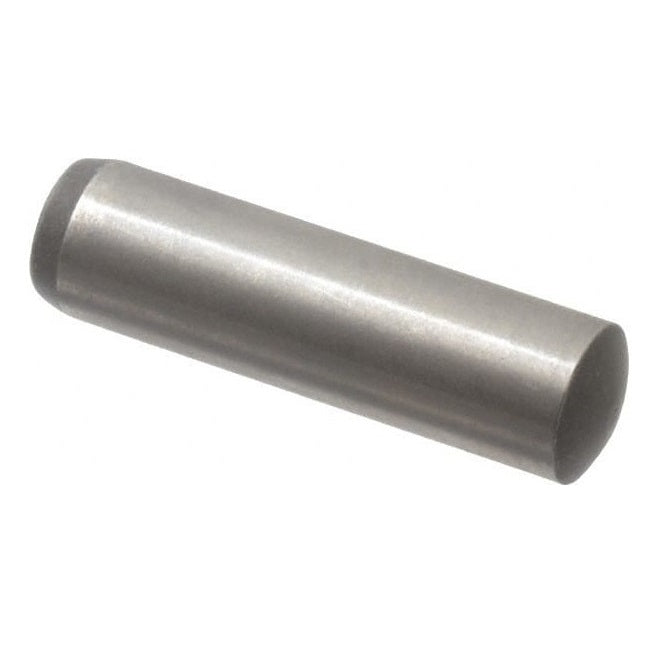

Dowel Pins - 10x22x22 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62

DP100-022-CH-1 (5 Pcs)

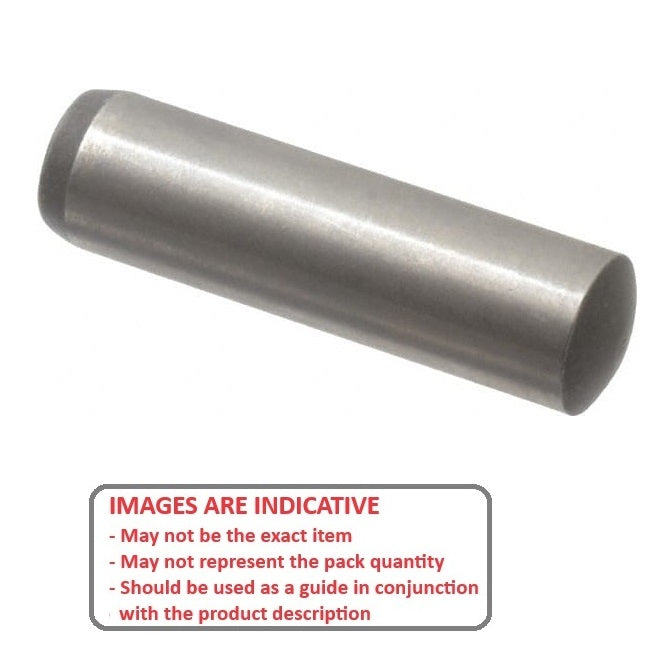

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Dowel Pins - 10x22x22 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62
1 4

NoCor

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$15.77 AUD
$15.77 AUD
per 5
Qty: 26 available now (130 pcs)
Order 50 or more (250 pcs) for $14.19 AUD per 5
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 20, 2025

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 3320


Diameter (D): 10.000mm
+ 0.007 / + 0.018
(10.000mm is 0.394 in.)

Steel 100Cr6 - Heat Treated and Ground Rc 58-62
  • Length (L): 22.00mm
    +/- 0.420
    (22.00mm is 0.866 in.)
  • Approx. Overall Length: 22.00mm
    +/ - 0.420
    (22.00mm is 0.866 in.)

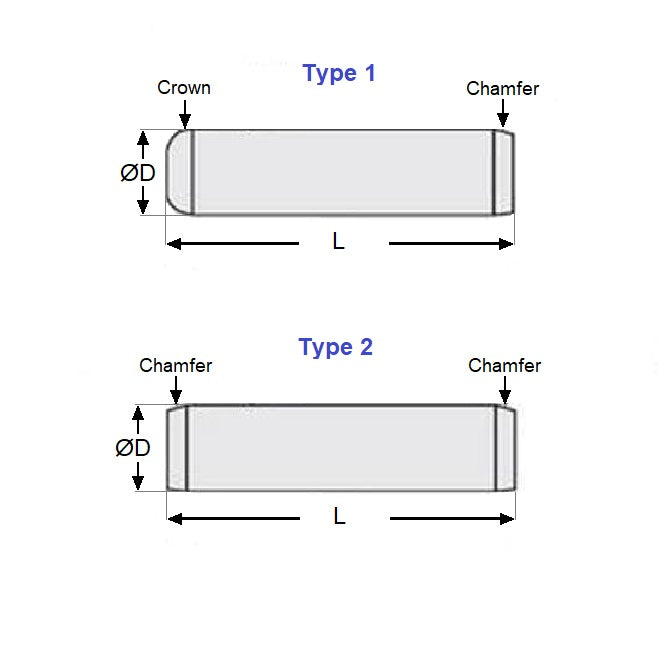

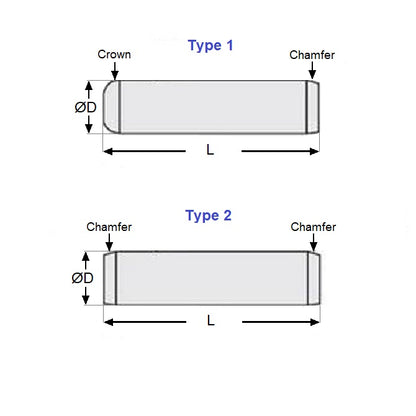

  • Type: 1 (Chamfer One End)
  • Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: US

Alternative Parts Include: DH10-22, DH1022, DOWMH-100-022, DOWMH100022, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
