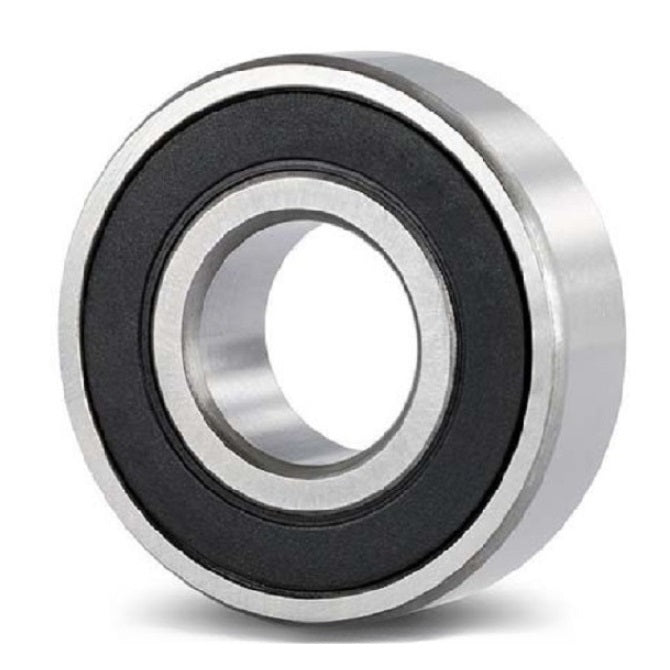

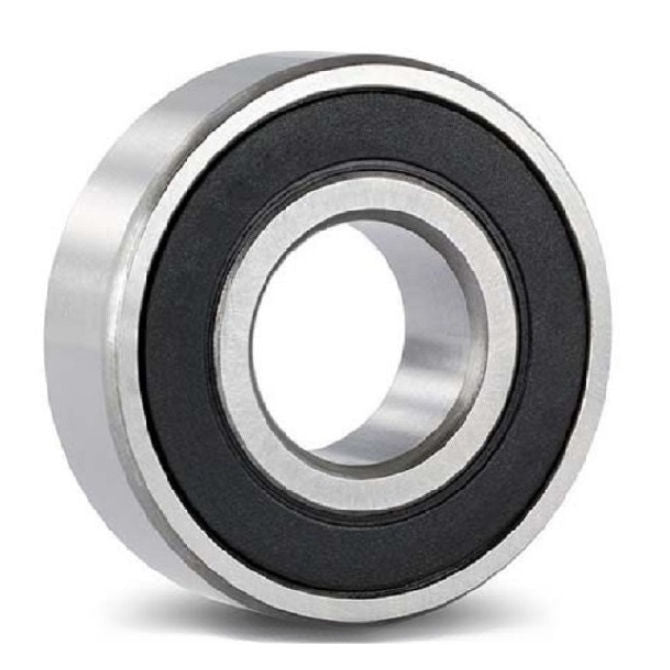

Single Row Ball Bearings - 10x19x5 mm Unflanged - Chrome Steel SAE 52100 Bearing

6800-2RS (Each)

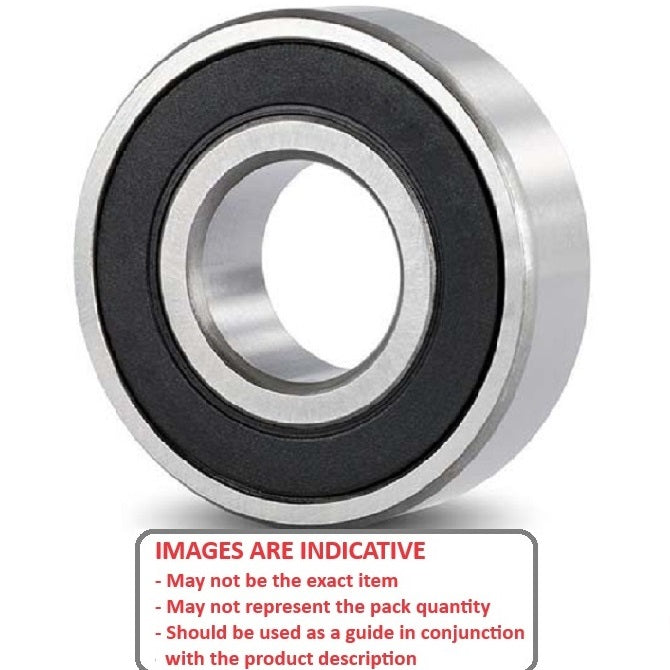

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 10x19x5 mm - Chrome Steel SAE 52100
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$3.41 AUD
$3.41 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 52 available now

Order 50 or more
for $3.07 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 09, 2026

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Product Details

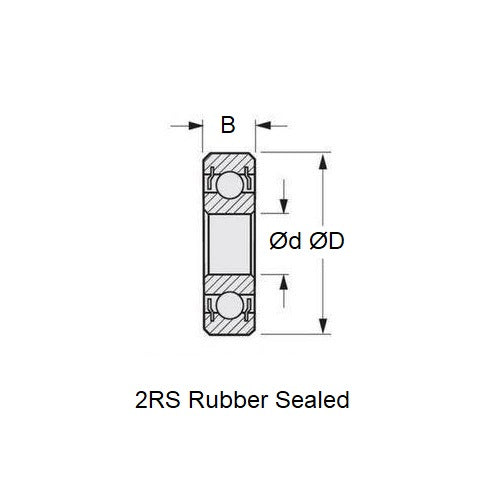

Double rubber sealed standard bearing

ID (d): 10.000mm
+ 0.000 / - 0.0075
(10.000mm is 0.394 in.)

Chrome Steel SAE 52100
  • ID (d): 10.000mm
    + 0.000 / - 0.0075
    (10.000mm is 0.394 in.)
  • O.D. (D): 19.000mm
    + 0.000 / - 0.010
    (19.000mm is 0.748 in.)
  • Width (B): 5.000mm
    + 0.000 / - 0.125
    (5.000mm is 0.197 in.)
  • Precision Grade: Abec 1
  • Closure Type: 2RS
  • Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • FESTO 237570
  • ALTPART
  • 5972K275
  • WIB 61800-2RSR
  • WIB 61800-RSR
  • Sealed 6800 / 5
  • NTN® 6800LLU
  • 618002RSR
  • 61800RSR
  • 68002RS
  • 6800DDU
  • 6800-RS
  • 6800RS
  • 6800-2RS
  • 6800BASIC

Used for

  • RC Car Parts
  • RC Helicopter Parts
  • RC Nitro Engine Parts
  • CEN - Genesis 46 RTR Chasis 1/8 Scale - Replacement Bearing
  • Mugen® - K2 Advanced - Replacement Bearing
  • Mugen® - SE7 K1 - Replacement Bearing
  • Multiplex® - Tecnago 1/5 Scale - Replacement Bearing
  • Ricambi® - SVM Columbia MK 5 1/5 Scale GA - Replacement Bearing
  • Serpent® - 705 - Replacement Bearing
  • Serpent® - 835 1-10 2WD - Replacement Bearing
  • Serpent® - 835 1-10 4WD - Replacement Bearing
  • Serpent® - Impact 10 M2 Challenger - Replacement Bearing
  • Serpent® - Impact 10 Pro 2 - Replacement Bearing
  • Serpent® - Impact M2 Spec 2000 4WD - Replacement Bearing
  • Serpent® - Impact-2 2WD Pro - Replacement Bearing
  • Serpent® - Impact-2 2WD Sport - Replacement Bearing
  • Serpent® - Impact-2 4WD Sport - Replacement Bearing
  • Serpent® - Impulse 1/10 Scale Single SPE - Replacement Bearing
  • Serpent® - Impulse Pro 1/10 4WD - Replacement Bearing
  • Serpent® - Impulse Street 2 Speed 4WD - Replacement Bearing
  • Serpent® - Impulse Street Spec 4WD - Replacement Bearing
  • Team Associated® - MGT4.60SE - Replacement Bearing
  • Team Associated® - Monster GT Truck and RTR Nitro Off Road - Replacement Bearing
  • Thunder Tiger® - EB4-S3 - Replacement Bearing
  • Thunder Tiger® - ST1 - Replacement Bearing
  • Thunder Tiger® - TTRS3 - Replacement Bearing
  • Traxxas® - Sledgehammer - Replacement Bearing
  • Traxxas® - S-Maxx Stadium Max RTR - Replacement Bearing
  • Traxxas® - Sport Maxx - Replacement Bearing
  • Traxxas® - T- Maxx 3.3 - Replacement Bearing
  • Traxxas® - T-Maxx 2.5 With Additional Trans - Replacement Bearing
  • Traxxas® - T-Maxx 4WD RTR With Additional T - Replacement Bearing
  • Traxxas® - T-Maxx With Additional Trans. BR - Replacement Bearing
  • Miniature Aircraft® - Fury Extreme - Replacement Bearing
  • OPS - 15 - Replacement Front Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
