6800-2RS - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

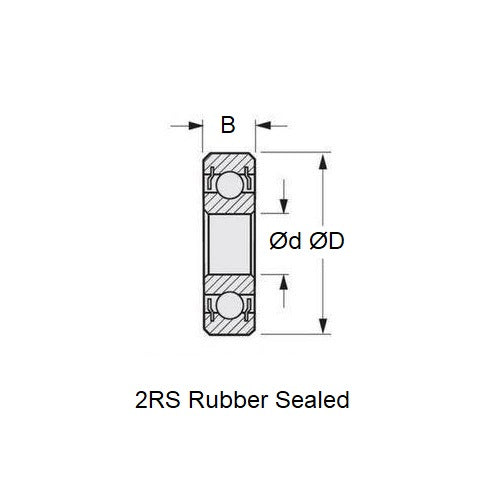

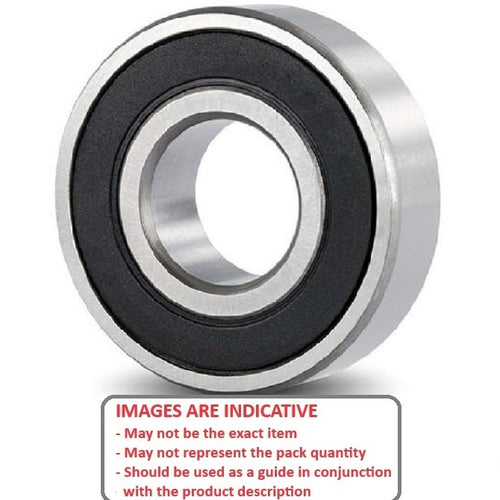

Double rubber sealed standard bearing
- ID (d)
:
10.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.394 in.) - O.D. (D)
19.000
mm
+ 0.000 / - 0.010
(Equiv. 0.748 in.) - Width (B)
5.000
mm
+ 0.000 / - 0.125
(Equiv. 0.197 in.) - Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6800
- Limiting Speed 25160
- Cage Type Standard
- Static Load Rating KGf 85
- Dynamic Load Rating KGf 175
- Radii 0.30 mm
- Inner Shoulder (UI) 11.80mm
- Outer Shoulder (UO) 17.15 mm
- Number of Balls 10
- Clearance CN (2 to 13)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- RC Nitro Engine Parts
- CEN - Genesis 46 RTR Chasis 1/8 Scale - Replacement Bearing
- Mugen® - K2 Advanced - Replacement Bearing
- Mugen® - SE7 K1 - Replacement Bearing
- Multiplex® - Tecnago 1/5 Scale - Replacement Bearing
- Ricambi® - SVM Columbia MK 5 1/5 Scale GA - Replacement Bearing
- Serpent® - 705 - Replacement Bearing
- Serpent® - 835 1-10 2WD - Replacement Bearing
- Serpent® - 835 1-10 4WD - Replacement Bearing
- Serpent® - Impact 10 M2 Challenger - Replacement Bearing
- Serpent® - Impact 10 Pro 2 - Replacement Bearing
- Serpent® - Impact M2 Spec 2000 4WD - Replacement Bearing
- Serpent® - Impact-2 2WD Pro - Replacement Bearing
- Serpent® - Impact-2 2WD Sport - Replacement Bearing
- Serpent® - Impact-2 4WD Sport - Replacement Bearing
- Serpent® - Impulse 1/10 Scale Single SPE - Replacement Bearing
- Serpent® - Impulse Pro 1/10 4WD - Replacement Bearing
- Serpent® - Impulse Street 2 Speed 4WD - Replacement Bearing
- Serpent® - Impulse Street Spec 4WD - Replacement Bearing
- Team Associated® - MGT4.60SE - Replacement Bearing
- Team Associated® - Monster GT Truck and RTR Nitro Off Road - Replacement Bearing
- Thunder Tiger® - EB4-S3 - Replacement Bearing
- Thunder Tiger® - ST1 - Replacement Bearing
- Thunder Tiger® - TTRS3 - Replacement Bearing
- Traxxas® - Sledgehammer - Replacement Bearing
- Traxxas® - S-Maxx Stadium Max RTR - Replacement Bearing
- Traxxas® - Sport Maxx - Replacement Bearing
- Traxxas® - T- Maxx 3.3 - Replacement Bearing
- Traxxas® - T-Maxx 2.5 With Additional Trans - Replacement Bearing
- Traxxas® - T-Maxx 4WD RTR With Additional T - Replacement Bearing
- Traxxas® - T-Maxx With Additional Trans. BR - Replacement Bearing
- Miniature Aircraft® - Fury Extreme - Replacement Bearing
- OPS - 15 - Replacement Front Bearing
Cross References
- FESTO 237570
- 5972K275
- WIB 61800-2RSR
- WIB 61800-RSR
- Sealed 6800 / 5
- NTN® 6800LLU
- 618002RSR
- 61800RSR
- 68002RS
- 6800DDU
- 6800-RS
- 6800RS
- 6800-2RS
- 6800 Basic Size Ref
