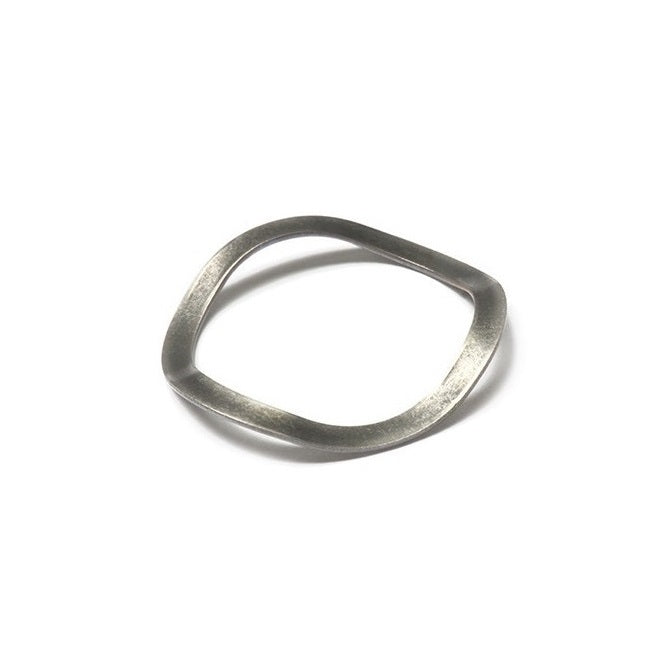

Spring Washers - 10x16x1.2 mm Wave - Carbon Spring Steel Self Finish Washer

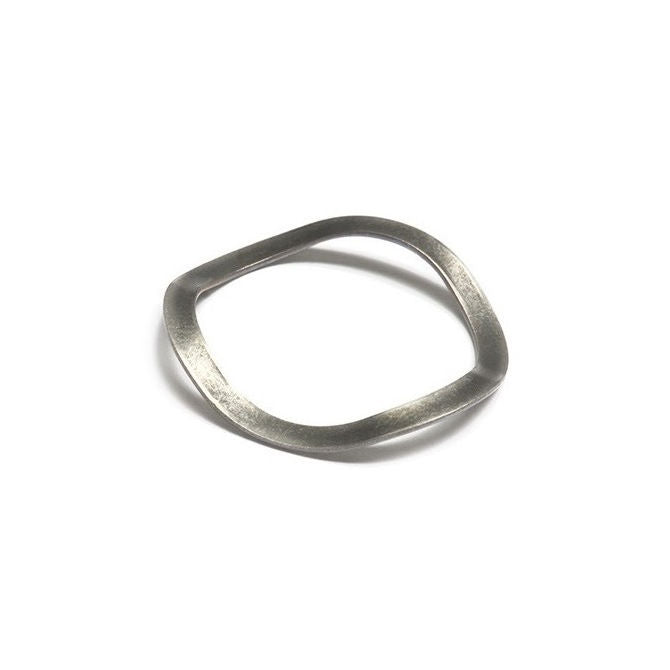

Name: 1090950 | W0100-T-016-012-W3-C (Each) --- Spring Washers - 10x16x1.2 mm Wave - Carbon Spring Steel Self Finish Washer
Rating: 5.0 (1 reviews)

W0100-T-016-012-W3-C (Each)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Washers - Spring - Wave - Carbon Steel

Additional resources:
Assortment Kits
Screws

Price:

$1.41 AUD

~~$1.69 AUD~~ $1.41 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 374 available now
Order 50 or more for $1.27 AUD

Product Details

Nominal Inside Diameter (d): 10.00mm
_{+ 0.3 / + 0.7}
_{(10.00mm is 0.394 in.)}

Carbon Spring Steel Self Finish

Nominal Inside Diameter (d): 10.00mm
_{+ 0.3 / + 0.7}
_{(10.00mm is 0.394 in.)}
Nominal Outside Diameter (D): 16.00mm
_{- 0.3 / - 0.7}
_{(16.00mm is 0.63 in.)}
Nom. Height (H): 1.20mm
_{(1.20mm is 0.047 in.)}
Thickness (s): 0.15mm
Info: Suits OD of 625, and 634 Bearings (Equiv EPL004)
Type: 3 Wave
Nominal Screw Size: M10, 3/8
Spring Rate: 38N/mm
Actual ID (Ref): 10.5mm
Load at Height: 1.7 N at 1 mmRef.

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Similar to

ExaktKey EPL004
NoCor EPL004
Springmaster EPL004
XOSpring EPL004
EPL4
EPL04
W0100T016015W3C

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
