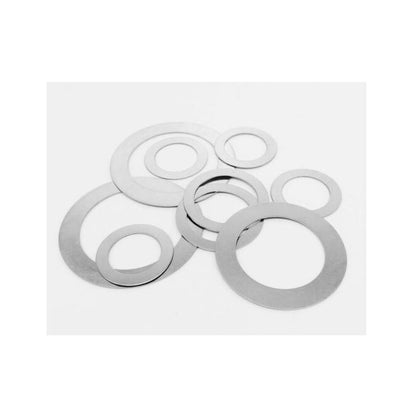

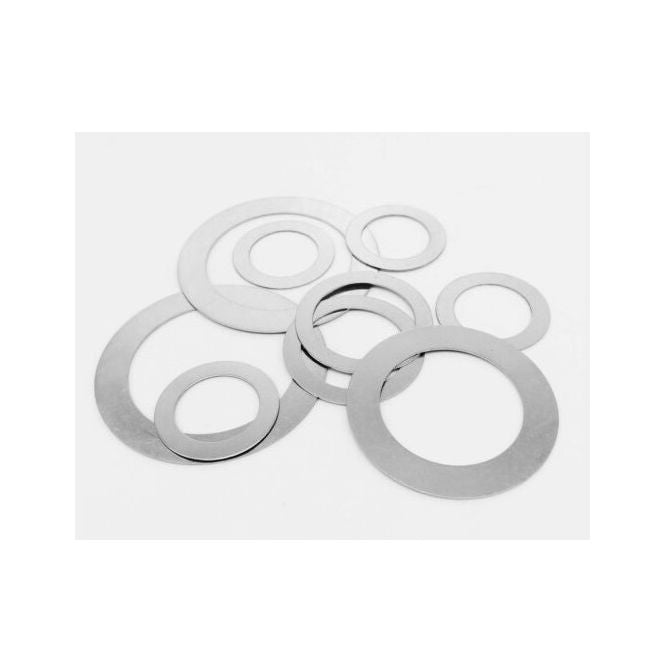

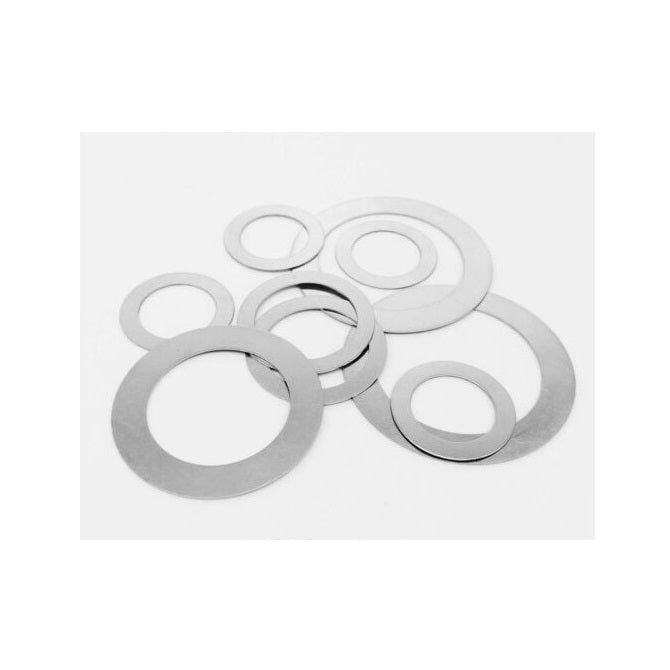

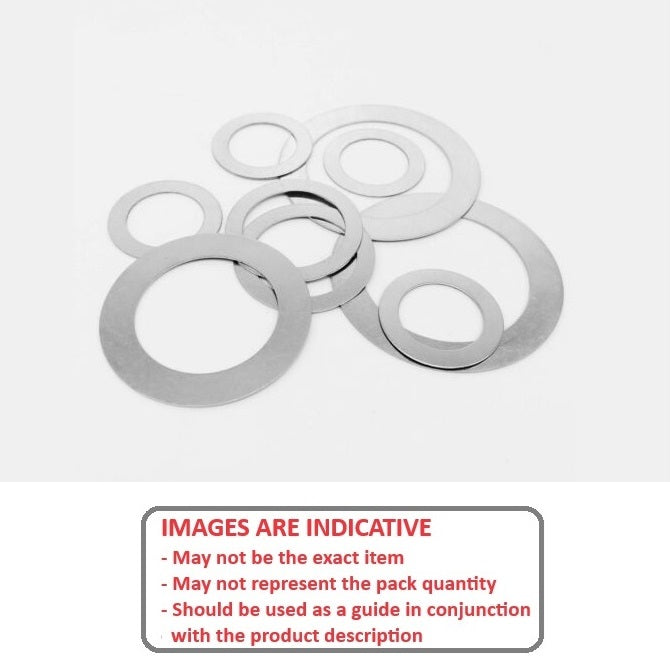

Flat Washers - 10x12x0.18 mm - Stainless Steel AISI 400 Series Heat Treated

W0100-FP-012-0018-S400 (10 Pcs)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Flat Washers - 10x12x0.18 mm - Stainless Steel AISI 400 Series Heat Treated
1 4

Myonic

Additional resources:
Washers and Spacers PDF Catalogue
Precision Shim Washer PDF Catalogue
Screws
Price:
$8.41 AUD
$8.41 AUD
per 10
Qty: 161 available now (1610 pcs)
Order 50 or more (500 pcs) for $7.57 AUD per 10
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 17, 2025

Base Category: Washers - Flat

Top Level Category: Washers - Flat - Precision Shim - Stainless Steel

Product Details:

Nom. ID (d): 10.000mm
+ 0.005 / + 0.30
(10.000mm is 0.394 in.)

Stainless Steel AISI 400 Series Heat Treated
  • Nom. OD (D): 12.000mm
    - 0.05 / - 0.20
    (12.000mm is 0.472 in.)
  • Thickness (T): 0.180mm
    + /- 0.010
    (0.180mm is 0.007 in.)
  • Grade: Precision
  • Min. Actual ID (Ref): 10.005mm

Brand: Myonic
Country of Origin: DE

Alternative Parts Include: PS10X12X0.18, PS10x12x0.180

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
