WRE-0100-RD (10 Pcs)
Circlips - 10 mm x 0.8 mm x 9.1 mm

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Snap Rings
Price:
Regular price $6.86 AUD
Regular price Sale price $6.86 AUD
per 10
Qty: 506 available now (5060 pcs)
Order 50 or more (500 pcs) for $6.17 AUD per 10
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 03, 2025

Base Category: Wire Rings - External

Top Level Category: Wire Rings - External - Round Section

Product Details:

Additional stock available from USA subject to Prior Sale = 5412

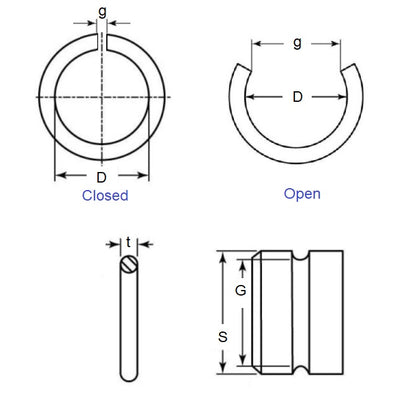

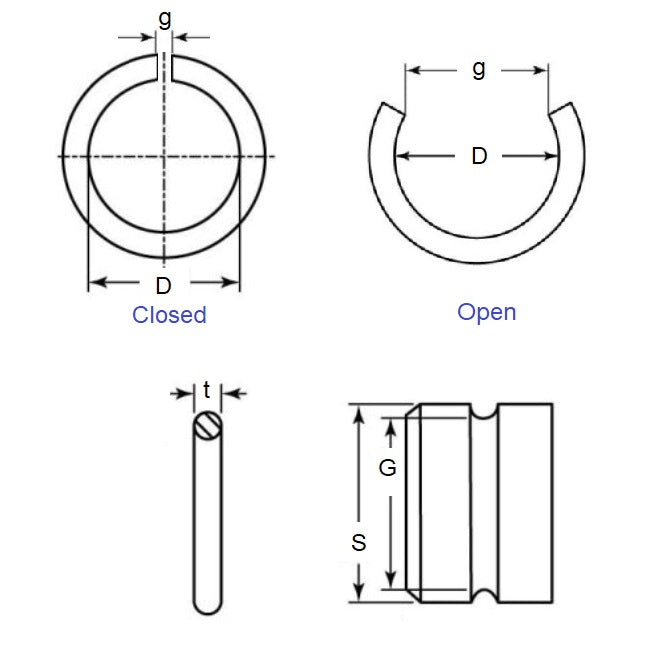

Shaft Diameter (Ds): 10.00mm
Spring Steel
  • Wire Thickness (t): 0.80mm
  • Free Inside Diameter (D): 9.1mm
    +0/-0.30
  • Free Outside Dia (Dr): 10.7mm
  • Groove Dia. (G): 9.2mm
    +/-0.05
  • Groove Width (W): 1.0
    Min.
  • Section Profile: Round Section

Brand: MBA
Country of Origin: USA

Alternatives: DRP-010, WRE0100RD

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
