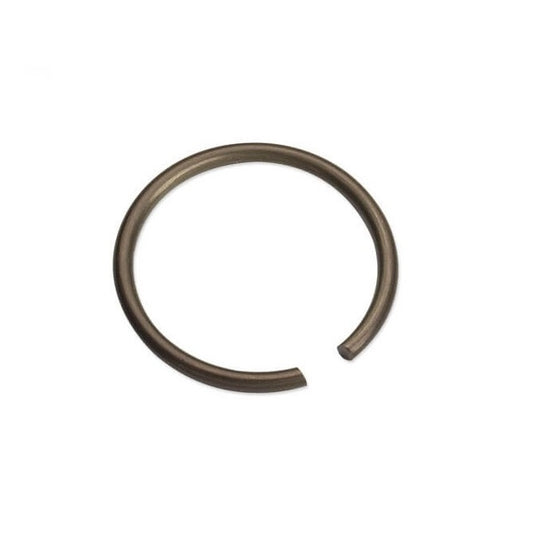

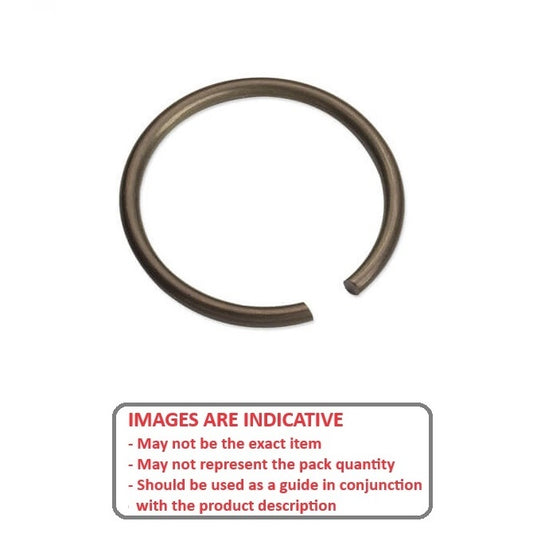

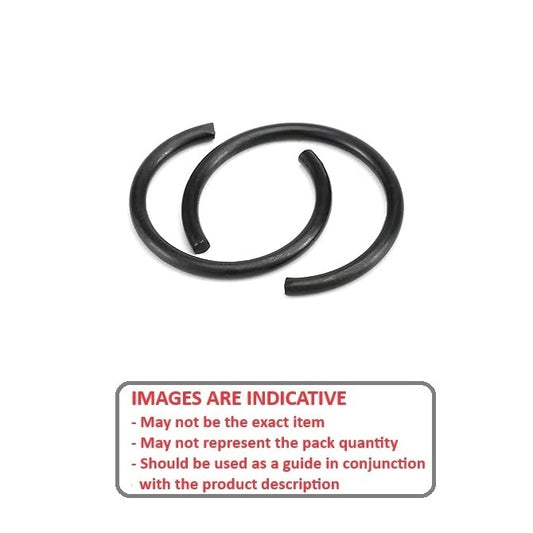

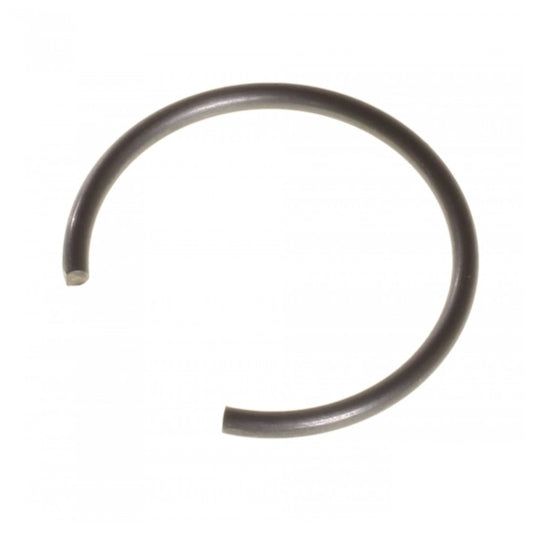

Retaining Rings - External - Round Wire

17 Products in this selection
  • DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
  • Round section wire rings are mostly used in semicircular grooves.
  • Applications include gear systems, automotive engineering and open gudgeon pins.
Small Parts & Bearings

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue

A more comprehensive listing may be found on the MBA Minibearings main store at Retaining Rings - External - Round Wire.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) min/max Groove Width (W) Indicative
Shaft Diameter (Ds)
5.00
mm

(0.197 in.)
Clip Thickness (T)
0.80
mm

(0.031 in.)
Groove Dia. (Dg)
4.2
mm
+ 0 / - 0.20
(0.165 in.)
Approx. Loose Circlip ID (A)
4.1
mm
Radial Wall (S) min/max
4.2
mm
+/- 0.05
Groove Width (W)
1.0
mm
Min.
External Retaining Rings - 5x0.8x4.2 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 5.7    Section Profile: Round Section
Part Number: WRE-0050-RD (5 Pcs) External Retaining Rings - 5x0.8x4.2 mm - Carbon Spring Steel
130 units (650 pcs) Available Now | Item Discontinued - Up to 130 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.00 AUD
$7.60 AUD $4.00 AUD
Per 5
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
Shaft Diameter (Ds)
5.00
mm

(0.197 in.)
Clip Thickness (T)
0.80
mm

(0.031 in.)
Groove Dia. (Dg)
4.2
mm
+ 0 / - 0.20
(0.165 in.)
Approx. Loose Circlip ID (A)
4.1
mm
External Retaining Rings - 5x0.8x4.2 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 4.2 mm +/- 0.05    Groove Width (W): 1.0 mm Min.   Free Outside Dia (Dr): 5.7    Section Profile: Round Section
Part Number: WRE-0050-RD (5 Pcs) External Retaining Rings - 5x0.8x4.2 mm - Carbon Spring Steel
130 units (650 pcs) Available Now | Item Discontinued - Up to 130 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.00 AUD
$7.60 AUD $4.00 AUD
Per 5
Shaft Diameter (Ds)
6.00
mm

(0.236 in.)
Clip Thickness (T)
0.60
mm

(0.024 in.)
Groove Dia. (Dg)
5.4
mm
+ 0 / - 0.20
(0.213 in.)
Approx. Loose Circlip ID (A)
5.2
mm
Radial Wall (S) min/max
5.4
mm
+/- 0.05
Groove Width (W)
0.8
mm
Min.
External Retaining Rings - 6x0.6x5.4 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 6.4    Section Profile: Round Section    Info: DIN9925
Part Number: WRE-0060-RD-N (100 Pcs) External Retaining Rings - 6x0.6x5.4 mm - Carbon Spring Steel
3 units (300 pcs) Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$10.00 AUD
$19.00 AUD $10.00 AUD
Per 100
Shaft Diameter (Ds)
6.00
mm

(0.236 in.)
Clip Thickness (T)
0.60
mm

(0.024 in.)
Groove Dia. (Dg)
5.4
mm
+ 0 / - 0.20
(0.213 in.)
Approx. Loose Circlip ID (A)
5.2
mm
External Retaining Rings - 6x0.6x5.4 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 5.4 mm +/- 0.05    Groove Width (W): 0.8 mm Min.   Free Outside Dia (Dr): 6.4    Section Profile: Round Section    Info: DIN9925
Part Number: WRE-0060-RD-N (100 Pcs) External Retaining Rings - 6x0.6x5.4 mm - Carbon Spring Steel
3 units (300 pcs) Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$10.00 AUD
$19.00 AUD $10.00 AUD
Per 100
Shaft Diameter (Ds)
6.00
mm

(0.236 in.)
Clip Thickness (T)
0.80
mm

(0.031 in.)
Groove Dia. (Dg)
5.2
mm
+ 0 / - 0.20
(0.205 in.)
Approx. Loose Circlip ID (A)
5.1
mm
Radial Wall (S) min/max
5.2
mm
+/- 0.05
Groove Width (W)
1.0
mm
Min.
External Retaining Rings - 6x0.8x5.2 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 6.7    Section Profile: Round Section    Info: DIN7993
Part Number: WRE-0060-RD (5 Pcs) External Retaining Rings - 6x0.8x5.2 mm - Carbon Spring Steel
336 units (1680 pcs) Available Now | Further orders can be expected around Fri, Sep 26, 2025
$3.95 AUD
$3.95 AUD
Per 5
Shaft Diameter (Ds)
6.00
mm

(0.236 in.)
Clip Thickness (T)
0.80
mm

(0.031 in.)
Groove Dia. (Dg)
5.2
mm
+ 0 / - 0.20
(0.205 in.)
Approx. Loose Circlip ID (A)
5.1
mm
External Retaining Rings - 6x0.8x5.2 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 5.2 mm +/- 0.05    Groove Width (W): 1.0 mm Min.   Free Outside Dia (Dr): 6.7    Section Profile: Round Section    Info: DIN7993
Part Number: WRE-0060-RD (5 Pcs) External Retaining Rings - 6x0.8x5.2 mm - Carbon Spring Steel
336 units (1680 pcs) Available Now | Further orders can be expected around Fri, Sep 26, 2025
$3.95 AUD
$3.95 AUD
Per 5
View the product page first if you are unsure.
Shaft Diameter (Ds)
7.00
mm

(0.276 in.)
Clip Thickness (T)
0.80
mm

(0.031 in.)
Groove Dia. (Dg)
6.2
mm
+ 0 / - 0.30
(0.244 in.)
Approx. Loose Circlip ID (A)
6.1
mm
Radial Wall (S) min/max
6.2
mm
+/- 0.05
Groove Width (W)
1.0
mm
Min.
External Retaining Rings - 7x0.8x6.2 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 7.7    Section Profile: Round Section
Part Number: WRE-0070-RD (5 Pcs) External Retaining Rings - 7x0.8x6.2 mm - Carbon Spring Steel
93 units (465 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$5.50 AUD
$5.50 AUD
Per 5
Shaft Diameter (Ds)
7.00
mm

(0.276 in.)
Clip Thickness (T)
0.80
mm

(0.031 in.)
Groove Dia. (Dg)
6.2
mm
+ 0 / - 0.30
(0.244 in.)
Approx. Loose Circlip ID (A)
6.1
mm
External Retaining Rings - 7x0.8x6.2 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 6.2 mm +/- 0.05    Groove Width (W): 1.0 mm Min.   Free Outside Dia (Dr): 7.7    Section Profile: Round Section
Part Number: WRE-0070-RD (5 Pcs) External Retaining Rings - 7x0.8x6.2 mm - Carbon Spring Steel
93 units (465 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$5.50 AUD
$5.50 AUD
Per 5
View the product page first if you are unsure.
Shaft Diameter (Ds)
8.00
mm

(0.315 in.)
Clip Thickness (T)
0.80
mm

(0.031 in.)
Groove Dia. (Dg)
7.2
mm
+ 0 / - 0.30
(0.283 in.)
Approx. Loose Circlip ID (A)
7.1
mm
Radial Wall (S) min/max
7.2
mm
+/- 0.05
Groove Width (W)
1.0
mm
Min.
External Retaining Rings - 8x0.8x7.2 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 8.7    Section Profile: Round Section
Part Number: WRE-0080-RD (100 Pcs) External Retaining Rings - 8x0.8x7.2 mm - Carbon Spring Steel
6 units (600 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$13.05 AUD
$13.05 AUD
Per 100
Shaft Diameter (Ds)
8.00
mm

(0.315 in.)
Clip Thickness (T)
0.80
mm

(0.031 in.)
Groove Dia. (Dg)
7.2
mm
+ 0 / - 0.30
(0.283 in.)
Approx. Loose Circlip ID (A)
7.1
mm
External Retaining Rings - 8x0.8x7.2 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 7.2 mm +/- 0.05    Groove Width (W): 1.0 mm Min.   Free Outside Dia (Dr): 8.7    Section Profile: Round Section
Part Number: WRE-0080-RD (100 Pcs) External Retaining Rings - 8x0.8x7.2 mm - Carbon Spring Steel
6 units (600 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$13.05 AUD
$13.05 AUD
Per 100
View the product page first if you are unsure.
Shaft Diameter (Ds)
9.53
mm

(0.375 in.)
Clip Thickness (T)
1.09
mm
+/- 0.10
(0.043 in.)
Groove Dia. (Dg)
8.87
mm
+ 0.08 / - 0.00
(0.349 in.)
Approx. Loose Circlip ID (A)
8.76
mm
Radial Wall (S) min/max
8.87
mm
Groove Width (W)
1.14
mm
External Retaining Rings - 9.53x1.09x8.87 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 10.94    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0095-RD-HO (3 Pcs) External Retaining Rings - 9.53x1.09x8.87 mm - Carbon Spring Steel
4 units (12 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$15.95 AUD
$15.95 AUD
Per 3
Shaft Diameter (Ds)
9.53
mm

(0.375 in.)
Clip Thickness (T)
1.09
mm
+/- 0.10
(0.043 in.)
Groove Dia. (Dg)
8.87
mm
+ 0.08 / - 0.00
(0.349 in.)
Approx. Loose Circlip ID (A)
8.76
mm
External Retaining Rings - 9.53x1.09x8.87 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 8.87 mm    Groove Width (W): 1.14 mm    Free Outside Dia (Dr): 10.94    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0095-RD-HO (3 Pcs) External Retaining Rings - 9.53x1.09x8.87 mm - Carbon Spring Steel
4 units (12 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$15.95 AUD
$15.95 AUD
Per 3
View the product page first if you are unsure.
Shaft Diameter (Ds)
10.00
mm

(0.394 in.)
Clip Thickness (T)
0.80
mm

(0.031 in.)
Groove Dia. (Dg)
9.2
mm
+ 0 / - 0.30
(0.362 in.)
Approx. Loose Circlip ID (A)
9.1
mm
Radial Wall (S) min/max
9.2
mm
+/- 0.05
Groove Width (W)
1.0
mm
Min.
External Retaining Rings - 10x0.8x9.2 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 10.7    Section Profile: Round Section
Part Number: WRE-0100-RD (10 Pcs) External Retaining Rings - 10x0.8x9.2 mm - Carbon Spring Steel
501 units (5010 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$6.86 AUD
$6.86 AUD
Per 10
Shaft Diameter (Ds)
10.00
mm

(0.394 in.)
Clip Thickness (T)
0.80
mm

(0.031 in.)
Groove Dia. (Dg)
9.2
mm
+ 0 / - 0.30
(0.362 in.)
Approx. Loose Circlip ID (A)
9.1
mm
External Retaining Rings - 10x0.8x9.2 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 9.2 mm +/- 0.05    Groove Width (W): 1.0 mm Min.   Free Outside Dia (Dr): 10.7    Section Profile: Round Section
Part Number: WRE-0100-RD (10 Pcs) External Retaining Rings - 10x0.8x9.2 mm - Carbon Spring Steel
501 units (5010 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$6.86 AUD
$6.86 AUD
Per 10
View the product page first if you are unsure.
Shaft Diameter (Ds)
12.00
mm

(0.472 in.)
Clip Thickness (T)
1.00
mm

(0.039 in.)
Groove Dia. (Dg)
11.0
mm
+ 0 / - 0.40
(0.433 in.)
Approx. Loose Circlip ID (A)
10.8
mm
Radial Wall (S) min/max
11.0
mm
+/- 0.05
Groove Width (W)
1.2
mm
Min.
External Retaining Rings - 12x1x11 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 12.8    Section Profile: Round Section
Part Number: WRE-0120-RD (50 Pcs) External Retaining Rings - 12x1x11 mm - Carbon Spring Steel
10 units (500 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$8.68 AUD
$8.68 AUD
Per 50
Shaft Diameter (Ds)
12.00
mm

(0.472 in.)
Clip Thickness (T)
1.00
mm

(0.039 in.)
Groove Dia. (Dg)
11.0
mm
+ 0 / - 0.40
(0.433 in.)
Approx. Loose Circlip ID (A)
10.8
mm
External Retaining Rings - 12x1x11 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 11.0 mm +/- 0.05    Groove Width (W): 1.2 mm Min.   Free Outside Dia (Dr): 12.8    Section Profile: Round Section
Part Number: WRE-0120-RD (50 Pcs) External Retaining Rings - 12x1x11 mm - Carbon Spring Steel
10 units (500 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$8.68 AUD
$8.68 AUD
Per 50
View the product page first if you are unsure.
Shaft Diameter (Ds)
15.88
mm

(0.625 in.)
Clip Thickness (T)
1.30
mm
+/- 0.06
(0.051 in.)
Groove Dia. (Dg)
15.06
mm
+ 0.08 / - 0.00
(0.593 in.)
Approx. Loose Circlip ID (A)
14.91
mm
Radial Wall (S) min/max
15.06
mm
Groove Width (W)
1.60
mm
External Retaining Rings - 15.88x1.3x15.06 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 17.51    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0159-RD-C (2 Pcs) External Retaining Rings - 15.88x1.3x15.06 mm - Carbon Spring Steel
10 units (20 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$5.14 AUD
$5.14 AUD
Per 2
Shaft Diameter (Ds)
15.88
mm

(0.625 in.)
Clip Thickness (T)
1.30
mm
+/- 0.06
(0.051 in.)
Groove Dia. (Dg)
15.06
mm
+ 0.08 / - 0.00
(0.593 in.)
Approx. Loose Circlip ID (A)
14.91
mm
External Retaining Rings - 15.88x1.3x15.06 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 15.06 mm    Groove Width (W): 1.60 mm    Free Outside Dia (Dr): 17.51    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0159-RD-C (2 Pcs) External Retaining Rings - 15.88x1.3x15.06 mm - Carbon Spring Steel
10 units (20 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$5.14 AUD
$5.14 AUD
Per 2
View the product page first if you are unsure.
Shaft Diameter (Ds)
16.00
mm

(0.63 in.)
Clip Thickness (T)
1.60
mm

(0.063 in.)
Groove Dia. (Dg)
14.4
mm
+ 0 / - 0.40
(0.567 in.)
Approx. Loose Circlip ID (A)
14.2
mm
Radial Wall (S) min/max
14.4
mm
+/- 0.05
Groove Width (W)
1.8
mm
Min.
External Retaining Rings - 16x1.6x14.4 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 17.4    Section Profile: Round Section
Part Number: WRE-0160-RD (100 Pcs) External Retaining Rings - 16x1.6x14.4 mm - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jul 21, 2025
$11.68 AUD
$22.10 AUD $11.68 AUD
Per 100
Shaft Diameter (Ds)
16.00
mm

(0.63 in.)
Clip Thickness (T)
1.60
mm

(0.063 in.)
Groove Dia. (Dg)
14.4
mm
+ 0 / - 0.40
(0.567 in.)
Approx. Loose Circlip ID (A)
14.2
mm
External Retaining Rings - 16x1.6x14.4 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 14.4 mm +/- 0.05    Groove Width (W): 1.8 mm Min.   Free Outside Dia (Dr): 17.4    Section Profile: Round Section
Part Number: WRE-0160-RD (100 Pcs) External Retaining Rings - 16x1.6x14.4 mm - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jul 21, 2025
$11.68 AUD
$22.10 AUD $11.68 AUD
Per 100
View the product page first if you are unsure.
Shaft Diameter (Ds)
19.05
mm

(0.75 in.)
Clip Thickness (T)
1.50
mm
+/- 0.06
(0.059 in.)
Groove Dia. (Dg)
18.14
mm
+ /- 0.08
(0.714 in.)
Approx. Loose Circlip ID (A)
17.93
mm
Radial Wall (S) min/max
18.14
mm
Groove Width (W)
1.55
mm
External Retaining Rings - 19.05x1.5x18.14 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 20.93    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0191-RD-O External Retaining Rings - 19.05x1.5x18.14 mm - Carbon Spring Steel
1 Available Now | Further orders can be expected around Mon, Jul 21, 2025
$12.05 AUD
$12.05 AUD
Each
Shaft Diameter (Ds)
19.05
mm

(0.75 in.)
Clip Thickness (T)
1.50
mm
+/- 0.06
(0.059 in.)
Groove Dia. (Dg)
18.14
mm
+ /- 0.08
(0.714 in.)
Approx. Loose Circlip ID (A)
17.93
mm
External Retaining Rings - 19.05x1.5x18.14 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 18.14 mm    Groove Width (W): 1.55 mm    Free Outside Dia (Dr): 20.93    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0191-RD-O External Retaining Rings - 19.05x1.5x18.14 mm - Carbon Spring Steel
1 Available Now | Further orders can be expected around Mon, Jul 21, 2025
$12.05 AUD
$12.05 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (Ds)
20.00
mm

(0.787 in.)
Clip Thickness (T)
2.00
mm

(0.079 in.)
Groove Dia. (Dg)
18.0
mm
+ 0 / - 0.50
(0.709 in.)
Approx. Loose Circlip ID (A)
17.7
mm
Radial Wall (S) min/max
18.0
mm
+/- 0.10
Groove Width (W)
2.2
mm
Min.
External Retaining Rings - 20x2x18 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 21.7    Section Profile: Round Section
Part Number: WRE-0200-RD (10 Pcs) External Retaining Rings - 20x2x18 mm - Carbon Spring Steel
29 units (290 pcs) Available Now | Item Discontinued - Up to 29 may be ordered online. No backorders. Please contact us if you need a larger quantity
$10.00 AUD
$19.00 AUD $10.00 AUD
Per 10
Shaft Diameter (Ds)
20.00
mm

(0.787 in.)
Clip Thickness (T)
2.00
mm

(0.079 in.)
Groove Dia. (Dg)
18.0
mm
+ 0 / - 0.50
(0.709 in.)
Approx. Loose Circlip ID (A)
17.7
mm
External Retaining Rings - 20x2x18 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 18.0 mm +/- 0.10    Groove Width (W): 2.2 mm Min.   Free Outside Dia (Dr): 21.7    Section Profile: Round Section
Part Number: WRE-0200-RD (10 Pcs) External Retaining Rings - 20x2x18 mm - Carbon Spring Steel
29 units (290 pcs) Available Now | Item Discontinued - Up to 29 may be ordered online. No backorders. Please contact us if you need a larger quantity
$10.00 AUD
$19.00 AUD $10.00 AUD
Per 10
Shaft Diameter (Ds)
24.00
mm

(0.945 in.)
Clip Thickness (T)
2.00
mm

(0.079 in.)
Groove Dia. (Dg)
22.0
mm
+ 0 / - 0.50
(0.866 in.)
Approx. Loose Circlip ID (A)
21.7
mm
Radial Wall (S) min/max
22.0
mm
+/- 0.10
Groove Width (W)
2.2
mm
Min.
External Retaining Rings - 24x2x22 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 25.7    Section Profile: Round Section
Part Number: WRE-0240-RD (5 Pcs) External Retaining Rings - 24x2x22 mm - Carbon Spring Steel
36 units (180 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$2.59 AUD
$2.59 AUD
Per 5
Shaft Diameter (Ds)
24.00
mm

(0.945 in.)
Clip Thickness (T)
2.00
mm

(0.079 in.)
Groove Dia. (Dg)
22.0
mm
+ 0 / - 0.50
(0.866 in.)
Approx. Loose Circlip ID (A)
21.7
mm
External Retaining Rings - 24x2x22 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 22.0 mm +/- 0.10    Groove Width (W): 2.2 mm Min.   Free Outside Dia (Dr): 25.7    Section Profile: Round Section
Part Number: WRE-0240-RD (5 Pcs) External Retaining Rings - 24x2x22 mm - Carbon Spring Steel
36 units (180 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$2.59 AUD
$2.59 AUD
Per 5
View the product page first if you are unsure.
Shaft Diameter (Ds)
35.00
mm

(1.378 in.)
Clip Thickness (T)
2.50
mm

(0.098 in.)
Groove Dia. (Dg)
32.4
mm
+ 0 / - 0.60
(1.276 in.)
Approx. Loose Circlip ID (A)
32.1
mm
Radial Wall (S) min/max
32.4
mm
+/- 0.10
Groove Width (W)
2.8
mm
Min.
External Retaining Rings - 35x2.5x32.4 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 37.1    Section Profile: Round Section
Part Number: WRE-0350-RD (5 Pcs) External Retaining Rings - 35x2.5x32.4 mm - Carbon Spring Steel
16 units (80 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$3.50 AUD
$3.50 AUD
Per 5
Shaft Diameter (Ds)
35.00
mm

(1.378 in.)
Clip Thickness (T)
2.50
mm

(0.098 in.)
Groove Dia. (Dg)
32.4
mm
+ 0 / - 0.60
(1.276 in.)
Approx. Loose Circlip ID (A)
32.1
mm
External Retaining Rings - 35x2.5x32.4 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 32.4 mm +/- 0.10    Groove Width (W): 2.8 mm Min.   Free Outside Dia (Dr): 37.1    Section Profile: Round Section
Part Number: WRE-0350-RD (5 Pcs) External Retaining Rings - 35x2.5x32.4 mm - Carbon Spring Steel
16 units (80 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$3.50 AUD
$3.50 AUD
Per 5
View the product page first if you are unsure.
Shaft Diameter (Ds)
38.10
mm

(1.5 in.)
Clip Thickness (T)
2.03
mm

(0.08 in.)
Groove Dia. (Dg)
36.07
mm

(1.42 in.)
Approx. Loose Circlip ID (A)
35.05
mm
Radial Wall (S) min/max
36.07
mm
+ 0.13 / - 0.00
Groove Width (W)
2.11
mm
+ 0.13 / - 0.00
External Retaining Rings - 38.1x2.03x36.07 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 39.11    Section Profile: Round Section
Part Number: WRE-0381-RD (5 Pcs) External Retaining Rings - 38.1x2.03x36.07 mm - Carbon Spring Steel
8 units (40 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$12.86 AUD
$12.86 AUD
Per 5
Shaft Diameter (Ds)
38.10
mm

(1.5 in.)
Clip Thickness (T)
2.03
mm

(0.08 in.)
Groove Dia. (Dg)
36.07
mm

(1.42 in.)
Approx. Loose Circlip ID (A)
35.05
mm
External Retaining Rings - 38.1x2.03x36.07 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 36.07 mm + 0.13 / - 0.00    Groove Width (W): 2.11 mm + 0.13 / - 0.00   Free Outside Dia (Dr): 39.11    Section Profile: Round Section
Part Number: WRE-0381-RD (5 Pcs) External Retaining Rings - 38.1x2.03x36.07 mm - Carbon Spring Steel
8 units (40 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$12.86 AUD
$12.86 AUD
Per 5
View the product page first if you are unsure.
Shaft Diameter (Ds)
50.00
mm

(1.969 in.)
Clip Thickness (T)
2.50
mm

(0.098 in.)
Groove Dia. (Dg)
47.5
mm
+ 0 / - 0.80
(1.87 in.)
Approx. Loose Circlip ID (A)
47.0
mm
Radial Wall (S) min/max
47.5
mm
+/- 0.10
Groove Width (W)
2.8
mm
Min.
External Retaining Rings - 50x2.5x47.5 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 52    Section Profile: Round Section
Part Number: WRE-0500-RD (5 Pcs) External Retaining Rings - 50x2.5x47.5 mm - Carbon Spring Steel
11 units (55 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$5.95 AUD
$5.95 AUD
Per 5
Shaft Diameter (Ds)
50.00
mm

(1.969 in.)
Clip Thickness (T)
2.50
mm

(0.098 in.)
Groove Dia. (Dg)
47.5
mm
+ 0 / - 0.80
(1.87 in.)
Approx. Loose Circlip ID (A)
47.0
mm
External Retaining Rings - 50x2.5x47.5 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 47.5 mm +/- 0.10    Groove Width (W): 2.8 mm Min.   Free Outside Dia (Dr): 52    Section Profile: Round Section
Part Number: WRE-0500-RD (5 Pcs) External Retaining Rings - 50x2.5x47.5 mm - Carbon Spring Steel
11 units (55 pcs) Available Now | Further orders can be expected around Mon, Jul 21, 2025
$5.95 AUD
$5.95 AUD
Per 5
View the product page first if you are unsure.
Shaft Diameter (Ds)
65.00
mm

(2.559 in.)
Clip Thickness (T)
3.20
mm

(0.126 in.)
Groove Dia. (Dg)
61.65
mm
+ 0 / - 0.80
(2.427 in.)
Approx. Loose Circlip ID (A)
61.1
mm
Radial Wall (S) min/max
61.65
mm
+/- 0.15
Groove Width (W)
3.6
mm
Min.
External Retaining Rings - 65x3.2x61.65 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 67.5    Section Profile: Round Section
Part Number: WRE-0650-RD (10 Pcs) External Retaining Rings - 65x3.2x61.65 mm - Carbon Spring Steel
4 units (40 pcs) Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Per 10
Shaft Diameter (Ds)
65.00
mm

(2.559 in.)
Clip Thickness (T)
3.20
mm

(0.126 in.)
Groove Dia. (Dg)
61.65
mm
+ 0 / - 0.80
(2.427 in.)
Approx. Loose Circlip ID (A)
61.1
mm
External Retaining Rings - 65x3.2x61.65 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 61.65 mm +/- 0.15    Groove Width (W): 3.6 mm Min.   Free Outside Dia (Dr): 67.5    Section Profile: Round Section
Part Number: WRE-0650-RD (10 Pcs) External Retaining Rings - 65x3.2x61.65 mm - Carbon Spring Steel
4 units (40 pcs) Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Per 10
