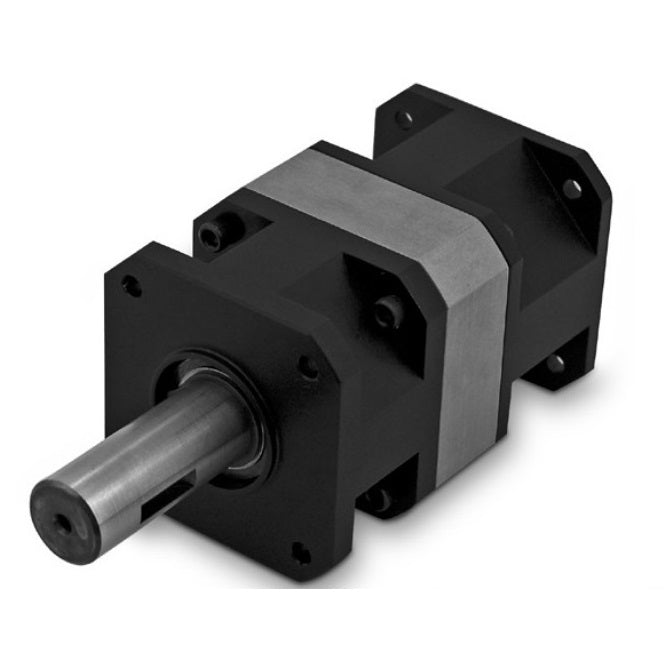

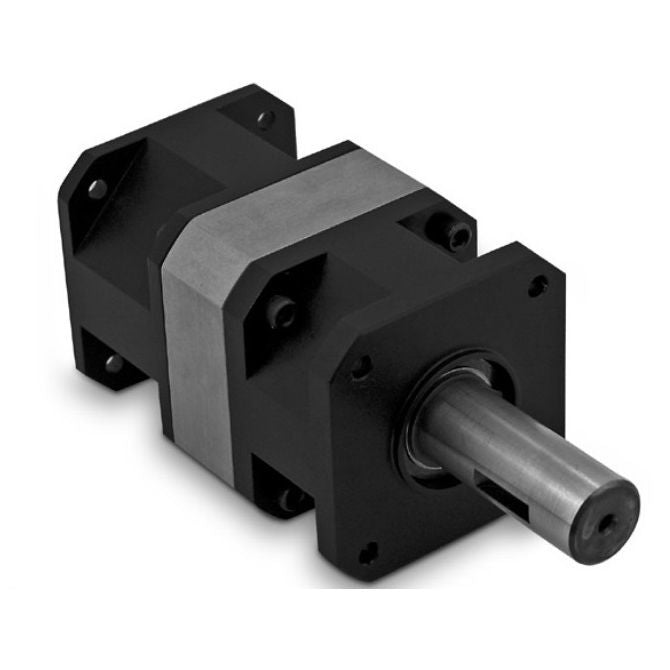

Inline Gearheads - Ratio 100 to 1 5 mm - Double Stage / 12.70

GHIP17-100-05.00X43.8L

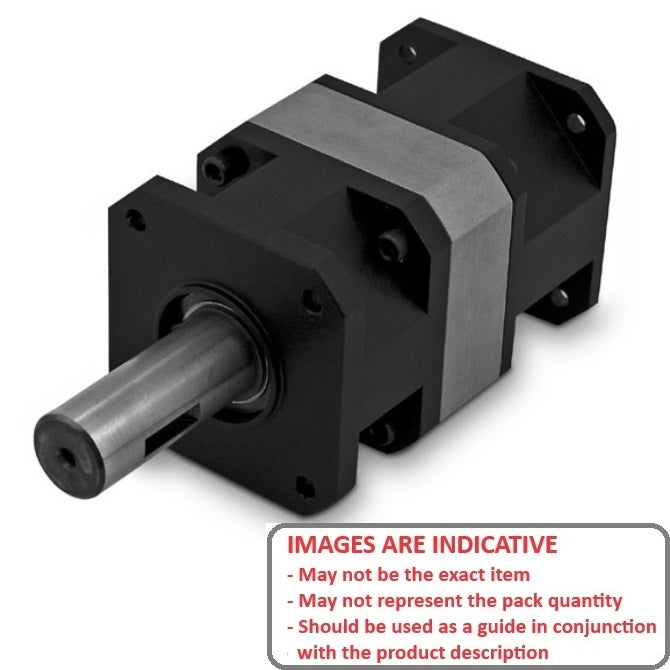

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Price:
$150.00 AUD
$285.00 AUD $150.00 AUD
Each
Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Gearheads - Inline

Top Level Category: Gearheads - Inline - Planetary Size 17 Precision

Product Details:

Ratio: 100 to 1
  • Motor Shaft Diameter: 5.0mm
  • Config. / Output Shaft: Double Stage / 12.70

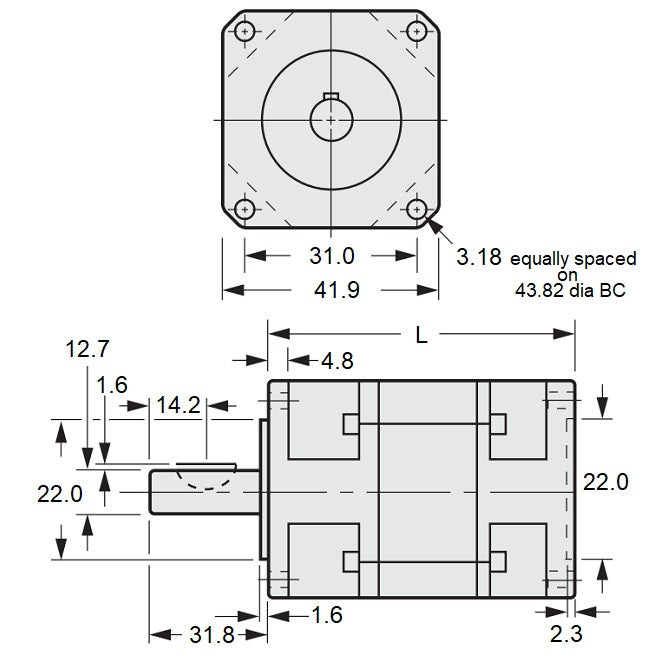

  • Bolt Circle (A): 43.8mm
  • Motor Shaft Length: 24.0mm
  • Max Rated Cont. Torque: 6N.m
  • Unit Width (A): 41.91mm
  • Pilot Diameter (E): 22.04mm
  • Length: 78.74mm

Brand: MBA
Country of Origin: DE

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
