GHIP17-100-05.00X43.8L - Datasheet
MBA
Category Information

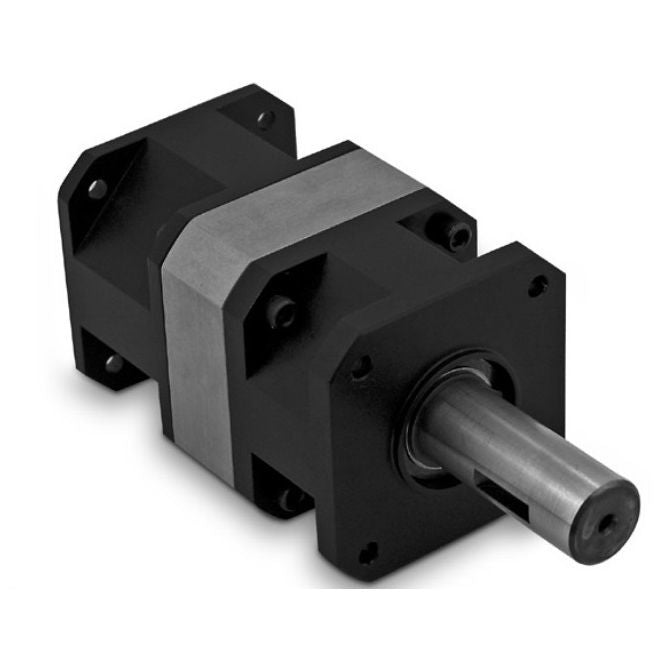

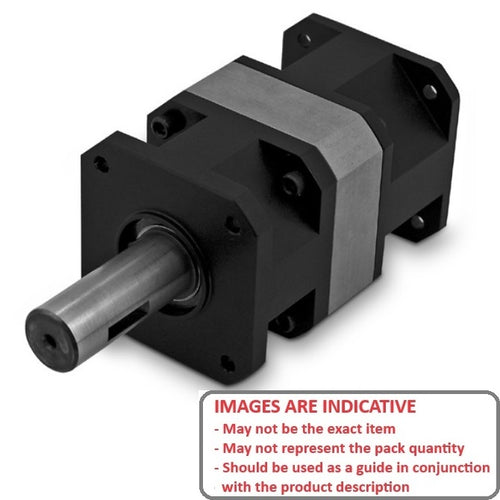

Gearheads - Inline - Planetary Size 17 PrecisionPlanetary Size 17 Precision Inline Gearheads. Use with NEMA Size 17 Motors.
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Stainless Steel housing - Heat Treated Steel Gears - Sealed ball bearings - Aluminium mounting flange.
- Shaft loading 25.4kg (57 lbs) radial and 24.5kg (55 lbs) axial / Maximum input speed 6500 rpm.
- Min. Efficiency ---- Single Stage : 90%, Double Stage : 85%.
- Max Backlash ---- Single Stage : 6 arc min, Double Stage : 10 arc min.
- Operating Temperature : -54 to 121 oC (-65 to 250 Deg F).
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Ratio : 100 to 1
- Motor Shaft Diameter 5.0 mm
- Config. / Output Shaft Double Stage / 12.70

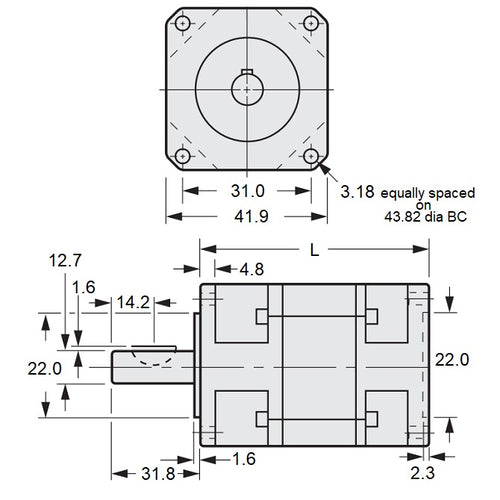

- Bolt Circle (A) 43.8 mm
- Motor Shaft Length 24.0 mm
- Max Rated Cont. Torque 6 N.m
- Unit Width (A) 41.91 mm
- Pilot Diameter (E) 22.04 mm
- Length 78.74 mm
