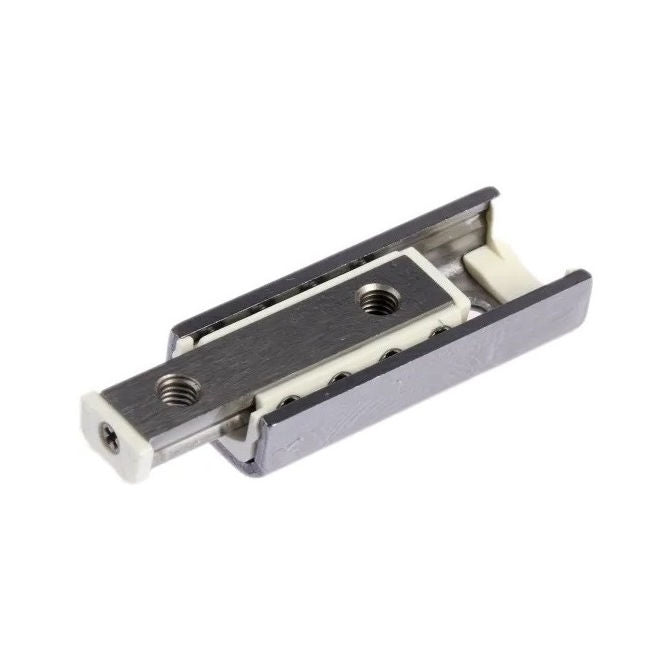

BSP1025SL
Slides - 10 mm x 6 mm x 25 mm
MBA
Qty: 2 available now
Couldn't load pickup availability
Base Category: Slides - Linear
Top Level Category: Slides - Linear - Non Recirculating Ball - Standard
Product Details:Width (W): 10.00mm
- Height (H): 6.00mm
- Length (L): 25.00mm
- Bolt Hole Centres (L2): 15.00mm
- Max Stroke: 15mm
- Screw / Max Depths (S1/S2): M2.6 / 1.5 / 2.7mm
- Table/Bed Depth (h1/h2): 5.8 / 3.7mm
- Table Thickness (t1): 1.1mm
- Bed Thickness (t2): 2.7mm
- Basic Dynamic Load Rating: 30kgf
- Basic Static Load Rating: 17kgf
Brand: MBA
Country of Origin: JP
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Alternatives: BSP-1025SL
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
