Slides - Linear - Non Recirculating Ball - Standard

1 Item Available

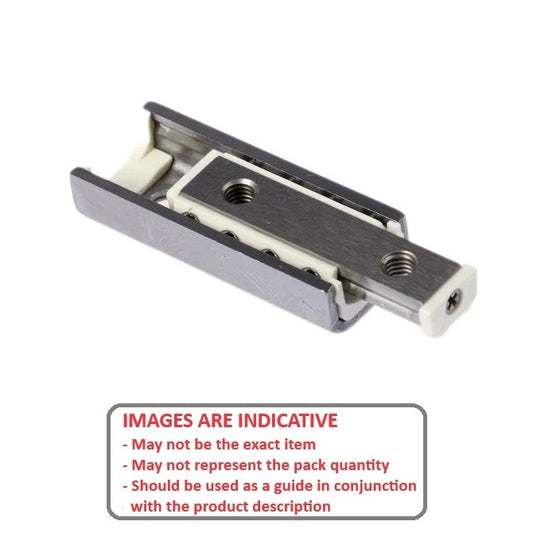

  • The BSP precision Linear Slide series is a lightweight and compact linear motion rolling guide made of stainless steel formed precisely to be U-shaped table or track rail.
  • Slides: Stainless Steel End Stop / Retainer: Synthetic Resin.
  • Maximum Speed: 0.5 m/sec (30m/min).
  • Temperature: +100oC (Constant), +120oC (Maximum).
  • Does not incorporate a mechanical stopper.
  • Sensitive to external contaminants.
Width (W) Height (H) Length (L) Bolt Hole Centres (L2) Max Stroke Screw / Max Depths (S1/S2) Indicative
10.00
mm 		6.00
mm 		25.00
mm 		15.00
mm 		15
mm 		M2.6 / 1.5 / 2.7
mm 		1091003 | BSP1025SL --- Slides - 10 mm x 6 mm x 25 mm
Table/Bed Depth (h1/h2): 5.8 / 3.7 mm    Table Thickness (t1): 1.1 mm    Bed Thickness (t2): 2.7 mm    Basic Dynamic Load Rating: 30 kgf    Basic Static Load Rating: 17 kgf
Part Number: BSP1025SL Slides - 10 mm x 6 mm x 25 mm
2 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$28.00 AUD
$0.00 AUD $28.00 AUD
Each
Width (W) Height (H) Length (L) Bolt Hole Centres (L2) Indicative
10.00
mm 		6.00
mm 		25.00
mm 		15.00
mm 		1091003 | BSP1025SL --- Slides - 10 mm x 6 mm x 25 mm
Max Stroke: 15 mm    Screw / Max Depths (S1/S2): M2.6 / 1.5 / 2.7 mm    Table/Bed Depth (h1/h2): 5.8 / 3.7 mm    Table Thickness (t1): 1.1 mm    Bed Thickness (t2): 2.7 mm    Basic Dynamic Load Rating: 30 kgf    Basic Static Load Rating: 17 kgf
Part Number: BSP1025SL Slides - 10 mm x 6 mm x 25 mm
2 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity |
$28.00 AUD
$0.00 AUD $28.00 AUD
Each
