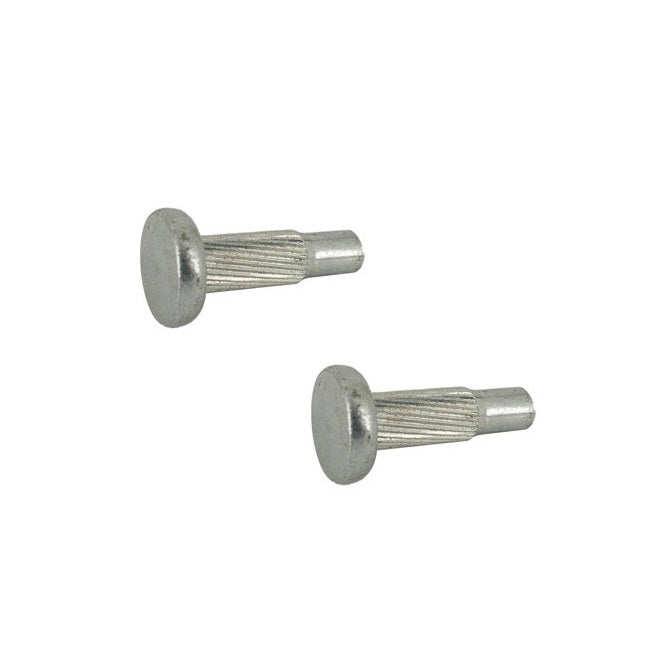

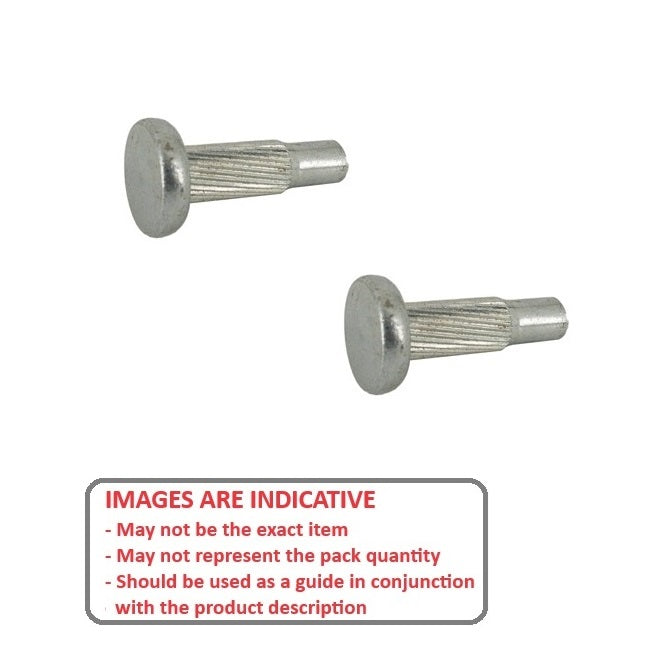

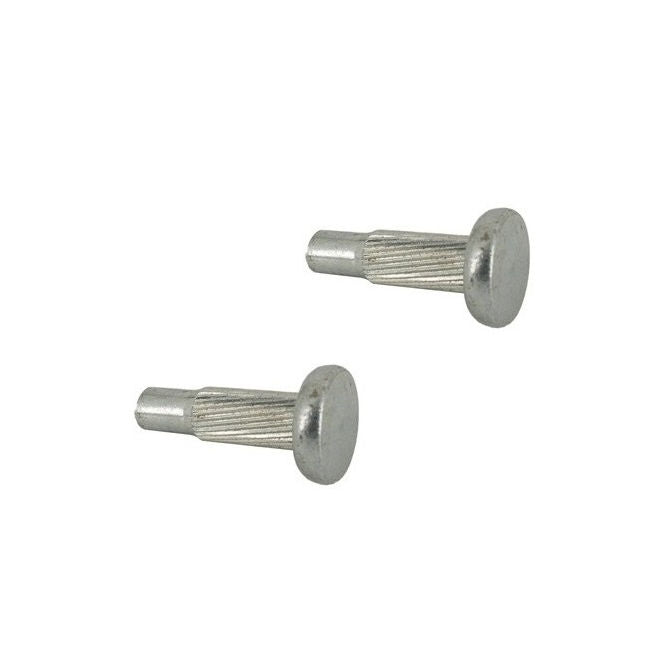

HDP016-08F (20 Pcs)
Pins - 1.6 mm x 8 mm x 1.66 mm
MBA
Master Pins Catalogue PDF
Qty: 54 available now (1080 pcs)
Order 50 or more (1000 pcs) for $5.71 AUD per 20
Couldn't load pickup availability
Base Category: Pins - Hammer Drive
Top Level Category: Pins - Hammer Drive - Flat Head

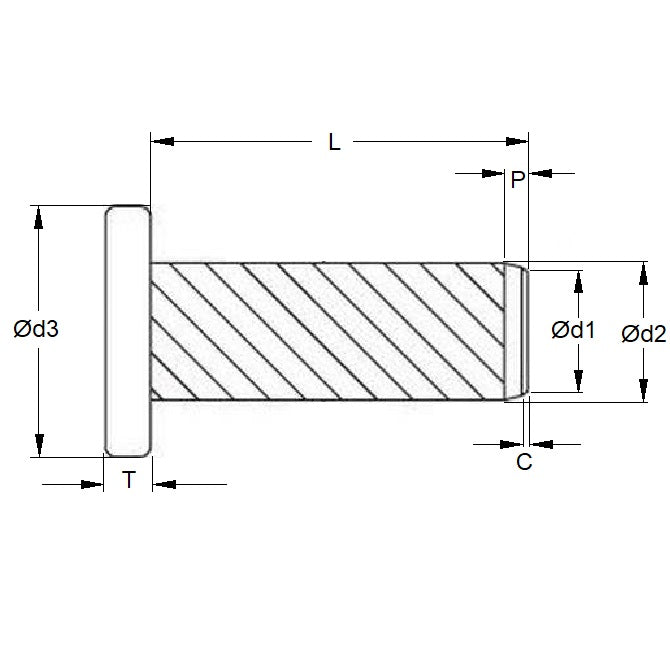

Product Details:Min Hole Dia (d1): 1.60mm
Carbon Steel
- Approx. Length (L): 8.0mm
- Max Hole Dia.: 1.66mm
- Approx Pin Diameter (d2): 1.83mm
- Max Head Diameter (d3): 3.00mm
- Max Head Thickness (T): 0.65mm
- Flat Head
- Nom. Pilot Length (P): 1.0mm
Brand: MBA
Country of Origin: GB
Alternatives: DSF1.6-8
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
