Pins - Hammer Drive - Flat Head

23 Products in this selection

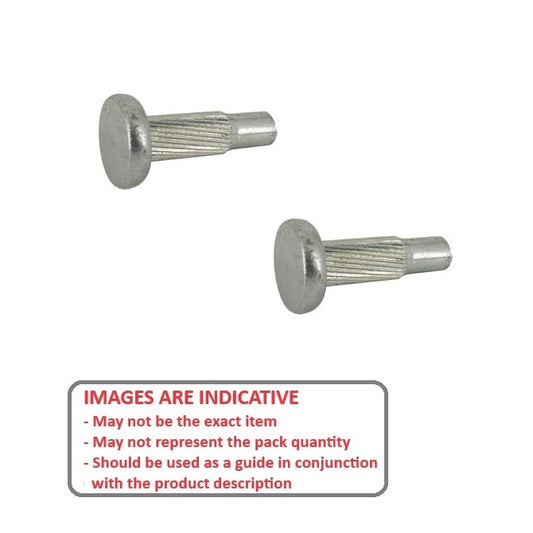

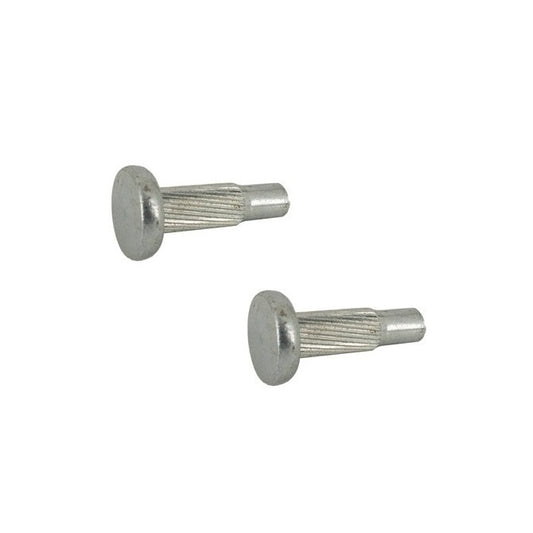

A selection of Flat Head Hammer Drive Pins. Used to replace screws where the need to remove the pin is unlikely.

  • Low Carbon Steel (Series HP210) - self-colour, not plated cold formed pin.
  • Simple, low cost assembly for use in mild steel, aluminium, brass or plastics.
  • Secure - unlike a machine screw, a drive stud does not depend on tightening torque to be retained in the assembly.
  • Drive studs do not require lock washers to prevent back-out.
  • Designed for standard metric hole sizes and installation by hammer or press. Cold formed pins with helical knurls.
Small Parts & Bearings

Additional resources:
Master Pins Catalogue PDF

A more comprehensive listing may be found on the MBA Minibearings main store at Pins - Hammer Drive - Flat Head.
Min Hole Dia (d1) Approx. Length (L) Max Hole Dia. Approx Pin Diameter (d2) Max Head Diameter (d3) Max Head Thickness (T) Indicative
Min Hole Dia (d1)
1.40
mm
Approx. Length (L)
5.0
mm
Max Hole Dia.
1.46
mm
Approx Pin Diameter (d2)
1.63
mm
Max Head Diameter (d3)
2.60
mm
Max Head Thickness (T)
0.55
mm
Hammer Drive Pins - 1.4x5x1.46 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP014-05F (PK-20) Hammer Drive Pins - 1.4x5x1.46 mm Flat Head - Carbon Steel Pin
50 units (1000 pcs) Available Now | Item Discontinued - Up to 50 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.34 AUD
$31.39 AUD $6.34 AUD
Per 20
Min Hole Dia (d1) Approx. Length (L) Max Hole Dia. Approx Pin Diameter (d2) Indicative
Min Hole Dia (d1)
1.40
mm
Approx. Length (L)
5.0
mm
Max Hole Dia.
1.46
mm
Approx Pin Diameter (d2)
1.63
mm
Hammer Drive Pins - 1.4x5x1.46 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 2.60 mm    Max Head Thickness (T): 0.55 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP014-05F (PK-20) Hammer Drive Pins - 1.4x5x1.46 mm Flat Head - Carbon Steel Pin
50 units (1000 pcs) Available Now | Item Discontinued - Up to 50 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.34 AUD
$31.39 AUD $6.34 AUD
Per 20
Min Hole Dia (d1)
1.40
mm
Approx. Length (L)
6.0
mm
Max Hole Dia.
1.46
mm
Approx Pin Diameter (d2)
1.63
mm
Max Head Diameter (d3)
2.60
mm
Max Head Thickness (T)
0.55
mm
Hammer Drive Pins - 1.4x6x1.46 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP014-06F (PK-20) Hammer Drive Pins - 1.4x6x1.46 mm Flat Head - Carbon Steel Pin
50 units (1000 pcs) Available Now | Item Discontinued - Up to 50 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.34 AUD
$31.54 AUD $6.34 AUD
Per 20
Min Hole Dia (d1)
1.40
mm
Approx. Length (L)
6.0
mm
Max Hole Dia.
1.46
mm
Approx Pin Diameter (d2)
1.63
mm
Hammer Drive Pins - 1.4x6x1.46 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 2.60 mm    Max Head Thickness (T): 0.55 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP014-06F (PK-20) Hammer Drive Pins - 1.4x6x1.46 mm Flat Head - Carbon Steel Pin
50 units (1000 pcs) Available Now | Item Discontinued - Up to 50 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.34 AUD
$31.54 AUD $6.34 AUD
Per 20
Min Hole Dia (d1)
1.40
mm
Approx. Length (L)
8.0
mm
Max Hole Dia.
1.46
mm
Approx Pin Diameter (d2)
1.63
mm
Max Head Diameter (d3)
2.60
mm
Max Head Thickness (T)
0.55
mm
Hammer Drive Pins - 1.4x8x1.46 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP014-08F (PK-5) Hammer Drive Pins - 1.4x8x1.46 mm Flat Head - Carbon Steel Pin
209 units (1045 pcs) Available Now | Further orders can be expected around Sun, Sep 13, 2026
$3.32 AUD
$3.32 AUD
Per 5
Min Hole Dia (d1)
1.40
mm
Approx. Length (L)
8.0
mm
Max Hole Dia.
1.46
mm
Approx Pin Diameter (d2)
1.63
mm
Hammer Drive Pins - 1.4x8x1.46 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 2.60 mm    Max Head Thickness (T): 0.55 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP014-08F (PK-5) Hammer Drive Pins - 1.4x8x1.46 mm Flat Head - Carbon Steel Pin
209 units (1045 pcs) Available Now | Further orders can be expected around Sun, Sep 13, 2026
$3.32 AUD
$3.32 AUD
Per 5
View the product page first if you are unsure.
Min Hole Dia (d1)
1.60
mm
Approx. Length (L)
5.0
mm
Max Hole Dia.
1.66
mm
Approx Pin Diameter (d2)
1.83
mm
Max Head Diameter (d3)
3.00
mm
Max Head Thickness (T)
0.65
mm
Hammer Drive Pins - 1.6x5x1.66 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP016-05F (PK-20) Hammer Drive Pins - 1.6x5x1.66 mm Flat Head - Carbon Steel Pin
40 units (800 pcs) Available Now | Item Discontinued - Up to 40 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.34 AUD
$31.39 AUD $6.34 AUD
Per 20
Min Hole Dia (d1)
1.60
mm
Approx. Length (L)
5.0
mm
Max Hole Dia.
1.66
mm
Approx Pin Diameter (d2)
1.83
mm
Hammer Drive Pins - 1.6x5x1.66 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 3.00 mm    Max Head Thickness (T): 0.65 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP016-05F (PK-20) Hammer Drive Pins - 1.6x5x1.66 mm Flat Head - Carbon Steel Pin
40 units (800 pcs) Available Now | Item Discontinued - Up to 40 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.34 AUD
$31.39 AUD $6.34 AUD
Per 20
Min Hole Dia (d1)
1.60
mm
Approx. Length (L)
6.0
mm
Max Hole Dia.
1.66
mm
Approx Pin Diameter (d2)
1.83
mm
Max Head Diameter (d3)
3.00
mm
Max Head Thickness (T)
0.65
mm
Hammer Drive Pins - 1.6x6x1.66 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP016-06F (PK-100) Hammer Drive Pins - 1.6x6x1.66 mm Flat Head - Carbon Steel Pin
40 units (4000 pcs) Available Now | Item Discontinued - Up to 40 may be ordered online. No backorders. Please contact us if you need a larger quantity
$18.00 AUD
$53.28 AUD $18.00 AUD
Per 100
Min Hole Dia (d1)
1.60
mm
Approx. Length (L)
6.0
mm
Max Hole Dia.
1.66
mm
Approx Pin Diameter (d2)
1.83
mm
Hammer Drive Pins - 1.6x6x1.66 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 3.00 mm    Max Head Thickness (T): 0.65 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP016-06F (PK-100) Hammer Drive Pins - 1.6x6x1.66 mm Flat Head - Carbon Steel Pin
40 units (4000 pcs) Available Now | Item Discontinued - Up to 40 may be ordered online. No backorders. Please contact us if you need a larger quantity
$18.00 AUD
$53.28 AUD $18.00 AUD
Per 100
Min Hole Dia (d1)
1.60
mm
Approx. Length (L)
8.0
mm
Max Hole Dia.
1.66
mm
Approx Pin Diameter (d2)
1.83
mm
Max Head Diameter (d3)
3.00
mm
Max Head Thickness (T)
0.65
mm
Hammer Drive Pins - 1.6x8x1.66 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP016-08F (PK-20) Hammer Drive Pins - 1.6x8x1.66 mm Flat Head - Carbon Steel Pin
54 units (1080 pcs) Available Now | Item Discontinued - Up to 54 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.34 AUD
$31.68 AUD $6.34 AUD
Per 20
Min Hole Dia (d1)
1.60
mm
Approx. Length (L)
8.0
mm
Max Hole Dia.
1.66
mm
Approx Pin Diameter (d2)
1.83
mm
Hammer Drive Pins - 1.6x8x1.66 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 3.00 mm    Max Head Thickness (T): 0.65 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP016-08F (PK-20) Hammer Drive Pins - 1.6x8x1.66 mm Flat Head - Carbon Steel Pin
54 units (1080 pcs) Available Now | Item Discontinued - Up to 54 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.34 AUD
$31.68 AUD $6.34 AUD
Per 20
Min Hole Dia (d1)
2.00
mm
Approx. Length (L)
6.0
mm
Max Hole Dia.
2.06
mm
Approx Pin Diameter (d2)
2.30
mm
Max Head Diameter (d3)
3.70
mm
Max Head Thickness (T)
0.75
mm
Hammer Drive Pins - 2x6x2.06 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP020-06F (PK-5) Hammer Drive Pins - 2x6x2.06 mm Flat Head - Carbon Steel Pin
1258 units (6290 pcs) Available Now | Further orders can be expected around Sun, Sep 13, 2026
$14.14 AUD
$14.14 AUD
Per 5
Min Hole Dia (d1)
2.00
mm
Approx. Length (L)
6.0
mm
Max Hole Dia.
2.06
mm
Approx Pin Diameter (d2)
2.30
mm
Hammer Drive Pins - 2x6x2.06 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 3.70 mm    Max Head Thickness (T): 0.75 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP020-06F (PK-5) Hammer Drive Pins - 2x6x2.06 mm Flat Head - Carbon Steel Pin
1258 units (6290 pcs) Available Now | Further orders can be expected around Sun, Sep 13, 2026
$14.14 AUD
$14.14 AUD
Per 5
View the product page first if you are unsure.
Min Hole Dia (d1)
2.00
mm
Approx. Length (L)
8.0
mm
Max Hole Dia.
2.06
mm
Approx Pin Diameter (d2)
2.30
mm
Max Head Diameter (d3)
3.70
mm
Max Head Thickness (T)
0.75
mm
Hammer Drive Pins - 2x8x2.06 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP020-08F (PK-20) Hammer Drive Pins - 2x8x2.06 mm Flat Head - Carbon Steel Pin
38 units (760 pcs) Available Now | Item Discontinued - Up to 38 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.34 AUD
$31.97 AUD $6.34 AUD
Per 20
Min Hole Dia (d1)
2.00
mm
Approx. Length (L)
8.0
mm
Max Hole Dia.
2.06
mm
Approx Pin Diameter (d2)
2.30
mm
Hammer Drive Pins - 2x8x2.06 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 3.70 mm    Max Head Thickness (T): 0.75 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP020-08F (PK-20) Hammer Drive Pins - 2x8x2.06 mm Flat Head - Carbon Steel Pin
38 units (760 pcs) Available Now | Item Discontinued - Up to 38 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.34 AUD
$31.97 AUD $6.34 AUD
Per 20
Min Hole Dia (d1)
2.00
mm
Approx. Length (L)
10.0
mm
Max Hole Dia.
2.06
mm
Approx Pin Diameter (d2)
2.30
mm
Max Head Diameter (d3)
3.70
mm
Max Head Thickness (T)
0.75
mm
Hammer Drive Pins - 2x10x2.06 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP020-10F (PK-20) Hammer Drive Pins - 2x10x2.06 mm Flat Head - Carbon Steel Pin
49 units (980 pcs) Available Now | Item Discontinued - Up to 49 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.41 AUD
$32.11 AUD $6.41 AUD
Per 20
Min Hole Dia (d1)
2.00
mm
Approx. Length (L)
10.0
mm
Max Hole Dia.
2.06
mm
Approx Pin Diameter (d2)
2.30
mm
Hammer Drive Pins - 2x10x2.06 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 3.70 mm    Max Head Thickness (T): 0.75 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP020-10F (PK-20) Hammer Drive Pins - 2x10x2.06 mm Flat Head - Carbon Steel Pin
49 units (980 pcs) Available Now | Item Discontinued - Up to 49 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.41 AUD
$32.11 AUD $6.41 AUD
Per 20
Min Hole Dia (d1)
2.50
mm
Approx. Length (L)
6.0
mm
Max Hole Dia.
2.56
mm
Approx Pin Diameter (d2)
2.80
mm
Max Head Diameter (d3)
4.60
mm
Max Head Thickness (T)
0.90
mm
Hammer Drive Pins - 2.5x6x2.56 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP025-06F (PK-20) Hammer Drive Pins - 2.5x6x2.56 mm Flat Head - Carbon Steel Pin
425 units (8500 pcs) Available Now | Item Discontinued - Up to 425 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.09 AUD
$38.02 AUD $7.09 AUD
Per 20
Min Hole Dia (d1)
2.50
mm
Approx. Length (L)
6.0
mm
Max Hole Dia.
2.56
mm
Approx Pin Diameter (d2)
2.80
mm
Hammer Drive Pins - 2.5x6x2.56 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 4.60 mm    Max Head Thickness (T): 0.90 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP025-06F (PK-20) Hammer Drive Pins - 2.5x6x2.56 mm Flat Head - Carbon Steel Pin
425 units (8500 pcs) Available Now | Item Discontinued - Up to 425 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.09 AUD
$38.02 AUD $7.09 AUD
Per 20
Min Hole Dia (d1)
2.50
mm
Approx. Length (L)
8.0
mm
Max Hole Dia.
2.56
mm
Approx Pin Diameter (d2)
2.80
mm
Max Head Diameter (d3)
4.60
mm
Max Head Thickness (T)
0.90
mm
Hammer Drive Pins - 2.5x8x2.56 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP025-08F (PK-5) Hammer Drive Pins - 2.5x8x2.56 mm Flat Head - Carbon Steel Pin
1202 units (6010 pcs) Available Now | Further orders can be expected around Sun, Sep 13, 2026
$3.68 AUD
$3.68 AUD
Per 5
Min Hole Dia (d1)
2.50
mm
Approx. Length (L)
8.0
mm
Max Hole Dia.
2.56
mm
Approx Pin Diameter (d2)
2.80
mm
Hammer Drive Pins - 2.5x8x2.56 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 4.60 mm    Max Head Thickness (T): 0.90 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP025-08F (PK-5) Hammer Drive Pins - 2.5x8x2.56 mm Flat Head - Carbon Steel Pin
1202 units (6010 pcs) Available Now | Further orders can be expected around Sun, Sep 13, 2026
$3.68 AUD
$3.68 AUD
Per 5
View the product page first if you are unsure.
Min Hole Dia (d1)
2.50
mm
Approx. Length (L)
10.0
mm
Max Hole Dia.
2.56
mm
Approx Pin Diameter (d2)
2.80
mm
Max Head Diameter (d3)
4.60
mm
Max Head Thickness (T)
0.90
mm
Hammer Drive Pins - 2.5x10x2.56 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP025-10F (PK-20) Hammer Drive Pins - 2.5x10x2.56 mm Flat Head - Carbon Steel Pin
50 units (1000 pcs) Available Now | Item Discontinued - Up to 50 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.49 AUD
$32.69 AUD $6.49 AUD
Per 20
Min Hole Dia (d1)
2.50
mm
Approx. Length (L)
10.0
mm
Max Hole Dia.
2.56
mm
Approx Pin Diameter (d2)
2.80
mm
Hammer Drive Pins - 2.5x10x2.56 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 4.60 mm    Max Head Thickness (T): 0.90 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP025-10F (PK-20) Hammer Drive Pins - 2.5x10x2.56 mm Flat Head - Carbon Steel Pin
50 units (1000 pcs) Available Now | Item Discontinued - Up to 50 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.49 AUD
$32.69 AUD $6.49 AUD
Per 20
Min Hole Dia (d1)
3.00
mm
Approx. Length (L)
8.0
mm
Max Hole Dia.
3.06
mm
Approx Pin Diameter (d2)
3.35
mm
Max Head Diameter (d3)
5.45
mm
Max Head Thickness (T)
1.20
mm
Hammer Drive Pins - 3x8x3.06 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP030-08F (PK-10) Hammer Drive Pins - 3x8x3.06 mm Flat Head - Carbon Steel Pin
106 units (1060 pcs) Available Now | Item Discontinued - Up to 106 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.86 AUD
$21.46 AUD $3.86 AUD
Per 10
Min Hole Dia (d1)
3.00
mm
Approx. Length (L)
8.0
mm
Max Hole Dia.
3.06
mm
Approx Pin Diameter (d2)
3.35
mm
Hammer Drive Pins - 3x8x3.06 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 5.45 mm    Max Head Thickness (T): 1.20 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP030-08F (PK-10) Hammer Drive Pins - 3x8x3.06 mm Flat Head - Carbon Steel Pin
106 units (1060 pcs) Available Now | Item Discontinued - Up to 106 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.86 AUD
$21.46 AUD $3.86 AUD
Per 10
Min Hole Dia (d1)
3.00
mm
Approx. Length (L)
10.0
mm
Max Hole Dia.
3.06
mm
Approx Pin Diameter (d2)
3.35
mm
Max Head Diameter (d3)
5.45
mm
Max Head Thickness (T)
1.20
mm
Hammer Drive Pins - 3x10x3.06 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP030-10F (PK-10) Hammer Drive Pins - 3x10x3.06 mm Flat Head - Carbon Steel Pin
252 units (2520 pcs) Available Now | Item Discontinued - Up to 252 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.79 AUD
$20.88 AUD $3.79 AUD
Per 10
Min Hole Dia (d1)
3.00
mm
Approx. Length (L)
10.0
mm
Max Hole Dia.
3.06
mm
Approx Pin Diameter (d2)
3.35
mm
Hammer Drive Pins - 3x10x3.06 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 5.45 mm    Max Head Thickness (T): 1.20 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP030-10F (PK-10) Hammer Drive Pins - 3x10x3.06 mm Flat Head - Carbon Steel Pin
252 units (2520 pcs) Available Now | Item Discontinued - Up to 252 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.79 AUD
$20.88 AUD $3.79 AUD
Per 10
Min Hole Dia (d1)
3.00
mm
Approx. Length (L)
12.0
mm
Max Hole Dia.
3.06
mm
Approx Pin Diameter (d2)
3.35
mm
Max Head Diameter (d3)
5.45
mm
Max Head Thickness (T)
1.20
mm
Hammer Drive Pins - 3x12x3.06 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP030-12F (PK-20) Hammer Drive Pins - 3x12x3.06 mm Flat Head - Carbon Steel Pin
45 units (900 pcs) Available Now | Item Discontinued - Up to 45 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.56 AUD
$33.55 AUD $6.56 AUD
Per 20
Min Hole Dia (d1)
3.00
mm
Approx. Length (L)
12.0
mm
Max Hole Dia.
3.06
mm
Approx Pin Diameter (d2)
3.35
mm
Hammer Drive Pins - 3x12x3.06 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 5.45 mm    Max Head Thickness (T): 1.20 mm    Nom. Pilot Length (P): 1.0 mm
Part Number: HDP030-12F (PK-20) Hammer Drive Pins - 3x12x3.06 mm Flat Head - Carbon Steel Pin
45 units (900 pcs) Available Now | Item Discontinued - Up to 45 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.56 AUD
$33.55 AUD $6.56 AUD
Per 20
Min Hole Dia (d1)
4.00
mm
Approx. Length (L)
10.0
mm
Max Hole Dia.
4.08
mm
Approx Pin Diameter (d2)
4.35
mm
Max Head Diameter (d3)
7.25
mm
Max Head Thickness (T)
1.50
mm
Hammer Drive Pins - 4x10x4.08 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP040-10F (PK-10) Hammer Drive Pins - 4x10x4.08 mm Flat Head - Carbon Steel Pin
50 units (500 pcs) Available Now | Item Discontinued - Up to 50 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.71 AUD
$17.21 AUD $3.71 AUD
Per 10
Min Hole Dia (d1)
4.00
mm
Approx. Length (L)
10.0
mm
Max Hole Dia.
4.08
mm
Approx Pin Diameter (d2)
4.35
mm
Hammer Drive Pins - 4x10x4.08 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 7.25 mm    Max Head Thickness (T): 1.50 mm    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP040-10F (PK-10) Hammer Drive Pins - 4x10x4.08 mm Flat Head - Carbon Steel Pin
50 units (500 pcs) Available Now | Item Discontinued - Up to 50 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.71 AUD
$17.21 AUD $3.71 AUD
Per 10
Min Hole Dia (d1)
4.00
mm
Approx. Length (L)
12.0
mm
Max Hole Dia.
4.08
mm
Approx Pin Diameter (d2)
4.35
mm
Max Head Diameter (d3)
7.25
mm
Max Head Thickness (T)
1.50
mm
Hammer Drive Pins - 4x12x4.08 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP040-12F (PK-10) Hammer Drive Pins - 4x12x4.08 mm Flat Head - Carbon Steel Pin
52 units (520 pcs) Available Now | Item Discontinued - Up to 52 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.79 AUD
$17.35 AUD $3.79 AUD
Per 10
Min Hole Dia (d1)
4.00
mm
Approx. Length (L)
12.0
mm
Max Hole Dia.
4.08
mm
Approx Pin Diameter (d2)
4.35
mm
Hammer Drive Pins - 4x12x4.08 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 7.25 mm    Max Head Thickness (T): 1.50 mm    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP040-12F (PK-10) Hammer Drive Pins - 4x12x4.08 mm Flat Head - Carbon Steel Pin
52 units (520 pcs) Available Now | Item Discontinued - Up to 52 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.79 AUD
$17.35 AUD $3.79 AUD
Per 10
Min Hole Dia (d1)
4.00
mm
Approx. Length (L)
16.0
mm
Max Hole Dia.
4.08
mm
Approx Pin Diameter (d2)
4.35
mm
Max Head Diameter (d3)
7.25
mm
Max Head Thickness (T)
1.50
mm
Hammer Drive Pins - 4x16x4.08 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP040-16F (PK-5) Hammer Drive Pins - 4x16x4.08 mm Flat Head - Carbon Steel Pin
112 units (560 pcs) Available Now | Further orders can be expected around Sun, Sep 13, 2026
$3.77 AUD
$3.77 AUD
Per 5
Min Hole Dia (d1)
4.00
mm
Approx. Length (L)
16.0
mm
Max Hole Dia.
4.08
mm
Approx Pin Diameter (d2)
4.35
mm
Hammer Drive Pins - 4x16x4.08 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 7.25 mm    Max Head Thickness (T): 1.50 mm    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP040-16F (PK-5) Hammer Drive Pins - 4x16x4.08 mm Flat Head - Carbon Steel Pin
112 units (560 pcs) Available Now | Further orders can be expected around Sun, Sep 13, 2026
$3.77 AUD
$3.77 AUD
Per 5
View the product page first if you are unsure.
Min Hole Dia (d1)
5.00
mm
Approx. Length (L)
12.0
mm
Max Hole Dia.
5.08
mm
Approx Pin Diameter (d2)
5.35
mm
Max Head Diameter (d3)
9.10
mm
Max Head Thickness (T)
1.80
mm
Hammer Drive Pins - 5x12x5.08 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP050-12F (PK-5) Hammer Drive Pins - 5x12x5.08 mm Flat Head - Carbon Steel Pin
200 units (1000 pcs) Available Now | Further orders can be expected around Sun, Sep 13, 2026
$4.68 AUD
$4.68 AUD
Per 5
Min Hole Dia (d1)
5.00
mm
Approx. Length (L)
12.0
mm
Max Hole Dia.
5.08
mm
Approx Pin Diameter (d2)
5.35
mm
Hammer Drive Pins - 5x12x5.08 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 9.10 mm    Max Head Thickness (T): 1.80 mm    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP050-12F (PK-5) Hammer Drive Pins - 5x12x5.08 mm Flat Head - Carbon Steel Pin
200 units (1000 pcs) Available Now | Further orders can be expected around Sun, Sep 13, 2026
$4.68 AUD
$4.68 AUD
Per 5
View the product page first if you are unsure.
Min Hole Dia (d1)
5.00
mm
Approx. Length (L)
16.0
mm
Max Hole Dia.
5.08
mm
Approx Pin Diameter (d2)
5.35
mm
Max Head Diameter (d3)
9.10
mm
Max Head Thickness (T)
1.80
mm
Hammer Drive Pins - 5x16x5.08 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP050-16F (PK-10) Hammer Drive Pins - 5x16x5.08 mm Flat Head - Carbon Steel Pin
53 units (530 pcs) Available Now | Item Discontinued - Up to 53 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.94 AUD
$19.22 AUD $3.94 AUD
Per 10
Min Hole Dia (d1)
5.00
mm
Approx. Length (L)
16.0
mm
Max Hole Dia.
5.08
mm
Approx Pin Diameter (d2)
5.35
mm
Hammer Drive Pins - 5x16x5.08 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 9.10 mm    Max Head Thickness (T): 1.80 mm    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP050-16F (PK-10) Hammer Drive Pins - 5x16x5.08 mm Flat Head - Carbon Steel Pin
53 units (530 pcs) Available Now | Item Discontinued - Up to 53 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.94 AUD
$19.22 AUD $3.94 AUD
Per 10
Min Hole Dia (d1)
5.00
mm
Approx. Length (L)
20.0
mm
Max Hole Dia.
5.08
mm
Approx Pin Diameter (d2)
5.35
mm
Max Head Diameter (d3)
9.10
mm
Max Head Thickness (T)
1.80
mm
Hammer Drive Pins - 5x20x5.08 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP050-20F (PK-10) Hammer Drive Pins - 5x20x5.08 mm Flat Head - Carbon Steel Pin
91 units (910 pcs) Available Now | Item Discontinued - Up to 91 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.86 AUD
$18.58 AUD $3.86 AUD
Per 10
Min Hole Dia (d1)
5.00
mm
Approx. Length (L)
20.0
mm
Max Hole Dia.
5.08
mm
Approx Pin Diameter (d2)
5.35
mm
Hammer Drive Pins - 5x20x5.08 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 9.10 mm    Max Head Thickness (T): 1.80 mm    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP050-20F (PK-10) Hammer Drive Pins - 5x20x5.08 mm Flat Head - Carbon Steel Pin
91 units (910 pcs) Available Now | Item Discontinued - Up to 91 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.86 AUD
$18.58 AUD $3.86 AUD
Per 10
Min Hole Dia (d1)
6.00
mm
Approx. Length (L)
16.0
mm
Max Hole Dia.
6.08
mm
Approx Pin Diameter (d2)
6.35
mm
Max Head Diameter (d3)
10.80
mm
Max Head Thickness (T)
2.20
mm
Hammer Drive Pins - 6x16x6.08 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP060-16F (PK-5) Hammer Drive Pins - 6x16x6.08 mm Flat Head - Carbon Steel Pin
495 units (2475 pcs) Available Now | Further orders can be expected around Sun, Sep 13, 2026
$4.59 AUD
$4.59 AUD
Per 5
Min Hole Dia (d1)
6.00
mm
Approx. Length (L)
16.0
mm
Max Hole Dia.
6.08
mm
Approx Pin Diameter (d2)
6.35
mm
Hammer Drive Pins - 6x16x6.08 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 10.80 mm    Max Head Thickness (T): 2.20 mm    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP060-16F (PK-5) Hammer Drive Pins - 6x16x6.08 mm Flat Head - Carbon Steel Pin
495 units (2475 pcs) Available Now | Further orders can be expected around Sun, Sep 13, 2026
$4.59 AUD
$4.59 AUD
Per 5
View the product page first if you are unsure.
Min Hole Dia (d1)
6.00
mm
Approx. Length (L)
20.0
mm
Max Hole Dia.
6.08
mm
Approx Pin Diameter (d2)
6.35
mm
Max Head Diameter (d3)
10.80
mm
Max Head Thickness (T)
2.20
mm
Hammer Drive Pins - 6x20x6.08 mm - Carbon Steel
Material: Carbon Steel    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP060-20F (PK-10) Hammer Drive Pins - 6x20x6.08 mm Flat Head - Carbon Steel Pin
50 units (500 pcs) Available Now | Item Discontinued - Up to 50 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.39 AUD
$22.61 AUD $4.39 AUD
Per 10
Min Hole Dia (d1)
6.00
mm
Approx. Length (L)
20.0
mm
Max Hole Dia.
6.08
mm
Approx Pin Diameter (d2)
6.35
mm
Hammer Drive Pins - 6x20x6.08 mm - Carbon Steel
Material: Carbon Steel    Max Head Diameter (d3): 10.80 mm    Max Head Thickness (T): 2.20 mm    Nom. Pilot Length (P): 2.0 mm
Part Number: HDP060-20F (PK-10) Hammer Drive Pins - 6x20x6.08 mm Flat Head - Carbon Steel Pin
50 units (500 pcs) Available Now | Item Discontinued - Up to 50 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.39 AUD
$22.61 AUD $4.39 AUD
Per 10
