Hammer Drive Pins - 1.4x6x1.46 mm - Carbon Steel

HDP014-06F (20 Pcs)

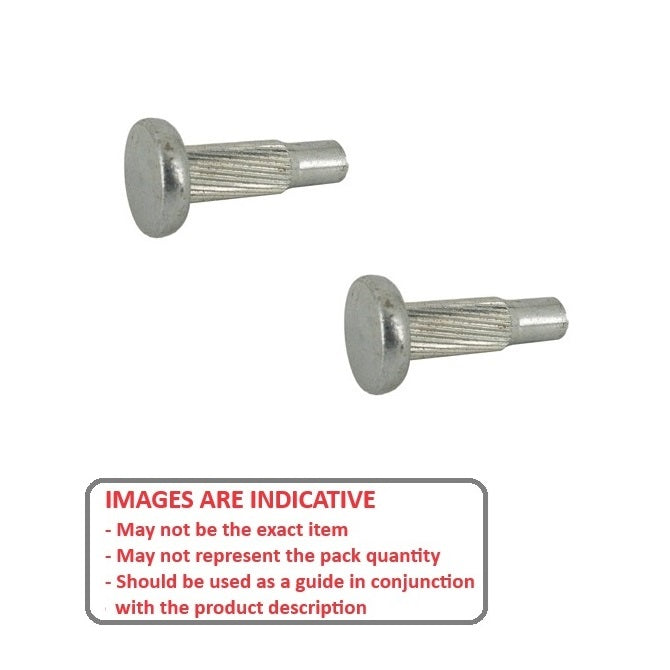

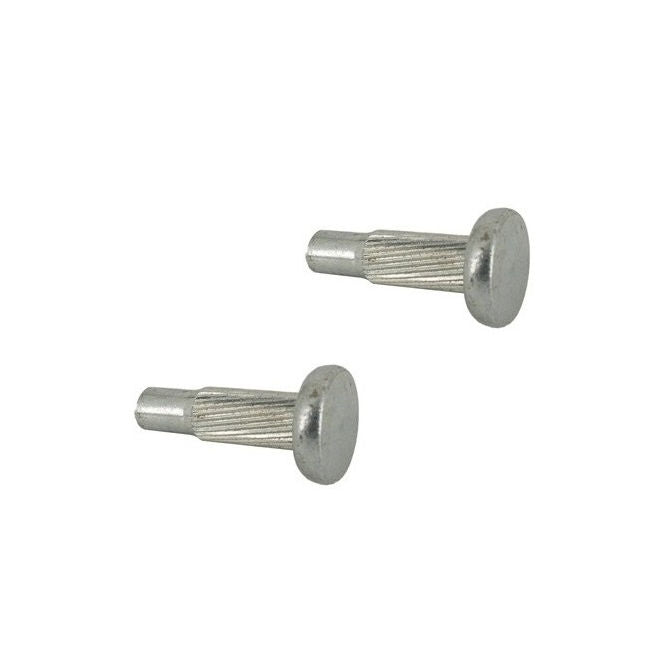

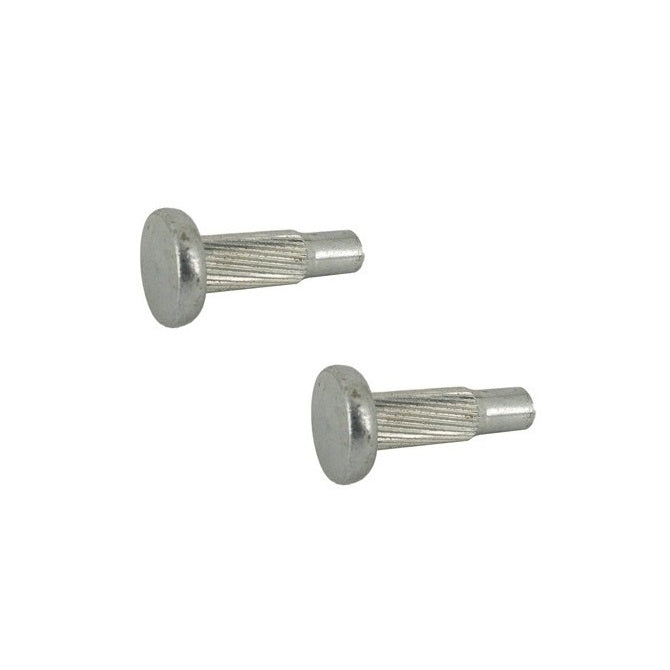

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Hammer Drive Pins - 1.4x6x1.46 mm - Carbon Steel
1 4

MBA

Additional resources:
Master Pins Catalogue PDF
Price:
$6.34 AUD
$31.54 AUD $6.34 AUD
per 20
Qty: 50 available now (1000 pcs)
Only 50 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Pins - Hammer Drive

Top Level Category: Pins - Hammer Drive - Flat Head

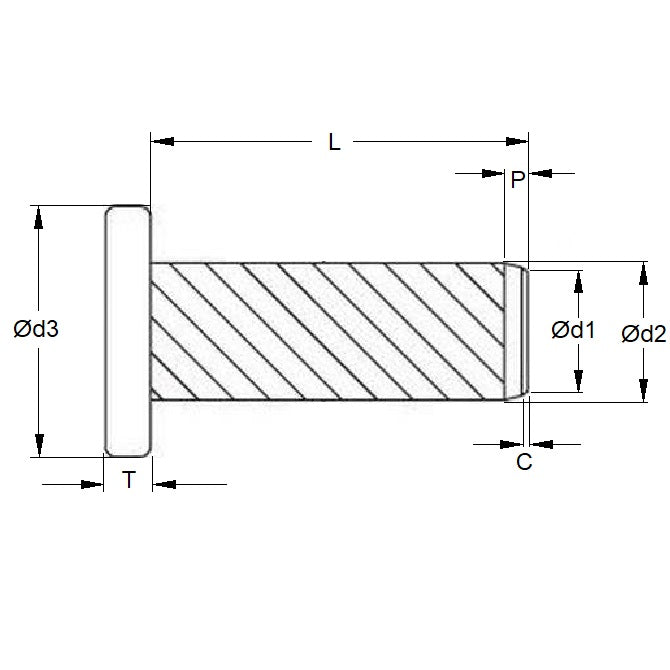

Product Details:

Min Hole Dia (d1): 1.40mm
(1.40mm is 0.055 in.)

Carbon Steel
  • Approx. Length (L): 6.0mm
    (6.0mm is 0.236 in.)
  • Max Hole Dia.: 1.46mm
    (1.46mm is 0.057 in.)
  • Approx Pin Diameter (d2): 1.63mm
  • Max Head Diameter (d3): 2.60mm
  • Max Head Thickness (T): 0.55mm
  • Nom. Pilot Length (P): 1.0mm

Brand: MBA
Country of Origin: GB

Alternative Parts Include: DSF1.4-6, DSF146

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
