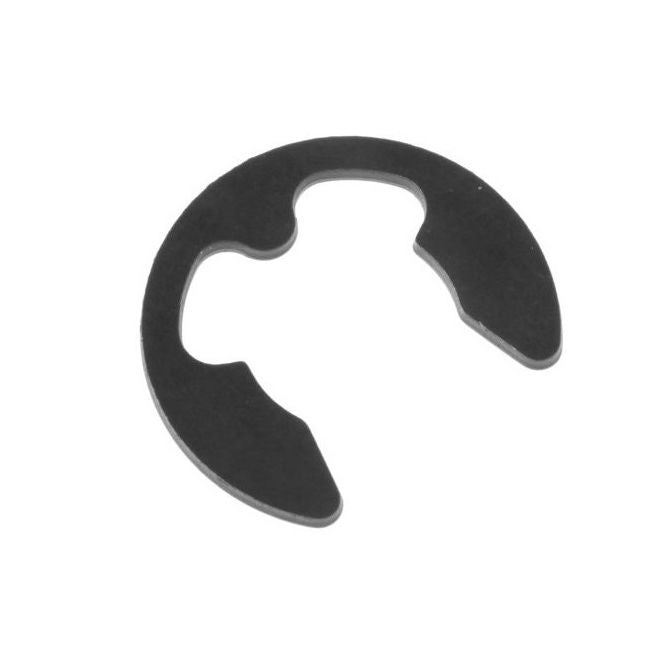

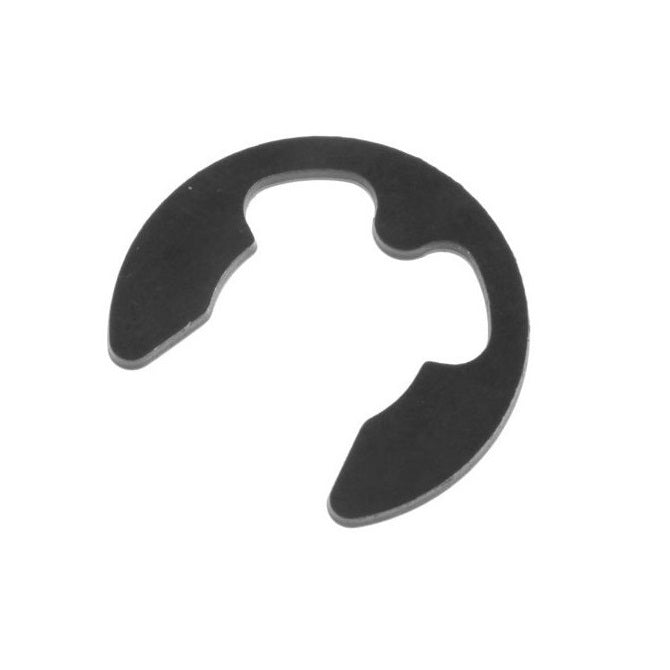

E-Clips Retaining Rings - 1.4x1.2x0.3 mm - Carbon Steel

ECL-0012-0014-C (100 Pcs)

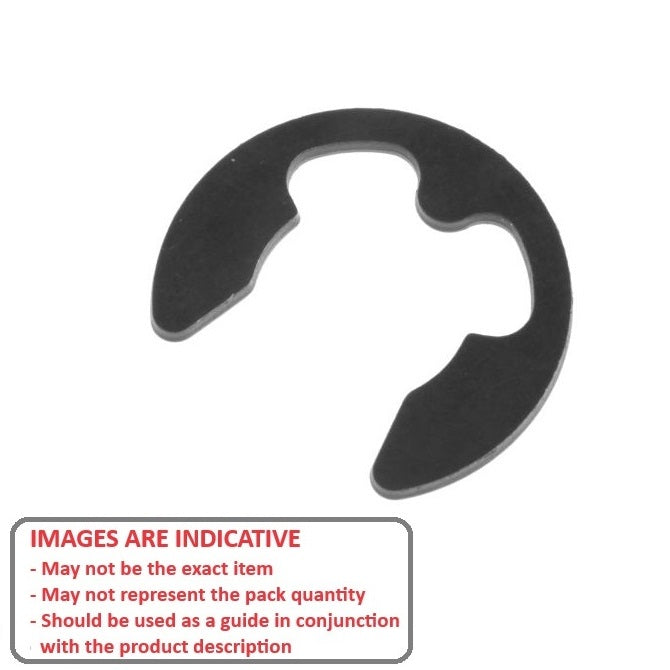

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • E-Clips Retaining Rings - 1.4x1.2x0.3 mm - Carbon Steel
1 4

MBA

Additional resources:
Assortment Kits
E-Clip Applicators
Price:
$5.32 AUD
$5.32 AUD
per 100
Qty: 28 available now (2800 pcs)
Order 50 or more (5000 pcs) for $4.79 AUD per 100
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 17, 2025

Base Category: Retaining Rings - E-Clips

Top Level Category: Retaining Rings - E-Clips - Basic - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 5924

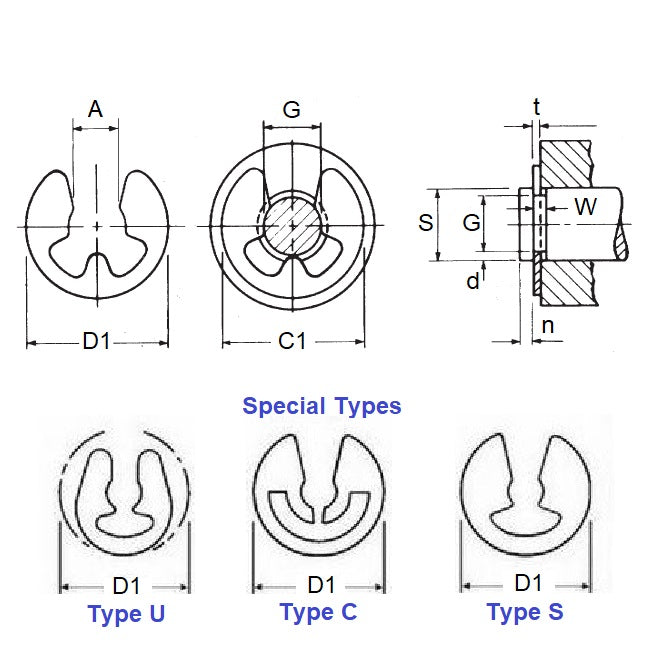

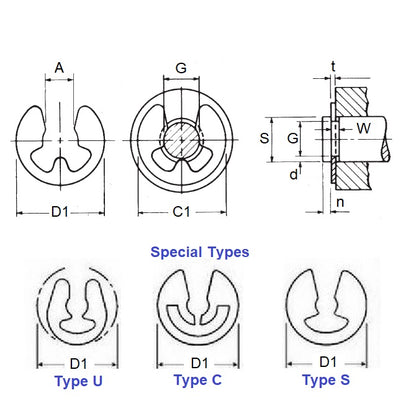

Minimum Rec. Shaft Dia (S): 1.40mm
+ 0.60 / - 0.00
(1.40mm is 0.055 in.)

Carbon Steel
  • Groove Dia. (Dg): 1.20mm
    + 0.00 / - 0.06
    (1.20mm is 0.047 in.)
  • Clip Thickness (T): 0.30mm
    +/ - 0.02
    (0.30mm is 0.012 in.)
  • Clip OD Loose (D1): 2.90mm
  • Groove Width (W): 0.34mm
  • Maximum Rec. Shaft Dia (S): 2.00
  • Clip OD in groove (C1): 3.25mm
  • Loose Clip ID (A): 1.01mm
  • Min. Extension (n): 0.60
  • Standard: DIN6799

Brand: MBA
Country of Origin: US

Alternative Parts Include: 98543A060, D15000012, D1500-0012, DE012, DE-012, RA1.2, 1500-0012, 15000012, ALTPART, NoCor, Cirteq

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
