Hammer Drive Pins - 1.24x4.8x1.32 mm - Stainless Steel

HDP012-05R-S4 (10 Pcs)

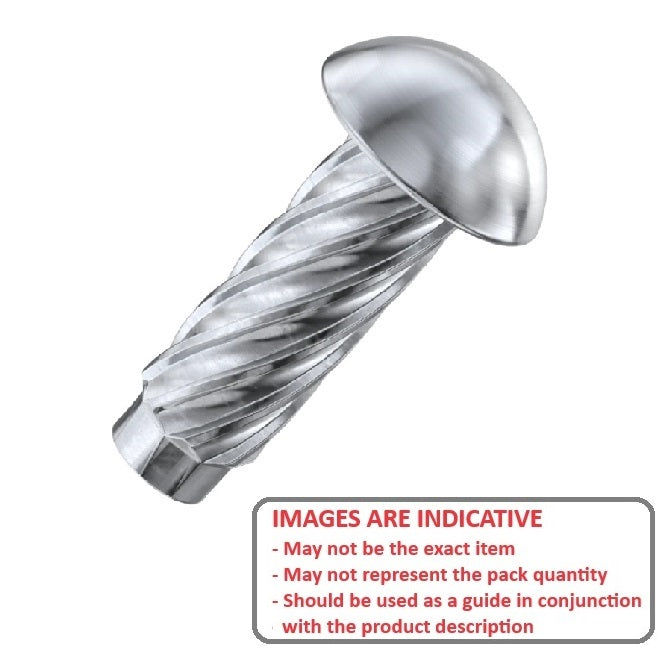

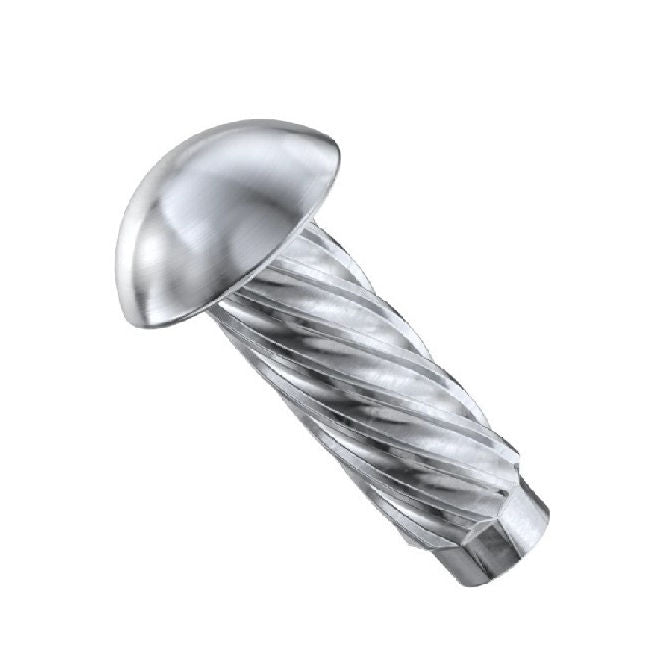

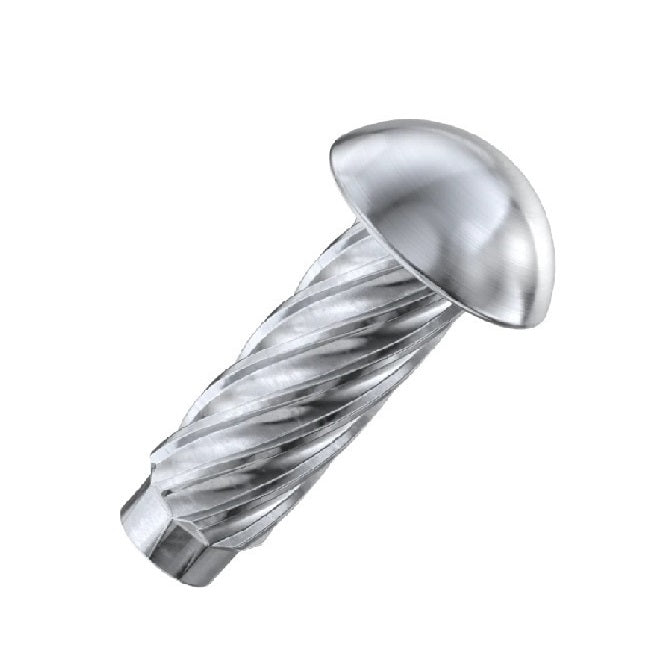

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Hammer Drive Pins - 1.24x4.8x1.32 mm - Stainless Steel
1 4

NoCor

Additional resources:
Master Pins Catalogue PDF
Price:
$11.05 AUD
$11.05 AUD
per 10
Qty: 43 available now (430 pcs)
Order 50 or more (500 pcs) for $9.95 AUD per 10

Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 04, 2025

Base Category: Pins - Hammer Drive

Top Level Category: Pins - Hammer Drive - Round Head Stainless Steel

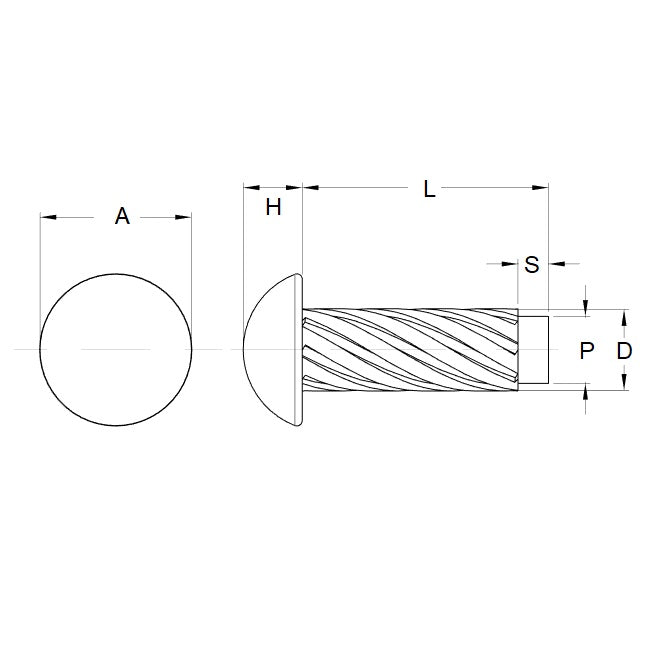

Product Details:

Min Hole Dia.: 1.24mm
(1.24mm is 0.049 in.)

Stainless Steel
  • Approx. Length (l): 4.8mm
    (4.8mm is 0.189 in.)
  • Max Hole Dia.: 1.32mm
    (1.32mm is 0.052 in.)
  • Approx Pin Diameter (d1): 1.52mm
  • Max Head Diameter (d2): 2.51mm
  • Max Head Thickness (h): 0.86mm
  • Nom. Pilot Length: 1.2mm

Brand: NoCor
Country of Origin: TW

Alternative Parts Include: V93053, BBI

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
