Collection: Retaining Rings - Internal - Spiral Rings - Light Duty

Retaining Rings (With Images)

Internal

Spiral Rings

Heavy Duty
Light Duty

8 Products in this selection

This is a combined category of products from Light Duty Spiral Rings Internal Retaining Rings. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
12.70 mm	0.46 mm +/-0.04	13.41 mm	13.31 mm +0.33/-0.00	1.14 mm +0.08/-0.13	0.56 mm +/-0.05
Material: 302 Stainless Steel Approx. Loose Clip ID: 11.03 ++0.05/-0.00 Groove Depth (d): 0.36 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Stainless Steel
Part Number: UR-050-S02 (8 Pcs) Spiral - 12.7 mm x 0.46 mm x 13.41 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Per 8 View the product page first if you are unsure.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
12.70 mm	0.46 mm +/-0.04	13.41 mm	13.31 mm +0.33/-0.00
Material: 302 Stainless Steel Radial Wall (S): 1.14 mm +0.08/-0.13 Groove Width (W): 0.56 mm +/-0.05 Approx. Loose Clip ID: 11.03 ++0.05/-0.00 Groove Depth (d): 0.36 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Stainless Steel
Part Number: UR-050-S02 (8 Pcs) Spiral - 12.7 mm x 0.46 mm x 13.41 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Per 8 View the product page first if you are unsure.
UR-050-S02 (8 Pcs) --- Spiral - 12.7 mm x 0.46 mm x 13.41 mm 302 Stainless Steel UR-050-S02 (8 Pcs) --- Spiral - 12.7 mm x 0.46 mm x 13.41 mm 302 Stainless Steel Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Out of stock! Backorder Now
15.88 mm	0.46 mm +/-0.04	16.59 mm	16.64 mm +0.33/-0.00	1.14 mm +0.08/-0.13	0.56 mm +/-0.05
Material: Spring Steel Approx. Loose Clip ID: 14.36 +0.05/-0.00 Groove Depth (d): 0.36 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-062 (13 Pcs) Spiral - 15.88 mm x 0.46 mm x 16.59 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per Per 13 View the product page first if you are unsure.
15.88 mm	0.46 mm +/-0.04	16.59 mm	16.64 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 1.14 mm +0.08/-0.13 Groove Width (W): 0.56 mm +/-0.05 Approx. Loose Clip ID: 14.36 +0.05/-0.00 Groove Depth (d): 0.36 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-062 (13 Pcs) Spiral - 15.88 mm x 0.46 mm x 16.59 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per Per 13 View the product page first if you are unsure.
UR-062 (13 Pcs) --- Spiral - 15.88 mm x 0.46 mm x 16.59 mm Spring Steel UR-062 (13 Pcs) --- Spiral - 15.88 mm x 0.46 mm x 16.59 mm Spring Steel Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per Out of stock! Backorder Now
34.93 mm	0.64 mm +/-0.04	36.04 mm	36.61 mm +0.38/-0.00	2.24 mm +0.08/-0.13	0.79 mm +/-0.10
Material: Spring Steel Approx. Loose Clip ID: 32.13 +0.05/-0.00 Groove Depth (d): 0.56 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-137 (5 Pcs) Spiral - 34.93 mm x 0.64 mm x 36.04 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.95 AUD Regular price Sale price $13.95 AUD Unit price per Per 5 View the product page first if you are unsure.
34.93 mm	0.64 mm +/-0.04	36.04 mm	36.61 mm +0.38/-0.00
Material: Spring Steel Radial Wall (S): 2.24 mm +0.08/-0.13 Groove Width (W): 0.79 mm +/-0.10 Approx. Loose Clip ID: 32.13 +0.05/-0.00 Groove Depth (d): 0.56 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-137 (5 Pcs) Spiral - 34.93 mm x 0.64 mm x 36.04 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.95 AUD Regular price Sale price $13.95 AUD Unit price per Per 5 View the product page first if you are unsure.
UR-137 (5 Pcs) --- Spiral - 34.93 mm x 0.64 mm x 36.04 mm Spring Steel UR-137 (5 Pcs) --- Spiral - 34.93 mm x 0.64 mm x 36.04 mm Spring Steel Regular price $13.95 AUD Regular price Sale price $13.95 AUD Unit price per Out of stock! Backorder Now

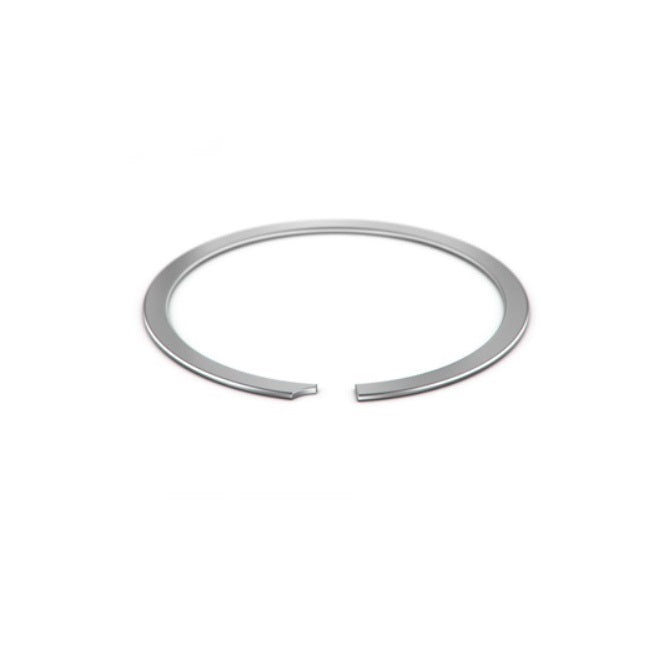

50.80 mm	0.79 mm +/-0.05	52.25 mm	53.24 mm +0.51/-0.00	3.00 mm +0.08/-0.13	1.00 mm +/-0.13
Material: Spring Steel Approx. Loose Clip ID: 47.24 +0.07/-0.00 Groove Depth (d): 0.74 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-200 (2 Pcs) Spiral - 50.8 mm x 0.79 mm x 52.25 mm / Retaining Rings 496 units (992 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.14 AUD Regular price ~~$7.70 AUD~~ Sale price $5.14 AUD Unit price per Per 2
50.80 mm	0.79 mm +/-0.05	52.25 mm	53.24 mm +0.51/-0.00
Material: Spring Steel Radial Wall (S): 3.00 mm +0.08/-0.13 Groove Width (W): 1.00 mm +/-0.13 Approx. Loose Clip ID: 47.24 +0.07/-0.00 Groove Depth (d): 0.74 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-200 (2 Pcs) Spiral - 50.8 mm x 0.79 mm x 52.25 mm / Retaining Rings 496 units (992 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity \| Regular price $5.14 AUD Regular price ~~$7.70 AUD~~ Sale price $5.14 AUD Unit price per Per 2
UR-200 (2 Pcs) --- Spiral - 50.8 mm x 0.79 mm x 52.25 mm Spring Steel Sale UR-200 (2 Pcs) --- Spiral - 50.8 mm x 0.79 mm x 52.25 mm Spring Steel Regular price $5.14 AUD Regular price ~~$7.70 AUD~~ Sale price $5.14 AUD Unit price per 496 Available Now Sale
52.37 mm	0.79 mm +/-0.05	54.31 mm	54.88 mm +0.64/-0.00	4.01 mm +0.08/-0.13	1.00 mm +/-0.16
Material: Spring Steel Approx. Loose Clip ID: 46.86 +0.07/-0.00 Groove Depth (d): 0.97 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-206 (37 Pcs) Spiral - 52.37 mm x 0.79 mm x 54.31 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Jan 31, 2025 Regular price $142.95 AUD Regular price Sale price $142.95 AUD Unit price per Per 37 View the product page first if you are unsure.
52.37 mm	0.79 mm +/-0.05	54.31 mm	54.88 mm +0.64/-0.00
Material: Spring Steel Radial Wall (S): 4.01 mm +0.08/-0.13 Groove Width (W): 1.00 mm +/-0.16 Approx. Loose Clip ID: 46.86 +0.07/-0.00 Groove Depth (d): 0.97 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-206 (37 Pcs) Spiral - 52.37 mm x 0.79 mm x 54.31 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Jan 31, 2025 Regular price $142.95 AUD Regular price Sale price $142.95 AUD Unit price per Per 37 View the product page first if you are unsure.
UR-206 (37 Pcs) --- Spiral - 52.37 mm x 0.79 mm x 54.31 mm Spring Steel UR-206 (37 Pcs) --- Spiral - 52.37 mm x 0.79 mm x 54.31 mm Spring Steel Regular price $142.95 AUD Regular price Sale price $142.95 AUD Unit price per Out of stock! Backorder Now
55.55 mm	0.79 mm +/-0.05	57.48 mm	58.22 mm +0.64/-0.00	4.01 mm +0.08/-0.13	1.00 mm +/-0.15
Material: Spring Steel Approx. Loose Clip ID: 50.2 +0.07/-0.00 Groove Depth (d): 0.97 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-218 (5 Pcs) Spiral - 55.55 mm x 0.79 mm x 57.48 mm / Retaining Rings 9 units (45 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$16.50 AUD~~ Sale price $10.00 AUD Unit price per Per 5
55.55 mm	0.79 mm +/-0.05	57.48 mm	58.22 mm +0.64/-0.00
Material: Spring Steel Radial Wall (S): 4.01 mm +0.08/-0.13 Groove Width (W): 1.00 mm +/-0.15 Approx. Loose Clip ID: 50.2 +0.07/-0.00 Groove Depth (d): 0.97 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-218 (5 Pcs) Spiral - 55.55 mm x 0.79 mm x 57.48 mm / Retaining Rings 9 units (45 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity \| Regular price $10.00 AUD Regular price ~~$16.50 AUD~~ Sale price $10.00 AUD Unit price per Per 5
UR-218 (5 Pcs) --- Spiral - 55.55 mm x 0.79 mm x 57.48 mm Spring Steel Sale UR-218 (5 Pcs) --- Spiral - 55.55 mm x 0.79 mm x 57.48 mm Spring Steel Regular price $10.00 AUD Regular price ~~$16.50 AUD~~ Sale price $10.00 AUD Unit price per 9 Available Now Sale
73.03 mm	0.79 mm +/-0.05	74.96 mm	76.54 mm +0.64/-0.00	4.01 mm +/-0.10	1.00 mm +/-0.16
Material: Spring Steel Approx. Loose Clip ID: 68.52 +0.07/-0.00 Groove Depth (d): 0.97 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-287 Spiral - 73.03 mm x 0.79 mm x 74.96 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Each View the product page first if you are unsure.
73.03 mm	0.79 mm +/-0.05	74.96 mm	76.54 mm +0.64/-0.00
Material: Spring Steel Radial Wall (S): 4.01 mm +/-0.10 Groove Width (W): 1.00 mm +/-0.16 Approx. Loose Clip ID: 68.52 +0.07/-0.00 Groove Depth (d): 0.97 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-287 Spiral - 73.03 mm x 0.79 mm x 74.96 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Each View the product page first if you are unsure.
UR-287 --- Spiral - 73.03 mm x 0.79 mm x 74.96 mm Spring Steel UR-287 --- Spiral - 73.03 mm x 0.79 mm x 74.96 mm Spring Steel Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Out of stock! Backorder Now
76.20 mm	0.79 mm +/-0.05	78.13 mm	79.86 mm +0.64/-0.00	4.01 mm +/-0.10	1.00 mm +/-0.15
Material: Spring Steel Approx. Loose Clip ID: 71.84 +0.07/-0.00 Groove Depth (d): 0.97 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-300 (17 Pcs) Spiral - 76.2 mm x 0.79 mm x 78.13 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Jan 31, 2025 Regular price $161.77 AUD Regular price Sale price $161.77 AUD Unit price per Per 17 View the product page first if you are unsure.
76.20 mm	0.79 mm +/-0.05	78.13 mm	79.86 mm +0.64/-0.00
Material: Spring Steel Radial Wall (S): 4.01 mm +/-0.10 Groove Width (W): 1.00 mm +/-0.15 Approx. Loose Clip ID: 71.84 +0.07/-0.00 Groove Depth (d): 0.97 Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Part Number: UR-300 (17 Pcs) Spiral - 76.2 mm x 0.79 mm x 78.13 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Jan 31, 2025 Regular price $161.77 AUD Regular price Sale price $161.77 AUD Unit price per Per 17 View the product page first if you are unsure.
UR-300 (17 Pcs) --- Spiral - 76.2 mm x 0.79 mm x 78.13 mm Spring Steel UR-300 (17 Pcs) --- Spiral - 76.2 mm x 0.79 mm x 78.13 mm Spring Steel Regular price $161.77 AUD Regular price Sale price $161.77 AUD Unit price per Out of stock! Backorder Now
