Retaining Rings - Internal - Spiral Rings - Light Duty - Stainless Steel

1 Item Available

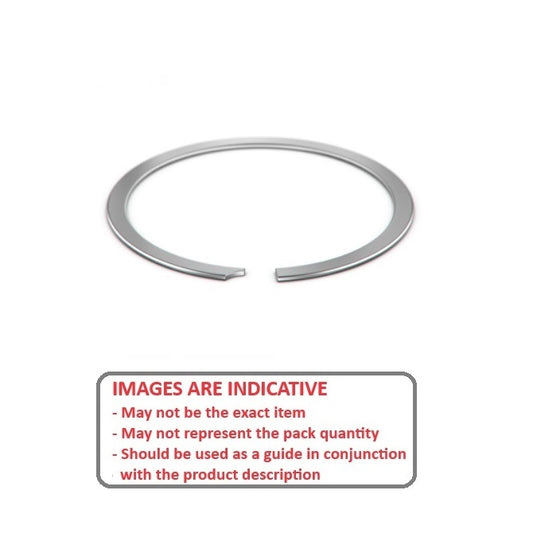

  • Includes series CI / VH / UR - Stainless Steel.
  • Light duty rings for use in low clearance applications.
  • Also used as a positioning point for light loads.
  • Radius notch on one end for removal.
  • Narrow radial wall yields moderate thrust loads.
  • Equivalent to Associated Spring: CI, Smalley: VH, Spirolox and Ramsey: UR
Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Groove Width (W) Indicative
12.70
mm 		0.46
mm
+/- 0.04 		13.41
mm 		13.31
mm
+ 0.33 / - 0.00 		1.14
mm
+ 0.08 / - 0.13 		0.56
mm
+/- 0.05 		1101850 | UR-050-S02 (8 Pcs) --- Internal Retaining Rings - 12.7 mm x 0.46 mm x 13.41 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip ID: 11.03 + + 0.05 / - 0.00   Groove Depth (d): 0.36
Part Number: UR-050-S02 (8 Pcs) Internal Retaining Rings - 12.7 mm x 0.46 mm x 13.41 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Mar 01, 2025
$12.50 AUD
$12.50 AUD
Per 8
View the product page first if you are unsure ->
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
12.70
mm 		0.46
mm
+/- 0.04 		13.41
mm 		13.31
mm
+ 0.33 / - 0.00 		1101850 | UR-050-S02 (8 Pcs) --- Internal Retaining Rings - 12.7 mm x 0.46 mm x 13.41 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S): 1.14 mm + 0.08 / - 0.13    Groove Width (W): 0.56 mm +/- 0.05   Approx. Loose Clip ID: 11.03 + + 0.05 / - 0.00   Groove Depth (d): 0.36
Part Number: UR-050-S02 (8 Pcs) Internal Retaining Rings - 12.7 mm x 0.46 mm x 13.41 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Mar 01, 2025
$12.50 AUD
$12.50 AUD
Per 8
View the product page first if you are unsure.
