Collection: Retaining Rings - Internal - Circlips - Standard

Retaining Rings -> Internal -> Circlips -> Standard

There are 129 products in the sub-categories of Retaining Rings - Internal - Circlips - Standard. Scroll down or follow the link to Retaining Rings - Internal - Circlips - Standard in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

Internal Retaining Rings - 6.35x0.31x6.81 mm - Carbon Steel

Retaining Rings - Internal - Circlips - Standard - Carbon Steel

A selection of Carbon Steel Standard Circlips Internal Retaining Rings. Imperial and...

Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Internal Retaining Rings - 6.35x0.31x6.81 mm - Stainless Steel Grade PH15-7 Mo

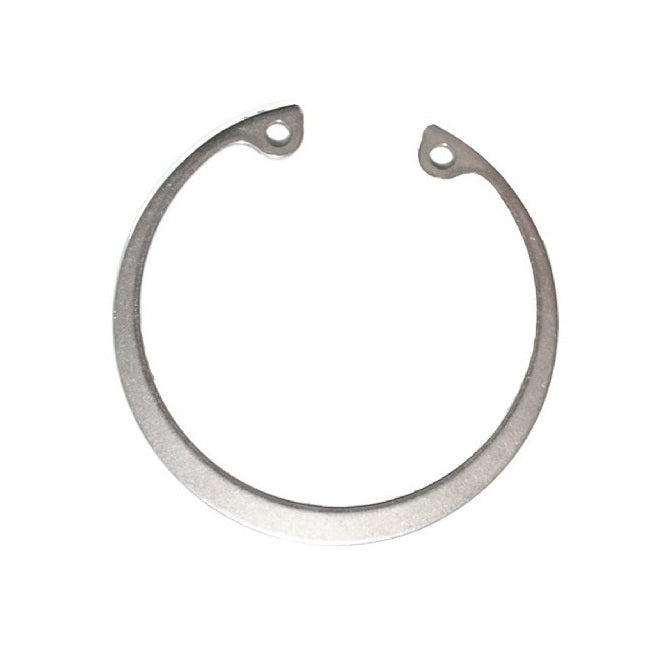

Retaining Rings - Internal - Circlips - Standard - Stainless Steel

A selection of Stainless Steel Standard Circlips Internal Retaining Rings. Imperial and...

Retaining Rings - Internal - Circlips - Standard - Stainless Steel

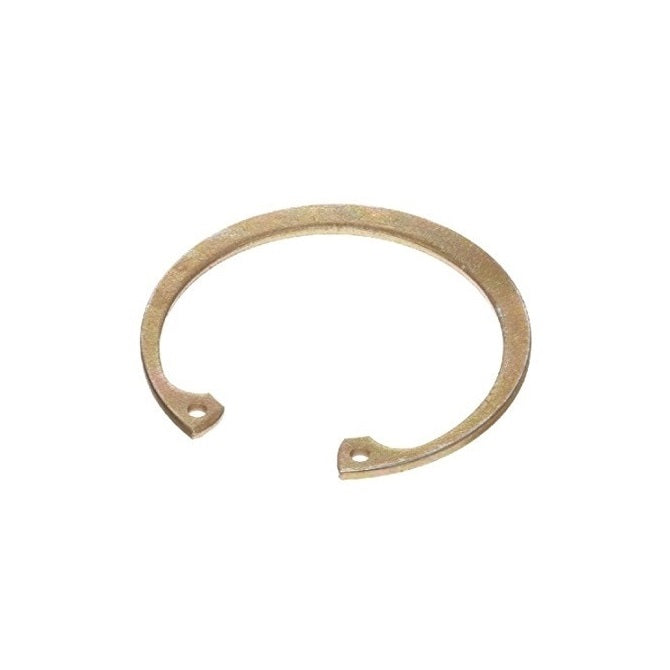

Internal Retaining Rings - 9.53x0.64x10.08 mm - Carbon Steel Zinc Plated

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

A selection of Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and...

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Category Details

This category includes various types of internal retaining rings.

An expanded range may be available on special order. Please enquire.

Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found in the Retaining Rings - Internal - Circlips - Standard category on the MBA Minibearings main store.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S) Approx.	Groove Width (W)
Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 6.81 mm _{+ 0.00 / - 0.05} (Equiv. 0.268 in.)	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 5746
Part Number: CCI-00635-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jan 25, 2026 Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 6.81 mm _{+ 0.00 / - 0.05} (Equiv. 0.268 in.)	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 5746
Part Number: CCI-00635-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jan 25, 2026 Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-00635-C (PK-50) --- Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Circlip CCI-00635-C (PK-50) --- Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Circlip Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 6.81 mm _{+ 0.00 / - 0.05} (Equiv. 0.268 in.)	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 25
Part Number: CCI-00635-S15 (PK-2) 150 units (300 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 150 available can be backordered.
Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 6.81 mm _{+ 0.00 / - 0.05} (Equiv. 0.268 in.)	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 25
Part Number: CCI-00635-S15 (PK-2) 150 units (300 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 150 units (300 pcs) Available Now. Backorder if more than 150.
CCI-00635-S15 (PK-2) --- Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-00635-S15 (PK-2) --- Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 150 Available Now

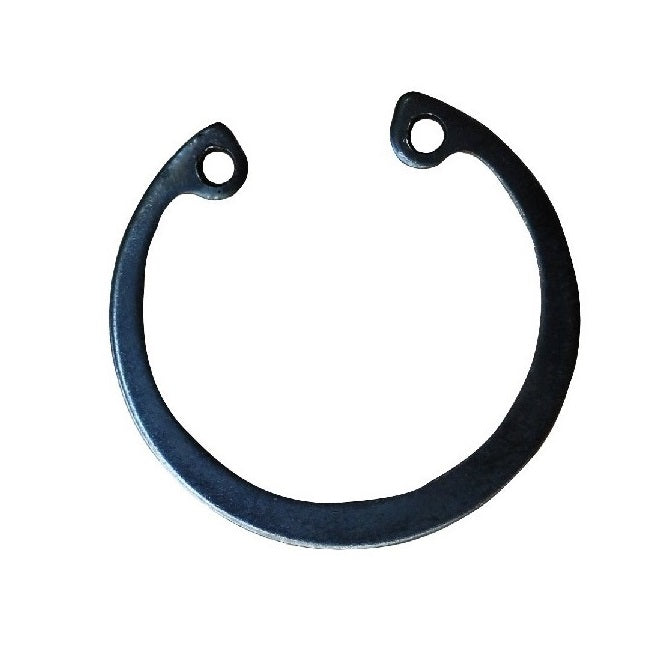

Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 8.38 mm _{+ 0.00 / - 0.05} (Equiv. 0.33 in.)	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 5949
Part Number: CCI-00794-C (PK-20) 4 units (80 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $2.86 AUD Regular price ~~$5.39 AUD~~ Sale price $2.86 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 4 available can be backordered.
Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 8.38 mm _{+ 0.00 / - 0.05} (Equiv. 0.33 in.)	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 5949
Part Number: CCI-00794-C (PK-20) 4 units (80 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $2.86 AUD Regular price ~~$5.39 AUD~~ Sale price $2.86 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 4 units (80 pcs) Available Now. Backorder if more than 4.
CCI-00794-C (PK-20) --- Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Circlip Sale CCI-00794-C (PK-20) --- Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Circlip Regular price $2.86 AUD Regular price ~~$5.39 AUD~~ Sale price $2.86 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 4 Available Now Sale
Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 8.38 mm _{+ 0.00 / - 0.05} (Equiv. 0.33 in.)	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 820
Part Number: CCI-00794-S15 (PK-5) 14 units (70 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 14 available can be backordered.
Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 8.38 mm _{+ 0.00 / - 0.05} (Equiv. 0.33 in.)	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 820
Part Number: CCI-00794-S15 (PK-5) 14 units (70 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 14 units (70 pcs) Available Now. Backorder if more than 14.
CCI-00794-S15 (PK-5) --- Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-00794-S15 (PK-5) --- Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 14 Available Now
Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 8.00 mm (Equiv. 0.315 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 8.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.331 in.)	Approx. Loose Circlip OD (Dr) 8.70 mm + 0.36 / - 0.10		Groove Width (W) 0.90 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 15396
Part Number: CCI-00800-S15 (PK-5) 13 units (65 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 13 available can be backordered.
Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 8.00 mm (Equiv. 0.315 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 8.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.331 in.)	Approx. Loose Circlip OD (Dr) 8.70 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.90 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 15396
Part Number: CCI-00800-S15 (PK-5) 13 units (65 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 13 units (65 pcs) Available Now. Backorder if more than 13.
CCI-00800-S15 (PK-5) --- Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-00800-S15 (PK-5) --- Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 13 Available Now
Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 8.00 mm (Equiv. 0.315 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 8.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.331 in.)	Approx. Loose Circlip OD (Dr) 8.70 mm + 0.36 / - 0.10		Groove Width (W) 0.90 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 4007
Part Number: CCI-00800-C (PK-50) 373 units (18650 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $3.05 AUD Regular price ~~$5.74 AUD~~ Sale price $3.05 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 373 available can be backordered.
Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 8.00 mm (Equiv. 0.315 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 8.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.331 in.)	Approx. Loose Circlip OD (Dr) 8.70 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 0.90 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 4007
Part Number: CCI-00800-C (PK-50) 373 units (18650 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $3.05 AUD Regular price ~~$5.74 AUD~~ Sale price $3.05 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required 373 units (18650 pcs) Available Now. Backorder if more than 373.
CCI-00800-C (PK-50) --- Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Carbon Steel Circlip Sale CCI-00800-C (PK-50) --- Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Carbon Steel Circlip Regular price $3.05 AUD Regular price ~~$5.74 AUD~~ Sale price $3.05 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties 373 Available Now Sale
Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 9.00 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 9.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.37 in.)	Approx. Loose Circlip OD (Dr) 9.80 mm + 0.36 / - 0.10		Groove Width (W) 0.90 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 1190
Part Number: CCI-00900-S15 (PK-2) 38 units (76 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $1.68 AUD Regular price ~~$4.55 AUD~~ Sale price $1.68 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 38 available can be backordered.
Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 9.00 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 9.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.37 in.)	Approx. Loose Circlip OD (Dr) 9.80 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.90 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 1190
Part Number: CCI-00900-S15 (PK-2) 38 units (76 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $1.68 AUD Regular price ~~$4.55 AUD~~ Sale price $1.68 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 38 units (76 pcs) Available Now. Backorder if more than 38.
CCI-00900-S15 (PK-2) --- Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-00900-S15 (PK-2) --- Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.68 AUD Regular price ~~$4.55 AUD~~ Sale price $1.68 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 38 Available Now Sale
Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 9.00 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 9.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.37 in.)	Approx. Loose Circlip OD (Dr) 9.80 mm + 0.36 / - 0.10		Groove Width (W) 0.90 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 2838
Part Number: CCI-00900-C (PK-50) 20 units (1000 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $3.23 AUD Regular price ~~$6.01 AUD~~ Sale price $3.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 20 available can be backordered.
Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 9.00 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 9.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.37 in.)	Approx. Loose Circlip OD (Dr) 9.80 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 0.90 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 2838
Part Number: CCI-00900-C (PK-50) 20 units (1000 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $3.23 AUD Regular price ~~$6.01 AUD~~ Sale price $3.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required 20 units (1000 pcs) Available Now. Backorder if more than 20.
CCI-00900-C (PK-50) --- Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Carbon Steel Circlip Sale CCI-00900-C (PK-50) --- Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Carbon Steel Circlip Regular price $3.23 AUD Regular price ~~$6.01 AUD~~ Sale price $3.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties 20 Available Now Sale
Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.08 mm _{+ 0.00 / - 0.05} (Equiv. 0.397 in.)	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 976
Part Number: CCI-00953-S15 (PK-2) 75 units (150 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 75 available can be backordered.
Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.08 mm _{+ 0.00 / - 0.05} (Equiv. 0.397 in.)	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 976
Part Number: CCI-00953-S15 (PK-2) 75 units (150 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 75 units (150 pcs) Available Now. Backorder if more than 75.
CCI-00953-S15 (PK-2) --- Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-00953-S15 (PK-2) --- Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 75 Available Now
Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.08 mm _{+ 0.00 / - 0.05} (Equiv. 0.397 in.)	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 1001
Part Number: CCI-00953-CZY (PK-5) 38 units (190 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $0.95 AUD Regular price ~~$2.42 AUD~~ Sale price $0.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 38 available can be backordered.
Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.08 mm _{+ 0.00 / - 0.05} (Equiv. 0.397 in.)	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 1001
Part Number: CCI-00953-CZY (PK-5) 38 units (190 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $0.95 AUD Regular price ~~$2.42 AUD~~ Sale price $0.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 38 units (190 pcs) Available Now. Backorder if more than 38.
CCI-00953-CZY (PK-5) --- Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-00953-CZY (PK-5) --- Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $0.95 AUD Regular price ~~$2.42 AUD~~ Sale price $0.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 38 Available Now Sale
Internal Retaining Rings - 10x1x10.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 10.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.409 in.)	Approx. Loose Circlip OD (Dr) 10.80 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 586
Part Number: CCI-01000-C (PK-50) 18 units (900 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 18 available can be backordered.
Internal Retaining Rings - 10x1x10.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 10.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.409 in.)	Approx. Loose Circlip OD (Dr) 10.80 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 586
Part Number: CCI-01000-C (PK-50) 18 units (900 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required 18 units (900 pcs) Available Now. Backorder if more than 18.
CCI-01000-C (PK-50) --- Internal Retaining Rings - 10x1x10.4 mm Circlips - Carbon Steel Circlip CCI-01000-C (PK-50) --- Internal Retaining Rings - 10x1x10.4 mm Circlips - Carbon Steel Circlip Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties 18 Available Now
Internal Retaining Rings - 10x1x10.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 10.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.409 in.)	Approx. Loose Circlip OD (Dr) 10.80 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 25889
Part Number: CCI-01000-S15 (PK-5) 23 units (115 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 23 available can be backordered.
Internal Retaining Rings - 10x1x10.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 10.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.409 in.)	Approx. Loose Circlip OD (Dr) 10.80 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 25889
Part Number: CCI-01000-S15 (PK-5) 23 units (115 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 23 units (115 pcs) Available Now. Backorder if more than 23.
CCI-01000-S15 (PK-5) --- Internal Retaining Rings - 10x1x10.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-01000-S15 (PK-5) --- Internal Retaining Rings - 10x1x10.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 23 Available Now
Internal Retaining Rings - 11x1x11.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 11.00 mm (Equiv. 0.433 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 11.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.449 in.)	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01100-S15 (PK-2) 12 units (24 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $2.32 AUD Regular price ~~$6.24 AUD~~ Sale price $2.32 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 12 available can be backordered.
Internal Retaining Rings - 11x1x11.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 11.00 mm (Equiv. 0.433 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 11.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.449 in.)	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01100-S15 (PK-2) 12 units (24 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $2.32 AUD Regular price ~~$6.24 AUD~~ Sale price $2.32 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 12 units (24 pcs) Available Now. Backorder if more than 12.
CCI-01100-S15 (PK-2) --- Internal Retaining Rings - 11x1x11.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01100-S15 (PK-2) --- Internal Retaining Rings - 11x1x11.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.32 AUD Regular price ~~$6.24 AUD~~ Sale price $2.32 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 12 Available Now Sale
Internal Retaining Rings - 11x1x11.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 11.00 mm (Equiv. 0.433 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 11.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.449 in.)	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 2114
Part Number: CCI-01100-C (PK-50) 15 units (750 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $3.14 AUD Regular price ~~$5.87 AUD~~ Sale price $3.14 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 15 available can be backordered.
Internal Retaining Rings - 11x1x11.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 11.00 mm (Equiv. 0.433 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 11.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.449 in.)	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 2114
Part Number: CCI-01100-C (PK-50) 15 units (750 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $3.14 AUD Regular price ~~$5.87 AUD~~ Sale price $3.14 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required 15 units (750 pcs) Available Now. Backorder if more than 15.
CCI-01100-C (PK-50) --- Internal Retaining Rings - 11x1x11.4 mm Circlips - Carbon Steel Circlip Sale CCI-01100-C (PK-50) --- Internal Retaining Rings - 11x1x11.4 mm Circlips - Carbon Steel Circlip Regular price $3.14 AUD Regular price ~~$5.87 AUD~~ Sale price $3.14 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties 15 Available Now Sale
Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01111-S15 (PK-2) 195 units (390 pcs) Available Now \| Further orders can be expected around Wed, Feb 11, 2026 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 195 available can be backordered.
Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01111-S15 (PK-2) 195 units (390 pcs) Available Now \| Further orders can be expected around Wed, Feb 11, 2026 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 195 units (390 pcs) Available Now. Backorder if more than 195.
CCI-01111-S15 (PK-2) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-01111-S15 (PK-2) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 195 Available Now
Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 19106
Part Number: CCI-01111-C (PK-20) 22 units (440 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $2.77 AUD Regular price ~~$5.23 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 22 available can be backordered.
Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 19106
Part Number: CCI-01111-C (PK-20) 22 units (440 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $2.77 AUD Regular price ~~$5.23 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 22 units (440 pcs) Available Now. Backorder if more than 22.
CCI-01111-C (PK-20) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Circlip Sale CCI-01111-C (PK-20) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Circlip Regular price $2.77 AUD Regular price ~~$5.23 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 22 Available Now Sale
Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 9794
Part Number: CCI-01111-CZY (PK-5) 40 units (200 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $0.95 AUD Regular price ~~$2.56 AUD~~ Sale price $0.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 40 available can be backordered.
Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 9794
Part Number: CCI-01111-CZY (PK-5) 40 units (200 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $0.95 AUD Regular price ~~$2.56 AUD~~ Sale price $0.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 40 units (200 pcs) Available Now. Backorder if more than 40.
CCI-01111-CZY (PK-5) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01111-CZY (PK-5) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $0.95 AUD Regular price ~~$2.56 AUD~~ Sale price $0.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 40 Available Now Sale
Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B) 11.51 mm (Equiv. 0.453 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.12 mm _{+ 0.00 / - 0.06} (Equiv. 0.477 in.)	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 456
Part Number: CCI-01151-CZY (PK-5) 40 units (200 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $1.32 AUD Regular price ~~$3.60 AUD~~ Sale price $1.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 40 available can be backordered.
Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B) 11.51 mm (Equiv. 0.453 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.12 mm _{+ 0.00 / - 0.06} (Equiv. 0.477 in.)	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 456
Part Number: CCI-01151-CZY (PK-5) 40 units (200 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $1.32 AUD Regular price ~~$3.60 AUD~~ Sale price $1.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 40 units (200 pcs) Available Now. Backorder if more than 40.
CCI-01151-CZY (PK-5) --- Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01151-CZY (PK-5) --- Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $1.32 AUD Regular price ~~$3.60 AUD~~ Sale price $1.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 40 Available Now Sale
Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 11.51 mm (Equiv. 0.453 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.12 mm _{+ 0.00 / - 0.06} (Equiv. 0.477 in.)	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 1596
Part Number: CCI-01151-S15 (Each) 17 Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 17 available can be backordered.
Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 11.51 mm (Equiv. 0.453 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.12 mm _{+ 0.00 / - 0.06} (Equiv. 0.477 in.)	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 1596
Part Number: CCI-01151-S15 (Each) 17 Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 17 Available Now. Backorder if more than 17.
CCI-01151-S15 (Each) --- Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-01151-S15 (Each) --- Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 17 Available Now
Internal Retaining Rings - 12x1x12.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 12.00 mm (Equiv. 0.472 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 12.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.492 in.)	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 3151
Part Number: CCI-01200-C (PK-50) 9 units (450 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $3.86 AUD Regular price ~~$7.21 AUD~~ Sale price $3.86 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 9 available can be backordered.
Internal Retaining Rings - 12x1x12.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 12.00 mm (Equiv. 0.472 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 12.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.492 in.)	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel Additional stock available from USA subject to Prior Sale = 3151
Part Number: CCI-01200-C (PK-50) 9 units (450 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $3.86 AUD Regular price ~~$7.21 AUD~~ Sale price $3.86 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required 9 units (450 pcs) Available Now. Backorder if more than 9.
CCI-01200-C (PK-50) --- Internal Retaining Rings - 12x1x12.5 mm Circlips - Carbon Steel Circlip Sale CCI-01200-C (PK-50) --- Internal Retaining Rings - 12x1x12.5 mm Circlips - Carbon Steel Circlip Regular price $3.86 AUD Regular price ~~$7.21 AUD~~ Sale price $3.86 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties 9 Available Now Sale
Internal Retaining Rings - 12x1x12.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 12.00 mm (Equiv. 0.472 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 12.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.492 in.)	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 2351
Part Number: CCI-01200-S15 (PK-2) 31 units (62 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 31 available can be backordered.
Internal Retaining Rings - 12x1x12.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 12.00 mm (Equiv. 0.472 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 12.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.492 in.)	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 2351
Part Number: CCI-01200-S15 (PK-2) 31 units (62 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 31 units (62 pcs) Available Now. Backorder if more than 31.
CCI-01200-S15 (PK-2) --- Internal Retaining Rings - 12x1x12.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-01200-S15 (PK-2) --- Internal Retaining Rings - 12x1x12.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 31 Available Now
Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+ 0.00 / - 0.06} (Equiv. 0.53 in.)	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 20125
Part Number: CCI-01270-S15 (PK-2) 12 units (24 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $2.41 AUD Regular price ~~$6.68 AUD~~ Sale price $2.41 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 12 available can be backordered.
Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+ 0.00 / - 0.06} (Equiv. 0.53 in.)	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 20125
Part Number: CCI-01270-S15 (PK-2) 12 units (24 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $2.41 AUD Regular price ~~$6.68 AUD~~ Sale price $2.41 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 12 units (24 pcs) Available Now. Backorder if more than 12.
CCI-01270-S15 (PK-2) --- Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01270-S15 (PK-2) --- Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.41 AUD Regular price ~~$6.68 AUD~~ Sale price $2.41 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 12 Available Now Sale
Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+ 0.00 / - 0.06} (Equiv. 0.53 in.)	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 939
Part Number: CCI-01270-CZY (PK-5) 148 units (740 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $1.14 AUD Regular price ~~$2.98 AUD~~ Sale price $1.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 148 available can be backordered.
Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+ 0.00 / - 0.06} (Equiv. 0.53 in.)	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated Additional stock available from USA subject to Prior Sale = 939
Part Number: CCI-01270-CZY (PK-5) 148 units (740 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $1.14 AUD Regular price ~~$2.98 AUD~~ Sale price $1.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 148 units (740 pcs) Available Now. Backorder if more than 148.
CCI-01270-CZY (PK-5) --- Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01270-CZY (PK-5) --- Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $1.14 AUD Regular price ~~$2.98 AUD~~ Sale price $1.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 148 Available Now Sale
Internal Retaining Rings - 13x1x13.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 13.00 mm (Equiv. 0.512 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 13.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.535 in.)	Approx. Loose Circlip OD (Dr) 14.10 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 5.40 mm Clearance in Groove (C1): 6.40 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.90 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 649
Part Number: CCI-01300-S15 (PK-5) 58 units (290 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $2.23 AUD Regular price ~~$6.14 AUD~~ Sale price $2.23 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 58 available can be backordered.
Internal Retaining Rings - 13x1x13.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B) 13.00 mm (Equiv. 0.512 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 13.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.535 in.)	Approx. Loose Circlip OD (Dr) 14.10 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.40 mm Clearance in Groove (C1): 6.40 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.90 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel Additional stock available from USA subject to Prior Sale = 649
Part Number: CCI-01300-S15 (PK-5) 58 units (290 pcs) Available Now \| Further orders can be expected around Sun, Jan 25, 2026 Regular price $2.23 AUD Regular price ~~$6.14 AUD~~ Sale price $2.23 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 58 units (290 pcs) Available Now. Backorder if more than 58.
CCI-01300-S15 (PK-5) --- Internal Retaining Rings - 13x1x13.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01300-S15 (PK-5) --- Internal Retaining Rings - 13x1x13.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.23 AUD Regular price ~~$6.14 AUD~~ Sale price $2.23 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 58 Available Now Sale

Country/region

Small Parts & Bearings

Collection: Retaining Rings - Internal - Circlips - Standard

Category Details

Filter

Filter

Subscribe to our emails
