Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Retaining Rings -> Internal -> Circlips -> Standard -> Zinc Plated

There are 8 products in the sub-categories of Retaining Rings - Internal - Circlips - Standard - Zinc Plated. Browse the Retaining Rings - Internal - Circlips - Standard - Zinc Plated products table.

Category Details

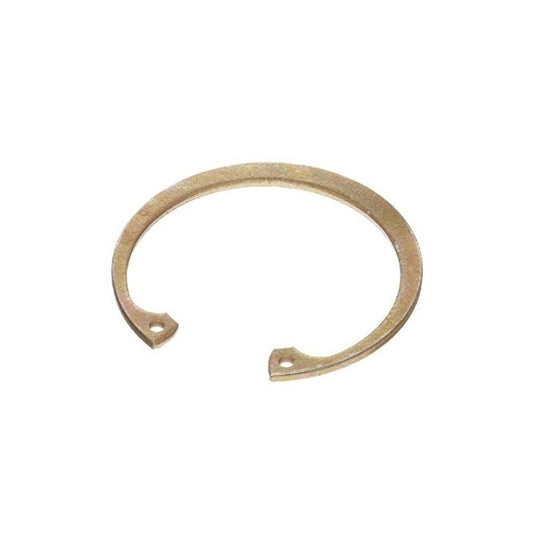

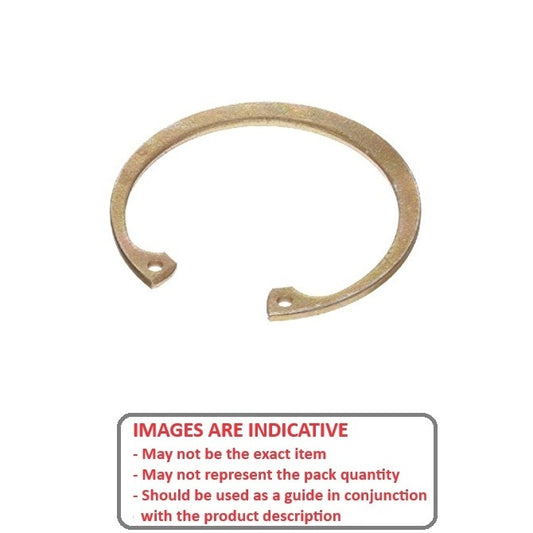

A selection of Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • Zinc plated carbon steel
  • Tolerances on request.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Retaining Rings - Internal - Circlips - Standard - Zinc Plated category on the MBA Minibearings main store.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Approx. Groove Width (W) Indicative
Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
9.53
mm

(Equiv. 0.375 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
10.08
mm
+ 0.00 / - 0.05
(Equiv. 0.397 in.)
Approx. Loose Circlip OD (Dr)
10.54
mm
+ 0.25 / - 0.13
Groove Width (W)
0.74
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 9.53x0.64x10.08 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 5.08 mm    Clearance in Groove (C1): 5.59 mm    Min. Lug Diameter (h): 0.99 mm    Min. Extension (n): 0.84    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1001
Part Number: CCI-00953-CZY (PK-5)
38 units (190 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$0.95 AUD
$2.42 AUD $0.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 38 available can be backordered.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
9.53
mm

(Equiv. 0.375 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
10.08
mm
+ 0.00 / - 0.05
(Equiv. 0.397 in.)
Approx. Loose Circlip OD (Dr)
10.54
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 9.53x0.64x10.08 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.74 mm + 0.08 / - 0.00   Clearance in Bore (C): 5.08 mm    Clearance in Groove (C1): 5.59 mm    Min. Lug Diameter (h): 0.99 mm    Min. Extension (n): 0.84    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1001
Part Number: CCI-00953-CZY (PK-5)
38 units (190 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$0.95 AUD
$2.42 AUD $0.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

38 units (190 pcs) Available Now. Backorder if more than 38.
Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
11.11
mm

(Equiv. 0.437 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
11.71
mm
+ 0.00 / - 0.06
(Equiv. 0.461 in.)
Approx. Loose Circlip OD (Dr)
12.24
mm
+ 0.25 / - 0.13
Groove Width (W)
0.74
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 11.11x0.64x11.71 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 5.84 mm    Clearance in Groove (C1): 6.35 mm    Min. Lug Diameter (h): 0.99 mm    Min. Extension (n): 0.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 9794
Part Number: CCI-01111-CZY (PK-5)
40 units (200 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$0.95 AUD
$2.56 AUD $0.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 40 available can be backordered.
Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
11.11
mm

(Equiv. 0.437 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
11.71
mm
+ 0.00 / - 0.06
(Equiv. 0.461 in.)
Approx. Loose Circlip OD (Dr)
12.24
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 11.11x0.64x11.71 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.74 mm + 0.08 / - 0.00   Clearance in Bore (C): 5.84 mm    Clearance in Groove (C1): 6.35 mm    Min. Lug Diameter (h): 0.99 mm    Min. Extension (n): 0.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 9794
Part Number: CCI-01111-CZY (PK-5)
40 units (200 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$0.95 AUD
$2.56 AUD $0.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

40 units (200 pcs) Available Now. Backorder if more than 40.
Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
11.51
mm

(Equiv. 0.453 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.12
mm
+ 0.00 / - 0.06
(Equiv. 0.477 in.)
Approx. Loose Circlip OD (Dr)
12.65
mm
+ 0.25 / - 0.13
Groove Width (W)
0.74
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 11.51x0.64x12.12 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 6.35 mm    Clearance in Groove (C1): 6.86 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 0.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 456
Part Number: CCI-01151-CZY (PK-5)
40 units (200 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.32 AUD
$3.60 AUD $1.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 40 available can be backordered.
Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
11.51
mm

(Equiv. 0.453 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.12
mm
+ 0.00 / - 0.06
(Equiv. 0.477 in.)
Approx. Loose Circlip OD (Dr)
12.65
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 11.51x0.64x12.12 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.74 mm + 0.08 / - 0.00   Clearance in Bore (C): 6.35 mm    Clearance in Groove (C1): 6.86 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 0.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 456
Part Number: CCI-01151-CZY (PK-5)
40 units (200 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.32 AUD
$3.60 AUD $1.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

40 units (200 pcs) Available Now. Backorder if more than 40.
Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
13.46
mm
+ 0.00 / - 0.06
(Equiv. 0.53 in.)
Approx. Loose Circlip OD (Dr)
13.92
mm
+ 0.25 / - 0.13
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 6.60 mm    Clearance in Groove (C1): 7.37 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.14    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 939
Part Number: CCI-01270-CZY (PK-5)
148 units (740 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.14 AUD
$2.98 AUD $1.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 148 available can be backordered.
Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
13.46
mm
+ 0.00 / - 0.06
(Equiv. 0.53 in.)
Approx. Loose Circlip OD (Dr)
13.92
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Clearance in Bore (C): 6.60 mm    Clearance in Groove (C1): 7.37 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.14    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 939
Part Number: CCI-01270-CZY (PK-5)
148 units (740 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.14 AUD
$2.98 AUD $1.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

148 units (740 pcs) Available Now. Backorder if more than 148.
Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
16.89
mm
+ 0.00 / - 0.06
(Equiv. 0.665 in.)
Approx. Loose Circlip OD (Dr)
17.63
mm
+ 0.25 / - 0.13
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 15.88x0.89x16.89 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 8.89 mm    Clearance in Groove (C1): 9.91 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.52    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2635
Part Number: CCI-01588-CZY (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.32 AUD
$3.46 AUD $1.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
16.89
mm
+ 0.00 / - 0.06
(Equiv. 0.665 in.)
Approx. Loose Circlip OD (Dr)
17.63
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 15.88x0.89x16.89 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Clearance in Bore (C): 8.89 mm    Clearance in Groove (C1): 9.91 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.52    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2635
Part Number: CCI-01588-CZY (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.32 AUD
$3.46 AUD $1.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (50 pcs) Available Now. Backorder if more than 10.
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
20.22
mm
+ 0.00 / - 0.06
(Equiv. 0.796 in.)
Approx. Loose Circlip OD (Dr)
21.11
mm
+ 0.25 / - 0.13
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 11.43 mm    Clearance in Groove (C1): 12.70 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.75    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 4106
Part Number: CCI-01905-CZY (PK-5)
60 units (300 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.86 AUD
$5.00 AUD $1.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 60 available can be backordered.
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
20.22
mm
+ 0.00 / - 0.06
(Equiv. 0.796 in.)
Approx. Loose Circlip OD (Dr)
21.11
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Clearance in Bore (C): 11.43 mm    Clearance in Groove (C1): 12.70 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.75    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 4106
Part Number: CCI-01905-CZY (PK-5)
60 units (300 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.86 AUD
$5.00 AUD $1.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

60 units (300 pcs) Available Now. Backorder if more than 60.
Internal Retaining Rings - 41.28x1.57x43.82 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
41.28
mm

(Equiv. 1.625 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(Equiv. 0.062 in.)
Groove Dia. (Dg)
43.82
mm
+ 0.00 / - 0.06
(Equiv. 1.725 in.)
Approx. Loose Circlip OD (Dr)
45.82
mm
+ 0.89 / - 0.64
Groove Width (W)
1.73
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 30.73 mm    Clearance in Groove (C1): 33.27 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.81    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1577
Part Number: CCI-04128-CZY (PK-5)
20 units (100 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$8.59 AUD
$19.94 AUD $8.59 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 20 available can be backordered.
Internal Retaining Rings - 41.28x1.57x43.82 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
41.28
mm

(Equiv. 1.625 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(Equiv. 0.062 in.)
Groove Dia. (Dg)
43.82
mm
+ 0.00 / - 0.06
(Equiv. 1.725 in.)
Approx. Loose Circlip OD (Dr)
45.82
mm
+ 0.89 / - 0.64
Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.73 mm + 0.10 / - 0.00   Clearance in Bore (C): 30.73 mm    Clearance in Groove (C1): 33.27 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.81    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1577
Part Number: CCI-04128-CZY (PK-5)
20 units (100 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$8.59 AUD
$19.94 AUD $8.59 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

20 units (100 pcs) Available Now. Backorder if more than 20.
Internal Retaining Rings - 61.98x1.98x65.63 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
61.98
mm

(Equiv. 2.44 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(Equiv. 0.078 in.)
Groove Dia. (Dg)
65.63
mm
+ 0.00 / - 0.07
(Equiv. 2.584 in.)
Approx. Loose Circlip OD (Dr)
68.63
mm
+ 1.02 / - 0.76
Groove Width (W)
2.18
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 61.98x1.98x65.63 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 49.78 mm    Clearance in Groove (C1): 53.59 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.49    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 582
Part Number: CCI-06198-CZY (Each)
48 Available Now | Further orders can be expected around Fri, Jan 23, 2026
$3.77 AUD
$10.27 AUD $3.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 48 available can be backordered.
Internal Retaining Rings - 61.98x1.98x65.63 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
61.98
mm

(Equiv. 2.44 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(Equiv. 0.078 in.)
Groove Dia. (Dg)
65.63
mm
+ 0.00 / - 0.07
(Equiv. 2.584 in.)
Approx. Loose Circlip OD (Dr)
68.63
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 61.98x1.98x65.63 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 2.18 mm + 0.13 / - 0.00   Clearance in Bore (C): 49.78 mm    Clearance in Groove (C1): 53.59 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.49    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 582
Part Number: CCI-06198-CZY (Each)
48 Available Now | Further orders can be expected around Fri, Jan 23, 2026
$3.77 AUD
$10.27 AUD $3.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

48 Available Now. Backorder if more than 48.
