Collection: Retaining Rings - External - Spiral Rings - Medium Duty

Retaining Rings (With Images)

External

Spiral Rings

Medium-Heavy
Medium-Heavy Duty

66 Products in this selection

This is a combined category of products from Medium Duty Spiral Rings External Retaining Rings. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S)	Groove Width (W)
12.70 mm	0.64 mm +/-0.06	12.04 mm	11.94 mm +0.00/-0.33	1.14 mm +/-0.10	0.80 mm +/-0.05
Material: 302 Stainless Steel Approx. Loose Clip OD: 14.22 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-050-S02 (8 Pcs) Spiral - 12.7 mm x 0.64 mm x 12.04 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Per 8 View the product page first if you are unsure.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
12.70 mm	0.64 mm +/-0.06	12.04 mm	11.94 mm +0.00/-0.33
Material: 302 Stainless Steel Radial Wall (S): 1.14 mm +/-0.10 Groove Width (W): 0.80 mm +/-0.05 Approx. Loose Clip OD: 14.22 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-050-S02 (8 Pcs) Spiral - 12.7 mm x 0.64 mm x 12.04 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Per 8 View the product page first if you are unsure.
RS-050-S02 (8 Pcs) --- Spiral - 12.7 mm x 0.64 mm x 12.04 mm 302 Stainless Steel RS-050-S02 (8 Pcs) --- Spiral - 12.7 mm x 0.64 mm x 12.04 mm 302 Stainless Steel Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Out of stock! Backorder Now
12.70 mm	0.64 mm +/-0.06	12.04 mm	11.94 mm +0.00/-0.33	1.14 mm +/-0.10	0.80 mm +/-0.05
Material: Spring Steel Approx. Loose Clip OD: 14.22 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

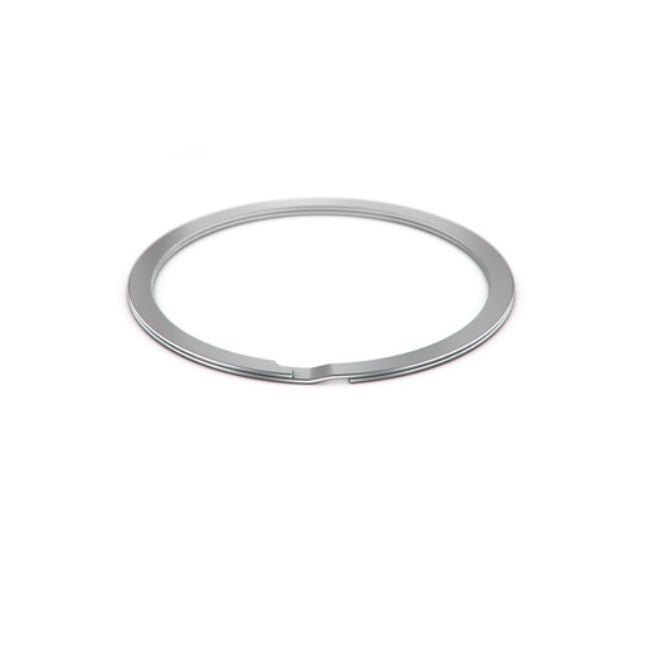

Part Number: RS-050 (5 Pcs) Spiral - 12.7 mm x 0.64 mm x 12.04 mm / Retaining Rings 25 units (125 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Per 5 View the product page first if you are unsure.
12.70 mm	0.64 mm +/-0.06	12.04 mm	11.94 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.14 mm +/-0.10 Groove Width (W): 0.80 mm +/-0.05 Approx. Loose Clip OD: 14.22 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-050 (5 Pcs) Spiral - 12.7 mm x 0.64 mm x 12.04 mm / Retaining Rings 25 units (125 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-050 (5 Pcs) --- Spiral - 12.7 mm x 0.64 mm x 12.04 mm Spring Steel RS-050 (5 Pcs) --- Spiral - 12.7 mm x 0.64 mm x 12.04 mm Spring Steel Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per 25 Available Now
13.49 mm	0.64 mm +/-0.06	12.83 mm	12.68 mm +0.00/-0.33	1.14 mm +/-0.10	0.80 mm +/-0.05
Material: Spring Steel Approx. Loose Clip OD: 14.96 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-053 (19 Pcs) Spiral - 13.49 mm x 0.64 mm x 12.83 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 19 View the product page first if you are unsure.
13.49 mm	0.64 mm +/-0.06	12.83 mm	12.68 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.14 mm +/-0.10 Groove Width (W): 0.80 mm +/-0.05 Approx. Loose Clip OD: 14.96 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-053 (19 Pcs) Spiral - 13.49 mm x 0.64 mm x 12.83 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 19 View the product page first if you are unsure.
RS-053 (19 Pcs) --- Spiral - 13.49 mm x 0.64 mm x 12.83 mm Spring Steel RS-053 (19 Pcs) --- Spiral - 13.49 mm x 0.64 mm x 12.83 mm Spring Steel Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
15.88 mm	0.64 mm +/-0.06	15.10 mm	14.93 mm +0.00/-0.33	1.40 mm +/-0.10	0.80 mm +/-0.06
Material: Spring Steel Approx. Loose Clip OD: 17.73 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-062 (2 Pcs) Spiral - 15.88 mm x 0.64 mm x 15.1 mm / Retaining Rings 90 units (180 pcs) Available \| Backorders for more can be expected around Thu, Jan 30, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Per 2 View the product page first if you are unsure.
15.88 mm	0.64 mm +/-0.06	15.10 mm	14.93 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.40 mm +/-0.10 Groove Width (W): 0.80 mm +/-0.06 Approx. Loose Clip OD: 17.73 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-062 (2 Pcs) Spiral - 15.88 mm x 0.64 mm x 15.1 mm / Retaining Rings 90 units (180 pcs) Available \| \| Backorders for more can be expected around Thu, Jan 30, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-062 (2 Pcs) --- Spiral - 15.88 mm x 0.64 mm x 15.1 mm Spring Steel RS-062 (2 Pcs) --- Spiral - 15.88 mm x 0.64 mm x 15.1 mm Spring Steel Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per 90 Available Now
15.88 mm	0.64 mm +/-0.06	15.10 mm	14.93 mm +0.00/-0.33	1.40 mm +/-0.10	0.80 mm +/-0.06
Material: 302 Stainless Steel Approx. Loose Clip OD: 17.73 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-062-S02 (5 Pcs) Spiral - 15.88 mm x 0.64 mm x 15.1 mm / Retaining Rings 19 units (95 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Per 5 View the product page first if you are unsure.
15.88 mm	0.64 mm +/-0.06	15.10 mm	14.93 mm +0.00/-0.33
Material: 302 Stainless Steel Radial Wall (S): 1.40 mm +/-0.10 Groove Width (W): 0.80 mm +/-0.06 Approx. Loose Clip OD: 17.73 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-062-S02 (5 Pcs) Spiral - 15.88 mm x 0.64 mm x 15.1 mm / Retaining Rings 19 units (95 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-062-S02 (5 Pcs) --- Spiral - 15.88 mm x 0.64 mm x 15.1 mm 302 Stainless Steel RS-062-S02 (5 Pcs) --- Spiral - 15.88 mm x 0.64 mm x 15.1 mm 302 Stainless Steel Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per 19 Available Now
17.27 mm	0.64 mm +/-0.06	16.67 mm	16.23 mm +0.00/-0.33	1.40 mm +/-0.10	0.80 mm +/-0.07
Material: Spring Steel Approx. Loose Clip OD: 19.03 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-068 (5 Pcs) Spiral - 17.27 mm x 0.64 mm x 16.67 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $32.68 AUD Regular price Sale price $32.68 AUD Unit price per Per 5 View the product page first if you are unsure.
17.27 mm	0.64 mm +/-0.06	16.67 mm	16.23 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.40 mm +/-0.10 Groove Width (W): 0.80 mm +/-0.07 Approx. Loose Clip OD: 19.03 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-068 (5 Pcs) Spiral - 17.27 mm x 0.64 mm x 16.67 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $32.68 AUD Regular price Sale price $32.68 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-068 (5 Pcs) --- Spiral - 17.27 mm x 0.64 mm x 16.67 mm Spring Steel RS-068 (5 Pcs) --- Spiral - 17.27 mm x 0.64 mm x 16.67 mm Spring Steel Regular price $32.68 AUD Regular price Sale price $32.68 AUD Unit price per Out of stock! Backorder Now
19.05 mm	0.79 mm +/-0.05	18.27 mm	17.91 mm +0.00/-0.33	1.65 mm +/-0.10	0.95 mm +/-0.07
Material: 302 Stainless Steel Approx. Loose Clip OD: 21.21 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-075-S02 (5 Pcs) Spiral - 19.05 mm x 0.79 mm x 18.27 mm / Retaining Rings 99 units (495 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $1.41 AUD Regular price Sale price $1.41 AUD Unit price per Per 5 View the product page first if you are unsure.
19.05 mm	0.79 mm +/-0.05	18.27 mm	17.91 mm +0.00/-0.33
Material: 302 Stainless Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 0.95 mm +/-0.07 Approx. Loose Clip OD: 21.21 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-075-S02 (5 Pcs) Spiral - 19.05 mm x 0.79 mm x 18.27 mm / Retaining Rings 99 units (495 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $1.41 AUD Regular price Sale price $1.41 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-075-S02 (5 Pcs) --- Spiral - 19.05 mm x 0.79 mm x 18.27 mm 302 Stainless Steel RS-075-S02 (5 Pcs) --- Spiral - 19.05 mm x 0.79 mm x 18.27 mm 302 Stainless Steel Regular price $1.41 AUD Regular price Sale price $1.41 AUD Unit price per 99 Available Now
19.05 mm	0.79 mm +/-0.05	18.27 mm	17.91 mm +0.00/-0.33	1.65 mm +/-0.10	0.95 mm +/-0.07
Material: Spring Steel Approx. Loose Clip OD: 21.21 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-075 (10 Pcs) Spiral - 19.05 mm x 0.79 mm x 18.27 mm / Retaining Rings 44 units (440 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Per 10 View the product page first if you are unsure.
19.05 mm	0.79 mm +/-0.05	18.27 mm	17.91 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 0.95 mm +/-0.07 Approx. Loose Clip OD: 21.21 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-075 (10 Pcs) Spiral - 19.05 mm x 0.79 mm x 18.27 mm / Retaining Rings 44 units (440 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Per 10 View the product page first if you are unsure.
RS-075 (10 Pcs) --- Spiral - 19.05 mm x 0.79 mm x 18.27 mm Spring Steel RS-075 (10 Pcs) --- Spiral - 19.05 mm x 0.79 mm x 18.27 mm Spring Steel Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per 44 Available Now
20.64 mm	0.79 mm +/-0.05	19.84 mm	19.40 mm +0.00/-0.33	1.65 mm +/-0.10	0.95 mm +/-0.07
Material: Spring Steel Approx. Loose Clip OD: 22.7 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-081 (5 Pcs) Spiral - 20.64 mm x 0.79 mm x 19.84 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $26.41 AUD Regular price Sale price $26.41 AUD Unit price per Per 5 View the product page first if you are unsure.
20.64 mm	0.79 mm +/-0.05	19.84 mm	19.40 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 0.95 mm +/-0.07 Approx. Loose Clip OD: 22.7 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-081 (5 Pcs) Spiral - 20.64 mm x 0.79 mm x 19.84 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $26.41 AUD Regular price Sale price $26.41 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-081 (5 Pcs) --- Spiral - 20.64 mm x 0.79 mm x 19.84 mm Spring Steel RS-081 (5 Pcs) --- Spiral - 20.64 mm x 0.79 mm x 19.84 mm Spring Steel Regular price $26.41 AUD Regular price Sale price $26.41 AUD Unit price per Out of stock! Backorder Now
22.23 mm	0.79 mm +/-0.05	21.29 mm	20.90 mm +0.00/-0.33	1.65 mm +/-0.10	0.95 mm +/-0.07
Material: Spring Steel Approx. Loose Clip OD: 24.2 +/-0.04 Groove Depth (d): 0.48 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-087 (50 Pcs) Spiral - 22.23 mm x 0.79 mm x 21.29 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Mar 28, 2025 Regular price $239.77 AUD Regular price Sale price $239.77 AUD Unit price per Per 50 View the product page first if you are unsure.
22.23 mm	0.79 mm +/-0.05	21.29 mm	20.90 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 0.95 mm +/-0.07 Approx. Loose Clip OD: 24.2 +/-0.04 Groove Depth (d): 0.48 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-087 (50 Pcs) Spiral - 22.23 mm x 0.79 mm x 21.29 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Mar 28, 2025 Regular price $239.77 AUD Regular price Sale price $239.77 AUD Unit price per Per 50 View the product page first if you are unsure.
RS-087 (50 Pcs) --- Spiral - 22.23 mm x 0.79 mm x 21.29 mm Spring Steel RS-087 (50 Pcs) --- Spiral - 22.23 mm x 0.79 mm x 21.29 mm Spring Steel Regular price $239.77 AUD Regular price Sale price $239.77 AUD Unit price per Out of stock! Backorder Now
23.01 mm	0.79 mm +/-0.05	22.08 mm	21.63 mm +0.00/-0.33	1.65 mm +/-0.10	0.95 mm +/-0.07
Material: Spring Steel Approx. Loose Clip OD: 24.93 +/-0.04 Groove Depth (d): 0.48 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-090 (7 Pcs) Spiral - 23.01 mm x 0.79 mm x 22.08 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Per 7 View the product page first if you are unsure.
23.01 mm	0.79 mm +/-0.05	22.08 mm	21.63 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 0.95 mm +/-0.07 Approx. Loose Clip OD: 24.93 +/-0.04 Groove Depth (d): 0.48 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-090 (7 Pcs) Spiral - 23.01 mm x 0.79 mm x 22.08 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Per 7 View the product page first if you are unsure.
RS-090 (7 Pcs) --- Spiral - 23.01 mm x 0.79 mm x 22.08 mm Spring Steel RS-090 (7 Pcs) --- Spiral - 23.01 mm x 0.79 mm x 22.08 mm Spring Steel Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Out of stock! Backorder Now
25.40 mm	0.94 mm +/-0.05	24.31 mm	23.88 mm +0.00/-0.33	1.91 mm +/-0.11	1.11 mm +/-0.07
Material: 302 Stainless Steel Approx. Loose Clip OD: 27.7 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-100-S02 (250 Pcs) Spiral - 25.4 mm x 0.94 mm x 24.31 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Thu, Jan 30, 2025 Regular price $1,083.32 AUD Regular price Sale price $1,083.32 AUD Unit price per Per 250 View the product page first if you are unsure.
25.40 mm	0.94 mm +/-0.05	24.31 mm	23.88 mm +0.00/-0.33
Material: 302 Stainless Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.11 mm +/-0.07 Approx. Loose Clip OD: 27.7 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-100-S02 (250 Pcs) Spiral - 25.4 mm x 0.94 mm x 24.31 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Thu, Jan 30, 2025 Regular price $1,083.32 AUD Regular price Sale price $1,083.32 AUD Unit price per Per 250 View the product page first if you are unsure.
RS-100-S02 (250 Pcs) --- Spiral - 25.4 mm x 0.94 mm x 24.31 mm 302 Stainless Steel RS-100-S02 (250 Pcs) --- Spiral - 25.4 mm x 0.94 mm x 24.31 mm 302 Stainless Steel Regular price $1,083.32 AUD Regular price Sale price $1,083.32 AUD Unit price per Out of stock! Backorder Now
25.40 mm	0.94 mm +/-0.05	24.31 mm	23.88 mm +0.00/-0.33	1.91 mm +/-0.11	1.11 mm +/-0.07
Material: Spring Steel Approx. Loose Clip OD: 27.7 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-100 (50 Pcs) Spiral - 25.4 mm x 0.94 mm x 24.31 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $141.41 AUD Regular price Sale price $141.41 AUD Unit price per Per 50 View the product page first if you are unsure.
25.40 mm	0.94 mm +/-0.05	24.31 mm	23.88 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.11 mm +/-0.07 Approx. Loose Clip OD: 27.7 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-100 (50 Pcs) Spiral - 25.4 mm x 0.94 mm x 24.31 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $141.41 AUD Regular price Sale price $141.41 AUD Unit price per Per 50 View the product page first if you are unsure.
RS-100 (50 Pcs) --- Spiral - 25.4 mm x 0.94 mm x 24.31 mm Spring Steel RS-100 (50 Pcs) --- Spiral - 25.4 mm x 0.94 mm x 24.31 mm Spring Steel Regular price $141.41 AUD Regular price Sale price $141.41 AUD Unit price per Out of stock! Backorder Now
26.97 mm	0.94 mm +/-0.05	25.91 mm	25.35 mm +0.00/-0.38	1.91 mm +/-0.11	1.11 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 29.17 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-106 (5 Pcs) Spiral - 26.97 mm x 0.94 mm x 25.91 mm / Retaining Rings 92 units (460 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per Per 5 View the product page first if you are unsure.
26.97 mm	0.94 mm +/-0.05	25.91 mm	25.35 mm +0.00/-0.38
Material: Spring Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.11 mm +/-0.10 Approx. Loose Clip OD: 29.17 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-106 (5 Pcs) Spiral - 26.97 mm x 0.94 mm x 25.91 mm / Retaining Rings 92 units (460 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-106 (5 Pcs) --- Spiral - 26.97 mm x 0.94 mm x 25.91 mm Spring Steel RS-106 (5 Pcs) --- Spiral - 26.97 mm x 0.94 mm x 25.91 mm Spring Steel Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per 92 Available Now
28.58 mm	0.94 mm +/-0.05	27.51 mm	26.87 mm +0.00/-0.38	1.91 mm +/-0.11	1.11 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 30.69 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-112 (5 Pcs) Spiral - 28.58 mm x 0.94 mm x 27.51 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Per 5 View the product page first if you are unsure.
28.58 mm	0.94 mm +/-0.05	27.51 mm	26.87 mm +0.00/-0.38
Material: Spring Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.11 mm +/-0.10 Approx. Loose Clip OD: 30.69 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-112 (5 Pcs) Spiral - 28.58 mm x 0.94 mm x 27.51 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-112 (5 Pcs) --- Spiral - 28.58 mm x 0.94 mm x 27.51 mm Spring Steel RS-112 (5 Pcs) --- Spiral - 28.58 mm x 0.94 mm x 27.51 mm Spring Steel Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Out of stock! Backorder Now
28.58 mm	0.94 mm +/-0.05	27.51 mm	26.87 mm +0.00/-0.38	1.91 mm +/-0.11	1.11 mm +/-0.10
Material: 302 Stainless Steel Approx. Loose Clip OD: 30.69 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-112-S02 (8 Pcs) Spiral - 28.58 mm x 0.94 mm x 27.51 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Per 8 View the product page first if you are unsure.
28.58 mm	0.94 mm +/-0.05	27.51 mm	26.87 mm +0.00/-0.38
Material: 302 Stainless Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.11 mm +/-0.10 Approx. Loose Clip OD: 30.69 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-112-S02 (8 Pcs) Spiral - 28.58 mm x 0.94 mm x 27.51 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Per 8 View the product page first if you are unsure.
RS-112-S02 (8 Pcs) --- Spiral - 28.58 mm x 0.94 mm x 27.51 mm 302 Stainless Steel RS-112-S02 (8 Pcs) --- Spiral - 28.58 mm x 0.94 mm x 27.51 mm 302 Stainless Steel Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Out of stock! Backorder Now
29.36 mm	0.94 mm +/-0.05	28.30 mm	27.60 mm +0.00/-0.38	1.91 mm +/-0.11	1.11 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 31.42 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-115 (100 Pcs) Spiral - 29.36 mm x 0.94 mm x 28.3 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100 View the product page first if you are unsure.
29.36 mm	0.94 mm +/-0.05	28.30 mm	27.60 mm +0.00/-0.38
Material: Spring Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.11 mm +/-0.10 Approx. Loose Clip OD: 31.42 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-115 (100 Pcs) Spiral - 29.36 mm x 0.94 mm x 28.3 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100 View the product page first if you are unsure.
RS-115 (100 Pcs) --- Spiral - 29.36 mm x 0.94 mm x 28.3 mm Spring Steel RS-115 (100 Pcs) --- Spiral - 29.36 mm x 0.94 mm x 28.3 mm Spring Steel Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Out of stock! Backorder Now
30.18 mm	1.09 mm +/-0.05	28.96 mm	28.37 mm +0.00/-0.38	2.16 mm +/-0.10	1.27 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 32.69 +/-0.05 Groove Depth (d): 0.61 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-118 (61 Pcs) Spiral - 30.18 mm x 1.09 mm x 28.96 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Thu, Jan 30, 2025 Regular price $179.50 AUD Regular price Sale price $179.50 AUD Unit price per Per 61 View the product page first if you are unsure.
30.18 mm	1.09 mm +/-0.05	28.96 mm	28.37 mm +0.00/-0.38
Material: Spring Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.27 mm +/-0.10 Approx. Loose Clip OD: 32.69 +/-0.05 Groove Depth (d): 0.61 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-118 (61 Pcs) Spiral - 30.18 mm x 1.09 mm x 28.96 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Thu, Jan 30, 2025 Regular price $179.50 AUD Regular price Sale price $179.50 AUD Unit price per Per 61 View the product page first if you are unsure.
RS-118 (61 Pcs) --- Spiral - 30.18 mm x 1.09 mm x 28.96 mm Spring Steel RS-118 (61 Pcs) --- Spiral - 30.18 mm x 1.09 mm x 28.96 mm Spring Steel Regular price $179.50 AUD Regular price Sale price $179.50 AUD Unit price per Out of stock! Backorder Now
31.75 mm	1.09 mm +/-0.05	30.53 mm	29.85 mm +0.00/-0.38	2.16 mm +/-0.10	1.27 mm +/-0.10
Material: 302 Stainless Steel Approx. Loose Clip OD: 34.17 +/-0.05 Groove Depth (d): 0.61 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-125-S02 Spiral - 31.75 mm x 1.09 mm x 30.53 mm / Retaining Rings 20 Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each View the product page first if you are unsure.
31.75 mm	1.09 mm +/-0.05	30.53 mm	29.85 mm +0.00/-0.38
Material: 302 Stainless Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.27 mm +/-0.10 Approx. Loose Clip OD: 34.17 +/-0.05 Groove Depth (d): 0.61 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-125-S02 Spiral - 31.75 mm x 1.09 mm x 30.53 mm / Retaining Rings 20 Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each View the product page first if you are unsure.
RS-125-S02 --- Spiral - 31.75 mm x 1.09 mm x 30.53 mm 302 Stainless Steel RS-125-S02 --- Spiral - 31.75 mm x 1.09 mm x 30.53 mm 302 Stainless Steel Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per 20 Available Now
31.75 mm	1.09 mm +/-0.05	30.53 mm	29.85 mm +0.00/-0.38	2.16 mm +/-0.10	1.27 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 34.17 +/-0.05 Groove Depth (d): 0.61 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-125 (5 Pcs) Spiral - 31.75 mm x 1.09 mm x 30.53 mm / Retaining Rings 56 units (280 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Per 5 View the product page first if you are unsure.
31.75 mm	1.09 mm +/-0.05	30.53 mm	29.85 mm +0.00/-0.38
Material: Spring Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.27 mm +/-0.10 Approx. Loose Clip OD: 34.17 +/-0.05 Groove Depth (d): 0.61 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-125 (5 Pcs) Spiral - 31.75 mm x 1.09 mm x 30.53 mm / Retaining Rings 56 units (280 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-125 (5 Pcs) --- Spiral - 31.75 mm x 1.09 mm x 30.53 mm Spring Steel RS-125 (5 Pcs) --- Spiral - 31.75 mm x 1.09 mm x 30.53 mm Spring Steel Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per 56 Available Now
33.32 mm	1.09 mm +/-0.05	32.11 mm	31.32 mm +0.00/-0.38	2.41 mm +/-0.10	1.27 mm +/-0.11
Material: Spring Steel Approx. Loose Clip OD: 36.14 +/-0.05 Groove Depth (d): 0.61 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-131 (34 Pcs) Spiral - 33.32 mm x 1.09 mm x 32.11 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Per 34 View the product page first if you are unsure.
33.32 mm	1.09 mm +/-0.05	32.11 mm	31.32 mm +0.00/-0.38
Material: Spring Steel Radial Wall (S): 2.41 mm +/-0.10 Groove Width (W): 1.27 mm +/-0.11 Approx. Loose Clip OD: 36.14 +/-0.05 Groove Depth (d): 0.61 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-131 (34 Pcs) Spiral - 33.32 mm x 1.09 mm x 32.11 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Per 34 View the product page first if you are unsure.
RS-131 (34 Pcs) --- Spiral - 33.32 mm x 1.09 mm x 32.11 mm Spring Steel RS-131 (34 Pcs) --- Spiral - 33.32 mm x 1.09 mm x 32.11 mm Spring Steel Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Out of stock! Backorder Now
34.93 mm	1.09 mm +/-0.05	33.61 mm	32.83 mm +0.00/-0.38	2.41 mm +/-0.10	1.27 mm +/-0.11
Material: Spring Steel Approx. Loose Clip OD: 37.65 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-137 Spiral - 34.93 mm x 1.09 mm x 33.61 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Each View the product page first if you are unsure.
34.93 mm	1.09 mm +/-0.05	33.61 mm	32.83 mm +0.00/-0.38
Material: Spring Steel Radial Wall (S): 2.41 mm +/-0.10 Groove Width (W): 1.27 mm +/-0.11 Approx. Loose Clip OD: 37.65 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-137 Spiral - 34.93 mm x 1.09 mm x 33.61 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Each View the product page first if you are unsure.
RS-137 --- Spiral - 34.93 mm x 1.09 mm x 33.61 mm Spring Steel RS-137 --- Spiral - 34.93 mm x 1.09 mm x 33.61 mm Spring Steel Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Out of stock! Backorder Now
36.50 mm	1.09 mm +/-0.05	35.18 mm	34.31 mm +0.00/-0.38	2.41 mm +/-0.10	1.27 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 39.13 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-143 (5 Pcs) Spiral - 36.5 mm x 1.09 mm x 35.18 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 5 View the product page first if you are unsure.
36.50 mm	1.09 mm +/-0.05	35.18 mm	34.31 mm +0.00/-0.38
Material: Spring Steel Radial Wall (S): 2.41 mm +/-0.10 Groove Width (W): 1.27 mm +/-0.10 Approx. Loose Clip OD: 39.13 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-143 (5 Pcs) Spiral - 36.5 mm x 1.09 mm x 35.18 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-143 (5 Pcs) --- Spiral - 36.5 mm x 1.09 mm x 35.18 mm Spring Steel RS-143 (5 Pcs) --- Spiral - 36.5 mm x 1.09 mm x 35.18 mm Spring Steel Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Out of stock! Backorder Now
38.10 mm	1.09 mm +/-0.05	36.78 mm	35.81 mm +0.00/-0.38	2.41 mm +/-0.10	1.27 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 40.63 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-150 (5 Pcs) Spiral - 38.1 mm x 1.09 mm x 36.78 mm / Retaining Rings 25 units (125 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Per 5 View the product page first if you are unsure.
38.10 mm	1.09 mm +/-0.05	36.78 mm	35.81 mm +0.00/-0.38
Material: Spring Steel Radial Wall (S): 2.41 mm +/-0.10 Groove Width (W): 1.27 mm +/-0.10 Approx. Loose Clip OD: 40.63 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-150 (5 Pcs) Spiral - 38.1 mm x 1.09 mm x 36.78 mm / Retaining Rings 25 units (125 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-150 (5 Pcs) --- Spiral - 38.1 mm x 1.09 mm x 36.78 mm Spring Steel RS-150 (5 Pcs) --- Spiral - 38.1 mm x 1.09 mm x 36.78 mm Spring Steel Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per 25 Available Now
