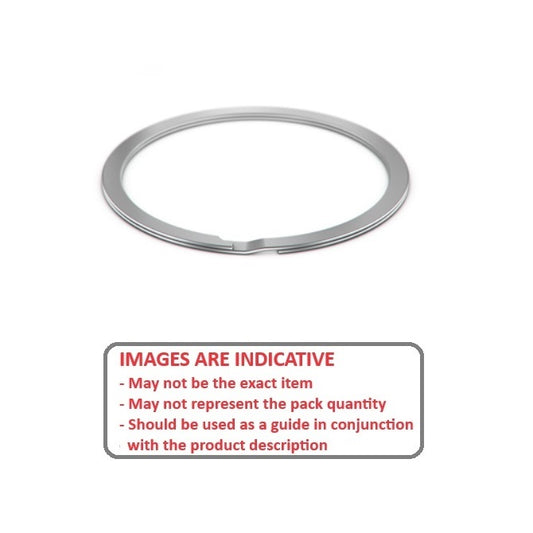

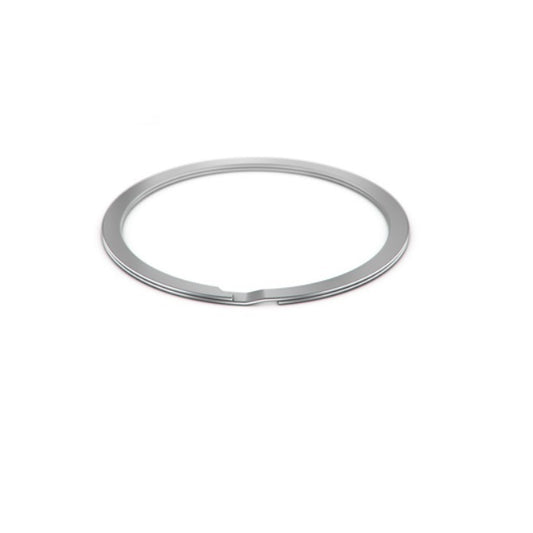

Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel

13 Products in this selection
  • AE / WS / AS3218 / RS / MIL-R-27426A1 - Stainless Steel.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1
Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Groove Width (W) Indicative
12.70
mm 		0.64
mm
+/-0.06 		12.04
mm 		11.94
mm
+0.00/-0.33 		1.14
mm
+/-0.10 		0.80
mm
+/-0.05 		1101856 | RS-050-S02 (8 Pcs) --- Spiral - 12.7 mm x 0.64 mm x 12.04 mm
Material: 302 Stainless Steel    Approx. Loose Clip OD: 14.22 +/-0.04   Groove Depth (d): 0.33
Part Number: RS-050-S02 (8 Pcs) Spiral - 12.7 mm x 0.64 mm x 12.04 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$12.50 AUD
$12.50 AUD
Per 8
View the product page first if you are unsure.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
12.70
mm 		0.64
mm
+/-0.06 		12.04
mm 		11.94
mm
+0.00/-0.33 		1101856 | RS-050-S02 (8 Pcs) --- Spiral - 12.7 mm x 0.64 mm x 12.04 mm
Material: 302 Stainless Steel    Radial Wall (S): 1.14 mm +/-0.10    Groove Width (W): 0.80 mm +/-0.05   Approx. Loose Clip OD: 14.22 +/-0.04   Groove Depth (d): 0.33
Part Number: RS-050-S02 (8 Pcs) Spiral - 12.7 mm x 0.64 mm x 12.04 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$12.50 AUD
$12.50 AUD
Per 8
View the product page first if you are unsure.
15.88
mm 		0.64
mm
+/-0.06 		15.10
mm 		14.93
mm
+0.00/-0.33 		1.40
mm
+/-0.10 		0.80
mm
+/-0.06 		1113063 | RS-062-S02 (5 Pcs) --- Spiral - 15.88 mm x 0.64 mm x 15.1 mm
Material: 302 Stainless Steel    Approx. Loose Clip OD: 17.73 +/-0.04   Groove Depth (d): 0.41
Part Number: RS-062-S02 (5 Pcs) Spiral - 15.88 mm x 0.64 mm x 15.1 mm / Retaining Rings
19 units (95 pcs) Available
| Backorders for more can be expected around Sat, Jan 18, 2025
$21.50 AUD
$21.50 AUD
Per 5
View the product page first if you are unsure.
15.88
mm 		0.64
mm
+/-0.06 		15.10
mm 		14.93
mm
+0.00/-0.33 		1113063 | RS-062-S02 (5 Pcs) --- Spiral - 15.88 mm x 0.64 mm x 15.1 mm
Material: 302 Stainless Steel    Radial Wall (S): 1.40 mm +/-0.10    Groove Width (W): 0.80 mm +/-0.06   Approx. Loose Clip OD: 17.73 +/-0.04   Groove Depth (d): 0.41
Part Number: RS-062-S02 (5 Pcs) Spiral - 15.88 mm x 0.64 mm x 15.1 mm / Retaining Rings
19 units (95 pcs) Available
| | Backorders for more can be expected around Sat, Jan 18, 2025
$21.50 AUD
$21.50 AUD
Per 5
View the product page first if you are unsure.
19.05
mm 		0.79
mm
+/-0.05 		18.27
mm 		17.91
mm
+0.00/-0.33 		1.65
mm
+/-0.10 		0.95
mm
+/-0.07 		1120502 | RS-075-S02 (5 Pcs) --- Spiral - 19.05 mm x 0.79 mm x 18.27 mm
Material: 302 Stainless Steel    Approx. Loose Clip OD: 21.21 +/-0.04   Groove Depth (d): 0.41
Part Number: RS-075-S02 (5 Pcs) Spiral - 19.05 mm x 0.79 mm x 18.27 mm / Retaining Rings
99 units (495 pcs) Available
| Backorders for more can be expected around Sat, Jan 18, 2025
$1.41 AUD
$1.41 AUD
Per 5
View the product page first if you are unsure.
19.05
mm 		0.79
mm
+/-0.05 		18.27
mm 		17.91
mm
+0.00/-0.33 		1120502 | RS-075-S02 (5 Pcs) --- Spiral - 19.05 mm x 0.79 mm x 18.27 mm
Material: 302 Stainless Steel    Radial Wall (S): 1.65 mm +/-0.10    Groove Width (W): 0.95 mm +/-0.07   Approx. Loose Clip OD: 21.21 +/-0.04   Groove Depth (d): 0.41
Part Number: RS-075-S02 (5 Pcs) Spiral - 19.05 mm x 0.79 mm x 18.27 mm / Retaining Rings
99 units (495 pcs) Available
| | Backorders for more can be expected around Sat, Jan 18, 2025
$1.41 AUD
$1.41 AUD
Per 5
View the product page first if you are unsure.
25.40
mm 		0.94
mm
+/-0.05 		24.31
mm 		23.88
mm
+0.00/-0.33 		1.91
mm
+/-0.11 		1.11
mm
+/-0.07 		1134949 | RS-100-S02 (250 Pcs) --- Spiral - 25.4 mm x 0.94 mm x 24.31 mm
Material: 302 Stainless Steel    Approx. Loose Clip OD: 27.7 +/-0.03   Groove Depth (d): 0.53
Part Number: RS-100-S02 (250 Pcs) Spiral - 25.4 mm x 0.94 mm x 24.31 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Thu, Jan 30, 2025
$1,083.32 AUD
$1,083.32 AUD
Per 250
View the product page first if you are unsure.
25.40
mm 		0.94
mm
+/-0.05 		24.31
mm 		23.88
mm
+0.00/-0.33 		1134949 | RS-100-S02 (250 Pcs) --- Spiral - 25.4 mm x 0.94 mm x 24.31 mm
Material: 302 Stainless Steel    Radial Wall (S): 1.91 mm +/-0.11    Groove Width (W): 1.11 mm +/-0.07   Approx. Loose Clip OD: 27.7 +/-0.03   Groove Depth (d): 0.53
Part Number: RS-100-S02 (250 Pcs) Spiral - 25.4 mm x 0.94 mm x 24.31 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Thu, Jan 30, 2025
$1,083.32 AUD
$1,083.32 AUD
Per 250
View the product page first if you are unsure.
28.58
mm 		0.94
mm
+/-0.05 		27.51
mm 		26.87
mm
+0.00/-0.38 		1.91
mm
+/-0.11 		1.11
mm
+/-0.10 		1139951 | RS-112-S02 (8 Pcs) --- Spiral - 28.58 mm x 0.94 mm x 27.51 mm
Material: 302 Stainless Steel    Approx. Loose Clip OD: 30.69 +/-0.03   Groove Depth (d): 0.53
Part Number: RS-112-S02 (8 Pcs) Spiral - 28.58 mm x 0.94 mm x 27.51 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$11.86 AUD
$11.86 AUD
Per 8
View the product page first if you are unsure.
28.58
mm 		0.94
mm
+/-0.05 		27.51
mm 		26.87
mm
+0.00/-0.38 		1139951 | RS-112-S02 (8 Pcs) --- Spiral - 28.58 mm x 0.94 mm x 27.51 mm
Material: 302 Stainless Steel    Radial Wall (S): 1.91 mm +/-0.11    Groove Width (W): 1.11 mm +/-0.10   Approx. Loose Clip OD: 30.69 +/-0.03   Groove Depth (d): 0.53
Part Number: RS-112-S02 (8 Pcs) Spiral - 28.58 mm x 0.94 mm x 27.51 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$11.86 AUD
$11.86 AUD
Per 8
View the product page first if you are unsure.
31.75
mm 		1.09
mm
+/-0.05 		30.53
mm 		29.85
mm
+0.00/-0.38 		2.16
mm
+/-0.10 		1.27
mm
+/-0.10 		1143841 | RS-125-S02 --- Spiral - 31.75 mm x 1.09 mm x 30.53 mm
Material: 302 Stainless Steel    Approx. Loose Clip OD: 34.17 +/-0.05   Groove Depth (d): 0.61
Part Number: RS-125-S02 Spiral - 31.75 mm x 1.09 mm x 30.53 mm / Retaining Rings
20 Available
| Backorders for more can be expected around Sat, Jan 18, 2025
$5.32 AUD
$5.32 AUD
Each
View the product page first if you are unsure.
31.75
mm 		1.09
mm
+/-0.05 		30.53
mm 		29.85
mm
+0.00/-0.38 		1143841 | RS-125-S02 --- Spiral - 31.75 mm x 1.09 mm x 30.53 mm
Material: 302 Stainless Steel    Radial Wall (S): 2.16 mm +/-0.10    Groove Width (W): 1.27 mm +/-0.10   Approx. Loose Clip OD: 34.17 +/-0.05   Groove Depth (d): 0.61
Part Number: RS-125-S02 Spiral - 31.75 mm x 1.09 mm x 30.53 mm / Retaining Rings
20 Available
| | Backorders for more can be expected around Sat, Jan 18, 2025
$5.32 AUD
$5.32 AUD
Each
View the product page first if you are unsure.
41.28
mm 		1.25
mm
+/-0.08 		39.78
mm 		38.80
mm
+0.00/-0.51 		2.74
mm
+/-0.10 		1.47
mm
+/-0.13 		1155271 | RS-162-S02 (2 Pcs) --- Spiral - 41.28 mm x 1.25 mm x 39.78 mm
Material: 302 Stainless Steel    Approx. Loose Clip OD: 44.28 +/-0.05   Groove Depth (d): 0.76
Part Number: RS-162-S02 (2 Pcs) Spiral - 41.28 mm x 1.25 mm x 39.78 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$13.32 AUD
$13.32 AUD
Per 2
View the product page first if you are unsure.
41.28
mm 		1.25
mm
+/-0.08 		39.78
mm 		38.80
mm
+0.00/-0.51 		1155271 | RS-162-S02 (2 Pcs) --- Spiral - 41.28 mm x 1.25 mm x 39.78 mm
Material: 302 Stainless Steel    Radial Wall (S): 2.74 mm +/-0.10    Groove Width (W): 1.47 mm +/-0.13   Approx. Loose Clip OD: 44.28 +/-0.05   Groove Depth (d): 0.76
Part Number: RS-162-S02 (2 Pcs) Spiral - 41.28 mm x 1.25 mm x 39.78 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$13.32 AUD
$13.32 AUD
Per 2
View the product page first if you are unsure.
42.85
mm 		1.25
mm
+/-0.08 		41.35
mm 		40.28
mm
+0.00/-0.51 		3.00
mm
+/-0.10 		1.47
mm
+/-0.13 		1156206 | RS-168-S02 (8 Pcs) --- Spiral - 42.85 mm x 1.25 mm x 41.35 mm
Material: 302 Stainless Steel    Approx. Loose Clip OD: 46.28 +/-0.05   Groove Depth (d): 0.76
Part Number: RS-168-S02 (8 Pcs) Spiral - 42.85 mm x 1.25 mm x 41.35 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$9.41 AUD
$9.41 AUD
Per 8
View the product page first if you are unsure.
42.85
mm 		1.25
mm
+/-0.08 		41.35
mm 		40.28
mm
+0.00/-0.51 		1156206 | RS-168-S02 (8 Pcs) --- Spiral - 42.85 mm x 1.25 mm x 41.35 mm
Material: 302 Stainless Steel    Radial Wall (S): 3.00 mm +/-0.10    Groove Width (W): 1.47 mm +/-0.13   Approx. Loose Clip OD: 46.28 +/-0.05   Groove Depth (d): 0.76
Part Number: RS-168-S02 (8 Pcs) Spiral - 42.85 mm x 1.25 mm x 41.35 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$9.41 AUD
$9.41 AUD
Per 8
View the product page first if you are unsure.
52.37
mm 		1.25
mm
+/-0.08 		50.60
mm 		49.23
mm
+0.00/-0.51 		3.25
mm
+/-0.10 		1.47
mm
+/-0.16 		1164506 | RS-206-S02 --- Spiral - 52.37 mm x 1.25 mm x 50.6 mm
Material: 302 Stainless Steel    Approx. Loose Clip OD: 55.73 +/-0.05   Groove Depth (d): 0.89
Part Number: RS-206-S02 Spiral - 52.37 mm x 1.25 mm x 50.6 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$8.86 AUD
$8.86 AUD
Each
View the product page first if you are unsure.
52.37
mm 		1.25
mm
+/-0.08 		50.60
mm 		49.23
mm
+0.00/-0.51 		1164506 | RS-206-S02 --- Spiral - 52.37 mm x 1.25 mm x 50.6 mm
Material: 302 Stainless Steel    Radial Wall (S): 3.25 mm +/-0.10    Groove Width (W): 1.47 mm +/-0.16   Approx. Loose Clip OD: 55.73 +/-0.05   Groove Depth (d): 0.89
Part Number: RS-206-S02 Spiral - 52.37 mm x 1.25 mm x 50.6 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$8.86 AUD
$8.86 AUD
Each
View the product page first if you are unsure.
69.85
mm 		1.25
mm
+/-0.08 		67.57
mm 		65.66
mm
+0.00/-0.76 		4.01
mm
+/-0.10 		1.47
mm
+/-0.16 		1173993 | RS-275-S02 --- Spiral - 69.85 mm x 1.25 mm x 67.57 mm
Material: 302 Stainless Steel    Approx. Loose Clip OD: 73.68 +/-0.05   Groove Depth (d): 1.14
Part Number: RS-275-S02 Spiral - 69.85 mm x 1.25 mm x 67.57 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$25.59 AUD
$25.59 AUD
Each
View the product page first if you are unsure.
69.85
mm 		1.25
mm
+/-0.08 		67.57
mm 		65.66
mm
+0.00/-0.76 		1173993 | RS-275-S02 --- Spiral - 69.85 mm x 1.25 mm x 67.57 mm
Material: 302 Stainless Steel    Radial Wall (S): 4.01 mm +/-0.10    Groove Width (W): 1.47 mm +/-0.16   Approx. Loose Clip OD: 73.68 +/-0.05   Groove Depth (d): 1.14
Part Number: RS-275-S02 Spiral - 69.85 mm x 1.25 mm x 67.57 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$25.59 AUD
$25.59 AUD
Each
View the product page first if you are unsure.
73.03
mm 		1.25
mm
+/-0.08 		70.64
mm 		68.65
mm
+0.00/-0.76 		4.27
mm
+/-0.13 		1.47
mm
+/-0.15 		1176675 | RS-287-S02 --- Spiral - 73.03 mm x 1.25 mm x 70.64 mm
Material: 302 Stainless Steel    Approx. Loose Clip OD: 77.19 +/-0.05   Groove Depth (d): 1.19
Part Number: RS-287-S02 Spiral - 73.03 mm x 1.25 mm x 70.64 mm / Retaining Rings
16 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Each
73.03
mm 		1.25
mm
+/-0.08 		70.64
mm 		68.65
mm
+0.00/-0.76 		1176675 | RS-287-S02 --- Spiral - 73.03 mm x 1.25 mm x 70.64 mm
Material: 302 Stainless Steel    Radial Wall (S): 4.27 mm +/-0.13    Groove Width (W): 1.47 mm +/-0.15   Approx. Loose Clip OD: 77.19 +/-0.05   Groove Depth (d): 1.19
Part Number: RS-287-S02 Spiral - 73.03 mm x 1.25 mm x 70.64 mm / Retaining Rings
16 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity |
$8.00 AUD
$13.20 AUD $8.00 AUD
Each
76.20
mm 		1.55
mm
+/-0.08 		73.76
mm 		71.63
mm
+0.00/-0.76 		4.27
mm
+/-0.13 		1.79
mm
+/-0.15 		1178221 | RS-300-S02 (100 Pcs) --- Spiral - 76.2 mm x 1.55 mm x 73.76 mm
Material: 302 Stainless Steel    Approx. Loose Clip OD: 80.17 +/-0.06   Groove Depth (d): 1.22
Part Number: RS-300-S02 (100 Pcs) Spiral - 76.2 mm x 1.55 mm x 73.76 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$12.41 AUD
$12.41 AUD
Per 100
View the product page first if you are unsure.
76.20
mm 		1.55
mm
+/-0.08 		73.76
mm 		71.63
mm
+0.00/-0.76 		1178221 | RS-300-S02 (100 Pcs) --- Spiral - 76.2 mm x 1.55 mm x 73.76 mm
Material: 302 Stainless Steel    Radial Wall (S): 4.27 mm +/-0.13    Groove Width (W): 1.79 mm +/-0.15   Approx. Loose Clip OD: 80.17 +/-0.06   Groove Depth (d): 1.22
Part Number: RS-300-S02 (100 Pcs) Spiral - 76.2 mm x 1.55 mm x 73.76 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$12.41 AUD
$12.41 AUD
Per 100
View the product page first if you are unsure.
80.95
mm 		1.55
mm
+/-0.08 		78.46
mm 		76.09
mm
+0.00/-0.76 		4.52
mm
+/-0.13 		1.79
mm
+/-0.15 		1180573 | RS-318-S02 --- Spiral - 80.95 mm x 1.55 mm x 78.46 mm
Material: 302 Stainless Steel    Approx. Loose Clip OD: 85.13 +/-0.06   Groove Depth (d): 1.24
Part Number: RS-318-S02 Spiral - 80.95 mm x 1.55 mm x 78.46 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$20.14 AUD
$20.14 AUD
Each
View the product page first if you are unsure.
80.95
mm 		1.55
mm
+/-0.08 		78.46
mm 		76.09
mm
+0.00/-0.76 		1180573 | RS-318-S02 --- Spiral - 80.95 mm x 1.55 mm x 78.46 mm
Material: 302 Stainless Steel    Radial Wall (S): 4.52 mm +/-0.13    Groove Width (W): 1.79 mm +/-0.15   Approx. Loose Clip OD: 85.13 +/-0.06   Groove Depth (d): 1.24
Part Number: RS-318-S02 Spiral - 80.95 mm x 1.55 mm x 78.46 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$20.14 AUD
$20.14 AUD
Each
View the product page first if you are unsure.
