Collection: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Retaining Rings (With Images)

External

Spiral Rings

Medium Duty

Carbon Steel
Stainless Steel

53 Products in this selection

AE / WS / AS3218 / RS / MIL-R-27426A1 - Spring Steel
Popular series that will accommodate light and medium bearing series thrust loads.
Available in military and aerospace specifications.
Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF

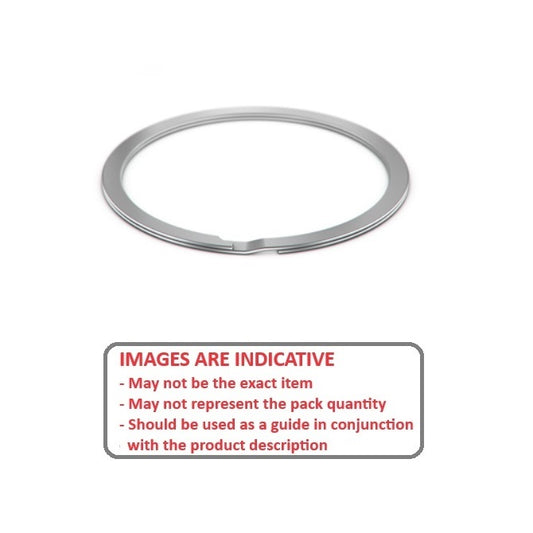

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
12.70 mm	0.64 mm +/- 0.06	12.04 mm	11.94 mm + 0.00 / - 0.33	1.14 mm +/- 0.10	0.80 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip OD: 14.22 +/- 0.04 Groove Depth (d): 0.33

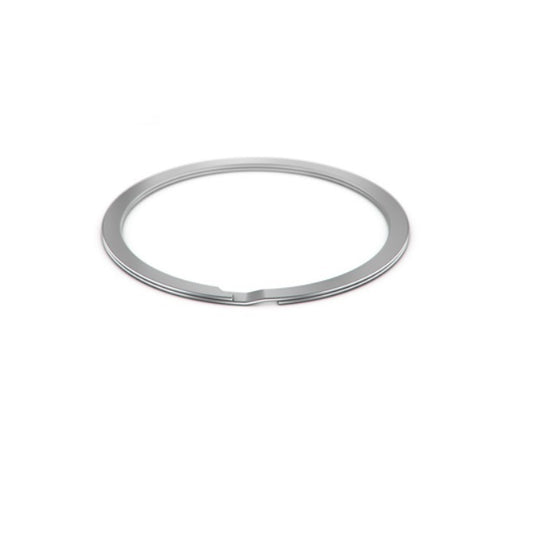

Part Number: RS-050 (5 Pcs) External Retaining Rings - 12.7 mm x 0.64 mm x 12.04 mm 24 units (120 pcs) Available \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Per 5 View the product page first if you are unsure ->
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
12.70 mm	0.64 mm +/- 0.06	12.04 mm	11.94 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip OD: 14.22 +/- 0.04 Groove Depth (d): 0.33
Part Number: RS-050 (5 Pcs) External Retaining Rings - 12.7 mm x 0.64 mm x 12.04 mm 24 units (120 pcs) Available \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-050 (5 Pcs) --- External Retaining Rings - 12.7 mm x 0.64 mm x 12.04 mm Spring Steel RS-050 (5 Pcs) --- External Retaining Rings - 12.7 mm x 0.64 mm x 12.04 mm Spring Steel Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per 24 Available Now
13.49 mm	0.64 mm +/- 0.06	12.83 mm	12.68 mm + 0.00 / - 0.33	1.14 mm +/- 0.10	0.80 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip OD: 14.96 +/- 0.04 Groove Depth (d): 0.33
Part Number: RS-053 (19 Pcs) External Retaining Rings - 13.49 mm x 0.64 mm x 12.83 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 19 View the product page first if you are unsure ->
13.49 mm	0.64 mm +/- 0.06	12.83 mm	12.68 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip OD: 14.96 +/- 0.04 Groove Depth (d): 0.33
Part Number: RS-053 (19 Pcs) External Retaining Rings - 13.49 mm x 0.64 mm x 12.83 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 19 View the product page first if you are unsure.
RS-053 (19 Pcs) --- External Retaining Rings - 13.49 mm x 0.64 mm x 12.83 mm Spring Steel RS-053 (19 Pcs) --- External Retaining Rings - 13.49 mm x 0.64 mm x 12.83 mm Spring Steel Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
15.88 mm	0.64 mm +/- 0.06	15.10 mm	14.93 mm + 0.00 / - 0.33	1.40 mm +/- 0.10	0.80 mm +/- 0.06
Material: Spring Steel Approx. Loose Clip OD: 17.73 +/- 0.04 Groove Depth (d): 0.41
Part Number: RS-062 (2 Pcs) External Retaining Rings - 15.88 mm x 0.64 mm x 15.1 mm 90 units (180 pcs) Available \| Backorders for more can be expected around Thu, Mar 13, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Per 2 View the product page first if you are unsure ->
15.88 mm	0.64 mm +/- 0.06	15.10 mm	14.93 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.06 Approx. Loose Clip OD: 17.73 +/- 0.04 Groove Depth (d): 0.41
Part Number: RS-062 (2 Pcs) External Retaining Rings - 15.88 mm x 0.64 mm x 15.1 mm 90 units (180 pcs) Available \| Backorders for more can be expected around Thu, Mar 13, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-062 (2 Pcs) --- External Retaining Rings - 15.88 mm x 0.64 mm x 15.1 mm Spring Steel RS-062 (2 Pcs) --- External Retaining Rings - 15.88 mm x 0.64 mm x 15.1 mm Spring Steel Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per 90 Available Now
17.27 mm	0.64 mm +/- 0.06	16.67 mm	16.23 mm + 0.00 / - 0.33	1.40 mm +/- 0.10	0.80 mm +/- 0.07
Material: Spring Steel Approx. Loose Clip OD: 19.03 +/- 0.04 Groove Depth (d): 0.41
Part Number: RS-068 (5 Pcs) External Retaining Rings - 17.27 mm x 0.64 mm x 16.67 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $32.68 AUD Regular price Sale price $32.68 AUD Unit price per Per 5 View the product page first if you are unsure ->
17.27 mm	0.64 mm +/- 0.06	16.67 mm	16.23 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.07 Approx. Loose Clip OD: 19.03 +/- 0.04 Groove Depth (d): 0.41
Part Number: RS-068 (5 Pcs) External Retaining Rings - 17.27 mm x 0.64 mm x 16.67 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $32.68 AUD Regular price Sale price $32.68 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-068 (5 Pcs) --- External Retaining Rings - 17.27 mm x 0.64 mm x 16.67 mm Spring Steel RS-068 (5 Pcs) --- External Retaining Rings - 17.27 mm x 0.64 mm x 16.67 mm Spring Steel Regular price $32.68 AUD Regular price Sale price $32.68 AUD Unit price per Out of stock! Backorder Now
19.05 mm	0.79 mm +/- 0.05	18.27 mm	17.91 mm + 0.00 / - 0.33	1.65 mm +/- 0.10	0.95 mm +/- 0.07
Material: Spring Steel Approx. Loose Clip OD: 21.21 +/- 0.04 Groove Depth (d): 0.41
Part Number: RS-075 (10 Pcs) External Retaining Rings - 19.05 mm x 0.79 mm x 18.27 mm 44 units (440 pcs) Available \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Per 10 View the product page first if you are unsure ->
19.05 mm	0.79 mm +/- 0.05	18.27 mm	17.91 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip OD: 21.21 +/- 0.04 Groove Depth (d): 0.41
Part Number: RS-075 (10 Pcs) External Retaining Rings - 19.05 mm x 0.79 mm x 18.27 mm 44 units (440 pcs) Available \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Per 10 View the product page first if you are unsure.
RS-075 (10 Pcs) --- External Retaining Rings - 19.05 mm x 0.79 mm x 18.27 mm Spring Steel RS-075 (10 Pcs) --- External Retaining Rings - 19.05 mm x 0.79 mm x 18.27 mm Spring Steel Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per 44 Available Now
20.64 mm	0.79 mm +/- 0.05	19.84 mm	19.40 mm + 0.00 / - 0.33	1.65 mm +/- 0.10	0.95 mm +/- 0.07
Material: Spring Steel Approx. Loose Clip OD: 22.7 +/- 0.04 Groove Depth (d): 0.41
Part Number: RS-081 (5 Pcs) External Retaining Rings - 20.64 mm x 0.79 mm x 19.84 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $26.41 AUD Regular price Sale price $26.41 AUD Unit price per Per 5 View the product page first if you are unsure ->
20.64 mm	0.79 mm +/- 0.05	19.84 mm	19.40 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip OD: 22.7 +/- 0.04 Groove Depth (d): 0.41
Part Number: RS-081 (5 Pcs) External Retaining Rings - 20.64 mm x 0.79 mm x 19.84 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $26.41 AUD Regular price Sale price $26.41 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-081 (5 Pcs) --- External Retaining Rings - 20.64 mm x 0.79 mm x 19.84 mm Spring Steel RS-081 (5 Pcs) --- External Retaining Rings - 20.64 mm x 0.79 mm x 19.84 mm Spring Steel Regular price $26.41 AUD Regular price Sale price $26.41 AUD Unit price per Out of stock! Backorder Now
22.23 mm	0.79 mm +/- 0.05	21.29 mm	20.90 mm + 0.00 / - 0.33	1.65 mm +/- 0.10	0.95 mm +/- 0.07
Material: Spring Steel Approx. Loose Clip OD: 24.2 +/- 0.04 Groove Depth (d): 0.48
Part Number: RS-087 (50 Pcs) External Retaining Rings - 22.23 mm x 0.79 mm x 21.29 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Mon, May 19, 2025 Regular price $241.59 AUD Regular price Sale price $241.59 AUD Unit price per Per 50 View the product page first if you are unsure ->
22.23 mm	0.79 mm +/- 0.05	21.29 mm	20.90 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip OD: 24.2 +/- 0.04 Groove Depth (d): 0.48
Part Number: RS-087 (50 Pcs) External Retaining Rings - 22.23 mm x 0.79 mm x 21.29 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Mon, May 19, 2025 Regular price $241.59 AUD Regular price Sale price $241.59 AUD Unit price per Per 50 View the product page first if you are unsure.
RS-087 (50 Pcs) --- External Retaining Rings - 22.23 mm x 0.79 mm x 21.29 mm Spring Steel RS-087 (50 Pcs) --- External Retaining Rings - 22.23 mm x 0.79 mm x 21.29 mm Spring Steel Regular price $241.59 AUD Regular price Sale price $241.59 AUD Unit price per Out of stock! Backorder Now
23.01 mm	0.79 mm +/- 0.05	22.08 mm	21.63 mm + 0.00 / - 0.33	1.65 mm +/- 0.10	0.95 mm +/- 0.07
Material: Spring Steel Approx. Loose Clip OD: 24.93 +/- 0.04 Groove Depth (d): 0.48
Part Number: RS-090 (7 Pcs) External Retaining Rings - 23.01 mm x 0.79 mm x 22.08 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Per 7 View the product page first if you are unsure ->
23.01 mm	0.79 mm +/- 0.05	22.08 mm	21.63 mm + 0.00 / - 0.33
