| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) Approx. | Groove Width (W) |

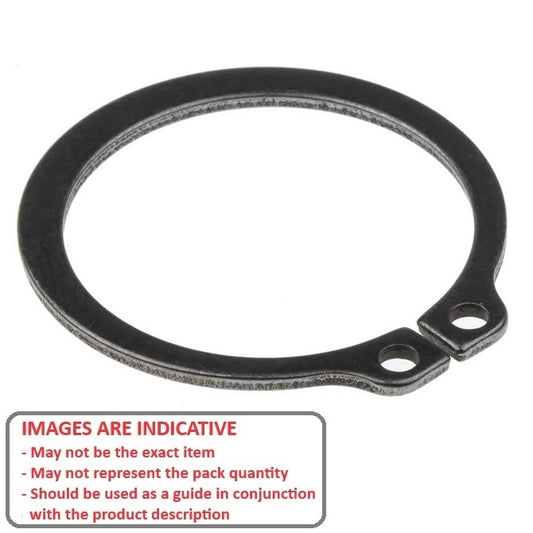

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
95.00
mm (Equiv. 3.74 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
91.50
mm + 0.00 / - 0.08 (Equiv. 3.602 in.) |
Approx. Loose Circlip ID (A)
89.50
mm |
Groove Width (W)
3.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 111.00 mm
Clearance in Groove (C1): 114.80 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 47 |
||||||
|
Part Number: CCE-09500-C (Each)
External Retaining Rings - 95x3x91.5 mm Circlips - Carbon Steel Circlip 20 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$5.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
95.00
mm (Equiv. 3.74 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
91.50
mm + 0.00 / - 0.08 (Equiv. 3.602 in.) |
Approx. Loose Circlip ID (A)
89.50
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm
Clearance on Shaft (C1): 111.00 mm
Clearance in Groove (C1): 114.80 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 47 |
||||||
|
Part Number: CCE-09500-C (Each)
External Retaining Rings - 95x3x91.5 mm Circlips - Carbon Steel Circlip 20 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$5.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
96.50
mm + 0.00 / - 0.08 (Equiv. 3.799 in.) |
Approx. Loose Circlip ID (A)
94.50
mm |
Groove Width (W)
3.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 116.00 mm
Clearance in Groove (C1): 120.20 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 250 |
||||||
|
Part Number: CCE-10000-C (Each)
External Retaining Rings - 100x3x96.5 mm Circlips - Carbon Steel Circlip 80 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$4.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
96.50
mm + 0.00 / - 0.08 (Equiv. 3.799 in.) |
Approx. Loose Circlip ID (A)
94.50
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm
Clearance on Shaft (C1): 116.00 mm
Clearance in Groove (C1): 120.20 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 250 |
||||||
|
Part Number: CCE-10000-C (Each)
External Retaining Rings - 100x3x96.5 mm Circlips - Carbon Steel Circlip 80 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$4.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
105.00
mm (Equiv. 4.134 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
101.00
mm + 0.00 / - 0.10 (Equiv. 3.976 in.) |
Approx. Loose Circlip ID (A)
98.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 122.00 mm
Clearance in Groove (C1): 126.20 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 6.00
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 305 |
||||||
|
Part Number: CCE-10500-C (Each)
External Retaining Rings - 105x4x101 mm Circlips - Carbon Steel Circlip 20 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$7.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
105.00
mm (Equiv. 4.134 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
101.00
mm + 0.00 / - 0.10 (Equiv. 3.976 in.) |
Approx. Loose Circlip ID (A)
98.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 122.00 mm
Clearance in Groove (C1): 126.20 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 6.00
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 305 |
||||||
|
Part Number: CCE-10500-C (Each)
External Retaining Rings - 105x4x101 mm Circlips - Carbon Steel Circlip 20 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$7.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
110.00
mm (Equiv. 4.331 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
106.00
mm + 0.00 / - 0.10 (Equiv. 4.173 in.) |
Approx. Loose Circlip ID (A)
103.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 127.00 mm
Clearance in Groove (C1): 131.20 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 6.00
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 194 |
||||||
|
Part Number: CCE-11000-C (Each)
External Retaining Rings - 110x4x106 mm Circlips - Carbon Steel Circlip 1 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$7.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
110.00
mm (Equiv. 4.331 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
106.00
mm + 0.00 / - 0.10 (Equiv. 4.173 in.) |
Approx. Loose Circlip ID (A)
103.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 127.00 mm
Clearance in Groove (C1): 131.20 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 6.00
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 194 |
||||||
|
Part Number: CCE-11000-C (Each)
External Retaining Rings - 110x4x106 mm Circlips - Carbon Steel Circlip 1 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$7.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
114.30
mm (Equiv. 4.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
109.50
mm +/- 0.076 (Equiv. 4.311 in.) |
Approx. Loose Circlip ID (A)
107.30
mm |
Groove Width (W)
3.10
mm |
|
|
|
Material: Carbon Steel
Standard: MIL-16624
Additional stock available from USA subject to Prior Sale = 975 |
||||||
|
Part Number: CCE-11430-C (Each)
External Retaining Rings - 114.3x2.77x109.5 mm Circlips - Carbon Steel Circlip 8 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$13.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
114.30
mm (Equiv. 4.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
109.50
mm +/- 0.076 (Equiv. 4.311 in.) |
Approx. Loose Circlip ID (A)
107.30
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.10 mm
Standard: MIL-16624
Additional stock available from USA subject to Prior Sale = 975 |
||||||
|
Part Number: CCE-11430-C (Each)
External Retaining Rings - 114.3x2.77x109.5 mm Circlips - Carbon Steel Circlip 8 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$13.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
115.00
mm (Equiv. 4.528 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
111.00
mm + 0.00 / - 0.10 (Equiv. 4.37 in.) |
Approx. Loose Circlip ID (A)
108.00
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 133.00 mm Clearance in Groove (C1): 137.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-11500-C (Each)
External Retaining Rings - 115x4x111 mm Circlips - Carbon Steel Circlip 32 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$8.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
115.00
mm (Equiv. 4.528 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
111.00
mm + 0.00 / - 0.10 (Equiv. 4.37 in.) |
Approx. Loose Circlip ID (A)
108.00
mm |
|
||
| Material: Carbon Steel Groove Width (W): 4.15 mm Clearance on Shaft (C1): 133.00 mm Clearance in Groove (C1): 137.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-11500-C (Each)
External Retaining Rings - 115x4x111 mm Circlips - Carbon Steel Circlip 32 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$8.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
120.00
mm (Equiv. 4.724 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
116.00
mm + 0.00 / - 0.10 (Equiv. 4.567 in.) |
Approx. Loose Circlip ID (A)
113.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 138.00 mm
Clearance in Groove (C1): 143.10 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 6.00
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 250 |
||||||
|
Part Number: CCE-12000-C (Each)
External Retaining Rings - 120x4x116 mm Circlips - Carbon Steel Circlip 20 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$8.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
120.00
mm (Equiv. 4.724 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
116.00
mm + 0.00 / - 0.10 (Equiv. 4.567 in.) |
Approx. Loose Circlip ID (A)
113.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 138.00 mm
Clearance in Groove (C1): 143.10 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 6.00
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 250 |
||||||
|
Part Number: CCE-12000-C (Each)
External Retaining Rings - 120x4x116 mm Circlips - Carbon Steel Circlip 20 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$8.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
125.00
mm (Equiv. 4.921 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
121.00
mm + 0.00 / - 0.10 (Equiv. 4.764 in.) |
Approx. Loose Circlip ID (A)
118.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 144.00 mm
Clearance in Groove (C1): 149.00 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 6.00
Standard: DIN471
Deleted Item. Available while stocks last. |
||||||
|
Part Number: CCE-12500-C (PK-5)
External Retaining Rings - 125x4x121 mm Circlips - Carbon Steel Circlip 2 units (10 pcs) Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$30.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
125.00
mm (Equiv. 4.921 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
121.00
mm + 0.00 / - 0.10 (Equiv. 4.764 in.) |
Approx. Loose Circlip ID (A)
118.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 144.00 mm
Clearance in Groove (C1): 149.00 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 6.00
Standard: DIN471
Deleted Item. Available while stocks last. |
||||||
|
Part Number: CCE-12500-C (PK-5)
External Retaining Rings - 125x4x121 mm Circlips - Carbon Steel Circlip 2 units (10 pcs) Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$30.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
150.00
mm (Equiv. 5.906 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.10 (Equiv. 5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 171.00 mm
Clearance in Groove (C1): 177.30 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 7.50
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 32 |
||||||
|
Part Number: CCE-15000-C (Each)
External Retaining Rings - 150x4x145 mm Circlips - Carbon Steel Circlip 1 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$11.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
150.00
mm (Equiv. 5.906 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.10 (Equiv. 5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 171.00 mm
Clearance in Groove (C1): 177.30 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 7.50
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 32 |
||||||
|
Part Number: CCE-15000-C (Each)
External Retaining Rings - 150x4x145 mm Circlips - Carbon Steel Circlip 1 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$11.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
160.00
mm (Equiv. 6.299 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
155.00
mm + 0.00 / - 0.10 (Equiv. 6.102 in.) |
Approx. Loose Circlip ID (A)
151.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 182.00 mm
Clearance in Groove (C1): 188.00 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 7.50
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 36 |
||||||
|
Part Number: CCE-16000-C (Each)
External Retaining Rings - 160x4x155 mm Circlips - Carbon Steel Circlip 5 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$13.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
160.00
mm (Equiv. 6.299 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
155.00
mm + 0.00 / - 0.10 (Equiv. 6.102 in.) |
Approx. Loose Circlip ID (A)
151.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 182.00 mm
Clearance in Groove (C1): 188.00 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 7.50
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 36 |
||||||
|
Part Number: CCE-16000-C (Each)
External Retaining Rings - 160x4x155 mm Circlips - Carbon Steel Circlip 5 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$13.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
190.00
mm (Equiv. 7.48 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
185.00
mm + 0.00 / - 0.10 (Equiv. 7.283 in.) |
Approx. Loose Circlip ID (A)
180.50
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 214.00 mm
Clearance in Groove (C1): 220.00 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 7.50
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 15 |
||||||
|
Part Number: CCE-19000-C (Each)
External Retaining Rings - 190x4x185 mm Circlips - Carbon Steel Circlip 5 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$19.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
190.00
mm (Equiv. 7.48 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
185.00
mm + 0.00 / - 0.10 (Equiv. 7.283 in.) |
Approx. Loose Circlip ID (A)
180.50
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 214.00 mm
Clearance in Groove (C1): 220.00 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 7.50
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 15 |
||||||
|
Part Number: CCE-19000-C (Each)
External Retaining Rings - 190x4x185 mm Circlips - Carbon Steel Circlip 5 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$19.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
200.00
mm (Equiv. 7.874 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.72 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
194.28
mm + 0.00 / - 0.10 (Equiv. 7.649 in.) |
Approx. Loose Circlip ID (A)
191.22
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 224.00 mm
Clearance in Groove (C1): 230.00 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 7.50
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 64 |
||||||
|
Part Number: CCE-20000-C (Each)
External Retaining Rings - 200x4x194.28 mm Circlips - Carbon Steel Circlip 1 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$23.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
200.00
mm (Equiv. 7.874 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.72 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
194.28
mm + 0.00 / - 0.10 (Equiv. 7.649 in.) |
Approx. Loose Circlip ID (A)
191.22
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 224.00 mm
Clearance in Groove (C1): 230.00 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 7.50
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 64 |
||||||
|
Part Number: CCE-20000-C (Each)
External Retaining Rings - 200x4x194.28 mm Circlips - Carbon Steel Circlip 1 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$23.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
240.00
mm (Equiv. 9.449 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
234.00
mm + 0.00 / - 0.12 (Equiv. 9.213 in.) |
Approx. Loose Circlip ID (A)
228.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 263.00 mm
Clearance in Groove (C1): 270.00 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 9.00
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 15 |
||||||
|
Part Number: CCE-24000-C (Each)
External Retaining Rings - 240x5x234 mm Circlips - Carbon Steel Circlip 2 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$41.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
240.00
mm (Equiv. 9.449 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
234.00
mm + 0.00 / - 0.12 (Equiv. 9.213 in.) |
Approx. Loose Circlip ID (A)
228.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.15 mm
Clearance on Shaft (C1): 263.00 mm
Clearance in Groove (C1): 270.00 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 9.00
Standard: DIN471
Additional stock available from USA subject to Prior Sale = 15 |
||||||
|
Part Number: CCE-24000-C (Each)
External Retaining Rings - 240x5x234 mm Circlips - Carbon Steel Circlip 2 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$41.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
