Collection: Retaining Rings - External - Circlips - Standard

Retaining Rings (With Images)

External

Circlips

Tabbed

677 Products in this selection

This is a combined category of products from Standard Circlips External Retaining Rings. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)
3.00 mm	0.40 mm +0.00/-0.04	2.80 mm +0.00/-0.05	2.70 mm		0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 7.00 mm Clearance in Groove (C1): 6.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00300-C (100 Pcs) Circlips - 3 mm x 0.4 mm x 2.8 mm / Retaining Rings 34 units (3400 pcs) Available \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
3.00 mm	0.40 mm +0.00/-0.04	2.80 mm +0.00/-0.05	2.70 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 7.00 mm Clearance in Groove (C1): 6.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00300-C (100 Pcs) Circlips - 3 mm x 0.4 mm x 2.8 mm / Retaining Rings 34 units (3400 pcs) Available \| \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00300-C (100 Pcs) --- Circlips - 3 mm x 0.4 mm x 2.8 mm Carbon Steel CCE-00300-C (100 Pcs) --- Circlips - 3 mm x 0.4 mm x 2.8 mm Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 34 Available Now

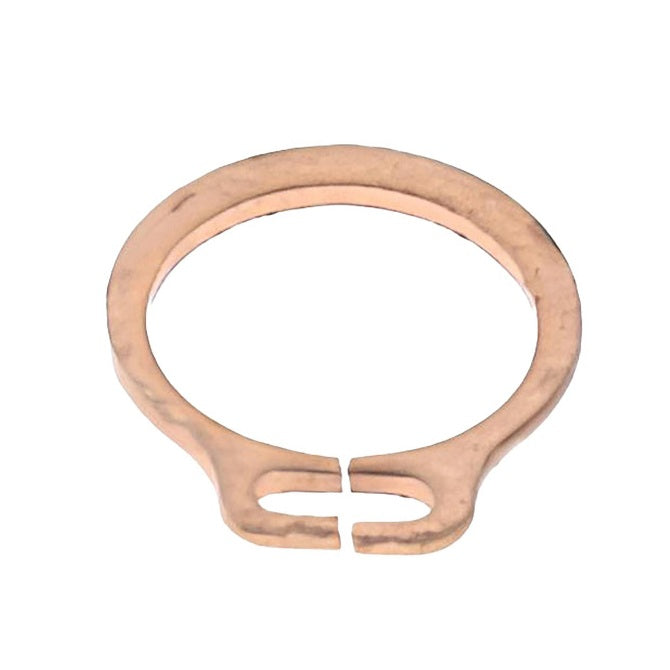

3.18 mm	0.25 mm +/-0.038	2.97 mm +/-0.025	2.80 mm		0.30 mm
Material: Zinc Plated Beryllium Copper Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00318-BZ Circlips - 3.18 mm x 0.25 mm x 2.97 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
3.18 mm	0.25 mm +/-0.038	2.97 mm +/-0.025	2.80 mm
Material: Zinc Plated Beryllium Copper Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00318-BZ Circlips - 3.18 mm x 0.25 mm x 2.97 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
3.18 mm	0.25 mm +/-0.038	2.97 mm +/-0.025	2.80 mm		0.30 mm
Material: Carbon Steel Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00318-C (140 Pcs) Circlips - 3.18 mm x 0.25 mm x 2.97 mm / Retaining Rings 1 pack (140 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$0.00 AUD~~ Sale price $20.00 AUD Unit price per Per 140
3.18 mm	0.25 mm +/-0.038	2.97 mm +/-0.025	2.80 mm
Material: Carbon Steel Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00318-C (140 Pcs) Circlips - 3.18 mm x 0.25 mm x 2.97 mm / Retaining Rings 1 pack (140 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity \| Regular price $20.00 AUD Regular price ~~$0.00 AUD~~ Sale price $20.00 AUD Unit price per Per 140
CCE-00318-C (140 Pcs) --- Circlips - 3.18 mm x 0.25 mm x 2.97 mm Carbon Steel CCE-00318-C (140 Pcs) --- Circlips - 3.18 mm x 0.25 mm x 2.97 mm Carbon Steel Regular price $20.00 AUD Regular price ~~$0.00 AUD~~ Sale price $20.00 AUD Unit price per 1 Available Now
3.18 mm	0.25 mm +/-0.038	2.97 mm +/-0.025	2.84 mm		0.30 mm
Material: Beryllium Copper Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Berryllium Copper
Part Number: CCE-00318-B (20 Pcs) Circlips - 3.18 mm x 0.25 mm x 2.97 mm / Retaining Rings 12 units (240 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Per 20 View the product page first if you are unsure.
3.18 mm	0.25 mm +/-0.038	2.97 mm +/-0.025	2.84 mm
Material: Beryllium Copper Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Berryllium Copper
Part Number: CCE-00318-B (20 Pcs) Circlips - 3.18 mm x 0.25 mm x 2.97 mm / Retaining Rings 12 units (240 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00318-B (20 Pcs) --- Circlips - 3.18 mm x 0.25 mm x 2.97 mm Beryllium Copper CCE-00318-B (20 Pcs) --- Circlips - 3.18 mm x 0.25 mm x 2.97 mm Beryllium Copper Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per 12 Available Now

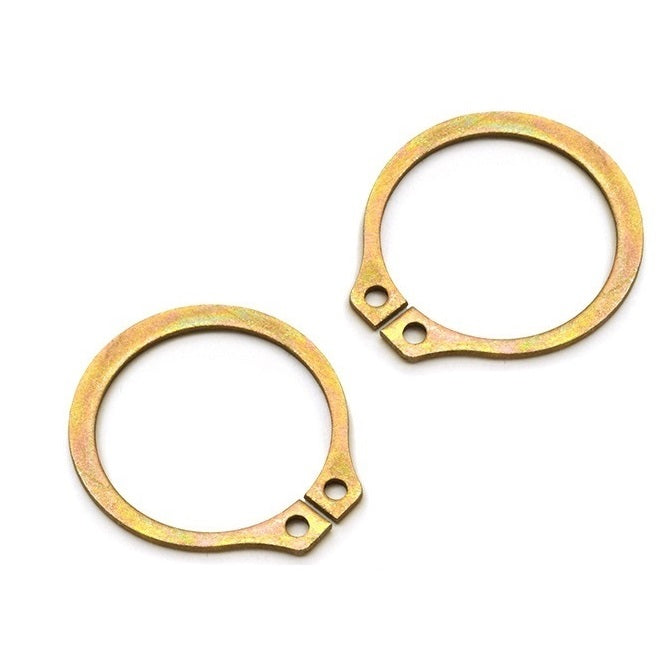

3.97 mm	0.30 mm +/-0.038	3.71 mm +/-0.025	3.60 mm		0.30 mm
Material: Carbon Steel Zinc Plated Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00397-CZY (70 Pcs) Circlips - 3.97 mm x 0.3 mm x 3.71 mm / Retaining Rings 1 pack (70 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $30.00 AUD Regular price ~~$0.00 AUD~~ Sale price $30.00 AUD Unit price per Per 70
3.97 mm	0.30 mm +/-0.038	3.71 mm +/-0.025	3.60 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00397-CZY (70 Pcs) Circlips - 3.97 mm x 0.3 mm x 3.71 mm / Retaining Rings 1 pack (70 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity \| Regular price $30.00 AUD Regular price ~~$0.00 AUD~~ Sale price $30.00 AUD Unit price per Per 70
CCE-00397-CZY (70 Pcs) --- Circlips - 3.97 mm x 0.3 mm x 3.71 mm Carbon Steel Zinc Plated CCE-00397-CZY (70 Pcs) --- Circlips - 3.97 mm x 0.3 mm x 3.71 mm Carbon Steel Zinc Plated Regular price $30.00 AUD Regular price ~~$0.00 AUD~~ Sale price $30.00 AUD Unit price per 1 Available Now
3.97 mm	0.30 mm +/-0.038	3.71 mm +/-0.025	3.60 mm		0.30 mm
Material: Zinc Plated Beryllium Copper Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00397-BZ Circlips - 3.97 mm x 0.3 mm x 3.71 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
3.97 mm	0.30 mm +/-0.038	3.71 mm +/-0.025	3.60 mm
Material: Zinc Plated Beryllium Copper Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00397-BZ Circlips - 3.97 mm x 0.3 mm x 3.71 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
3.97 mm	0.30 mm +/-0.038	3.71 mm +/-0.025	3.60 mm		0.30 mm
Material: Carbon Spring Steel Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00397-C Circlips - 3.97 mm x 0.3 mm x 3.71 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
3.97 mm	0.30 mm +/-0.038	3.71 mm +/-0.025	3.60 mm
Material: Carbon Spring Steel Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00397-C Circlips - 3.97 mm x 0.3 mm x 3.71 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
3.97 mm	0.30 mm +/-0.038	3.71 mm +/-0.025	3.60 mm		0.30 mm
Material: Beryllium Copper Category: Retaining Rings - External - Circlips - Standard - Berryllium Copper
Part Number: CCE-00397-B (10 Pcs) Circlips - 3.97 mm x 0.3 mm x 3.71 mm / Retaining Rings 81 units (810 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 10 View the product page first if you are unsure.
3.97 mm	0.30 mm +/-0.038	3.71 mm +/-0.025	3.60 mm
Material: Beryllium Copper Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard - Berryllium Copper
Part Number: CCE-00397-B (10 Pcs) Circlips - 3.97 mm x 0.3 mm x 3.71 mm / Retaining Rings 81 units (810 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-00397-B (10 Pcs) --- Circlips - 3.97 mm x 0.3 mm x 3.71 mm Beryllium Copper CCE-00397-B (10 Pcs) --- Circlips - 3.97 mm x 0.3 mm x 3.71 mm Beryllium Copper Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 81 Available Now
4.00 mm	0.40 mm +0.00/-0.04	3.80 mm +0.00/-0.05	3.70 mm		0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00400-C (100 Pcs) Circlips - 4 mm x 0.4 mm x 3.8 mm / Retaining Rings 43 units (4300 pcs) Available \| Backorders for more can be expected around Tue, Apr 22, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
4.00 mm	0.40 mm +0.00/-0.04	3.80 mm +0.00/-0.05	3.70 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00400-C (100 Pcs) Circlips - 4 mm x 0.4 mm x 3.8 mm / Retaining Rings 43 units (4300 pcs) Available \| \| Backorders for more can be expected around Tue, Apr 22, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00400-C (100 Pcs) --- Circlips - 4 mm x 0.4 mm x 3.8 mm Carbon Steel CCE-00400-C (100 Pcs) --- Circlips - 4 mm x 0.4 mm x 3.8 mm Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 43 Available Now

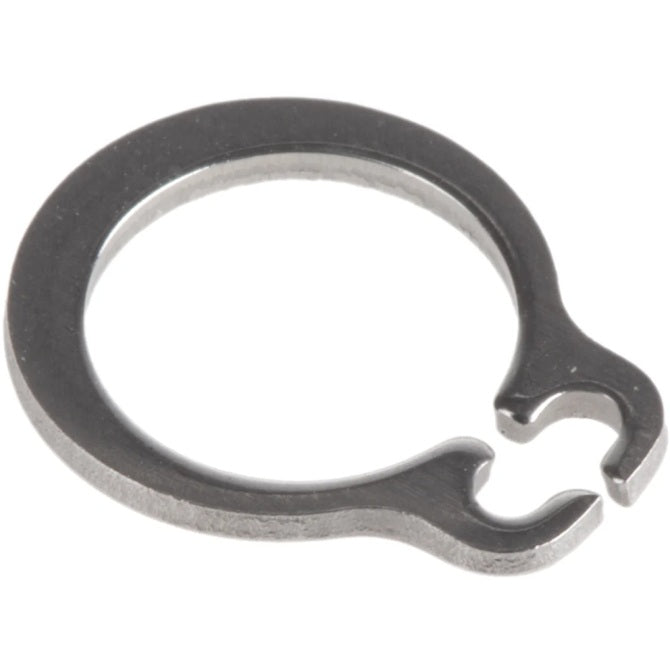

4.00 mm	0.40 mm +0.00/-0.04	3.80 mm +0.00/-0.05	3.70 mm		0.50 mm
Material: Stainless PH15-7 Mo Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00400-S15 (5 Pcs) Circlips - 4 mm x 0.4 mm x 3.8 mm / Retaining Rings 30 units (150 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 5 View the product page first if you are unsure.
4.00 mm	0.40 mm +0.00/-0.04	3.80 mm +0.00/-0.05	3.70 mm
Material: Stainless PH15-7 Mo Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00400-S15 (5 Pcs) Circlips - 4 mm x 0.4 mm x 3.8 mm / Retaining Rings 30 units (150 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-00400-S15 (5 Pcs) --- Circlips - 4 mm x 0.4 mm x 3.8 mm Stainless PH15-7 Mo CCE-00400-S15 (5 Pcs) --- Circlips - 4 mm x 0.4 mm x 3.8 mm Stainless PH15-7 Mo Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per 30 Available Now
4.78 mm	0.38 mm +/-0.038	4.45 mm +/-0.051	4.27 mm		0.46 mm
Material: Beryllium Copper Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Berryllium Copper
Part Number: CCE-00478-B (20 Pcs) Circlips - 4.78 mm x 0.38 mm x 4.45 mm / Retaining Rings 20 units (400 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 20 View the product page first if you are unsure.
4.78 mm	0.38 mm +/-0.038	4.45 mm +/-0.051	4.27 mm
Material: Beryllium Copper Groove Width (W): 0.46 mm Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Berryllium Copper
Part Number: CCE-00478-B (20 Pcs) Circlips - 4.78 mm x 0.38 mm x 4.45 mm / Retaining Rings 20 units (400 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00478-B (20 Pcs) --- Circlips - 4.78 mm x 0.38 mm x 4.45 mm Beryllium Copper CCE-00478-B (20 Pcs) --- Circlips - 4.78 mm x 0.38 mm x 4.45 mm Beryllium Copper Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per 20 Available Now
4.78 mm	0.38 mm +/-0.038	4.45 mm +/-0.051	4.27 mm		0.46 mm
Material: Carbon Steel Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00478-C (100 Pcs) Circlips - 4.78 mm x 0.38 mm x 4.45 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $61.68 AUD Regular price Sale price $61.68 AUD Unit price per Per 100 View the product page first if you are unsure.
4.78 mm	0.38 mm +/-0.038	4.45 mm +/-0.051	4.27 mm
Material: Carbon Steel Groove Width (W): 0.46 mm Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00478-C (100 Pcs) Circlips - 4.78 mm x 0.38 mm x 4.45 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $61.68 AUD Regular price Sale price $61.68 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00478-C (100 Pcs) --- Circlips - 4.78 mm x 0.38 mm x 4.45 mm Carbon Steel CCE-00478-C (100 Pcs) --- Circlips - 4.78 mm x 0.38 mm x 4.45 mm Carbon Steel Regular price $61.68 AUD Regular price Sale price $61.68 AUD Unit price per Out of stock! Backorder Now
4.78 mm	0.38 mm +/-0.038	4.45 mm +/-0.051	4.30 mm		0.50 mm
Material: Zinc Plated Yellow Clearance in Groove (C1): 7.26 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00478-CZY Circlips - 4.78 mm x 0.38 mm x 4.45 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
4.78 mm	0.38 mm +/-0.038	4.45 mm +/-0.051	4.30 mm
Material: Zinc Plated Yellow Groove Width (W): 0.50 mm Clearance in Groove (C1): 7.26 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00478-CZY Circlips - 4.78 mm x 0.38 mm x 4.45 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
5.00 mm	0.60 mm +0.00/-0.04	4.78 mm +0.00/-0.05	4.70 mm		0.70 mm
Material: Stainless PH15-7 Mo Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00500-S15 (10 Pcs) Circlips - 5 mm x 0.6 mm x 4.78 mm / Retaining Rings 43 units (430 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 10 View the product page first if you are unsure.
5.00 mm	0.60 mm +0.00/-0.04	4.78 mm +0.00/-0.05	4.70 mm
Material: Stainless PH15-7 Mo Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00500-S15 (10 Pcs) Circlips - 5 mm x 0.6 mm x 4.78 mm / Retaining Rings 43 units (430 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-00500-S15 (10 Pcs) --- Circlips - 5 mm x 0.6 mm x 4.78 mm Stainless PH15-7 Mo CCE-00500-S15 (10 Pcs) --- Circlips - 5 mm x 0.6 mm x 4.78 mm Stainless PH15-7 Mo Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per 43 Available Now
5.00 mm	0.60 mm +0.00/-0.04	4.78 mm +0.00/-0.05	4.70 mm		0.70 mm
Material: Carbon Steel Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00500-C (100 Pcs) Circlips - 5 mm x 0.6 mm x 4.78 mm / Retaining Rings 33 units (3300 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
5.00 mm	0.60 mm +0.00/-0.04	4.78 mm +0.00/-0.05	4.70 mm
Material: Carbon Steel Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00500-C (100 Pcs) Circlips - 5 mm x 0.6 mm x 4.78 mm / Retaining Rings 33 units (3300 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00500-C (100 Pcs) --- Circlips - 5 mm x 0.6 mm x 4.78 mm Carbon Steel CCE-00500-C (100 Pcs) --- Circlips - 5 mm x 0.6 mm x 4.78 mm Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 33 Available Now
5.01 mm	0.38 mm +/-0.038	4.78 mm +/-0.051	4.60 mm		0.46 mm
Material: Beryllium Copper Category: Retaining Rings - External - Circlips - Standard - Berryllium Copper
Part Number: CCE-00501-B (5 Pcs) Circlips - 5.01 mm x 0.38 mm x 4.78 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Per 5 View the product page first if you are unsure.
5.01 mm	0.38 mm +/-0.038	4.78 mm +/-0.051	4.60 mm
Material: Beryllium Copper Groove Width (W): 0.46 mm Category: Retaining Rings - External - Circlips - Standard - Berryllium Copper
Part Number: CCE-00501-B (5 Pcs) Circlips - 5.01 mm x 0.38 mm x 4.78 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-00501-B (5 Pcs) --- Circlips - 5.01 mm x 0.38 mm x 4.78 mm Beryllium Copper CCE-00501-B (5 Pcs) --- Circlips - 5.01 mm x 0.38 mm x 4.78 mm Beryllium Copper Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Out of stock! Backorder Now
5.01 mm	0.40 mm +/-0.038	4.78 mm +/-0.051	4.60 mm		0.50 mm
Material: Carbon Spring Steel Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00501-C Circlips - 5.01 mm x 0.4 mm x 4.78 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
5.01 mm	0.40 mm +/-0.038	4.78 mm +/-0.051	4.60 mm
Material: Carbon Spring Steel Groove Width (W): 0.50 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00501-C Circlips - 5.01 mm x 0.4 mm x 4.78 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
5.56 mm	0.40 mm +/-0.038	5.21 mm +/-0.051	5.00 mm		0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00556-C (50 Pcs) Circlips - 5.56 mm x 0.4 mm x 5.21 mm / Retaining Rings 1 pack (50 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$0.00 AUD~~ Sale price $8.00 AUD Unit price per Per 50
5.56 mm	0.40 mm +/-0.038	5.21 mm +/-0.051	5.00 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00556-C (50 Pcs) Circlips - 5.56 mm x 0.4 mm x 5.21 mm / Retaining Rings 1 pack (50 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity \| Regular price $8.00 AUD Regular price ~~$0.00 AUD~~ Sale price $8.00 AUD Unit price per Per 50
CCE-00556-C (50 Pcs) --- Circlips - 5.56 mm x 0.4 mm x 5.21 mm Carbon Steel CCE-00556-C (50 Pcs) --- Circlips - 5.56 mm x 0.4 mm x 5.21 mm Carbon Steel Regular price $8.00 AUD Regular price ~~$0.00 AUD~~ Sale price $8.00 AUD Unit price per 1 Available Now
5.56 mm	0.40 mm +/-0.038	5.21 mm +/-0.051	5.00 mm		0.50 mm
Material: Beryllium Copper Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Berryllium Copper
Part Number: CCE-00556-B (50 Pcs) Circlips - 5.56 mm x 0.4 mm x 5.21 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $55.95 AUD Regular price Sale price $55.95 AUD Unit price per Per 50 View the product page first if you are unsure.
5.56 mm	0.40 mm +/-0.038	5.21 mm +/-0.051	5.00 mm
Material: Beryllium Copper Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Berryllium Copper
Part Number: CCE-00556-B (50 Pcs) Circlips - 5.56 mm x 0.4 mm x 5.21 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $55.95 AUD Regular price Sale price $55.95 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00556-B (50 Pcs) --- Circlips - 5.56 mm x 0.4 mm x 5.21 mm Beryllium Copper CCE-00556-B (50 Pcs) --- Circlips - 5.56 mm x 0.4 mm x 5.21 mm Beryllium Copper Regular price $55.95 AUD Regular price Sale price $55.95 AUD Unit price per Out of stock! Backorder Now
5.95 mm	0.40 mm +/-0.038	5.60 mm +/-0.051	5.50 mm		0.50 mm
Material: Carbon Steel Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00595-C (100 Pcs) Circlips - 5.95 mm x 0.4 mm x 5.6 mm / Retaining Rings 3 units (300 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$0.00 AUD~~ Sale price $20.00 AUD Unit price per Per 100
5.95 mm	0.40 mm +/-0.038	5.60 mm +/-0.051	5.50 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00595-C (100 Pcs) Circlips - 5.95 mm x 0.4 mm x 5.6 mm / Retaining Rings 3 units (300 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity \| Regular price $20.00 AUD Regular price ~~$0.00 AUD~~ Sale price $20.00 AUD Unit price per Per 100
CCE-00595-C (100 Pcs) --- Circlips - 5.95 mm x 0.4 mm x 5.6 mm Carbon Steel CCE-00595-C (100 Pcs) --- Circlips - 5.95 mm x 0.4 mm x 5.6 mm Carbon Steel Regular price $20.00 AUD Regular price ~~$0.00 AUD~~ Sale price $20.00 AUD Unit price per 3 Available Now
5.95 mm	0.40 mm +/-0.038	5.60 mm +/-0.051	5.50 mm	B (Square Ends) mm	0.50 mm
Material: Beryllium Copper Category: Retaining Rings - External - Circlips - Standard - Berryllium Copper
Part Number: CCE-00595-B (50 Pcs) Circlips - 5.95 mm x 0.4 mm x 5.6 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Per 50 View the product page first if you are unsure.
5.95 mm	0.40 mm +/-0.038	5.60 mm +/-0.051	5.50 mm
Material: Beryllium Copper Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 0.50 mm Category: Retaining Rings - External - Circlips - Standard - Berryllium Copper
Part Number: CCE-00595-B (50 Pcs) Circlips - 5.95 mm x 0.4 mm x 5.6 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00595-B (50 Pcs) --- Circlips - 5.95 mm x 0.4 mm x 5.6 mm Beryllium Copper CCE-00595-B (50 Pcs) --- Circlips - 5.95 mm x 0.4 mm x 5.6 mm Beryllium Copper Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Out of stock! Backorder Now
6.00 mm	0.70 mm +0.00/-0.04	5.70 mm +0.00/-0.05	5.60 mm		0.80 mm
Material: Stainless PH15-7 Mo Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00600-S15 (10 Pcs) Circlips - 6 mm x 0.7 mm x 5.7 mm / Retaining Rings 34 units (340 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 10 View the product page first if you are unsure.
6.00 mm	0.70 mm +0.00/-0.04	5.70 mm +0.00/-0.05	5.60 mm
Material: Stainless PH15-7 Mo Groove Width (W): 0.80 mm Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00600-S15 (10 Pcs) Circlips - 6 mm x 0.7 mm x 5.7 mm / Retaining Rings 34 units (340 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-00600-S15 (10 Pcs) --- Circlips - 6 mm x 0.7 mm x 5.7 mm Stainless PH15-7 Mo CCE-00600-S15 (10 Pcs) --- Circlips - 6 mm x 0.7 mm x 5.7 mm Stainless PH15-7 Mo Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per 34 Available Now
6.00 mm	0.70 mm +0.00/-0.04	5.70 mm +0.00/-0.05	5.60 mm		0.80 mm
Material: Carbon Steel Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00600-C (100 Pcs) Circlips - 6 mm x 0.7 mm x 5.7 mm / Retaining Rings 20 units (2000 pcs) Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 100 View the product page first if you are unsure.
6.00 mm	0.70 mm +0.00/-0.04	5.70 mm +0.00/-0.05	5.60 mm
Material: Carbon Steel Groove Width (W): 0.80 mm Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00600-C (100 Pcs) Circlips - 6 mm x 0.7 mm x 5.7 mm / Retaining Rings 20 units (2000 pcs) Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00600-C (100 Pcs) --- Circlips - 6 mm x 0.7 mm x 5.7 mm Carbon Steel CCE-00600-C (100 Pcs) --- Circlips - 6 mm x 0.7 mm x 5.7 mm Carbon Steel Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per 20 Available Now

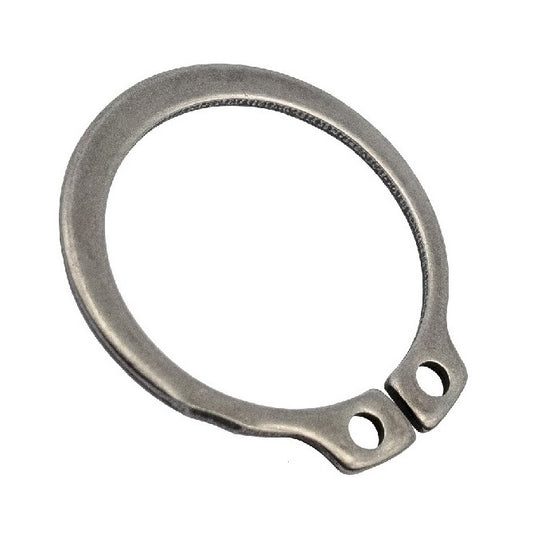

6.35 mm	0.64 mm +/-0.038	5.84 mm +/-0.051	5.72 mm		0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00635-CZ (500 Pcs) Circlips - 6.35 mm x 0.64 mm x 5.84 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $143.59 AUD Regular price Sale price $143.59 AUD Unit price per Per 500 View the product page first if you are unsure.
6.35 mm	0.64 mm +/-0.038	5.84 mm +/-0.051	5.72 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00635-CZ (500 Pcs) Circlips - 6.35 mm x 0.64 mm x 5.84 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $143.59 AUD Regular price Sale price $143.59 AUD Unit price per Per 500 View the product page first if you are unsure.
CCE-00635-CZ (500 Pcs) --- Circlips - 6.35 mm x 0.64 mm x 5.84 mm Carbon Steel Zinc Plated CCE-00635-CZ (500 Pcs) --- Circlips - 6.35 mm x 0.64 mm x 5.84 mm Carbon Steel Zinc Plated Regular price $143.59 AUD Regular price Sale price $143.59 AUD Unit price per Out of stock! Backorder Now
