Collection: Pins - Ball Lock - No Shoulder - Tee Handle
Pins -> Ball Lock -> No Shoulder -> Tee HandleThere are 19 products in the sub-categories of Pins - Ball Lock - No Shoulder - Tee Handle. Browse the Pins - Ball Lock - No Shoulder - Tee Handle products table. To narrow down the selection, please choose a sub-category from the links below.

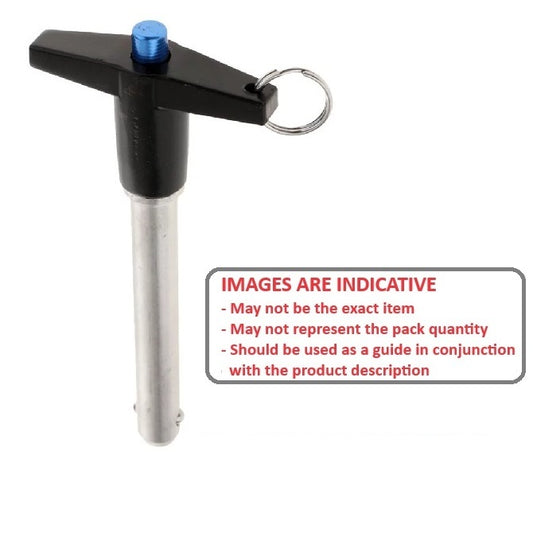

Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel
A selection of Commercial 304 Stainless Steel Tee Handle No Shoulder Ball...

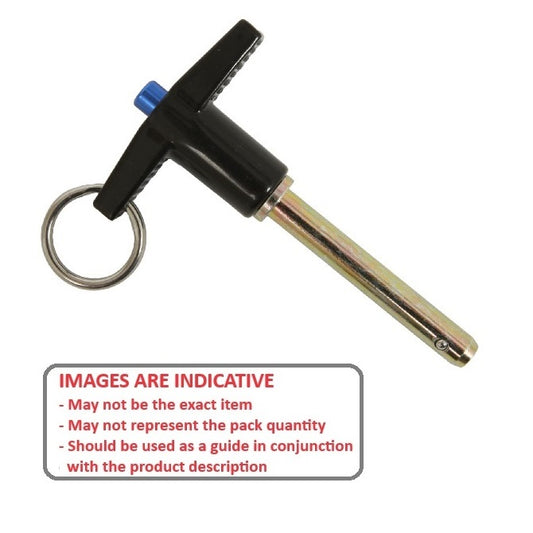

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial
This category includes various types of ball lock pins.An expanded range may...

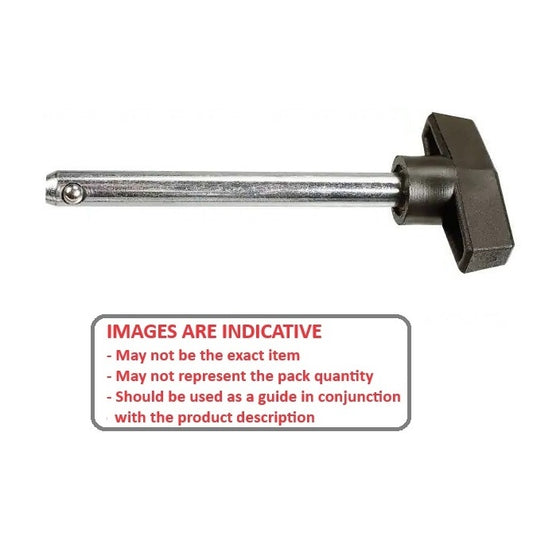

Pins - Ball Lock - No Shoulder - Tee Handle - Plastic Handle
A selection of Plastic Handle Tee Handle No Shoulder Ball Lock Pins....

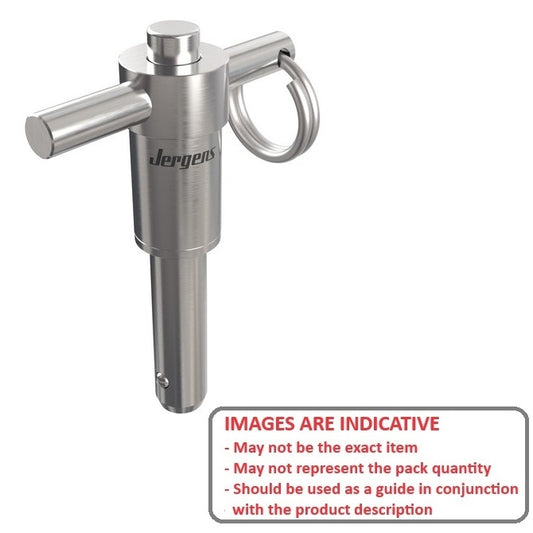

Pins - Ball Lock - No Shoulder - Tee Handle - Stainless Steel Heavy Duty
A selection of Stainless Steel Heavy Duty Tee Handle No Shoulder Ball...
Category Details
This category includes various types of ball lock pins.
- An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Pins - Ball Lock - No Shoulder - Tee Handle category on the MBA Minibearings main store.
| Nominal Diameter | Grip Length (B) | Pin Material Grade | Locking Ball to End (C) | Open Ball Distance (B) | Max. Handle Height (H) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Nominal Diameter
4.76
mm (Equiv. 0.187 in.) |
Grip Length (B)
76.20
mm (Equiv. 3 in.) |
Pin Material Grade
17-4 PH Stainless
|
Locking Ball to End (C)
6.60
mm |
Open Ball Distance (B)
5.58
mm |
|
|
|
Material: Stainless Steel 17-4 PH
Handle Diameter (F): 46.10 mm
Handle Height (G): 32.25 mm
Pull Out Strength: 89.00 Kg
Calc. Double Shear Strength: 2300 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial |
||||||
|
Part Number: BLP-048-0762-TI-S17 (Each)
Ball Lock Pins - 4.76x76.2 mm - 17-4 PH Stainless No Shoulder Pin 1 Available Now | Further orders can be expected around Tue, Dec 30, 2025 Regular price
$67.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Nominal Diameter | Grip Length (B) | Pin Material Grade | Locking Ball to End (C) |
Indicative Image |
||
|
Nominal Diameter
4.76
mm (Equiv. 0.187 in.) |
Grip Length (B)
76.20
mm (Equiv. 3 in.) |
Pin Material Grade
17-4 PH Stainless
|
Locking Ball to End (C)
6.60
mm |
|
||
|
Material: Stainless Steel 17-4 PH
Open Ball Distance (B): 5.58 mm
Handle Diameter (F): 46.10 mm
Handle Height (G): 32.25 mm
Pull Out Strength: 89.00 Kg
Calc. Double Shear Strength: 2300 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial |
||||||
|
Part Number: BLP-048-0762-TI-S17 (Each)
Ball Lock Pins - 4.76x76.2 mm - 17-4 PH Stainless No Shoulder Pin 1 Available Now | Further orders can be expected around Tue, Dec 30, 2025 Regular price
$67.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
6.00
mm (Equiv. 0.236 in.) |
Grip Length (B)
25.00
mm (Equiv. 0.984 in.) |
Pin Material Grade
17-4 PH Stainless / Aluminium Handle
|
Locking Ball to End (C)
7.00
mm |
Open Ball Distance (B)
6.99
mm |
|
|
|
Material: Stainless Steel 17-4 PH with Aluminium Handle
Handle Diameter (F): 13.00 mm
Handle Height (G): 46.00 mm
Pull Out Strength: 32.00 Kg
Calc. Double Shear Strength: 18 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial |
||||||
|
Part Number: BLP-060-0250-TI-S17 (Each)
Ball Lock Pins - 6x25 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin 1 Available Now | Further orders can be expected around Tue, Dec 30, 2025 Regular price
$61.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
6.00
mm (Equiv. 0.236 in.) |
Grip Length (B)
25.00
mm (Equiv. 0.984 in.) |
Pin Material Grade
17-4 PH Stainless / Aluminium Handle
|
Locking Ball to End (C)
7.00
mm |
|
||
|
Material: Stainless Steel 17-4 PH with Aluminium Handle
Open Ball Distance (B): 6.99 mm
Handle Diameter (F): 13.00 mm
Handle Height (G): 46.00 mm
Pull Out Strength: 32.00 Kg
Calc. Double Shear Strength: 18 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial |
||||||
|
Part Number: BLP-060-0250-TI-S17 (Each)
Ball Lock Pins - 6x25 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin 1 Available Now | Further orders can be expected around Tue, Dec 30, 2025 Regular price
$61.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|

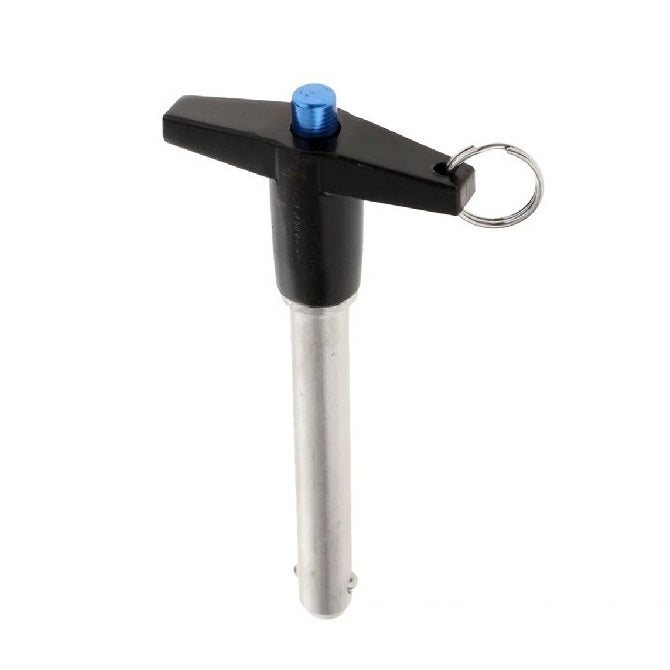

Nominal Diameter
6.35
mm (Equiv. 0.25 in.) |
Grip Length (B)
12.70
mm (Equiv. 0.5 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
7.37
mm |
Open Ball Distance (B)
7.34
mm |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Handle Diameter (F): 46.10 mm
Handle Height (G): 32.26 mm
Pull Out Strength: 80.00 Kg
Calc. Double Shear Strength: 980 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-064-0127-T-S4 (Each)
Ball Lock Pins - 6.35x12.7 mm - 304 Stainless Steel No Shoulder Pin 1 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$27.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
6.35
mm (Equiv. 0.25 in.) |
Grip Length (B)
12.70
mm (Equiv. 0.5 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
7.37
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Open Ball Distance (B): 7.34 mm
Handle Diameter (F): 46.10 mm
Handle Height (G): 32.26 mm
Pull Out Strength: 80.00 Kg
Calc. Double Shear Strength: 980 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-064-0127-T-S4 (Each)
Ball Lock Pins - 6.35x12.7 mm - 304 Stainless Steel No Shoulder Pin 1 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$27.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
6.35
mm (Equiv. 0.25 in.) |
Grip Length (B)
25.40
mm (Equiv. 1 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
7.37
mm |
Open Ball Distance (B)
7.34
mm |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Handle Diameter (F): 46.10 mm
Handle Height (G): 32.26 mm
Pull Out Strength: 80.00 Kg
Calc. Double Shear Strength: 980 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-064-0254-T-S4 (Each)
Ball Lock Pins - 6.35x25.4 mm - 304 Stainless Steel No Shoulder Pin 1 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$28.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
6.35
mm (Equiv. 0.25 in.) |
Grip Length (B)
25.40
mm (Equiv. 1 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
7.37
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Open Ball Distance (B): 7.34 mm
Handle Diameter (F): 46.10 mm
Handle Height (G): 32.26 mm
Pull Out Strength: 80.00 Kg
Calc. Double Shear Strength: 980 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-064-0254-T-S4 (Each)
Ball Lock Pins - 6.35x25.4 mm - 304 Stainless Steel No Shoulder Pin 1 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$28.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|

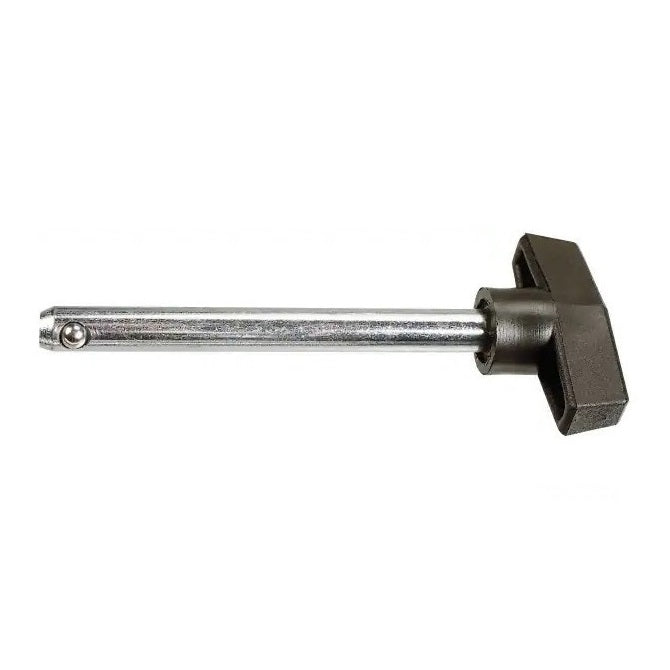

Nominal Diameter
6.35
mm (Equiv. 0.25 in.) |
Grip Length (B)
50.80
mm (Equiv. 2 in.) |
Pin Material Grade
Carbon Steel
|
Locking Ball to End (C)
7.93
mm |
Open Ball Distance (B)
7.26
mm |
|
|
|
Material: Carbon Steel with Plastic Handle
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Plastic Handle Deleted Item. Available while stocks last. |
||||||
|
Part Number: BLP-064-0508-T-PC (Each)
Ball Lock Pins - 6.35x50.8 mm - Carbon Steel No Shoulder Pin 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$15.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
6.35
mm (Equiv. 0.25 in.) |
Grip Length (B)
50.80
mm (Equiv. 2 in.) |
Pin Material Grade
Carbon Steel
|
Locking Ball to End (C)
7.93
mm |
|
||
|
Material: Carbon Steel with Plastic Handle
Open Ball Distance (B): 7.26 mm
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Plastic Handle Deleted Item. Available while stocks last. |
||||||
|
Part Number: BLP-064-0508-T-PC (Each)
Ball Lock Pins - 6.35x50.8 mm - Carbon Steel No Shoulder Pin 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$15.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
7.94
mm (Equiv. 0.313 in.) |
Grip Length (B)
12.70
mm (Equiv. 0.5 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
8.38
mm |
Open Ball Distance (B)
9.53
mm |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Handle Diameter (F): 46.10 mm
Handle Height (G): 32.26 mm
Pull Out Strength: 178.00 Kg
Calc. Double Shear Strength: 1560 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-079-0127-T-S4 (Each)
Ball Lock Pins - 7.94x12.7 mm - 304 Stainless Steel No Shoulder Pin 1 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$27.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
7.94
mm (Equiv. 0.313 in.) |
Grip Length (B)
12.70
mm (Equiv. 0.5 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
8.38
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Open Ball Distance (B): 9.53 mm
Handle Diameter (F): 46.10 mm
Handle Height (G): 32.26 mm
Pull Out Strength: 178.00 Kg
Calc. Double Shear Strength: 1560 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-079-0127-T-S4 (Each)
Ball Lock Pins - 7.94x12.7 mm - 304 Stainless Steel No Shoulder Pin 1 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$27.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
7.94
mm (Equiv. 0.313 in.) |
Grip Length (B)
50.80
mm (Equiv. 2 in.) |
Pin Material Grade
Carbon Steel
|
Locking Ball to End (C)
9.53
mm |
Open Ball Distance (B)
9.09
mm |
|
|
|
Material: Carbon Steel with Plastic Handle
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Plastic Handle Deleted Item. Available while stocks last. |
||||||
|
Part Number: BLP-079-0508-T-PC (Each)
Ball Lock Pins - 7.94x50.8 mm - Carbon Steel No Shoulder Pin 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$16.91 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
7.94
mm (Equiv. 0.313 in.) |
Grip Length (B)
50.80
mm (Equiv. 2 in.) |
Pin Material Grade
Carbon Steel
|
Locking Ball to End (C)
9.53
mm |
|
||
|
Material: Carbon Steel with Plastic Handle
Open Ball Distance (B): 9.09 mm
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Plastic Handle Deleted Item. Available while stocks last. |
||||||
|
Part Number: BLP-079-0508-T-PC (Each)
Ball Lock Pins - 7.94x50.8 mm - Carbon Steel No Shoulder Pin 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$16.91 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|

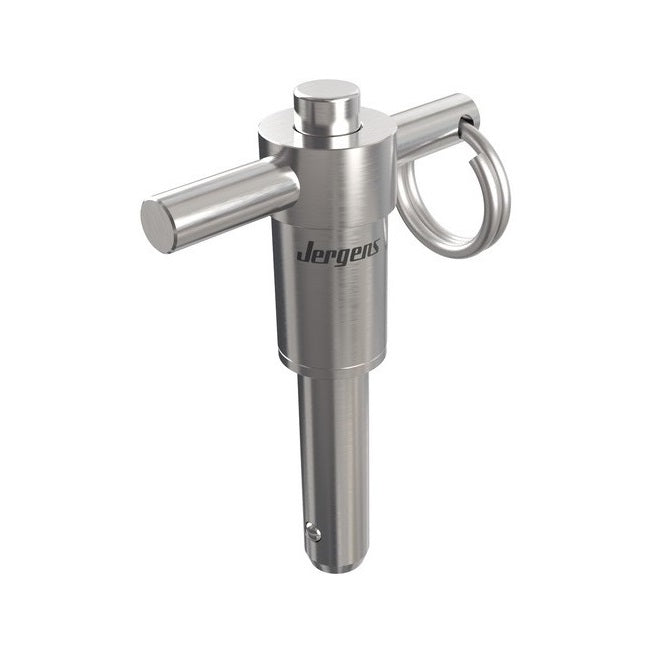

Nominal Diameter
7.94
mm (Equiv. 0.313 in.) |
Grip Length (B)
50.80
mm (Equiv. 2 in.) |
Pin Material Grade
17-4 PH Stainless
|
Locking Ball to End (C)
10.16
mm |
Open Ball Distance (B)
9.45
mm |
|
|
|
Material: Stainless Steel 17-4 PH
Handle Diameter (F): 12.70 mm
Handle Height (G): 39.37 mm
Pull Out Strength: 50.80 Kg
Calc. Double Shear Strength: 230 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Stainless Steel Heavy Duty |
||||||
|
Part Number: BLP-079-0508-THD-S17 (Each)
Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless No Shoulder Pin Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$135.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
7.94
mm (Equiv. 0.313 in.) |
Grip Length (B)
50.80
mm (Equiv. 2 in.) |
Pin Material Grade
17-4 PH Stainless
|
Locking Ball to End (C)
10.16
mm |
|
||
|
Material: Stainless Steel 17-4 PH
Open Ball Distance (B): 9.45 mm
Handle Diameter (F): 12.70 mm
Handle Height (G): 39.37 mm
Pull Out Strength: 50.80 Kg
Calc. Double Shear Strength: 230 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Stainless Steel Heavy Duty |
||||||
|
Part Number: BLP-079-0508-THD-S17 (Each)
Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless No Shoulder Pin Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 30, 2025 Regular price
$135.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
9.53
mm (Equiv. 0.375 in.) |
Grip Length (B)
12.70
mm (Equiv. 0.5 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
9.27
mm |
Open Ball Distance (B)
11.18
mm |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Handle Diameter (F): 52.45 mm
Handle Height (G): 36.83 mm
Pull Out Strength: 200.00 Kg
Calc. Double Shear Strength: 2000 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-095-0127-T-S4 (Each)
Ball Lock Pins - 9.53x12.7 mm - 304 Stainless Steel No Shoulder Pin 2 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$30.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
9.53
mm (Equiv. 0.375 in.) |
Grip Length (B)
12.70
mm (Equiv. 0.5 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
9.27
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Open Ball Distance (B): 11.18 mm
Handle Diameter (F): 52.45 mm
Handle Height (G): 36.83 mm
Pull Out Strength: 200.00 Kg
Calc. Double Shear Strength: 2000 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-095-0127-T-S4 (Each)
Ball Lock Pins - 9.53x12.7 mm - 304 Stainless Steel No Shoulder Pin 2 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$30.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
9.53
mm (Equiv. 0.375 in.) |
Grip Length (B)
38.10
mm (Equiv. 1.5 in.) |
Pin Material Grade
17-4 PH Stainless
|
Locking Ball to End (C)
9.27
mm |
Open Ball Distance (B)
11.17
mm |
|
|
|
Material: Stainless Steel 17-4 PH
Handle Diameter (F): 52.45 mm
Handle Height (G): 36.83 mm
Pull Out Strength: 256.00 Kg
Calc. Double Shear Strength: 9100 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial |
||||||
|
Part Number: BLP-095-0381-TI-S17 (Each)
Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless No Shoulder Pin 1 Available Now | Further orders can be expected around Tue, Dec 30, 2025 Regular price
$61.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
9.53
mm (Equiv. 0.375 in.) |
Grip Length (B)
38.10
mm (Equiv. 1.5 in.) |
Pin Material Grade
17-4 PH Stainless
|
Locking Ball to End (C)
9.27
mm |
|
||
|
Material: Stainless Steel 17-4 PH
Open Ball Distance (B): 11.17 mm
Handle Diameter (F): 52.45 mm
Handle Height (G): 36.83 mm
Pull Out Strength: 256.00 Kg
Calc. Double Shear Strength: 9100 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial |
||||||
|
Part Number: BLP-095-0381-TI-S17 (Each)
Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless No Shoulder Pin 1 Available Now | Further orders can be expected around Tue, Dec 30, 2025 Regular price
$61.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
9.53
mm (Equiv. 0.375 in.) |
Grip Length (B)
38.10
mm (Equiv. 1.5 in.) |
Pin Material Grade
Carbon Steel
|
Locking Ball to End (C)
12.70
mm |
Open Ball Distance (B)
10.82
mm |
|
|
|
Material: Carbon Steel with Plastic Handle
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Plastic Handle Deleted Item. Available while stocks last. |
||||||
|
Part Number: BLP-095-0381-T-PC (Each)
Ball Lock Pins - 9.53x38.1 mm - Carbon Steel No Shoulder Pin 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$15.56 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
9.53
mm (Equiv. 0.375 in.) |
Grip Length (B)
38.10
mm (Equiv. 1.5 in.) |
Pin Material Grade
Carbon Steel
|
Locking Ball to End (C)
12.70
mm |
|
||
|
Material: Carbon Steel with Plastic Handle
Open Ball Distance (B): 10.82 mm
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Plastic Handle Deleted Item. Available while stocks last. |
||||||
|
Part Number: BLP-095-0381-T-PC (Each)
Ball Lock Pins - 9.53x38.1 mm - Carbon Steel No Shoulder Pin 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$15.56 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
9.53
mm (Equiv. 0.375 in.) |
Grip Length (B)
50.80
mm (Equiv. 2 in.) |
Pin Material Grade
Alloy Steel / Aluminium Handle
|
Locking Ball to End (C)
9.27
mm |
Open Ball Distance (B)
11.17
mm |
|
|
|
Material: Steel Alloy with Aluminium Handle
Handle Height (G): 52.45 mm
Pull Out Strength: 36.83 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial Deleted Item. Available while stocks last. |
||||||
|
Part Number: BLP-095-0508-TI-AC (Each)
Ball Lock Pins - 9.53x50.8 mm - Alloy Steel / Aluminium Handle No Shoulder Pin 3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$14.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
9.53
mm (Equiv. 0.375 in.) |
Grip Length (B)
50.80
mm (Equiv. 2 in.) |
Pin Material Grade
Alloy Steel / Aluminium Handle
|
Locking Ball to End (C)
9.27
mm |
|
||
|
Material: Steel Alloy with Aluminium Handle
Open Ball Distance (B): 11.17 mm
Handle Height (G): 52.45 mm
Pull Out Strength: 36.83 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial Deleted Item. Available while stocks last. |
||||||
|
Part Number: BLP-095-0508-TI-AC (Each)
Ball Lock Pins - 9.53x50.8 mm - Alloy Steel / Aluminium Handle No Shoulder Pin 3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$14.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
9.53
mm (Equiv. 0.375 in.) |
Grip Length (B)
50.80
mm (Equiv. 2 in.) |
Pin Material Grade
Carbon Steel
|
Locking Ball to End (C)
12.70
mm |
Open Ball Distance (B)
10.82
mm |
|
|
|
Material: Carbon Steel with Plastic Handle
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Plastic Handle Deleted Item. Available while stocks last. |
||||||
|
Part Number: BLP-095-0508-T-PC (Each)
Ball Lock Pins - 9.53x50.8 mm - Carbon Steel No Shoulder Pin 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$18.19 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
9.53
mm (Equiv. 0.375 in.) |
Grip Length (B)
50.80
mm (Equiv. 2 in.) |
Pin Material Grade
Carbon Steel
|
Locking Ball to End (C)
12.70
mm |
|
||
|
Material: Carbon Steel with Plastic Handle
Open Ball Distance (B): 10.82 mm
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Plastic Handle Deleted Item. Available while stocks last. |
||||||
|
Part Number: BLP-095-0508-T-PC (Each)
Ball Lock Pins - 9.53x50.8 mm - Carbon Steel No Shoulder Pin 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$18.19 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
9.53
mm (Equiv. 0.375 in.) |
Grip Length (B)
88.90
mm (Equiv. 3.5 in.) |
Pin Material Grade
Carbon Steel
|
Locking Ball to End (C)
12.70
mm |
Open Ball Distance (B)
10.82
mm |
|
|
|
Material: Carbon Steel with Plastic Handle
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Plastic Handle Deleted Item. Available while stocks last. |
||||||
|
Part Number: BLP-095-0889-T-PC (Each)
Ball Lock Pins - 9.53x88.9 mm - Carbon Steel No Shoulder Pin 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$16.91 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
9.53
mm (Equiv. 0.375 in.) |
Grip Length (B)
88.90
mm (Equiv. 3.5 in.) |
Pin Material Grade
Carbon Steel
|
Locking Ball to End (C)
12.70
mm |
|
||
|
Material: Carbon Steel with Plastic Handle
Open Ball Distance (B): 10.82 mm
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Plastic Handle Deleted Item. Available while stocks last. |
||||||
|
Part Number: BLP-095-0889-T-PC (Each)
Ball Lock Pins - 9.53x88.9 mm - Carbon Steel No Shoulder Pin 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$16.91 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
12.00
mm (Equiv. 0.472 in.) |
Grip Length (B)
50.00
mm (Equiv. 1.969 in.) |
Pin Material Grade
17-4 PH Stainless / Aluminium Handle
|
Locking Ball to End (C)
10.00
mm |
Open Ball Distance (B)
14.45
mm |
|
|
|
Material: Stainless Steel 17-4 PH with Aluminium Handle
Handle Diameter (F): 16.00 mm
Handle Height (G): 51.00 mm
Pull Out Strength: 37.00 Kg
Calc. Double Shear Strength: 21 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial |
||||||
|
Part Number: BLP-120-0500-TI-S17 (Each)
Ball Lock Pins - 12x50 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin 1 Available Now | Further orders can be expected around Tue, Dec 30, 2025 Regular price
$114.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
12.00
mm (Equiv. 0.472 in.) |
Grip Length (B)
50.00
mm (Equiv. 1.969 in.) |
Pin Material Grade
17-4 PH Stainless / Aluminium Handle
|
Locking Ball to End (C)
10.00
mm |
|
||
|
Material: Stainless Steel 17-4 PH with Aluminium Handle
Open Ball Distance (B): 14.45 mm
Handle Diameter (F): 16.00 mm
Handle Height (G): 51.00 mm
Pull Out Strength: 37.00 Kg
Calc. Double Shear Strength: 21 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial |
||||||
|
Part Number: BLP-120-0500-TI-S17 (Each)
Ball Lock Pins - 12x50 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin 1 Available Now | Further orders can be expected around Tue, Dec 30, 2025 Regular price
$114.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
12.70
mm (Equiv. 0.5 in.) |
Grip Length (B)
38.10
mm (Equiv. 1.5 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
11.68
mm |
Open Ball Distance (B)
15.09
mm |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Handle Diameter (F): 59.56 mm
Handle Height (G): 40.64 mm
Pull Out Strength: 400.00 Kg
Calc. Double Shear Strength: 5130 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-127-0381-T-S4 (Each)
Ball Lock Pins - 12.7x38.1 mm - 304 Stainless Steel No Shoulder Pin 4 Available Now | Further orders can be expected around Tue, Dec 30, 2025 Regular price
$91.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
12.70
mm (Equiv. 0.5 in.) |
Grip Length (B)
38.10
mm (Equiv. 1.5 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
11.68
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Open Ball Distance (B): 15.09 mm
Handle Diameter (F): 59.56 mm
Handle Height (G): 40.64 mm
Pull Out Strength: 400.00 Kg
Calc. Double Shear Strength: 5130 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-127-0381-T-S4 (Each)
Ball Lock Pins - 12.7x38.1 mm - 304 Stainless Steel No Shoulder Pin 4 Available Now | Further orders can be expected around Tue, Dec 30, 2025 Regular price
$91.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
12.70
mm (Equiv. 0.5 in.) |
Grip Length (B)
63.50
mm (Equiv. 2.5 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
11.68
mm |
Open Ball Distance (B)
15.09
mm |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Handle Diameter (F): 59.56 mm
Handle Height (G): 40.64 mm
Pull Out Strength: 400.00 Kg
Calc. Double Shear Strength: 5130 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-127-0635-T-S4 (Each)
Ball Lock Pins - 12.7x63.5 mm - 304 Stainless Steel No Shoulder Pin 1 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$49.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
12.70
mm (Equiv. 0.5 in.) |
Grip Length (B)
63.50
mm (Equiv. 2.5 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
11.68
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Open Ball Distance (B): 15.09 mm
Handle Diameter (F): 59.56 mm
Handle Height (G): 40.64 mm
Pull Out Strength: 400.00 Kg
Calc. Double Shear Strength: 5130 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-127-0635-T-S4 (Each)
Ball Lock Pins - 12.7x63.5 mm - 304 Stainless Steel No Shoulder Pin 1 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$49.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
12.70
mm (Equiv. 0.5 in.) |
Grip Length (B)
101.60
mm (Equiv. 4 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
11.68
mm |
Open Ball Distance (B)
15.09
mm |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Handle Diameter (F): 59.56 mm
Handle Height (G): 40.64 mm
Pull Out Strength: 400.00 Kg
Calc. Double Shear Strength: 5130 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-127-1016-T-S4 (Each)
Ball Lock Pins - 12.7x101.6 mm - 304 Stainless Steel No Shoulder Pin 1 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$56.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
12.70
mm (Equiv. 0.5 in.) |
Grip Length (B)
101.60
mm (Equiv. 4 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
11.68
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Open Ball Distance (B): 15.09 mm
Handle Diameter (F): 59.56 mm
Handle Height (G): 40.64 mm
Pull Out Strength: 400.00 Kg
Calc. Double Shear Strength: 5130 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-127-1016-T-S4 (Each)
Ball Lock Pins - 12.7x101.6 mm - 304 Stainless Steel No Shoulder Pin 1 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$56.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Nominal Diameter
15.88
mm (Equiv. 0.625 in.) |
Grip Length (B)
76.20
mm (Equiv. 3 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
14.73
mm |
Open Ball Distance (B)
19.05
mm |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Handle Diameter (F): 78.74 mm
Handle Height (G): 43.18 mm
Pull Out Strength: 660.00 Kg
Calc. Double Shear Strength: 8480 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-159-0762-T-S4 (Each)
Ball Lock Pins - 15.88x76.2 mm - 304 Stainless Steel No Shoulder Pin 3 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$68.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Nominal Diameter
15.88
mm (Equiv. 0.625 in.) |
Grip Length (B)
76.20
mm (Equiv. 3 in.) |
Pin Material Grade
304 Stainless Steel
|
Locking Ball to End (C)
14.73
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Open Ball Distance (B): 19.05 mm
Handle Diameter (F): 78.74 mm
Handle Height (G): 43.18 mm
Pull Out Strength: 660.00 Kg
Calc. Double Shear Strength: 8480 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel |
||||||
|
Part Number: BLP-159-0762-T-S4 (Each)
Ball Lock Pins - 15.88x76.2 mm - 304 Stainless Steel No Shoulder Pin 3 Available Now | Further orders can be expected around Sat, Mar 07, 2026 Regular price
$68.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
