Pins - Ball Lock - No Shoulder - Tee Handle - Industrial

Pins -> Ball Lock -> No Shoulder -> Tee Handle -> Industrial

There are 5 products in the sub-categories of Pins - Ball Lock - No Shoulder - Tee Handle - Industrial. Browse the Pins - Ball Lock - No Shoulder - Tee Handle - Industrial products table. To narrow down the selection, please choose a sub-category from the links below.

Ball Lock Pins - 4.76x76.2 mm - 17-4 PH Stainless

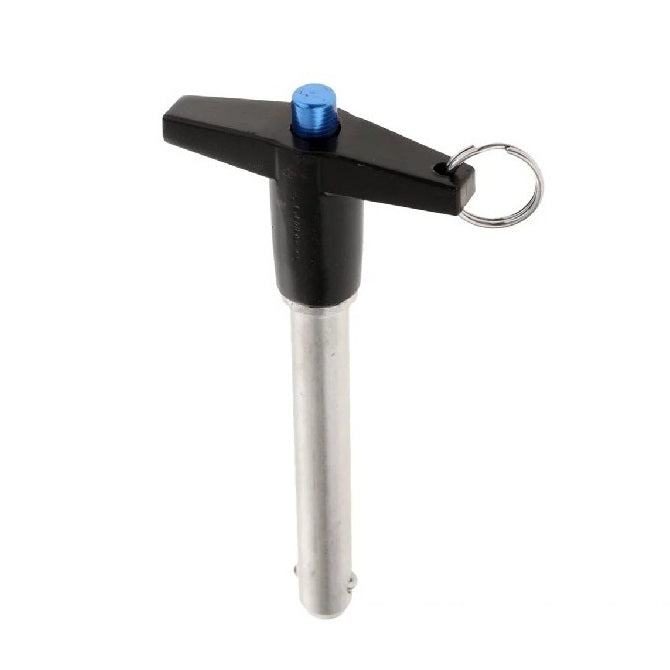

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel

A selection of Stainless Steel Industrial Tee Handle No Shoulder Ball Lock...

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel

Ball Lock Pins - 6x25 mm - 17-4 PH Stainless / Aluminium Handle

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu

A selection of Stainless-Alu Industrial Tee Handle No Shoulder Ball Lock Pins....

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu

Ball Lock Pins - 9.53x50.8 mm - Alloy Steel / Aluminium Handle

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Steel and Aluminium

A selection of Steel and Aluminium Industrial Tee Handle No Shoulder Ball...

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Steel and Aluminium

Category Details

This category includes various types of ball lock pins.
  • An expanded range may be available on special order. Please enquire.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Pins - Ball Lock - No Shoulder - Tee Handle - Industrial category on the MBA Minibearings main store.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Open Ball Distance (B) Max. Handle Height (H) Indicative
Nominal Diameter
4.76
mm

(Equiv. 0.187 in.)
Grip Length (B)
76.20
mm

(Equiv. 3 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
6.60
mm
Open Ball Distance (B)
5.58
mm
Ball Lock Pins - 4.76x76.2 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Handle Width (F): 46.10 mm    Handle Length (G): 32.25 mm    Pull Out Strength: 89.00 Kg    Calc. Double Shear Strength: 2300 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-048-0762-TI-S17 (Each)
Ball Lock Pins - 4.76x76.2 mm - 17-4 PH Stainless No Shoulder Pin
1 Available Now | Further orders can be expected around Wed, Dec 31, 2025
$67.86 AUD
$115.84 AUD $67.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Indicative
Nominal Diameter
4.76
mm

(Equiv. 0.187 in.)
Grip Length (B)
76.20
mm

(Equiv. 3 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
6.60
mm
Ball Lock Pins - 4.76x76.2 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 5.58 mm    Handle Width (F): 46.10 mm    Handle Length (G): 32.25 mm    Pull Out Strength: 89.00 Kg    Calc. Double Shear Strength: 2300 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-048-0762-TI-S17 (Each)
Ball Lock Pins - 4.76x76.2 mm - 17-4 PH Stainless No Shoulder Pin
1 Available Now | Further orders can be expected around Wed, Dec 31, 2025
$67.86 AUD
$115.84 AUD $67.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Nominal Diameter
6.00
mm

(Equiv. 0.236 in.)
Grip Length (B)
25.00
mm

(Equiv. 0.984 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
7.00
mm
Open Ball Distance (B)
6.99
mm

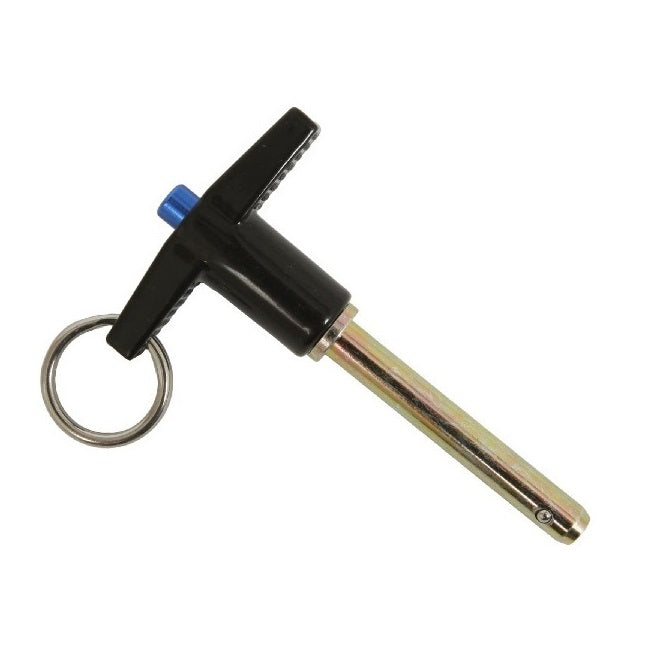

Ball Lock Pins - 6x25 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Handle Width (F): 13.00 mm    Handle Length (G): 46.00 mm    Pull Out Strength: 32.00 Kg    Calc. Double Shear Strength: 18 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-060-0250-TI-S17 (Each)
Ball Lock Pins - 6x25 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
1 Available Now | Further orders can be expected around Wed, Dec 31, 2025
$61.23 AUD
$73.47 AUD $61.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Nominal Diameter
6.00
mm

(Equiv. 0.236 in.)
Grip Length (B)
25.00
mm

(Equiv. 0.984 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
7.00
mm
Ball Lock Pins - 6x25 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 6.99 mm    Handle Width (F): 13.00 mm    Handle Length (G): 46.00 mm    Pull Out Strength: 32.00 Kg    Calc. Double Shear Strength: 18 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-060-0250-TI-S17 (Each)
Ball Lock Pins - 6x25 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
1 Available Now | Further orders can be expected around Wed, Dec 31, 2025
$61.23 AUD
$73.47 AUD $61.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
38.10
mm

(Equiv. 1.5 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
9.27
mm
Open Ball Distance (B)
11.17
mm
Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Handle Width (F): 52.45 mm    Handle Length (G): 36.83 mm    Pull Out Strength: 256.00 Kg    Calc. Double Shear Strength: 9100 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-095-0381-TI-S17 (Each)
Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless No Shoulder Pin
1 Available Now | Further orders can be expected around Wed, Dec 31, 2025
$61.95 AUD
$128.26 AUD $61.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
38.10
mm

(Equiv. 1.5 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
9.27
mm
Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 11.17 mm    Handle Width (F): 52.45 mm    Handle Length (G): 36.83 mm    Pull Out Strength: 256.00 Kg    Calc. Double Shear Strength: 9100 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-095-0381-TI-S17 (Each)
Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless No Shoulder Pin
1 Available Now | Further orders can be expected around Wed, Dec 31, 2025
$61.95 AUD
$128.26 AUD $61.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
50.80
mm

(Equiv. 2 in.)
Pin Material Grade
Alloy Steel / Aluminium Handle

Locking Ball to End (C)
9.27
mm
Open Ball Distance (B)
11.17
mm
Ball Lock Pins - 9.53x50.8 mm - Alloy Steel / Aluminium Handle
Material: Steel Alloy with Aluminium Handle    Handle Length (G): 52.45 mm    Pull Out Strength: 36.83 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Steel and Aluminium
Deleted Item. Available while stocks last.
Part Number: BLP-095-0508-TI-AC (Each)
Ball Lock Pins - 9.53x50.8 mm - Alloy Steel / Aluminium Handle No Shoulder Pin
3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.00 AUD
$26.60 AUD $14.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
50.80
mm

(Equiv. 2 in.)
Pin Material Grade
Alloy Steel / Aluminium Handle

Locking Ball to End (C)
9.27
mm
Ball Lock Pins - 9.53x50.8 mm - Alloy Steel / Aluminium Handle
Material: Steel Alloy with Aluminium Handle    Open Ball Distance (B): 11.17 mm    Handle Length (G): 52.45 mm    Pull Out Strength: 36.83 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Steel and Aluminium
Deleted Item. Available while stocks last.
Part Number: BLP-095-0508-TI-AC (Each)
Ball Lock Pins - 9.53x50.8 mm - Alloy Steel / Aluminium Handle No Shoulder Pin
3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.00 AUD
$26.60 AUD $14.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Diameter
12.00
mm

(Equiv. 0.472 in.)
Grip Length (B)
50.00
mm

(Equiv. 1.969 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
10.00
mm
Open Ball Distance (B)
14.45
mm
Ball Lock Pins - 12x50 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Handle Width (F): 16.00 mm    Handle Length (G): 51.00 mm    Pull Out Strength: 37.00 Kg    Calc. Double Shear Strength: 21 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-120-0500-TI-S17 (Each)
Ball Lock Pins - 12x50 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
1 Available Now | Further orders can be expected around Wed, Dec 31, 2025
$114.32 AUD
$137.18 AUD $114.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Nominal Diameter
12.00
mm

(Equiv. 0.472 in.)
Grip Length (B)
50.00
mm

(Equiv. 1.969 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
10.00
mm
Ball Lock Pins - 12x50 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 14.45 mm    Handle Width (F): 16.00 mm    Handle Length (G): 51.00 mm    Pull Out Strength: 37.00 Kg    Calc. Double Shear Strength: 21 Kg
Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-120-0500-TI-S17 (Each)
Ball Lock Pins - 12x50 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
1 Available Now | Further orders can be expected around Wed, Dec 31, 2025
$114.32 AUD
$137.18 AUD $114.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
