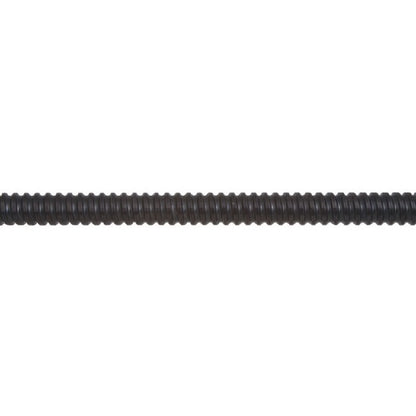

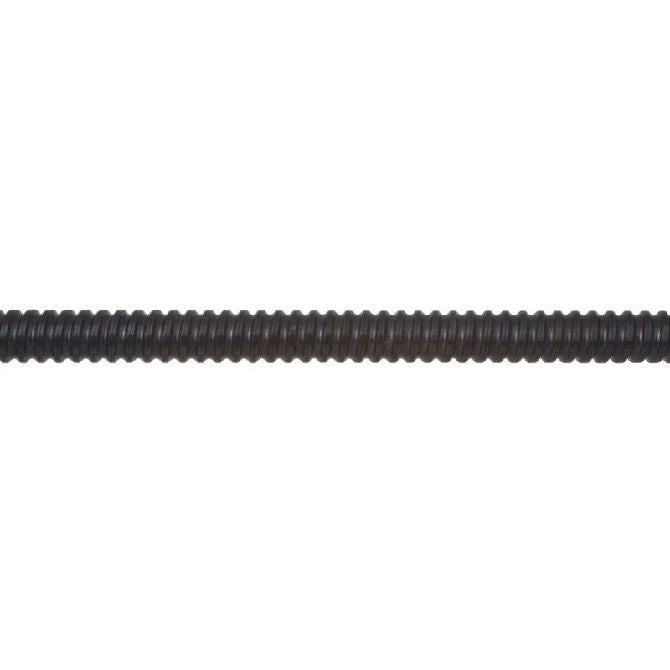

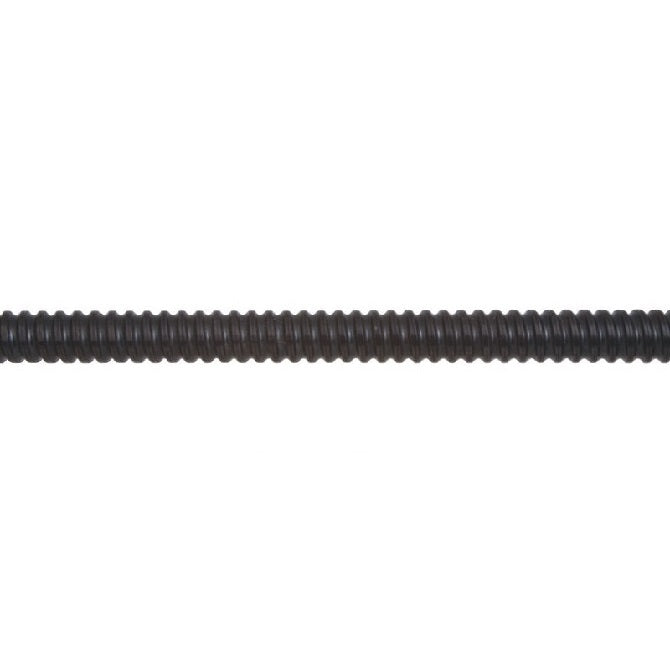

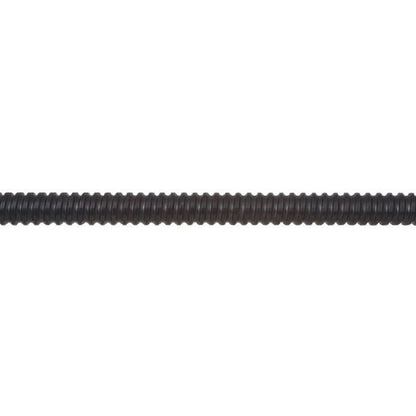

Ground Miniature Dia 4mm Ballscrew - Right 83 / 86 / 92 / 115 65 mm Lead 1mm - Chrome Steel

SG0401-83R115C3KSS (Each)

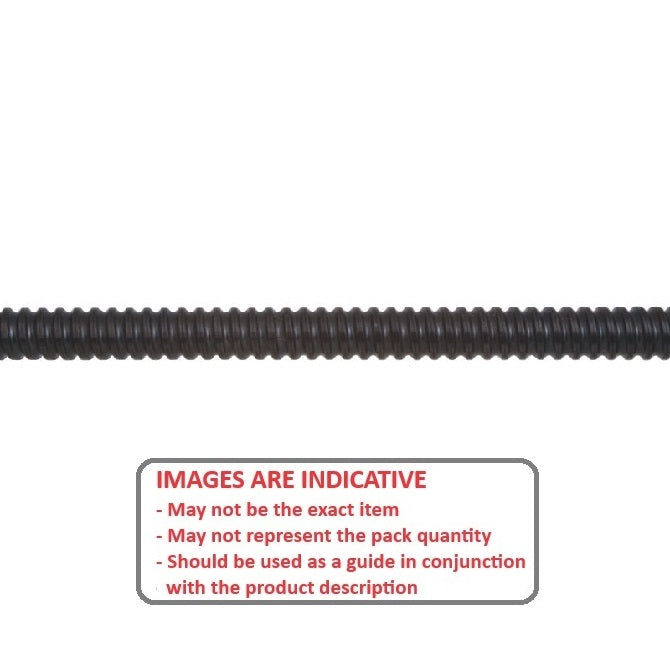

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Ground Lengths Ballscrew - Right 83 / 86 / 92 / 115 65 mm - Chrome Steel
1 4

MBA

Store Name: Small Parts & Bearings

Price:
$200.00 AUD
$380.00 AUD $200.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Ballscrew - Ground Miniature Dia 4mm

Top Level Category: Ballscrew - Ground Miniature Dia 4mm - Lead 1mm

Product Details


Deleted Item. Available while stocks last.

Thread Direction: Right

Chrome Steel
  • Thread Direction: Right

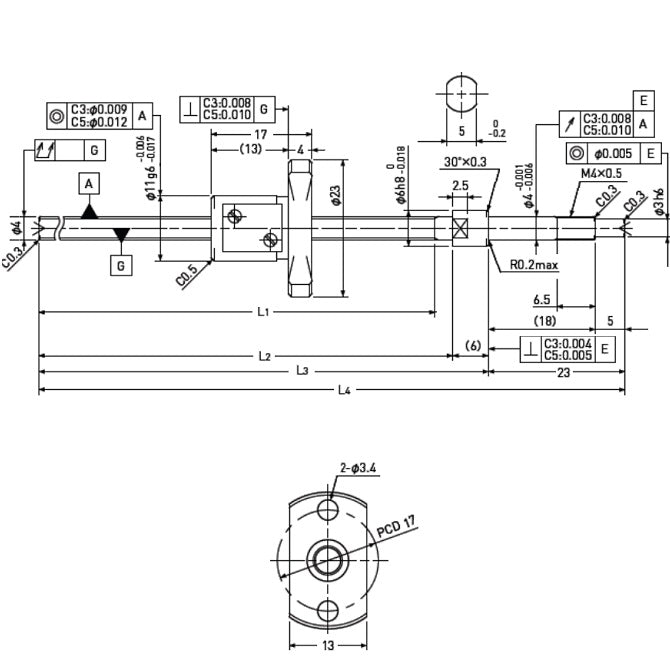

  • Shaft Length (L1/L2/L3/L4): 83 / 86 / 92 / 115mm
    (83 / 86 / 92 / 115mm is 3.268 in.)
  • Travel Distance: 65mm
    (65mm is 2.559 in.)
  • Basic Dynamic Load: 350N
  • Basic Static Load: 400N
  • Hardness: HRC58 ~ 62
  • Grade: C3
  • More Information: For more information, please contact us

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • Reliance SG0401-83R115C3
  • SG040183R115C3

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
