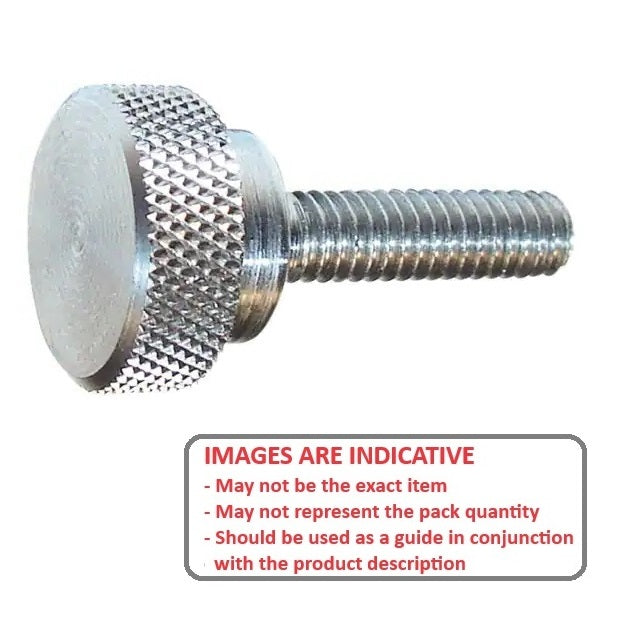

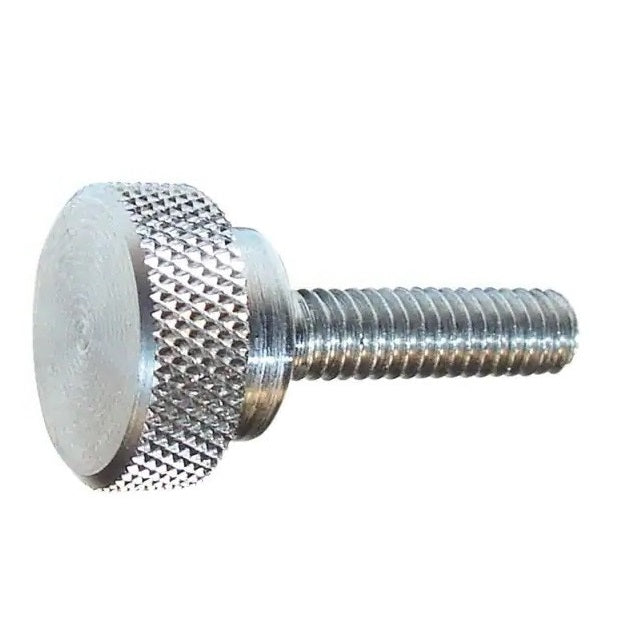

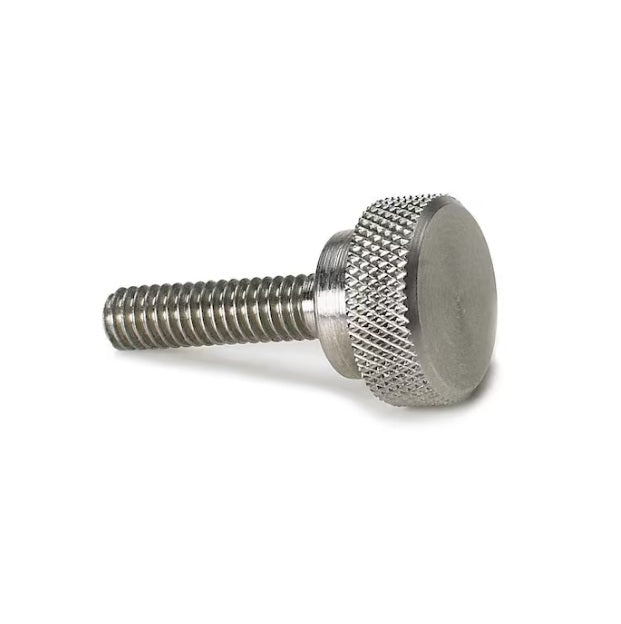

Thumb Screws - M6 -6x1mm- 25x40 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

THS060M-025-K-3-SHL

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Additional resources:
Thumb Screws and Nuts PDF Quick Guide
PDF Screws Catalogue
Nuts
Price:
$21.59 AUD
$21.59 AUD
Each
Qty: 4 available now
Order 50 or more for $19.43 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 06, 2025

Base Category: Screws - Thumb

Top Level Category: Screws - Thumb - Shoulder

Product Details:

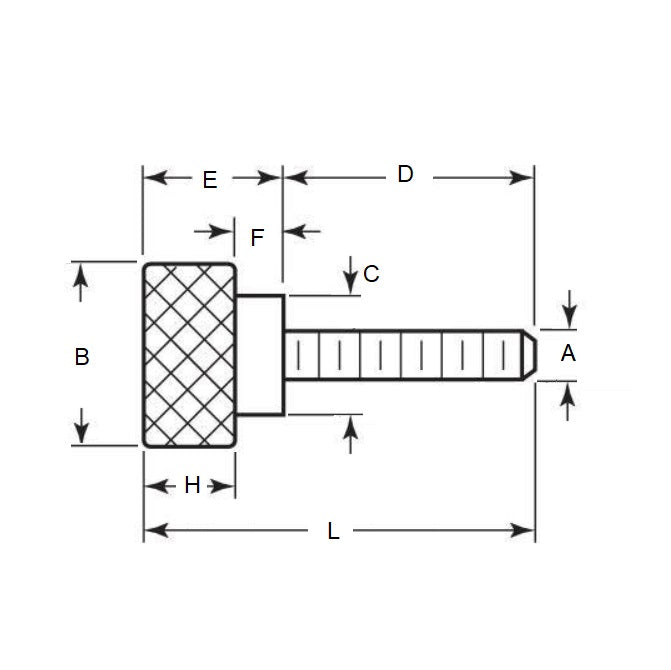

Thread Size (A): M6 (6x1mm)
Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
  • Thread Length (D): 25.00mm
  • Overall Length (L): 40.000mm
  • Head Diameter (B): 24.00mm
  • Shoulder Diameter (C): 12.00
  • Shoulder Length (F): 10.00
  • Head Height incl Shoulder (E): 15.00mm

Brand: MBA
Country of Origin: US

Alternative Parts Include: C-NKOS6-25, CNKOS625, Misumi

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
