Large Shallow Head Screws - M5 - 5x0.8mm - 12 mm - Carbon Steel Screw

SC050M-012-LS-C (Pack of 50)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Large Shallow Head Screws - M5 - 5x0.8mm - 12 mm - Carbon Steel
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per pack of 50
Excludes GST and overseas Taxes & Duties
 Qty: 5 packs (250 pcs) available now
Only 5 packs may be ordered online. If you need a large quantity, please contact us.

M5 (5x0.8mm) 12 mm - Carbon Steel Large Shallow Head Screws - Carbon Steel - Sold Per 50:

Base Category: Screws - Large Shallow Head

Top Level Category: Screws - Large Shallow Head

Product Details


Deleted Item. Available while stocks last.

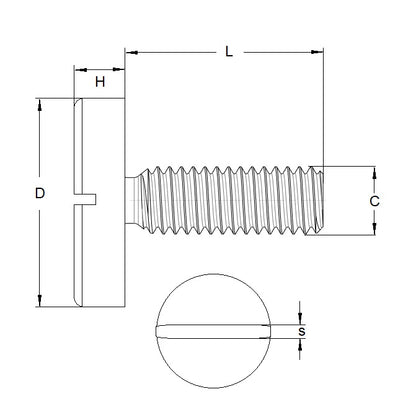

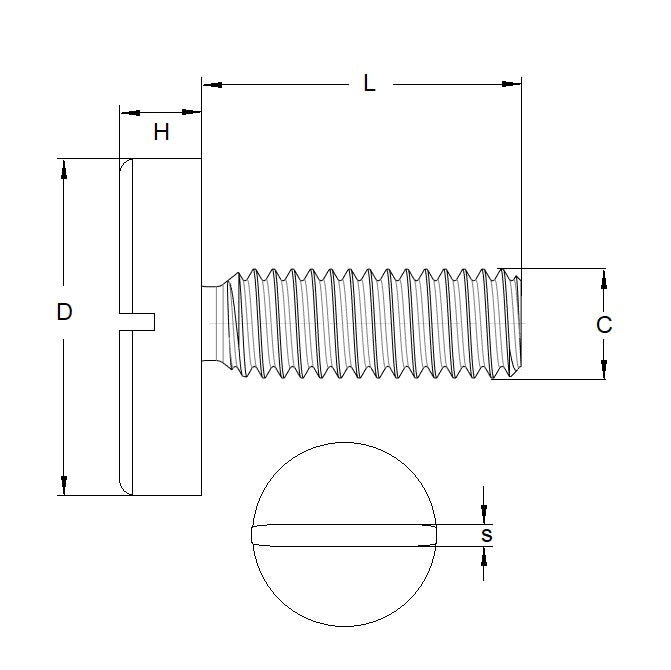

Thread Size (C): M5 (5x0.8mm)
  • Thread Size (C): M5 (5x0.8mm)
  • Thread Length (L): 12mm
    (12mm is 0.472 in.)
  • Material: Carbon Steel
  • DIN: DIN921
  • Head Diameter (D): 16.000mm
  • Head Thickness (H): 2.700mm
  • Slot Width x Depth (s): 1.20 x 1.30mm
  • Pitch: 0.800mm
  • Threads Per Inch: 31.75TPI

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • MD0921MCO05X012

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SC050M012LSC, SC050M012
View full details
