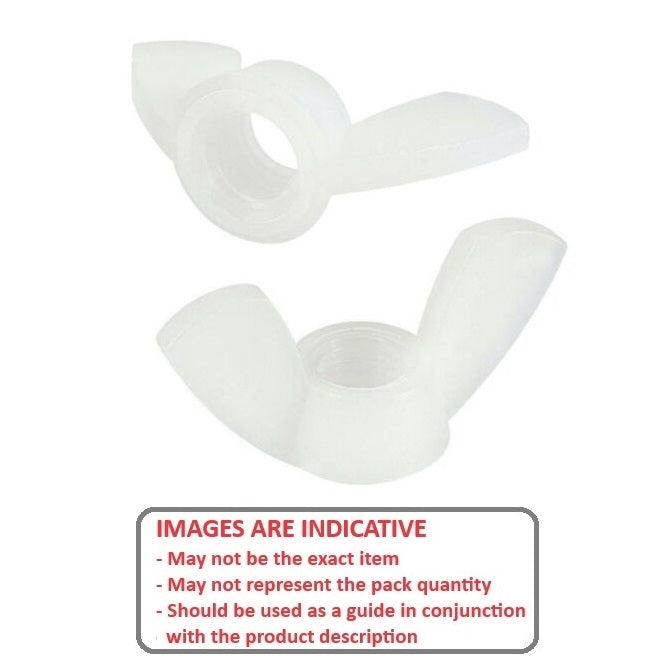

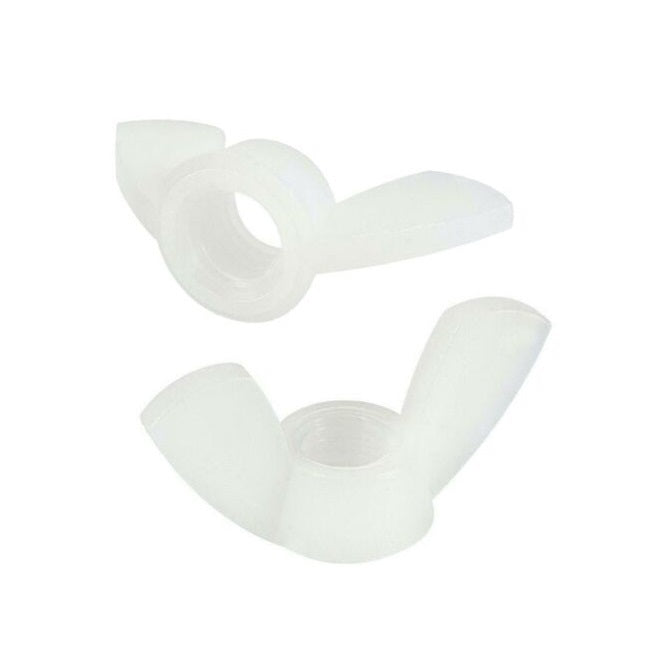

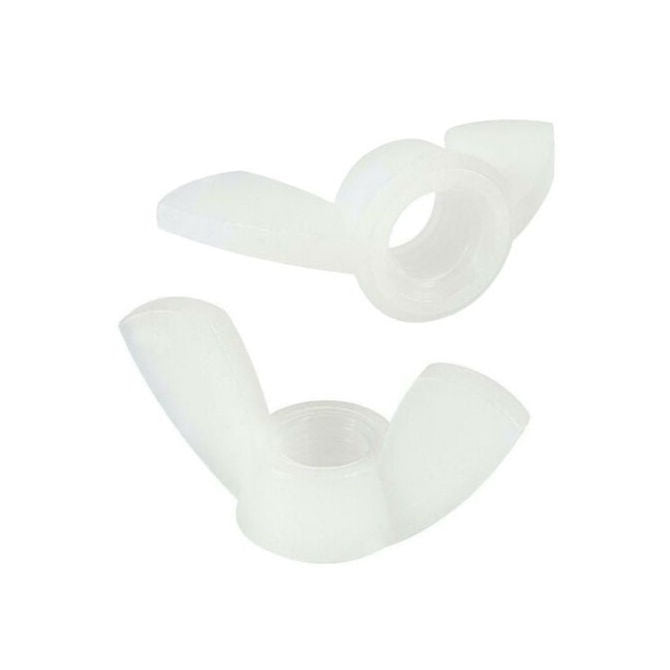

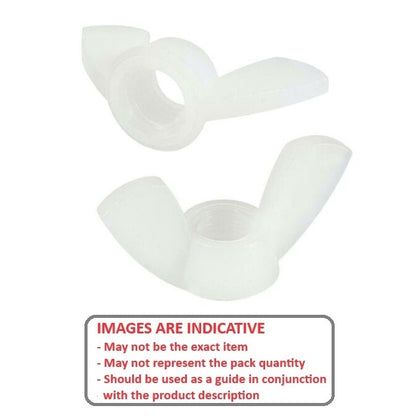

NT050M-WG-NY (10 Pcs)
Nuts - M5x0.8 x 0.800 mm / 31.75 TPI x 8 mm
MBA
Countersunk Head Screws
Pan Head Screws
All Screws
Qty: 1 available now (10 pcs)
Order 50 or more (500 pcs) for $13.63 AUD per 10
Couldn't load pickup availability
Base Category: Nuts - Wing
Top Level Category: Nuts - Wing - Nylon
Product Details:Thread Size: M5x0.8
Natural Nylon 6.6

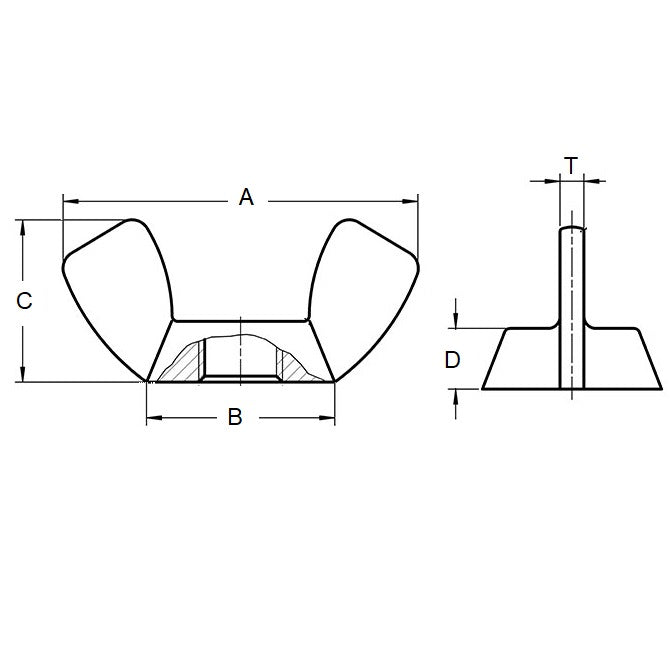

- Pitch in mm / Threads Per Inch: 0.800 mm / 31.75 TPI
- d2: 8.0mm
- L: 16.0mm
- h: 10.0mm
- S: 2.5mm
Brand: MBA
Country of Origin: DE
Alternatives: 92124A520, PWING-M5
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
